22 - Engine - 22.8 - Electrical System

McLaren GT

Find Your Part

McLaren GT - 22 - ENGINE - 22.8 - ELECTRICAL SYSTEM

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11F2171CP VEE MODULE - BLOCK SEAL KIT $111.69 To Order
Photo Part No Description Price (each) Stock
11F1892CP COIL- IGNITION $243.70 IN STOCK
Photo Part No Description Price (each) Stock
11F1893CP PLUG- SPARK- NGK T20231A HR8 $44.96 IN STOCK
Photo Part No Description Price (each) Stock
13F0789CP BRACKET - NON INTAKE SOUND GENERATOR $35.23 To Order
Photo Part No Description Price (each) Stock
13F0790CP BLANKING CONNECTOR - NON INTAKE SOUND GENERATOR $55.84 To Order
Photo Part No Description Price (each) Stock
14F0478CP BRACKET - ENGINE HARNESS $41.86 To Order
Photo Part No Description Price (each) Stock
14F0719CP HARNESS - ENGINE LINK - INJECTORS - RH $173.72 To Order
Photo Part No Description Price (each) Stock
14F0720CP HARNESS - VEE LINK - LH - LH $70.46 To Order
Photo Part No Description Price (each) Stock
14F0823CP HARNESS - ENGINE LINK - INJECTORS - LH Enquire To Order
Photo Part No Description Price (each) Stock
22FA080GP HARNESS - MAIN ENGINE - NO ISG Enquire To Order
Photo Part No Description Price (each) Stock
22FA134GP ENGINE HARN FORMER BRACKET $51.58 To Order
Photo Part No Description Price (each) Stock
11F2191CP SENSOR - ENGINE - CRANK POSITION $60.42 To Order
Photo Part No Description Price (each) Stock
14F0483CP HARNESS - VEE LINK - RH $95.65 To Order

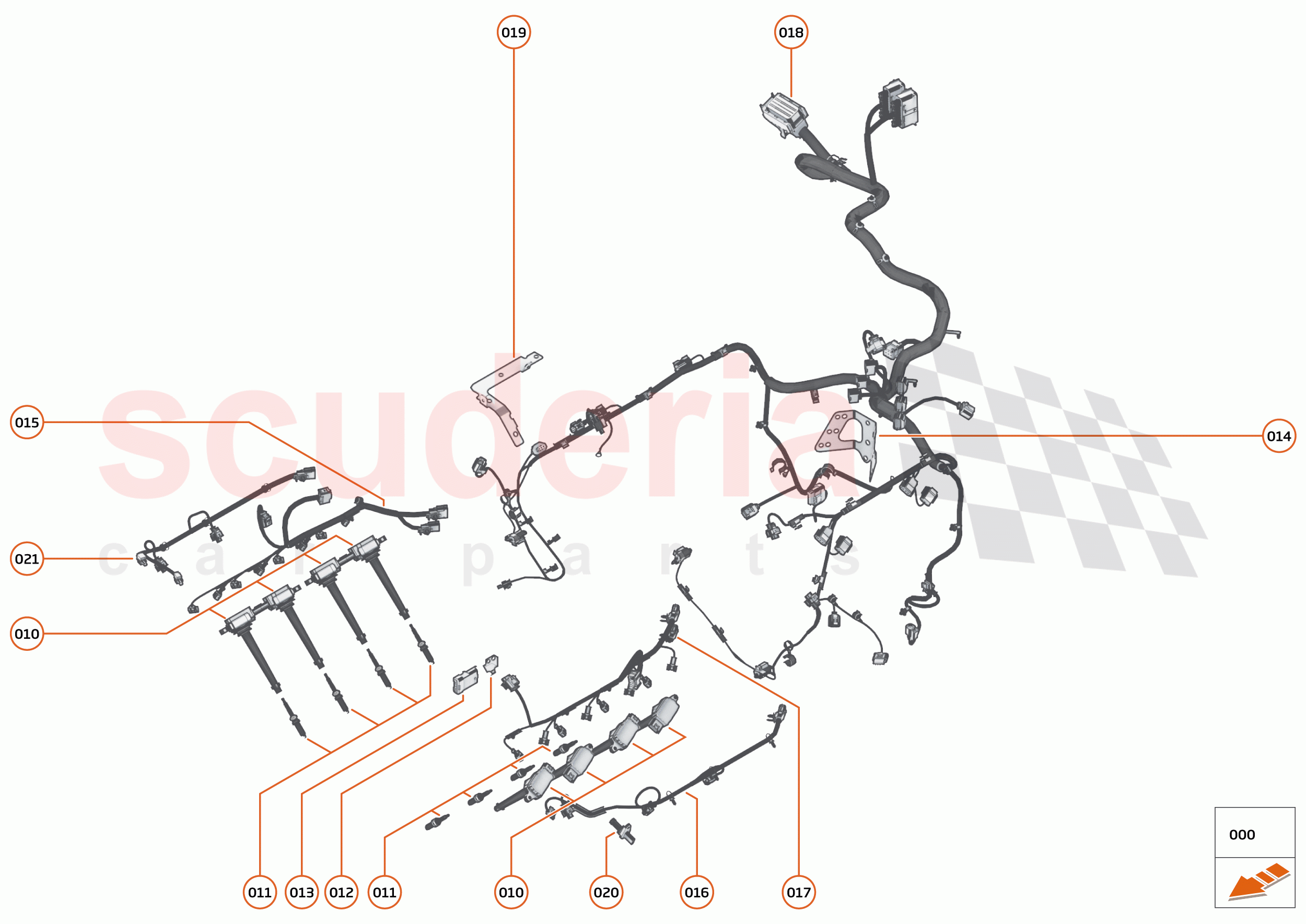

22 - ENGINE - 22.8 - ELECTRICAL SYSTEM of McLaren McLaren GT Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 11F2171CP
VEE MODULE - BLOCK SEAL KIT 		$111.69 1
TO
010 11F1892CP
COIL- IGNITION
IN STOCK 		$243.70 8
IN
011 11F1893CP
PLUG- SPARK- NGK T20231A HR8
IN STOCK 		$44.96 8
IN
012 13F0789CP
BRACKET - NON INTAKE SOUND GENERATOR 		$35.23 1
TO
013 13F0790CP
BLANKING CONNECTOR - NON INTAKE SOUND GENERATOR 		$55.84 1
TO
014 14F0478CP
BRACKET - ENGINE HARNESS 		$41.86 1
TO
015 14F0719CP
HARNESS - ENGINE LINK - INJECTORS - RH 		$173.72 1
TO
016 14F0720CP
HARNESS - VEE LINK - LH - LH 		$70.46 1
TO
017 14F0823CP
HARNESS - ENGINE LINK - INJECTORS - LH 		- 1
PE
 Enquire
018 22FA080GP
HARNESS - MAIN ENGINE - NO ISG 		- 1
PE
 Enquire
019 22FA134GP
ENGINE HARN FORMER BRACKET 		$51.58 1
TO
020 11F2191CP
SENSOR - ENGINE - CRANK POSITION 		$60.42 1
TO
021 14F0483CP
HARNESS - VEE LINK - RH 		$95.65 1
TO
