22 - Engine - 22.4 - Exhaust Manifold & Turbochargers

McLaren GT

Find Your Part

McLaren GT - 22 - ENGINE - 22.4 - EXHAUST MANIFOLD & TURBOCHARGERS

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11F2555CP STUD - M8 - EXHAUST MANIFOLD $14.21 To Order
Photo Part No Description Price (each) Stock
11F1795CP EXHAUST MANIFOLD - HEATSHIELD - SCREW - M6X20 - 675LT - SPORTS SERIES - 720S $12.17 To Order
Photo Part No Description Price (each) Stock
11F1905CP NUT - EXHAUST MANIFOLD FLANGED - M8 $11.14 To Order
Photo Part No Description Price (each) Stock
13F0598CP HEATSHIELD - TURBOCHARGER - - LH $60.42 To Order
Photo Part No Description Price (each) Stock
13F0599CP GASKET - EXHAUST MANIFOLD - ENGINE $96.45 To Order
Photo Part No Description Price (each) Stock
13F0743CP V-RING - TURBOCHARGER - SEAL 59.4 X 64 X 3.3MM $30.44 To Order
Photo Part No Description Price (each) Stock
22FA240GP TURBOCHARGER - LH $2,274.82 To Order
Photo Part No Description Price (each) Stock
22FA241GP TURBOCHARGER - RH $2,274.82 To Order

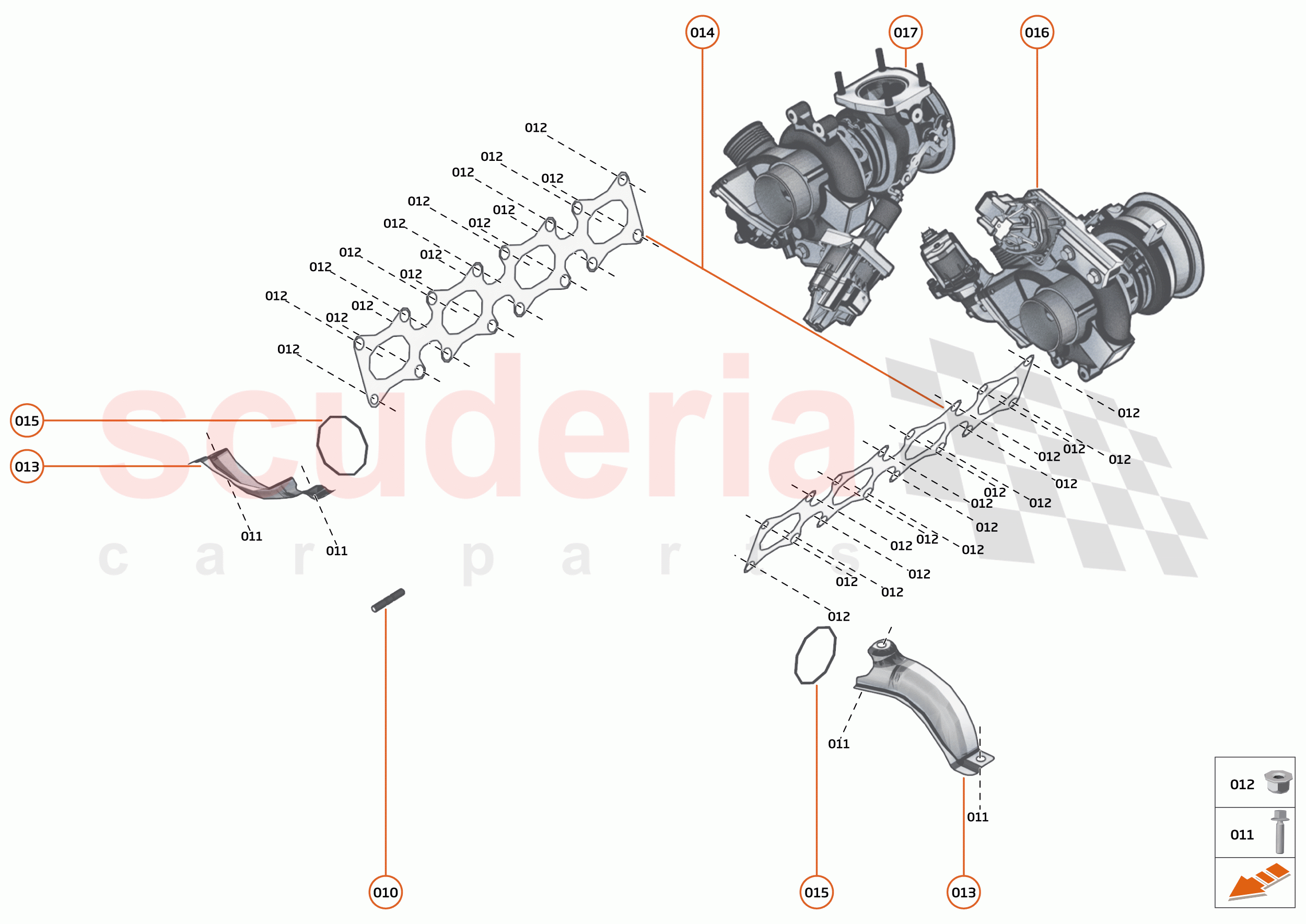

22 - ENGINE - 22.4 - EXHAUST MANIFOLD & TURBOCHARGERS of McLaren McLaren GT Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 11F2555CP
STUD - M8 - EXHAUST MANIFOLD 		$14.21 4
TO
011 11F1795CP
EXHAUST MANIFOLD - HEATSHIELD - SCREW - M6X20 - 675LT - SPORTS SERIES - 720S 		$12.17 6
TO
012 11F1905CP
NUT - EXHAUST MANIFOLD FLANGED - M8 		$11.14 28
TO
013 13F0598CP
HEATSHIELD - TURBOCHARGER - - LH 		$60.42 2
TO
014 13F0599CP
GASKET - EXHAUST MANIFOLD - ENGINE 		$96.45 2
TO
015 13F0743CP
V-RING - TURBOCHARGER - SEAL 59.4 X 64 X 3.3MM 		$30.44 2
TO
016 22FA240GP
TURBOCHARGER - LH 		$2,274.82 1
TO
017 22FA241GP
TURBOCHARGER - RH 		$2,274.82 1
TO
