22 - Engine - 22.11 - Engine Oil Pump & Circuit

McLaren GT

Find Your Part

McLaren GT - 22 - ENGINE - 22.11 - ENGINE OIL PUMP & CIRCUIT

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11F1781CP BOLT - M6X35 - ENGINE $11.14 To Order
Photo Part No Description Price (each) Stock
11F1926CP BOLT - M8X40 - DIA HEAD $8.52 To Order
Photo Part No Description Price (each) Stock
11F2804CP HOSE - TURBOCHARGER OIL RETURN - INC O-RING - LH $203.09 To Order
Photo Part No Description Price (each) Stock
11F2805CP HOSE - TURBOCHARGER OIL RETURN - INC O-RING - RH $446.82 To Order
Photo Part No Description Price (each) Stock
13F0756CP HOSE - TURBOCHARGER OIL FEED - INC. WASHERS/BANJO - RH $142.16 To Order
Photo Part No Description Price (each) Stock
13F0762CP BOLT - HOLLOW - M12 $40.60 To Order
Photo Part No Description Price (each) Stock
13F0825CP GASKET - PIPE - TURBO OIL DRAIN $7.69 To Order
Photo Part No Description Price (each) Stock
14FA028RP OIL PUMP - ENGINE $2,799.66 To Order
Photo Part No Description Price (each) Stock
14F0818CP HOSE - CRANKCASE - OIL SEPERATOR $81.23 To Order
Photo Part No Description Price (each) Stock
11F2060CP SEAL - O-RING - 16-2.5 FKM $12.17 To Order

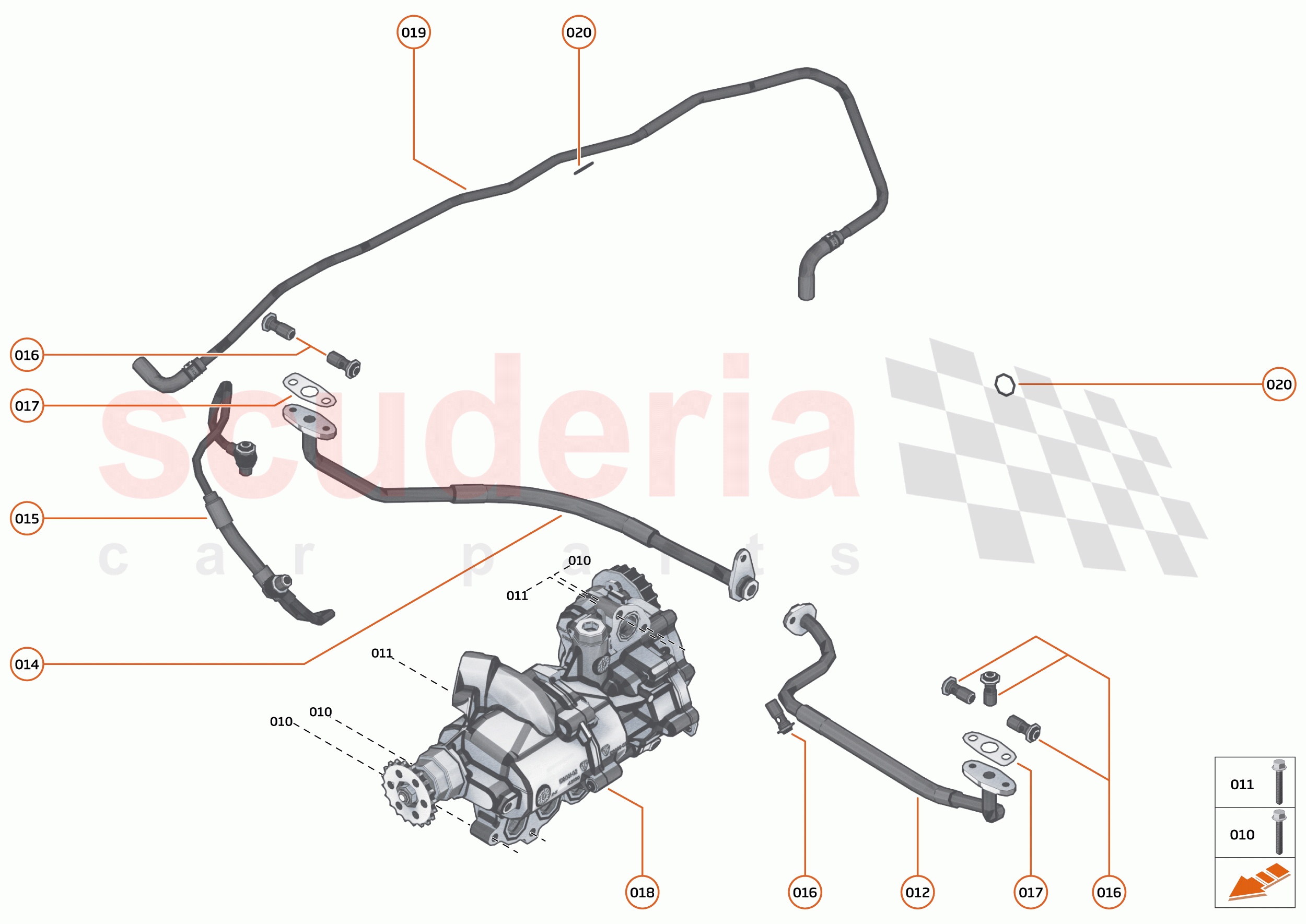

22 - ENGINE - 22.11 - ENGINE OIL PUMP & CIRCUIT of McLaren McLaren GT Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 11F1781CP
BOLT - M6X35 - ENGINE 		$11.14 20
TO
011 11F1926CP
BOLT - M8X40 - DIA HEAD 		$8.52 2
TO
012 11F2804CP
HOSE - TURBOCHARGER OIL RETURN - INC O-RING - LH 		$203.09 1
TO
013 11F2806CP
ORING-SEAL-16X2
IN STOCK 		$7.69 1
IN
014 11F2805CP
HOSE - TURBOCHARGER OIL RETURN - INC O-RING - RH 		$446.82 1
TO
015 13F0756CP
HOSE - TURBOCHARGER OIL FEED - INC. WASHERS/BANJO - RH 		$142.16 1
TO
016 13F0762CP
BOLT - HOLLOW - M12 		$40.60 2
TO
017 13F0825CP
GASKET - PIPE - TURBO OIL DRAIN 		$7.69 2
TO
018 14FA028RP
OIL PUMP - ENGINE 		$2,799.66 1
TO
019 14F0818CP
HOSE - CRANKCASE - OIL SEPERATOR 		$81.23 1
TO
020 11F2060CP
SEAL - O-RING - 16-2.5 FKM 		$12.17 2
TO
