19 - Brakes - 19.7 - Brake Boost System

McLaren GT

Find Your Part

McLaren GT - 19 - BRAKES - 19.7 - BRAKE BOOST SYSTEM

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
13M0801CP VACUUM SENSOR WITH CHECK VALVE $75.52 To Order
Photo Part No Description Price (each) Stock
14CA030CP BOLT - BRAKE BOOSTER - M8X184 $29.97 To Order
Photo Part No Description Price (each) Stock
14CA095CP BRAKE BOOSTER - INC. MASTER CYLINDER Enquire To Order
14CA150CP ASSY-BRAKE BOOSTER $1,107.77 To Order
Photo Part No Description Price (each) Stock
00RA557 BOLT - HEX HEAD - M8X1.25X25 Enquire To Order
Photo Part No Description Price (each) Stock
14CA007CP BRACKET - BRAKE BOOSTER MOUNTING $223.40 To Order
Photo Part No Description Price (each) Stock
00RE012 O-RING - BRACKET - BRAKE BOOSTER Enquire To Order
Photo Part No Description Price (each) Stock
00RA055 NUT - M6 - LOCKING - HEX Enquire To Order
Photo Part No Description Price (each) Stock
15MA186CP SENSOR - YAW RATE $324.96 To Order
Photo Part No Description Price (each) Stock
00RL001 CABLE TIE - FIRTREE BASE Enquire To Order
Photo Part No Description Price (each) Stock
00RX003 BOLT - M6X1X12 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
11M0430CP SENSOR - WHEEL SPEED - FRONT $201.40 To Order
11M0432CP SENSOR - WHEEL SPEED - REAR $201.40 To Order
Photo Part No Description Price (each) Stock
14CA128CP HEATSHIELD - WHEEL SPEED SENSOR - FRONT $40.60 To Order
11E0022CP HEATSHIELD-WHEEL S24SOR $50.76 To Order
Photo Part No Description Price (each) Stock
00RB045 CLIP - 9.5-10MM - MALE Enquire To Order
Photo Part No Description Price (each) Stock
00RB046 CLIP - 8-9MM - FEMALE Enquire To Order
Photo Part No Description Price (each) Stock
00RA573 BOLT - M10X1 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
11C0045CP Mount - Anti-Vibration - Rubber $40.60 To Order
Photo Part No Description Price (each) Stock
13C0182CP BRACKET - ABS MODULATOR $60.42 To Order
Photo Part No Description Price (each) Stock
00RA056 NUT - M8-8 - LOCK HEX Enquire To Order
Photo Part No Description Price (each) Stock
11C0154CP BRKT-MNTG-BOOSTER 24 $345.26 To Order
Photo Part No Description Price (each) Stock
13CA216RP ASSY-BRAKE BOOSTER-26.9 $1,409.89 To Order
Photo Part No Description Price (each) Stock
13C0205CP ABS MODULATOR 46 PIN EUCON - PRE-FILLED $1,726.40 To Order

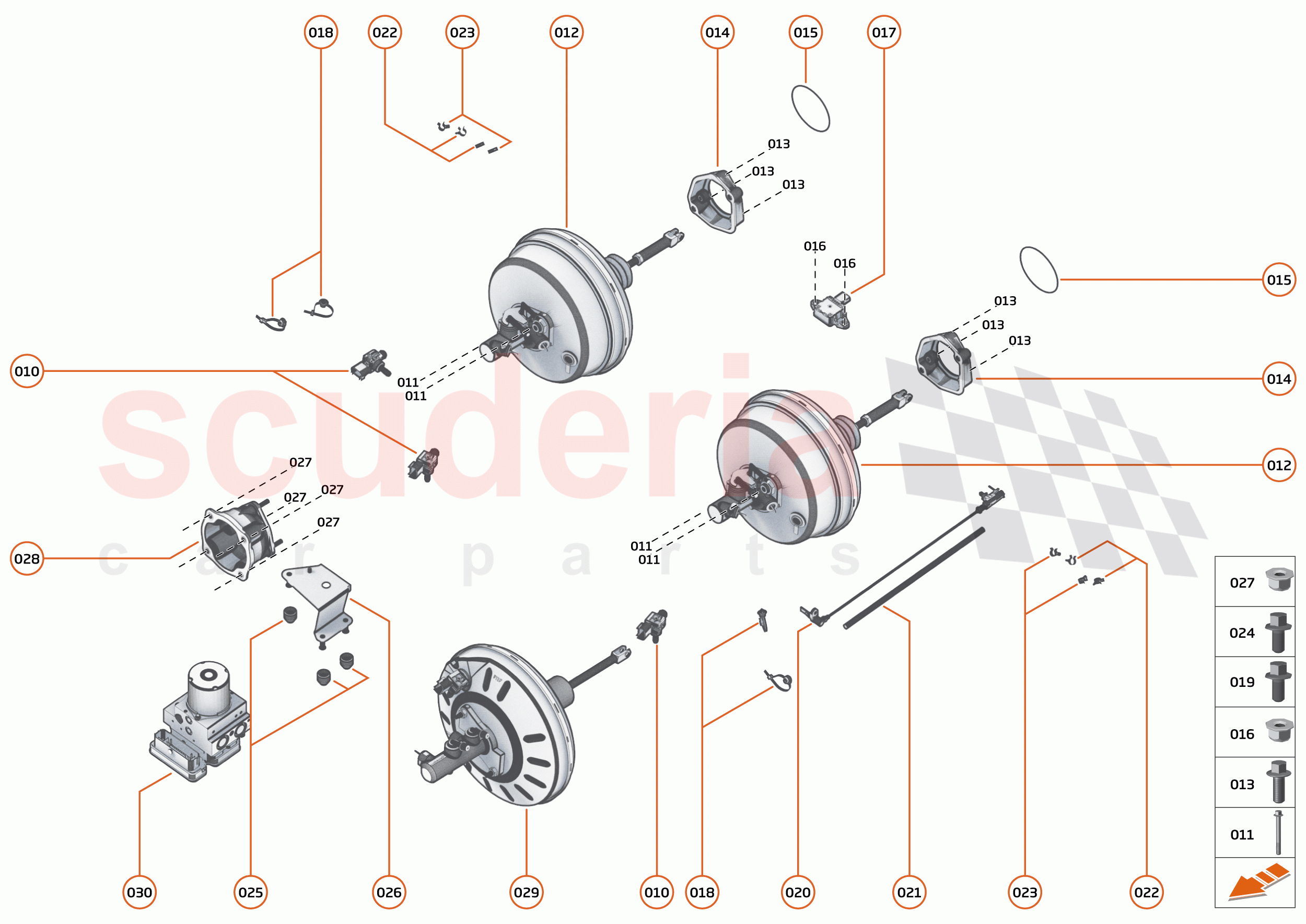

19 - BRAKES - 19.7 - BRAKE BOOST SYSTEM of McLaren McLaren GT Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 13M0801CP
VACUUM SENSOR WITH CHECK VALVE 		$75.52 1
TO
011 14CA030CP
BOLT - BRAKE BOOSTER - M8X184 		$29.97 2
TO
012 14CA095CP
BRAKE BOOSTER - INC. MASTER CYLINDER 		- 1
PE
 Enquire
012 14CA150CP
ASSY-BRAKE BOOSTER 		$1,107.77 1
TO
013 00RA557
BOLT - HEX HEAD - M8X1.25X25 		- 9
PE
 Enquire
014 14CA007CP
BRACKET - BRAKE BOOSTER MOUNTING 		$223.40 1
TO
015 00RE012
O-RING - BRACKET - BRAKE BOOSTER 		- 1
PE
 Enquire
016 00RA055
NUT - M6 - LOCKING - HEX 		- 4
PE
 Enquire
017 15MA186CP
SENSOR - YAW RATE 		$324.96 1
TO
018 00RL001
CABLE TIE - FIRTREE BASE 		- 5
PE
 Enquire
019 00RX003
BOLT - M6X1X12 - HEX 		- 2
PE
 Enquire
020 11M0430CP
SENSOR - WHEEL SPEED - FRONT 		$201.40 1
TO
020 11M0432CP
SENSOR - WHEEL SPEED - REAR 		$201.40 1
TO
021 14CA128CP
HEATSHIELD - WHEEL SPEED SENSOR - FRONT 		$40.60 1
TO
021 11E0022CP
HEATSHIELD-WHEEL S24SOR 		$50.76 1
TO
022 00RB045
CLIP - 9.5-10MM - MALE 		- 1
PE
 Enquire
023 00RB046
CLIP - 8-9MM - FEMALE 		- 1
PE
 Enquire
024 00RA573
BOLT - M10X1 - HEX 		- 1
PE
 Enquire
025 11C0045CP
Mount - Anti-Vibration - Rubber 		$40.60 4
TO
026 13C0182CP
BRACKET - ABS MODULATOR 		$60.42 1
TO
027 00RA056
NUT - M8-8 - LOCK HEX 		- 6
PE
 Enquire
028 11C0154CP
BRKT-MNTG-BOOSTER 24 		$345.26 1
TO
029 13CA216RP
ASSY-BRAKE BOOSTER-26.9 		$1,409.89 1
TO
030 13C0205CP
ABS MODULATOR 46 PIN EUCON - PRE-FILLED 		$1,726.40 1
TO
