Name: 13 - LIGHTS - 13.2 - REAR LIGHTS
Rating: 4.5 (1 reviews)

Diagram
INFO

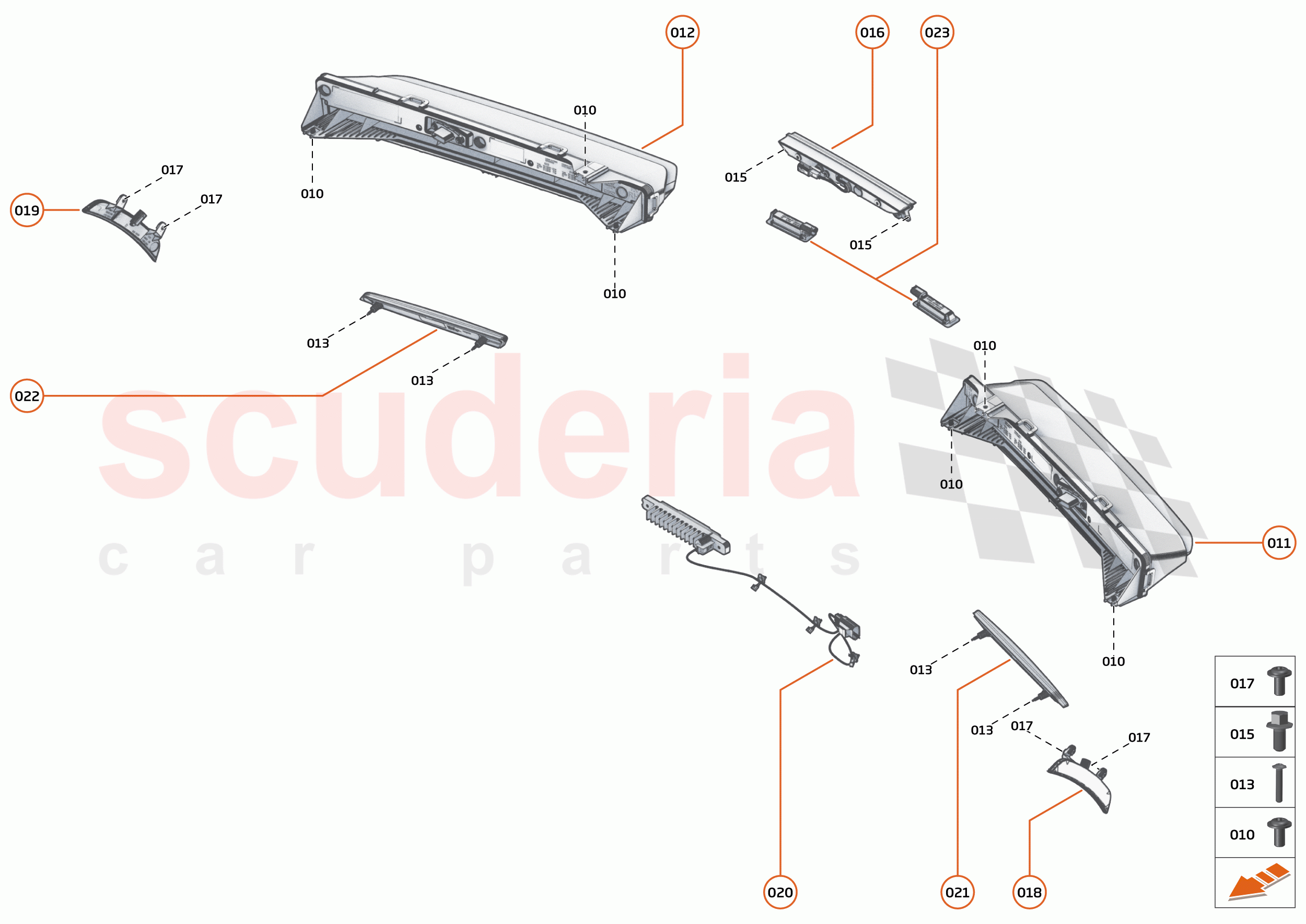

13 - LIGHTS - 13.2 - REAR LIGHTS of McLaren McLaren GT

McLaren GT - 13 - LIGHTS - 13.2 - REAR LIGHTS

View the exploded parts diagram to find the part you are looking for

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

TO ORDER

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	00RA468	SCREW - BUTTON HEAD - FLANGE - M6X12 - BLACK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15AD180CP	LAMP - REAR - LH	$1,409.89	To Order
	15AC668CP	LAMP - REAR - LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15AD181CP	LAMP - REAR - RH	$1,510.61	To Order
	15AC669CP	LAMP - REAR - RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA549	SCREW - BUTTON - TORX - M4X16	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA165	BOLT - M5X8 - HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13A5180CP	LAMP - HIGH MOUNTED STOP	$191.32	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA489	SCREW - M4X10 - FLANGED - BUTTON HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	22AA936GP	SIDE BEZEL RR LH SMOKED	$192.93	To Order
	22AB128GP	ASSY-SIDE MARKER RR-LH	$150.78	To Order

Photo	Part No	Description	Price (each)	Stock
	22AA938GP	SIDE BEZEL RR RH SMOKED	$192.93	To Order
	22AB129GP	ASSY-SIDE MARKER RR-RH	$150.78	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA582	NUT - M5 - HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13A3750CP	REFLECTOR - REAR - LH	$65.44	To Order

Photo	Part No	Description	Price (each)	Stock
	13A3751CP	REFLECTOR - REAR - RH	$65.44	To Order

Photo	Part No	Description	Price (each)	Stock
	13A5971CP	LAMP - LICENCE PLATE - LUGGAGE BIN	$40.26	To Order

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Key	Add to Cart
010	00RA468	SCREW - BUTTON HEAD - FLANGE - M6X12 - BLACK	00RA468 SCREW - BUTTON HEAD - FLANGE - M6X12 - BLACK	-	4	PE	Enquire
011	15AD180CP	LAMP - REAR - LH	15AD180CP LAMP - REAR - LH	$1,409.89	1	TO
011	15AC668CP	LAMP - REAR - LH	15AC668CP LAMP - REAR - LH	-	1	PE	Enquire
012	15AD181CP	LAMP - REAR - RH	15AD181CP LAMP - REAR - RH	$1,510.61	1	TO
012	15AC669CP	LAMP - REAR - RH	15AC669CP LAMP - REAR - RH	-	1	PE	Enquire
013	00RA549	SCREW - BUTTON - TORX - M4X16	00RA549 SCREW - BUTTON - TORX - M4X16	-	2	PE	Enquire
014	13A3022CP	LAMP - FOG / REVERSE	13A3022CP LAMP - FOG / REVERSE	$563.95	1	TO
015	00RA165	BOLT - M5X8 - HEX	00RA165 BOLT - M5X8 - HEX	-	2	PE	Enquire
016	13A5180CP	LAMP - HIGH MOUNTED STOP	13A5180CP LAMP - HIGH MOUNTED STOP	$191.32	1	TO
017	00RA489	SCREW - M4X10 - FLANGED - BUTTON HEAD	00RA489 SCREW - M4X10 - FLANGED - BUTTON HEAD	-	2	PE	Enquire
018	22AA936GP	SIDE BEZEL RR LH SMOKED	22AA936GP SIDE BEZEL RR LH SMOKED	$192.93	1	TO
018	22AB128GP	ASSY-SIDE MARKER RR-LH	22AB128GP ASSY-SIDE MARKER RR-LH	$150.78	1	TO
019	22AA938GP	SIDE BEZEL RR RH SMOKED	22AA938GP SIDE BEZEL RR RH SMOKED	$192.93	1	TO
019	22AB129GP	ASSY-SIDE MARKER RR-RH	22AB129GP ASSY-SIDE MARKER RR-RH	$150.78	1	TO
020	00RA582	NUT - M5 - HEX	00RA582 NUT - M5 - HEX	-	2	PE	Enquire
021	13A3750CP	REFLECTOR - REAR - LH	13A3750CP REFLECTOR - REAR - LH	$65.44	1	TO
022	13A3751CP	REFLECTOR - REAR - RH	13A3751CP REFLECTOR - REAR - RH	$65.44	1	TO
023	13A5971CP	LAMP - LICENCE PLATE - LUGGAGE BIN	13A5971CP LAMP - LICENCE PLATE - LUGGAGE BIN	$40.26	1	TO
