McLaren Elva

Find Your Part

McLaren Elva - 31 - COOLING SYSTEM - 31.5 - LOW TEMPERATURE RADIATORS AND FANS

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
16LA184CP LTR RH $452.33 To Order
Photo Part No Description Price (each) Stock
00RG011 GROMMET - DIA 19 - RUBBER Enquire To Order
Photo Part No Description Price (each) Stock
00RC043 WASHER - M6XOD25 Enquire To Order
Photo Part No Description Price (each) Stock
00RA353 SCREW - 6X14 - THREADFORMING - TORX - FLANGE Enquire To Order
Photo Part No Description Price (each) Stock
16L0202CP LTR LH $452.33 To Order
Photo Part No Description Price (each) Stock
16LA371CP Color codes: LTR-GRILLE $111.69 To Order
Photo Part No Description Price (each) Stock
11L0529CP LOW TEMPERATURE RADIATOR - GRILL - PEGS $3.23 To Order

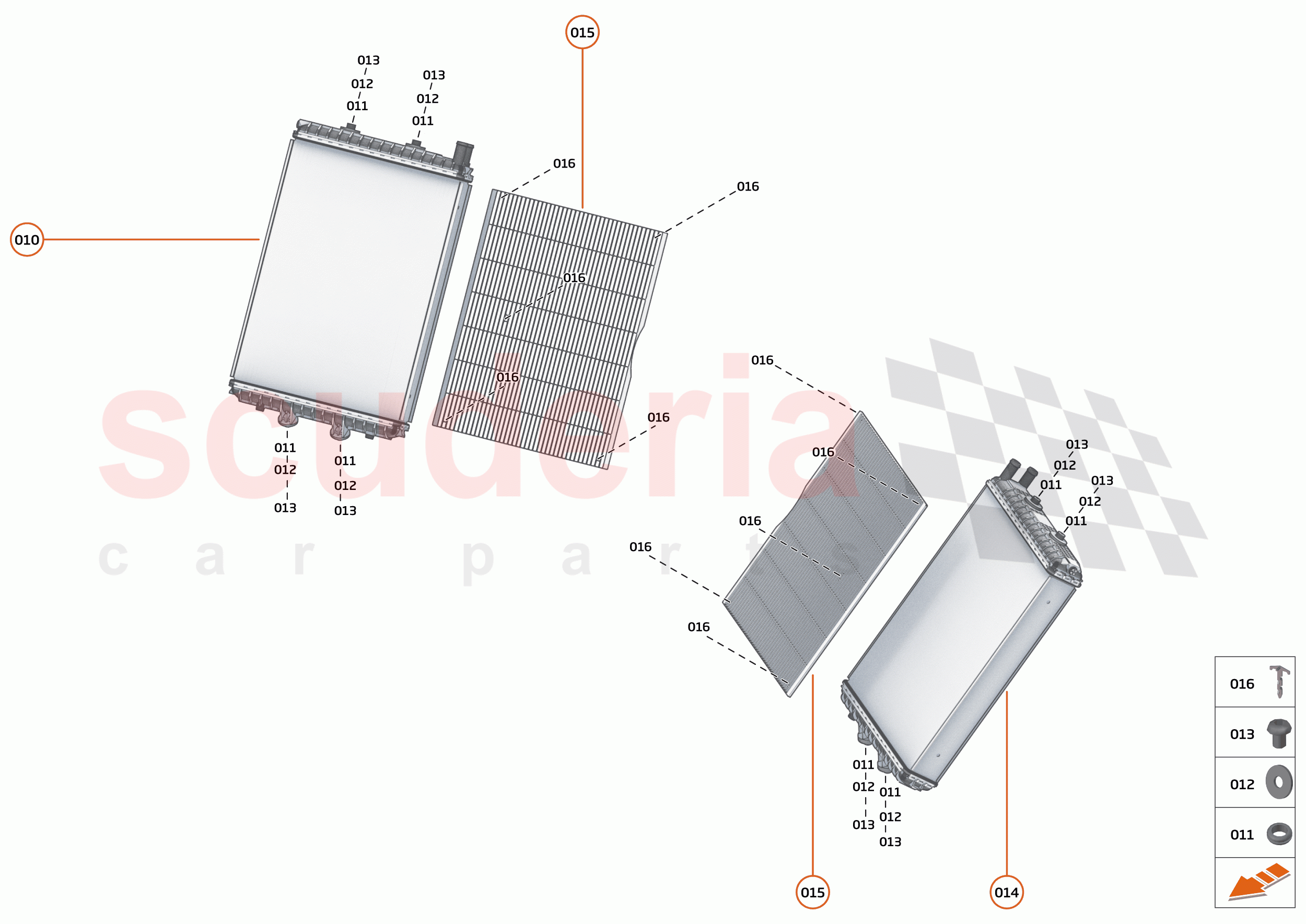

31 - COOLING SYSTEM - 31.5 - LOW TEMPERATURE RADIATORS AND FANS of McLaren McLaren Elva Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 16LA184CP
LTR RH
LTR RH; 		$452.33 1
TO
011 00RG011
GROMMET - DIA 19 - RUBBER 		- 8
PE
 Enquire
012 00RC043
WASHER - M6XOD25 		- 8
PE
 Enquire
013 00RA353
SCREW - 6X14 - THREADFORMING - TORX - FLANGE 		- 8
PE
 Enquire
014 16L0202CP
LTR LH
LTR LH; 		$452.33 1
TO
015 16LA371CP
Color codes: LTR-GRILLE
Color codes: LTR-GRILLE; 		$111.69 2
TO
016 11L0529CP
LOW TEMPERATURE RADIATOR - GRILL - PEGS 		$3.23 10
TO
