31 - COOLING SYSTEM - 31.1 - HIGH TEMPERATURE CIRCUIT & PIPES of McLaren McLaren Elva

McLaren Elva - 31 - COOLING SYSTEM - 31.1 - HIGH TEMPERATURE CIRCUIT & PIPES

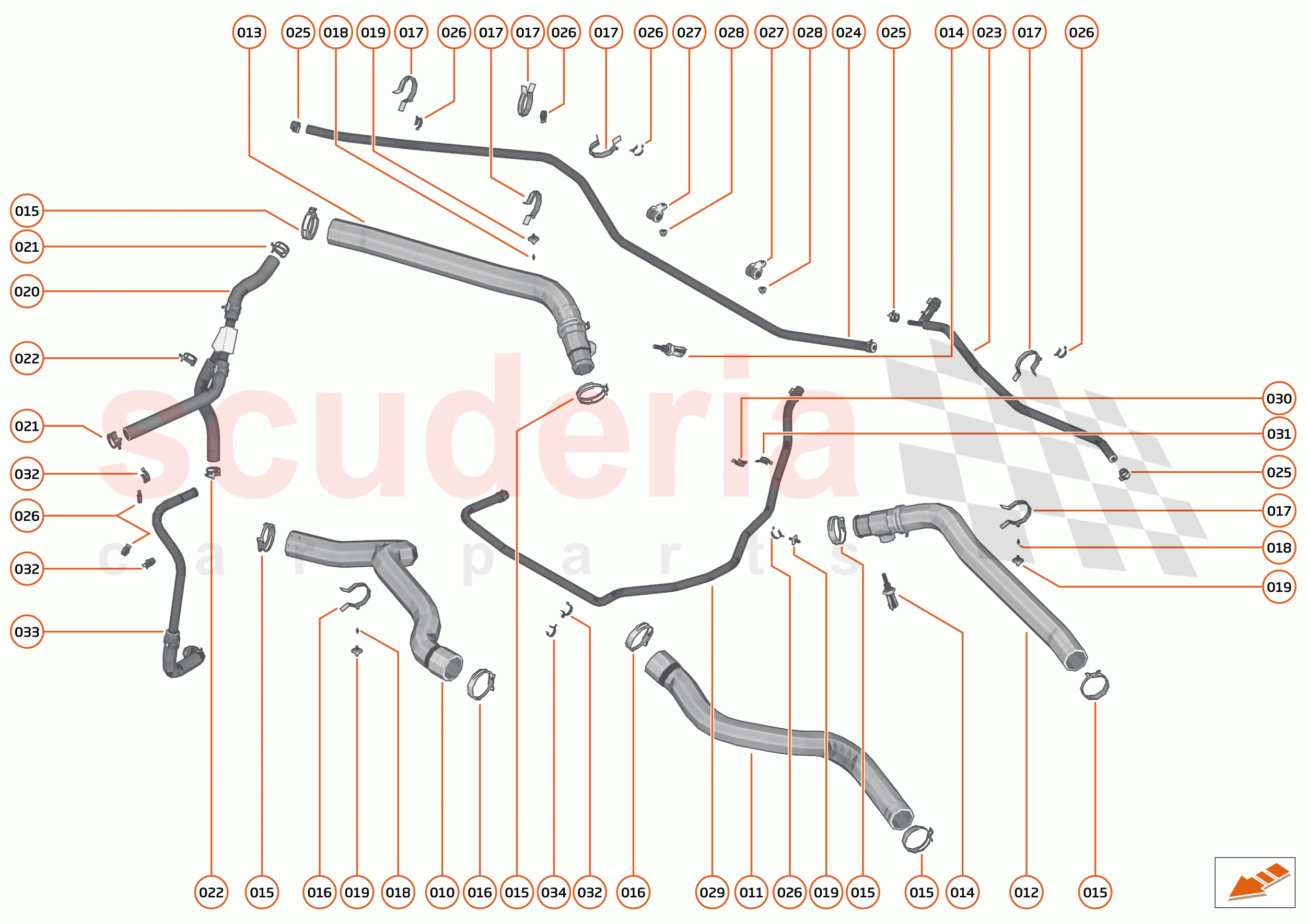

View the exploded parts diagram to find the part you are looking for

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

TO ORDER

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	14L0043CP	HOSE - ENGINE TO RADIATOR - RH	$172.62	To Order

Photo	Part No	Description	Price (each)	Stock
	14LA044CP	HOSE - ENGINE TO RADIATOR - LH	$172.62	To Order

Photo	Part No	Description	Price (each)	Stock
	26LA008SP	HOSE-RADIATOR-UPR-LH	$324.96	To Order

Photo	Part No	Description	Price (each)	Stock
	26LA009SP	HOSE-RADIATOR-UPR-RH	$324.96	To Order

Photo	Part No	Description	Price (each)	Stock
	11L0247CP	SENSOR - COOLANT TEMPERATURE - ENGINE	$39.99	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB212	CLAMP - SPRING BAND - 42X12	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB206	CLAMP - SPRING BAND - 47X12	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB057	CLIP - 39-45MM - FEMALE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB023	CLIP SPACER - 1MM - MALE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RG019	SWIVEL - 6.5X10.5 FIRTREE BASE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	26LA011SP	HOSE-HEADER TANK TO Y-PIECE	$547.87	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB202	CLAMP - SPRING BAND - 23X12	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB201	CLAMP - SPRING BAND - 21X12	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	26LA013SP	HOSE-RAD BLEED-LH	$182.79	To Order

Photo	Part No	Description	Price (each)	Stock
	26LA014SP	HOSE-RAD BLEED-RH	$182.79	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB199	CLAMP - SPRING BAND - 14X12	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB044	SWIVEL PIPE CLIP - 16MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB005	P CLIP - DIA 16	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA055	NUT - M6 - LOCKING - HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	26LA080SP	DEGAS HOSE 8ID	$112.85	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB032	CLIP - 13-14MM - FEMALE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB034	CLIP - 14-15MM - MALE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB141	SWIVEL CLIP - FEMALE CSC9	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	26LA085SP	HOSE-ENGINE TO Y-PIECE	$258.26	To Order

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Key	Add to Cart
000	00RG018	SWIVEL CLIP - 22-24MM -MALE	00RG018 SWIVEL CLIP - 22-24MM -MALE	-	1	PE	Enquire
010	14L0043CP	HOSE - ENGINE TO RADIATOR - RH	14L0043CP HOSE - ENGINE TO RADIATOR - RH	$172.62	1	TO
011	14LA044CP	HOSE - ENGINE TO RADIATOR - LH	14LA044CP HOSE - ENGINE TO RADIATOR - LH	$172.62	1	TO
012	26LA008SP	HOSE-RADIATOR-UPR-LH	26LA008SP HOSE-RADIATOR-UPR-LH	$324.96	1	TO
013	26LA009SP	HOSE-RADIATOR-UPR-RH	26LA009SP HOSE-RADIATOR-UPR-RH	$324.96	1	TO
014	11L0247CP	SENSOR - COOLANT TEMPERATURE - ENGINE	11L0247CP SENSOR - COOLANT TEMPERATURE - ENGINE	$39.99	2	TO
015	00RB212	CLAMP - SPRING BAND - 42X12	00RB212 CLAMP - SPRING BAND - 42X12	-	6	PE	Enquire
016	00RB206	CLAMP - SPRING BAND - 47X12	00RB206 CLAMP - SPRING BAND - 47X12	-	2	PE	Enquire
017	00RB057	CLIP - 39-45MM - FEMALE	00RB057 CLIP - 39-45MM - FEMALE	-	3	PE	Enquire
018	00RB023	CLIP SPACER - 1MM - MALE	00RB023 CLIP SPACER - 1MM - MALE	-	3	PE	Enquire
019	00RG019	SWIVEL - 6.5X10.5 FIRTREE BASE	00RG019 SWIVEL - 6.5X10.5 FIRTREE BASE	-	3	PE	Enquire
020	26LA011SP	HOSE-HEADER TANK TO Y-PIECE	26LA011SP HOSE-HEADER TANK TO Y-PIECE	$547.87	1	TO
021	00RB202	CLAMP - SPRING BAND - 23X12	00RB202 CLAMP - SPRING BAND - 23X12	-	2	PE	Enquire
022	00RB201	CLAMP - SPRING BAND - 21X12	00RB201 CLAMP - SPRING BAND - 21X12	-	1	PE	Enquire
023	26LA013SP	HOSE-RAD BLEED-LH	26LA013SP HOSE-RAD BLEED-LH	$182.79	1	TO
024	26LA014SP	HOSE-RAD BLEED-RH	26LA014SP HOSE-RAD BLEED-RH	$182.79	1	TO
025	00RB199	CLAMP - SPRING BAND - 14X12	00RB199 CLAMP - SPRING BAND - 14X12	-	4	PE	Enquire
026	00RB044	SWIVEL PIPE CLIP - 16MM	00RB044 SWIVEL PIPE CLIP - 16MM	-	4	PE	Enquire
027	00RB005	P CLIP - DIA 16	00RB005 P CLIP - DIA 16	-	2	PE	Enquire
028	00RA055	NUT - M6 - LOCKING - HEX	00RA055 NUT - M6 - LOCKING - HEX	-	2	PE	Enquire
029	26LA080SP	DEGAS HOSE 8ID	26LA080SP DEGAS HOSE 8ID	$112.85	1	TO
030	00RB032	CLIP - 13-14MM - FEMALE	00RB032 CLIP - 13-14MM - FEMALE	-	1	PE	Enquire
031	00RB034	CLIP - 14-15MM - MALE	00RB034 CLIP - 14-15MM - MALE	-	1	PE	Enquire
032	00RB141	SWIVEL CLIP - FEMALE CSC9	00RB141 SWIVEL CLIP - FEMALE CSC9	-	1	PE	Enquire
033	26LA085SP	HOSE-ENGINE TO Y-PIECE	26LA085SP HOSE-ENGINE TO Y-PIECE	$258.26	1	TO
