McLaren Elva - 30 - FUEL SYSTEM - 30.1 - FUEL TANK

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RA055 NUT - M6 - LOCKING - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RB147 HOSE CLAMP - STEPLESS EAR - 59 DIA Enquire To Order
Photo Part No Description Price (each) Stock
15KA045CP ASSY - FUEL TANK - COMPLETE - ROW $4,790.17 To Order
Photo Part No Description Price (each) Stock
14K0053CP FILTER - CHARCOAL $812.40 To Order
Photo Part No Description Price (each) Stock
14K0054CP PIPE - PURGE - FUEL TANK $111.69 To Order
Photo Part No Description Price (each) Stock
14KA027CP PAD - FUEL TANK - UPPER - LH $35.23 To Order
Photo Part No Description Price (each) Stock
14KA013CP BREATHER HOSE - FUEL TANK - CANISTER $90.62 To Order
Photo Part No Description Price (each) Stock
14KA029CP PAD - FUEL TANK - UPPER - RH $13.06 To Order
Photo Part No Description Price (each) Stock
12K0229CP SEAL - RETAINING RING - FUEL PUMP $71.07 To Order
Photo Part No Description Price (each) Stock
14KA028CP PAD - FUEL TANK - UPPER - CENTRE $65.44 To Order
Photo Part No Description Price (each) Stock
14K0118CP HOSE - FUEL FEED $111.69 To Order
Photo Part No Description Price (each) Stock
14K0123CP BRACKET - CANISTER SUPPORT $18.26 To Order
Photo Part No Description Price (each) Stock
14K0140CP PAD - FUEL TANK - CANISTER $12.08 IN STOCK
Photo Part No Description Price (each) Stock
14KA030CP PAD - FUEL TANK - SEPARATOR $11.06 To Order
Photo Part No Description Price (each) Stock
14KA064CP PIPE - BREATHER - MOULDED - CANISTER $50.76 To Order
Photo Part No Description Price (each) Stock
15KA004CP FLANGE - FUEL TANK $121.84 To Order
Photo Part No Description Price (each) Stock
14K0087CP PUMP MOUNT - MOULDED $80.54 To Order
Photo Part No Description Price (each) Stock
14KA120CP ASSY - TWIN FUEL PUMP $1,624.84 To Order
Photo Part No Description Price (each) Stock
15KA035CP JET PUMP HOSE - FUEL TANK $201.40 To Order
Photo Part No Description Price (each) Stock
15MA102CP HARNESS - FUEL CELL - FUEL TANK $201.40 To Order

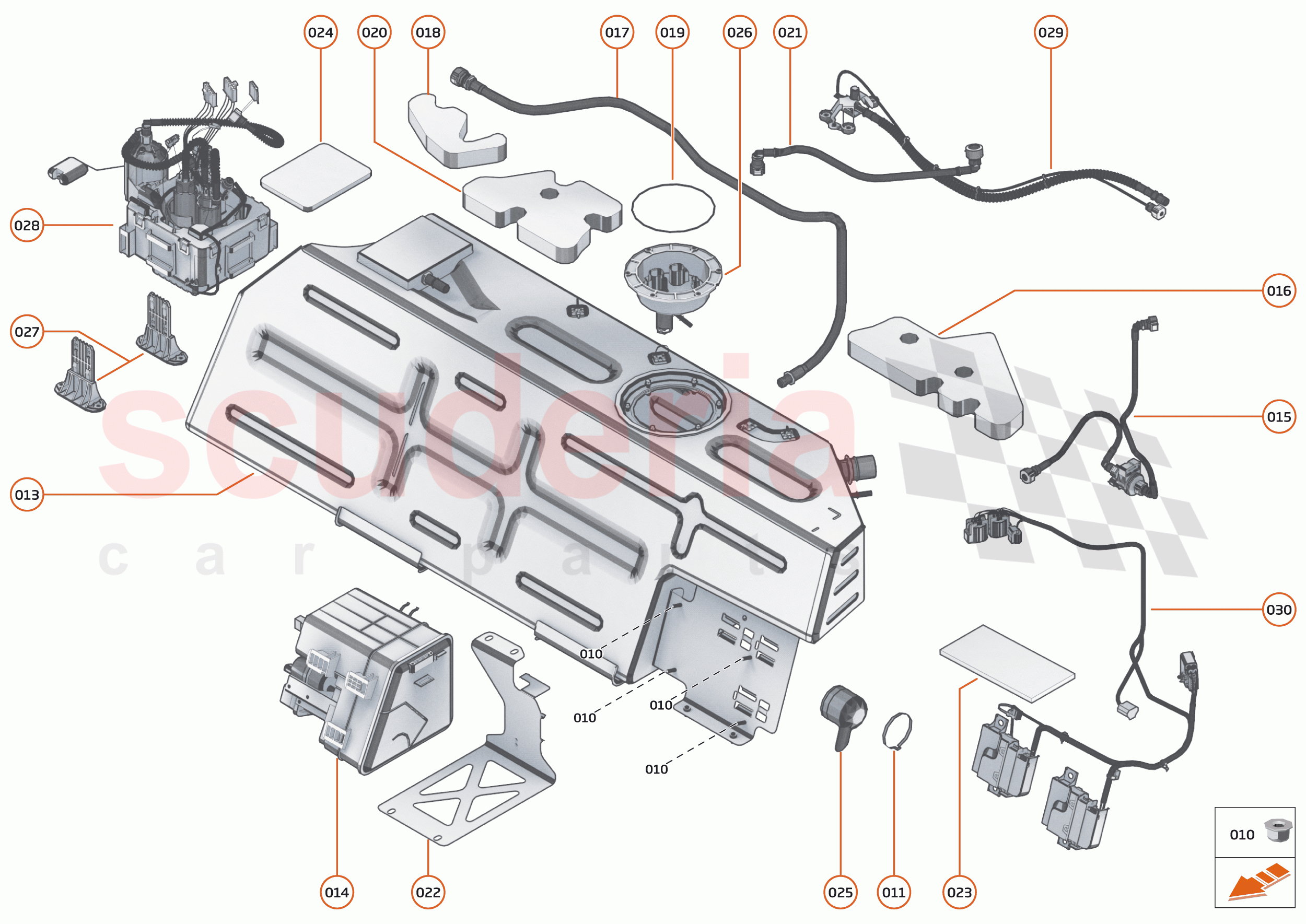

30 - FUEL SYSTEM - 30.1 - FUEL TANK of McLaren McLaren Elva Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 00RL004
FELT TAPE
FELT TAPE; 		- 1
PE
 Enquire
010 00RA055
NUT - M6 - LOCKING - HEX 		- 4
PE
 Enquire
011 00RB147
HOSE CLAMP - STEPLESS EAR - 59 DIA 		- 1
PE
 Enquire
013 15KA045CP
ASSY - FUEL TANK - COMPLETE - ROW 		$4,790.17 1
TO
014 14K0053CP
FILTER - CHARCOAL 		$812.40 1
TO
015 14K0054CP
PIPE - PURGE - FUEL TANK 		$111.69 1
TO
016 14KA027CP
PAD - FUEL TANK - UPPER - LH 		$35.23 1
TO
017 14KA013CP
BREATHER HOSE - FUEL TANK - CANISTER 		$90.62 1
TO
018 14KA029CP
PAD - FUEL TANK - UPPER - RH 		$13.06 1
TO
019 12K0229CP
SEAL - RETAINING RING - FUEL PUMP 		$71.07 1
TO
020 14KA028CP
PAD - FUEL TANK - UPPER - CENTRE 		$65.44 1
TO
021 14K0118CP
HOSE - FUEL FEED 		$111.69 1
TO
022 14K0123CP
BRACKET - CANISTER SUPPORT 		$18.26 1
TO
023 14K0140CP
PAD - FUEL TANK - CANISTER
IN STOCK 		$12.08 1
IN
024 14KA030CP
PAD - FUEL TANK - SEPARATOR 		$11.06 1
TO
025 14KA064CP
PIPE - BREATHER - MOULDED - CANISTER 		$50.76 1
TO
026 15KA004CP
FLANGE - FUEL TANK 		$121.84 1
TO
027 14K0087CP
PUMP MOUNT - MOULDED 		$80.54 2
TO
028 14KA120CP
ASSY - TWIN FUEL PUMP 		$1,624.84 1
TO
029 15KA035CP
JET PUMP HOSE - FUEL TANK 		$201.40 1
TO
030 15MA102CP
HARNESS - FUEL CELL - FUEL TANK 		$201.40 1
TO
