McLaren Elva - 25 - NVH - HEAT INSULATION - 25.2 - INSULATION - VEHICLE MOUNTED

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RG003 FIRTREE 7.2X15X24 Enquire To Order
Photo Part No Description Price (each) Stock
00RG054 CLIP - FIRTREE - 8X14 Enquire To Order
Photo Part No Description Price (each) Stock
14E0066CP HEATSHIELD - BULKHEAD - RH $161.11 To Order
Photo Part No Description Price (each) Stock
15EA014CP HEATSHIELD - BULKHEAD - LH $385.87 To Order
Photo Part No Description Price (each) Stock
00RM005 ANIXTER RIVET - BLACK Enquire To Order
Photo Part No Description Price (each) Stock
00RA146 SCRIVET - DIA 8 X 14 Enquire To Order
Photo Part No Description Price (each) Stock
14E0025CP HEATSHIELD - BULKHEAD - CENTRE - HEATSHIELD CTR-BULKHEAD $96.45 To Order
14E0074CP NVH - BULKHEAD - CENTRE $75.52 To Order
Photo Part No Description Price (each) Stock
14H0083CP GASKET - BULKHEAD $14.21 To Order
Photo Part No Description Price (each) Stock
26EA041SP HEATSHIELD UPR FR - MUFFLER $386.64 To Order
Photo Part No Description Price (each) Stock
26EA040SP BRKT LWR HEATSHIELD MUFFLER $80.59 To Order
Photo Part No Description Price (each) Stock
00RA313 SCREW - M6X16 - HEX - SILVER Enquire To Order
Photo Part No Description Price (each) Stock
00RA064 BOLT - M5X12 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA582 NUT - M5 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RC077 WASHER - M6X18X1.6 - STAINLESS STEEL Enquire To Order
Photo Part No Description Price (each) Stock
00RC017 WASHER - M5X15X1.2 Enquire To Order
Photo Part No Description Price (each) Stock
26EA045SP HEATSHIELD UPPER REAR - MUFFLER NO VALVES Enquire To Order
Photo Part No Description Price (each) Stock
26EA043SP HEATSHIELD LOWER - MUFFLER $564.30 To Order

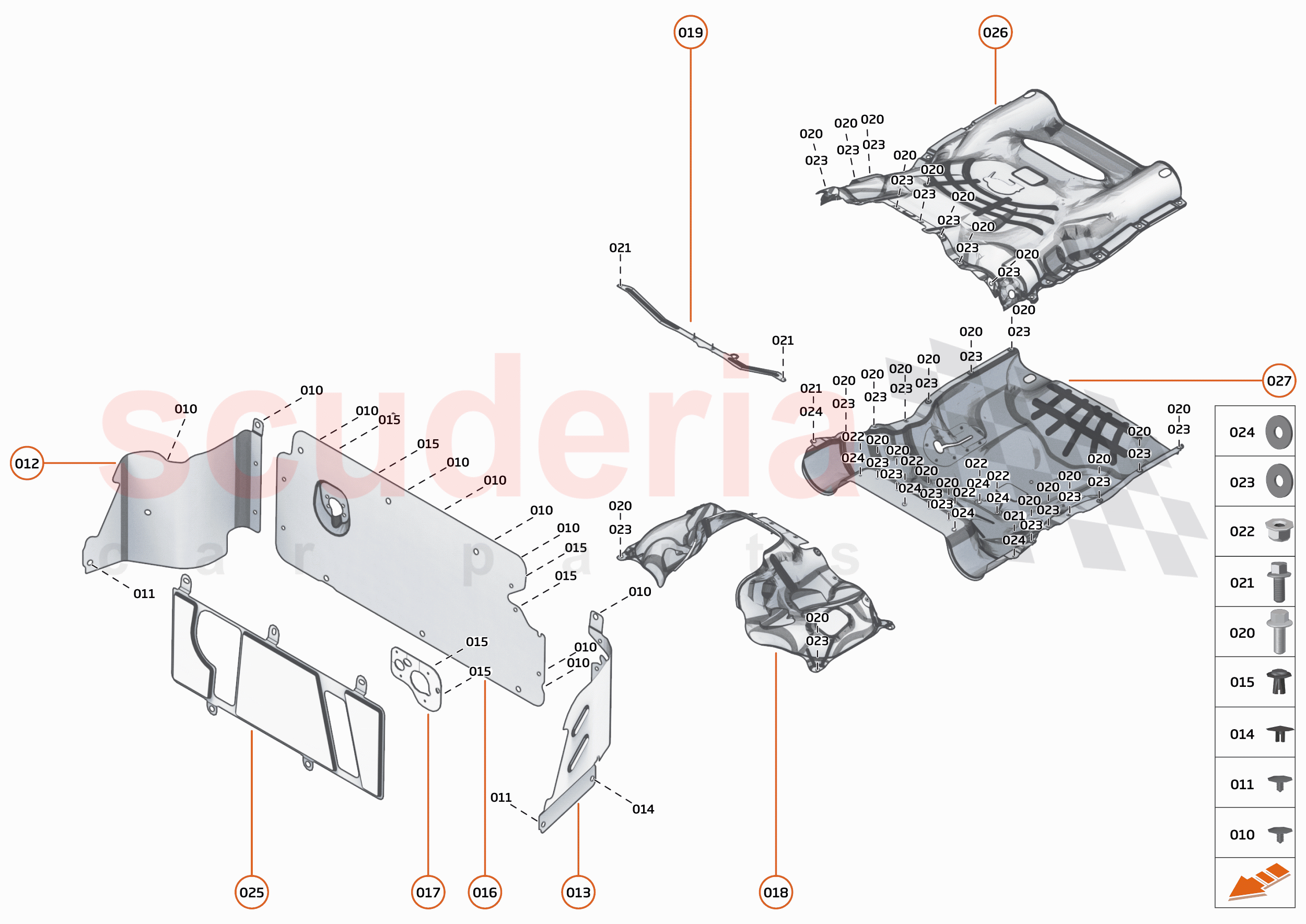

25 - NVH - HEAT INSULATION - 25.2 - INSULATION - VEHICLE MOUNTED of McLaren McLaren Elva Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 00RA087
SCREW - M5X10 - HEX 		- 1
PE
 Enquire
010 00RG003
FIRTREE 7.2X15X24 		- 9
PE
 Enquire
011 00RG054
CLIP - FIRTREE - 8X14 		- 2
PE
 Enquire
012 14E0066CP
HEATSHIELD - BULKHEAD - RH 		$161.11 1
TO
013 15EA014CP
HEATSHIELD - BULKHEAD - LH 		$385.87 1
TO
014 00RM005
ANIXTER RIVET - BLACK 		- 1
PE
 Enquire
015 00RA146
SCRIVET - DIA 8 X 14 		- 7
PE
 Enquire
016 14E0025CP
HEATSHIELD - BULKHEAD - CENTRE - HEATSHIELD CTR-BULKHEAD 		$96.45 1
TO
016 14E0074CP
NVH - BULKHEAD - CENTRE 		$75.52 1
TO
017 14H0083CP
GASKET - BULKHEAD 		$14.21 1
TO
018 26EA041SP
HEATSHIELD UPR FR - MUFFLER 		$386.64 1
TO
019 26EA040SP
BRKT LWR HEATSHIELD MUFFLER 		$80.59 1
TO
020 00RA313
SCREW - M6X16 - HEX - SILVER 		- 26
PE
 Enquire
021 00RA064
BOLT - M5X12 - HEX 		- 4
PE
 Enquire
022 00RA582
NUT - M5 - HEX 		- 5
PE
 Enquire
023 00RC077
WASHER - M6X18X1.6 - STAINLESS STEEL 		- 26
PE
 Enquire
024 00RC017
WASHER - M5X15X1.2 		- 7
PE
 Enquire
026 26EA045SP
HEATSHIELD UPPER REAR - MUFFLER NO VALVES 		- 1
PE
 Enquire
027 26EA043SP
HEATSHIELD LOWER - MUFFLER 		$564.30 1
TO
