McLaren Elva - 23 - LUBRICATION SYSTEM OFF - ENGINE - 23.1 - ENGINE OIL TANK

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11M0369CP SENSOR - ENGINE OIL LEVEL/TEMPERATURE $382.67 To Order
Photo Part No Description Price (each) Stock
14FA125CP OIL TANK - ENGINE $1,499.50 To Order
Photo Part No Description Price (each) Stock
14F0517CP AV MOUNT - OIL TANK $4.85 To Order
Photo Part No Description Price (each) Stock
14FA092CP WASHER-M6-25 OD $12.89 To Order
Photo Part No Description Price (each) Stock
14F0703CP BOLT-HEX HEAD-FLANGE-M6X35 $4.25 To Order
Photo Part No Description Price (each) Stock
15FA077CP OIL SEPARATOR $446.82 To Order
Photo Part No Description Price (each) Stock
00RB053 HOSE CLAMP - 25-40MM - NORMA TORRO Enquire To Order
Photo Part No Description Price (each) Stock
00RA313 SCREW - M6X16 - HEX - SILVER Enquire To Order
Photo Part No Description Price (each) Stock
14FA091CP BRACKET - OIL TANK - LOWER $29.11 To Order
Photo Part No Description Price (each) Stock
14FA094CP BRACKET - OIL TANK - MIDDLE $30.82 To Order
Photo Part No Description Price (each) Stock
14FA095CP BRACKET - OIL TANK - UPPER $29.11 To Order

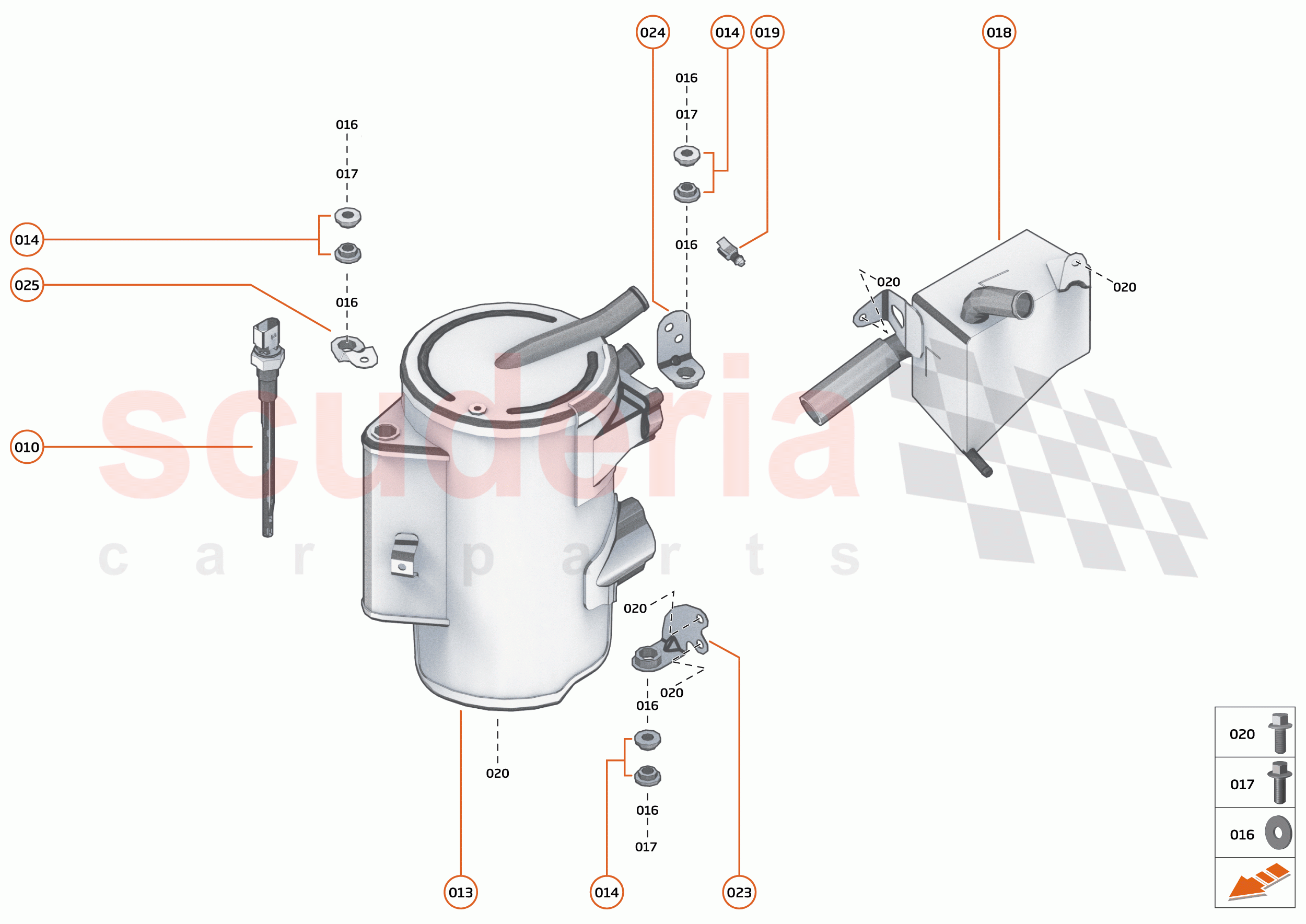

23 - LUBRICATION SYSTEM OFF - ENGINE - 23.1 - ENGINE OIL TANK of McLaren McLaren Elva Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 11M0369CP
SENSOR - ENGINE OIL LEVEL/TEMPERATURE 		$382.67 1
TO
013 14FA125CP
OIL TANK - ENGINE 		$1,499.50 1
TO
014 14F0517CP
AV MOUNT - OIL TANK 		$4.85 6
TO
016 14FA092CP
WASHER-M6-25 OD 		$12.89 6
TO
017 14F0703CP
BOLT-HEX HEAD-FLANGE-M6X35 		$4.25 3
TO
018 15FA077CP
OIL SEPARATOR 		$446.82 1
TO
019 00RB053
HOSE CLAMP - 25-40MM - NORMA TORRO 		- 1
PE
 Enquire
020 00RA313
SCREW - M6X16 - HEX - SILVER 		- 5
PE
 Enquire
023 14FA091CP
BRACKET - OIL TANK - LOWER 		$29.11 1
TO
024 14FA094CP
BRACKET - OIL TANK - MIDDLE 		$30.82 1
TO
025 14FA095CP
BRACKET - OIL TANK - UPPER 		$29.11 1
TO
