21 - Engine - 21.6 - Fuel Rail & Injectors

McLaren Elva

Find Your Part

McLaren Elva - 21 - ENGINE - 21.6 - FUEL RAIL & INJECTORS

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
14F0002CP LINK PIPE - FUEL RAIL - INC. O-RINGS $362.53 To Order
Photo Part No Description Price (each) Stock
13FA077CP O-RING - 8.0X1.5 - 2129886 - 02710062 - 1 $9.94 To Order
14F0625CP SEAL - O-RING - 7.8X1.9 $2.42 To Order
Photo Part No Description Price (each) Stock
11F1787CP BOLT - M6X12 - HEX $14.71 To Order
Photo Part No Description Price (each) Stock
14F0737CP SCREW - TORX - M6X10 $10.66 To Order
Photo Part No Description Price (each) Stock
14FA006CP FUEL RAIL - LH $899.70 To Order
Photo Part No Description Price (each) Stock
14FA007CP FUEL RAIL - RH $899.70 To Order
Photo Part No Description Price (each) Stock
14FA039CP FUEL RAIL DAMPER $119.94 To Order
Photo Part No Description Price (each) Stock
14FA038CP CLIP - FUEL RAIL DAMPER $20.29 To Order
Photo Part No Description Price (each) Stock
14F0137CP INJECTOR - ENGINE FUEL RAIL $142.16 To Order
Photo Part No Description Price (each) Stock
14F0400CP CLIP - INJECTOR $12.17 To Order
Photo Part No Description Price (each) Stock
11F2029CP CLIP - RAYMOND - 2WAY - 13493 $8.05 To Order
Photo Part No Description Price (each) Stock
13F0872CP FUEL PRESSURE AND TEMP SENSOR $162.46 To Order

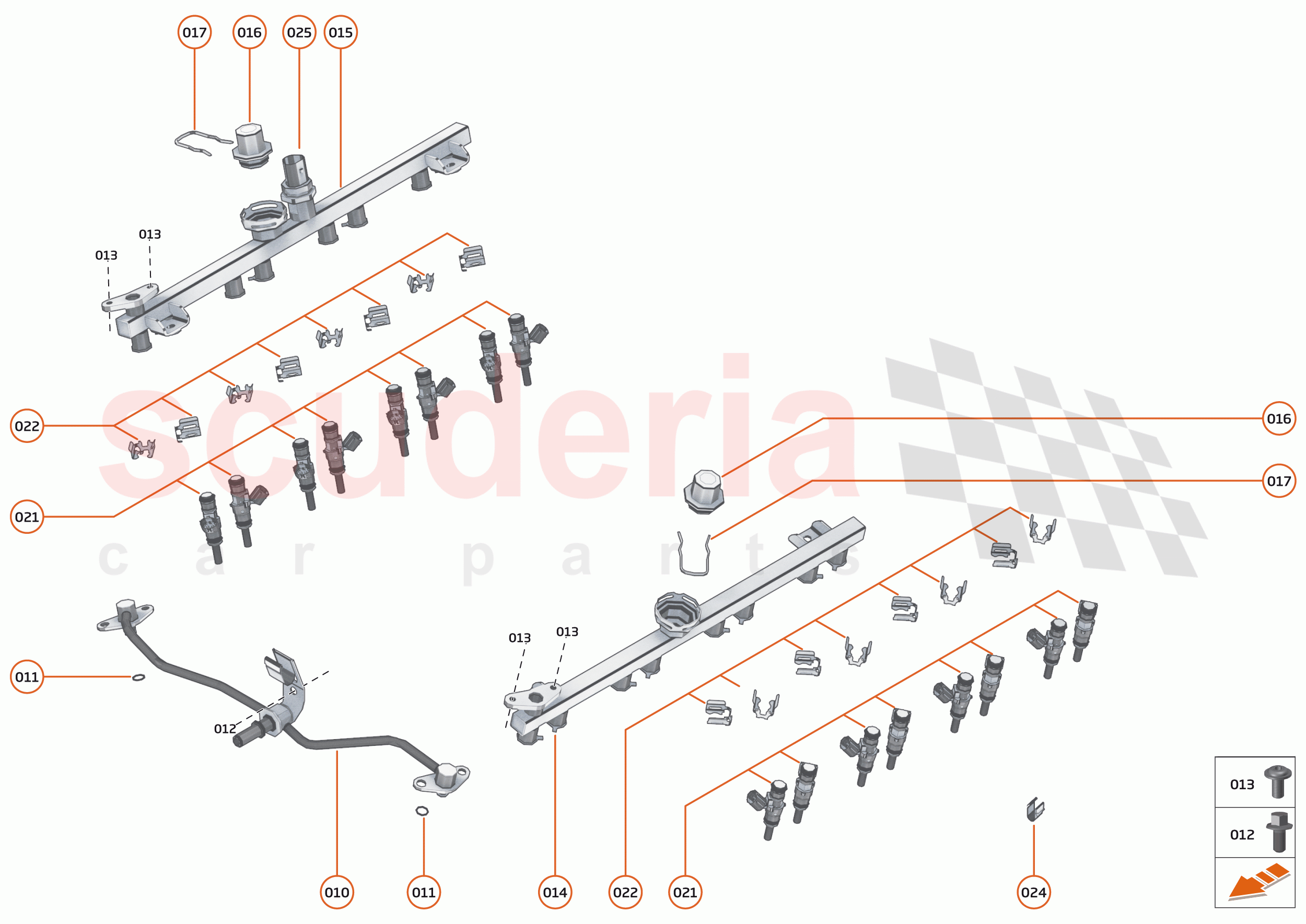

21 - ENGINE - 21.6 - FUEL RAIL & INJECTORS of McLaren McLaren Elva Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 14F0002CP
LINK PIPE - FUEL RAIL - INC. O-RINGS 		$362.53 1
TO
011 13FA077CP
O-RING - 8.0X1.5 - 2129886 - 02710062 - 1 		$9.94 1
TO
011 14F0625CP
SEAL - O-RING - 7.8X1.9 		$2.42 2
TO
012 11F1787CP
BOLT - M6X12 - HEX 		$14.71 1
TO
013 14F0737CP
SCREW - TORX - M6X10 		$10.66 4
TO
014 14FA006CP
FUEL RAIL - LH 		$899.70 1
TO
015 14FA007CP
FUEL RAIL - RH 		$899.70 1
TO
016 14FA039CP
FUEL RAIL DAMPER 		$119.94 2
TO
017 14FA038CP
CLIP - FUEL RAIL DAMPER 		$20.29 2
TO
021 14F0137CP
INJECTOR - ENGINE FUEL RAIL 		$142.16 16
TO
022 14F0400CP
CLIP - INJECTOR 		$12.17 16
TO
023 14FA003CP
ASSY FUEL RAIL 		- 1
PE
 Enquire
024 11F2029CP
CLIP - RAYMOND - 2WAY - 13493 		$8.05 1
TO
025 13F0872CP
FUEL PRESSURE AND TEMP SENSOR 		$162.46 1
TO
