21 - Engine - 21.11 - Engine Water Pump & Water Circuit

McLaren Elva

Find Your Part

McLaren Elva - 21 - ENGINE - 21.11 - ENGINE WATER PUMP & WATER CIRCUIT

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11F2418CP SENSOR - HEAD TEMPERATURE $95.65 To Order
Photo Part No Description Price (each) Stock
14FA182CP WATER PUMP $1,712.02 To Order
Photo Part No Description Price (each) Stock
11F2434CP GASKET SERVICE COVER WATER PUMP $16.22 IN STOCK
Photo Part No Description Price (each) Stock
11FA031CP BOLT - M6X80 - HEX - 02482939-1 $12.17 To Order
Photo Part No Description Price (each) Stock
11F1793CP BOLT - M6X20 - HEX $11.14 To Order
Photo Part No Description Price (each) Stock
13F0866CP COOLANT HOSE - FEED - CLUTCH COOLER $130.89 To Order
Photo Part No Description Price (each) Stock
11F1859CP OETIKER CLAMP - 24.1MM $13.18 To Order
Photo Part No Description Price (each) Stock
13FA050CP THERMOSTAT $264.02 To Order
Photo Part No Description Price (each) Stock
15FA067CP TOP HOSE - ENGINE RADIATOR - LH $314.99 To Order
Photo Part No Description Price (each) Stock
15FA068CP TOP HOSE - ENGINE RADIATOR - RH $314.99 To Order
Photo Part No Description Price (each) Stock
11F1782CP BOLT - M6X10 - HEX $14.71 To Order
Photo Part No Description Price (each) Stock
15FA158CP HEATER FEED PIPE - ENGINE $312.48 To Order
Photo Part No Description Price (each) Stock
11F1954CP O-RING - 16-0X2-0 $5.67 To Order
Photo Part No Description Price (each) Stock
11F1863CP OETIKER CLIP - 14.1-16.6 $8.31 To Order
Photo Part No Description Price (each) Stock
15FA070CP ASSY - HOSE - COOLANT DEGAS - ENGINE $172.62 To Order
Photo Part No Description Price (each) Stock
00RB093 OETIKER CLIP - 16.6 Enquire To Order
Photo Part No Description Price (each) Stock
14F0371CP CLAMP OETIKER 00076445 16 - 19.2MM $9.52 To Order
Photo Part No Description Price (each) Stock
12F0684CP Banjo Bolt - M14x1.5 $45.68 To Order
Photo Part No Description Price (each) Stock
12F0685CP Washer - Sealing - M14 $10.14 To Order
Photo Part No Description Price (each) Stock
14F0569CP PIPE - HOSE - TURBOCHARGER WATER RETURN - INC CLIPS - RH $111.69 To Order
Photo Part No Description Price (each) Stock
11F2433CP COVER - WATER PUMP - ENGINE $25.37 To Order
Photo Part No Description Price (each) Stock
15FA161CP PIPE - WATER RETURN - LH - 01948991-3 $391.87 To Order
Photo Part No Description Price (each) Stock
11F1674CP T PIECE - DEGAS $17.25 To Order
Photo Part No Description Price (each) Stock
11F1955CP SEAL - O-RING - 23.2 $5.67 To Order
Photo Part No Description Price (each) Stock
15FA274CP SEAL - O-RING 39.7X3.53 $5.43 To Order
Photo Part No Description Price (each) Stock
13F0828CP ASSY PIPE STUB TURBOCHARGER WATER FEED - RH $55.84 To Order
Photo Part No Description Price (each) Stock
13F0829CP ASSY PIPE STUB TURBO WTR FEED LH $39.12 To Order

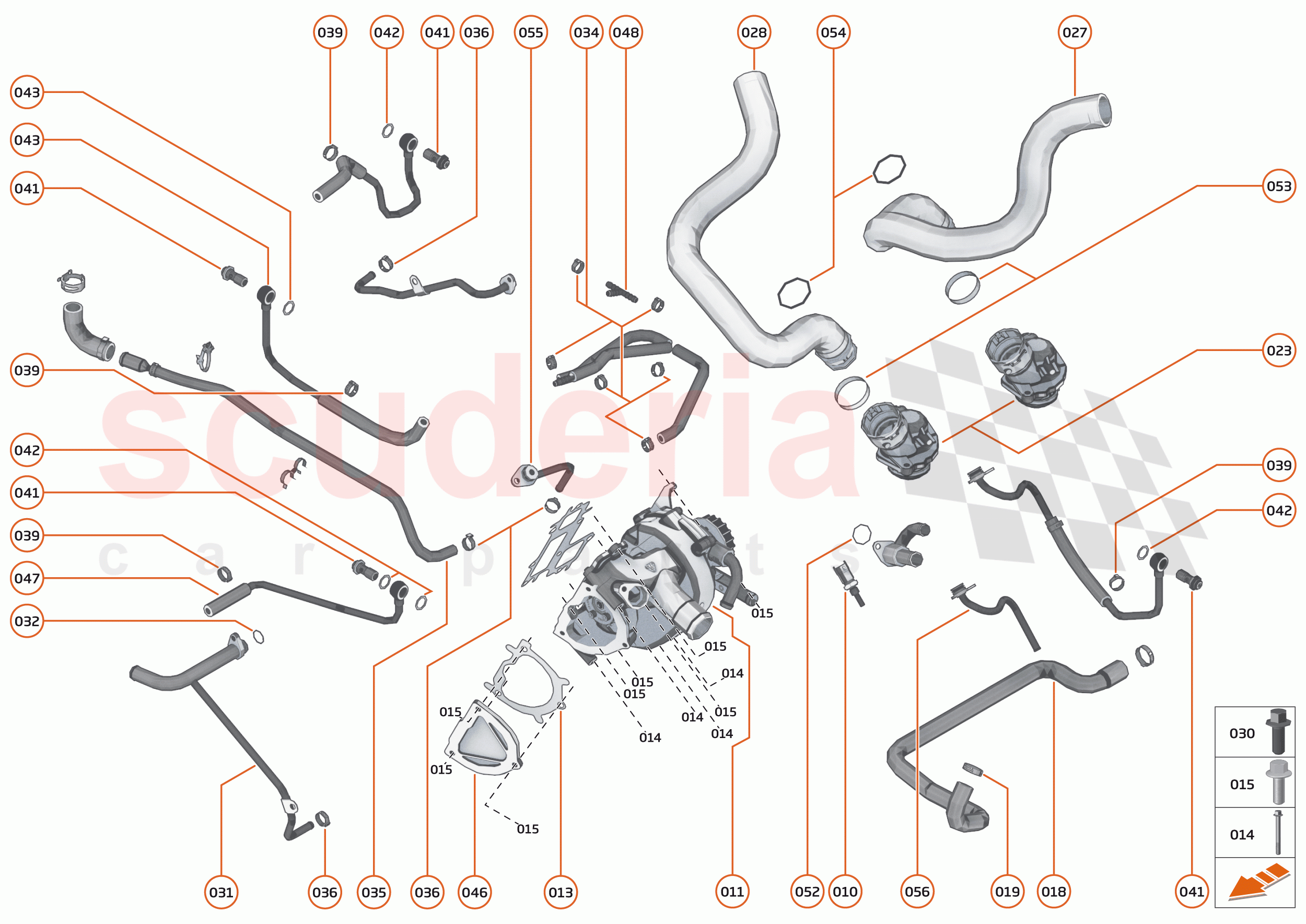

21 - ENGINE - 21.11 - ENGINE WATER PUMP & WATER CIRCUIT of McLaren McLaren Elva Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 11F2412CP
P-CLIP 23MM - CLUTCH COOLER HOSE - ENGINE 		- 2
PE
 Enquire
010 11F2418CP
SENSOR - HEAD TEMPERATURE 		$95.65 1
TO
011 14FA182CP
WATER PUMP 		$1,712.02 1
TO
013 11F2434CP
GASKET SERVICE COVER WATER PUMP
IN STOCK 		$16.22 1
IN
014 11FA031CP
BOLT - M6X80 - HEX - 02482939-1 		$12.17 4
TO
015 11F1793CP
BOLT - M6X20 - HEX 		$11.14 16
TO
018 13F0866CP
COOLANT HOSE - FEED - CLUTCH COOLER 		$130.89 1
TO
019 11F1859CP
OETIKER CLAMP - 24.1MM 		$13.18 1
TO
022 11F1791CP
SCREW - HEX HEAD - FLANGE - M6X10 		$8.70 2
TO
023 13FA050CP
THERMOSTAT 		$264.02 2
TO
027 15FA067CP
TOP HOSE - ENGINE RADIATOR - LH 		$314.99 1
TO
028 15FA068CP
TOP HOSE - ENGINE RADIATOR - RH 		$314.99 1
TO
030 11F1782CP
BOLT - M6X10 - HEX 		$14.71 2
TO
031 15FA158CP
HEATER FEED PIPE - ENGINE 		$312.48 1
TO
032 11F1954CP
O-RING - 16-0X2-0 		$5.67 1
TO
034 11F1863CP
OETIKER CLIP - 14.1-16.6 		$8.31 1
TO
035 15FA070CP
ASSY - HOSE - COOLANT DEGAS - ENGINE 		$172.62 1
TO
036 00RB093
OETIKER CLIP - 16.6 		- 1
PE
 Enquire
039 14F0371CP
CLAMP OETIKER 00076445 16 - 19.2MM 		$9.52 1
TO
041 12F0684CP
Banjo Bolt - M14x1.5 		$45.68 1
TO
042 12F0685CP
Washer - Sealing - M14 		$10.14 1
TO
043 14F0569CP
PIPE - HOSE - TURBOCHARGER WATER RETURN - INC CLIPS - RH 		$111.69 1
TO
046 11F2433CP
COVER - WATER PUMP - ENGINE 		$25.37 1
TO
047 15FA161CP
PIPE - WATER RETURN - LH - 01948991-3 		$391.87 1
TO
048 11F1674CP
T PIECE - DEGAS 		$17.25 1
TO
052 11F1955CP
SEAL - O-RING - 23.2 		$5.67 1
TO
054 15FA274CP
SEAL - O-RING 39.7X3.53 		$5.43 1
TO
055 13F0828CP
ASSY PIPE STUB TURBOCHARGER WATER FEED - RH 		$55.84 1
TO
056 13F0829CP
ASSY PIPE STUB TURBO WTR FEED LH 		$39.12 1
TO
