McLaren Elva - 39 - ELECTRICAL HARDWARE - 39.2 - BRACKETS, GROMMETS & FIXINGS

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
15MA328CP BRACKET - ENGINE INLINE $42.72 To Order
Photo Part No Description Price (each) Stock
00RX003 BOLT - M6X1X12 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA432 SCREW - BUTTON HEAD FL - M5X12-SS - BLACK Enquire To Order
Photo Part No Description Price (each) Stock
26MA383SP BRKT-INFOTAINMENT ECU $96.72 To Order
Photo Part No Description Price (each) Stock
15MA171CP BRACKET - INTERIOR FUSEBOX - RH $68.52 To Order
Photo Part No Description Price (each) Stock
00RA064 BOLT - M5X12 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
15MA169CP BRACKET - HARNESS CARRIER - REAR $77.08 To Order
Photo Part No Description Price (each) Stock
22MA276GP ORC WIRING SUPPORT BRACKET $66.09 To Order
Photo Part No Description Price (each) Stock
00RA605 SCREW - BUTTON HEAD - FLANGE - M5X0.8X20-8.8 Enquire To Order
Photo Part No Description Price (each) Stock
14M1087CP BRACKET - CROSS CAR HARNESS $45.68 To Order
Photo Part No Description Price (each) Stock
11M2477CP BRACKET - OBD SOCKET MOUNTING $110.76 To Order
Photo Part No Description Price (each) Stock
00RA582 NUT - M5 - HEX Enquire To Order

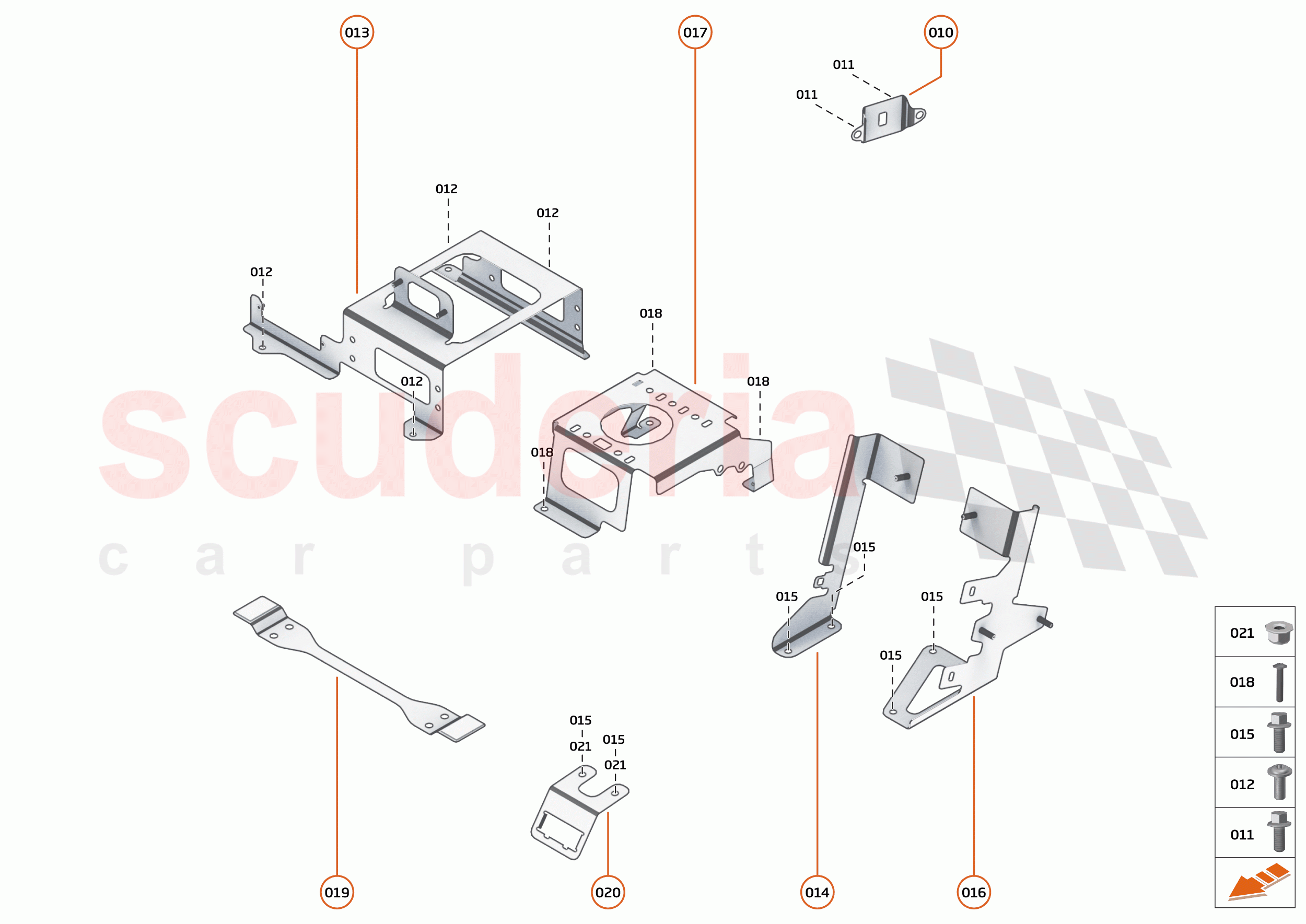

39 - ELECTRICAL HARDWARE - 39.2 - BRACKETS, GROMMETS & FIXINGS of McLaren McLaren Elva Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 15MA328CP
BRACKET - ENGINE INLINE 		$42.72 1
TO
011 00RX003
BOLT - M6X1X12 - HEX 		- 2
PE
 Enquire
012 00RA432
SCREW - BUTTON HEAD FL - M5X12-SS - BLACK 		- 4
PE
 Enquire
013 26MA383SP
BRKT-INFOTAINMENT ECU 		$96.72 1
TO
014 15MA171CP
BRACKET - INTERIOR FUSEBOX - RH 		$68.52 1
TO
015 00RA064
BOLT - M5X12 - HEX 		- 6
PE
 Enquire
016 15MA169CP
BRACKET - HARNESS CARRIER - REAR 		$77.08 1
TO
017 22MA276GP
ORC WIRING SUPPORT BRACKET 		$66.09 1
TO
018 00RA605
SCREW - BUTTON HEAD - FLANGE - M5X0.8X20-8.8 		- 3
PE
 Enquire
019 14M1087CP
BRACKET - CROSS CAR HARNESS 		$45.68 1
TO
020 11M2477CP
BRACKET - OBD SOCKET MOUNTING 		$110.76 1
TO
021 00RA582
NUT - M5 - HEX 		- 2
PE
 Enquire
