McLaren Elva - 9 - GLAZING CLOSURES - 9.1 - BULKHEAD GLAZING - DYNAMIC

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RB187 CLIP - SNAPLOC - 14X7 Enquire To Order
Photo Part No Description Price (each) Stock
26AB393SP AAMS DYNAMIC GURNEY MECHANISM $9,421.73 To Order
Photo Part No Description Price (each) Stock
26AC101SP AAMS DYNAMIC GURNEY PANEL Enquire To Order
Photo Part No Description Price (each) Stock
26AA371SP ASSY - AAMS DUCT $57,437.33 To Order
Photo Part No Description Price (each) Stock
00RC017 WASHER - M5X15X1.2 Enquire To Order
Photo Part No Description Price (each) Stock
00RA409 BOLT - FLANGE - M6X16 - BUTTON HEAD Enquire To Order
Photo Part No Description Price (each) Stock
00RA432 SCREW - BUTTON HEAD FL - M5X12-SS - BLACK Enquire To Order
Photo Part No Description Price (each) Stock
00RA608 SCREW - BUTTON HEAD - TORX - FLANGE - M6X1X25-SS-00 Enquire To Order
Photo Part No Description Price (each) Stock
00RC139 WSHR-PLN-M6X22X2-MS-86 Enquire To Order

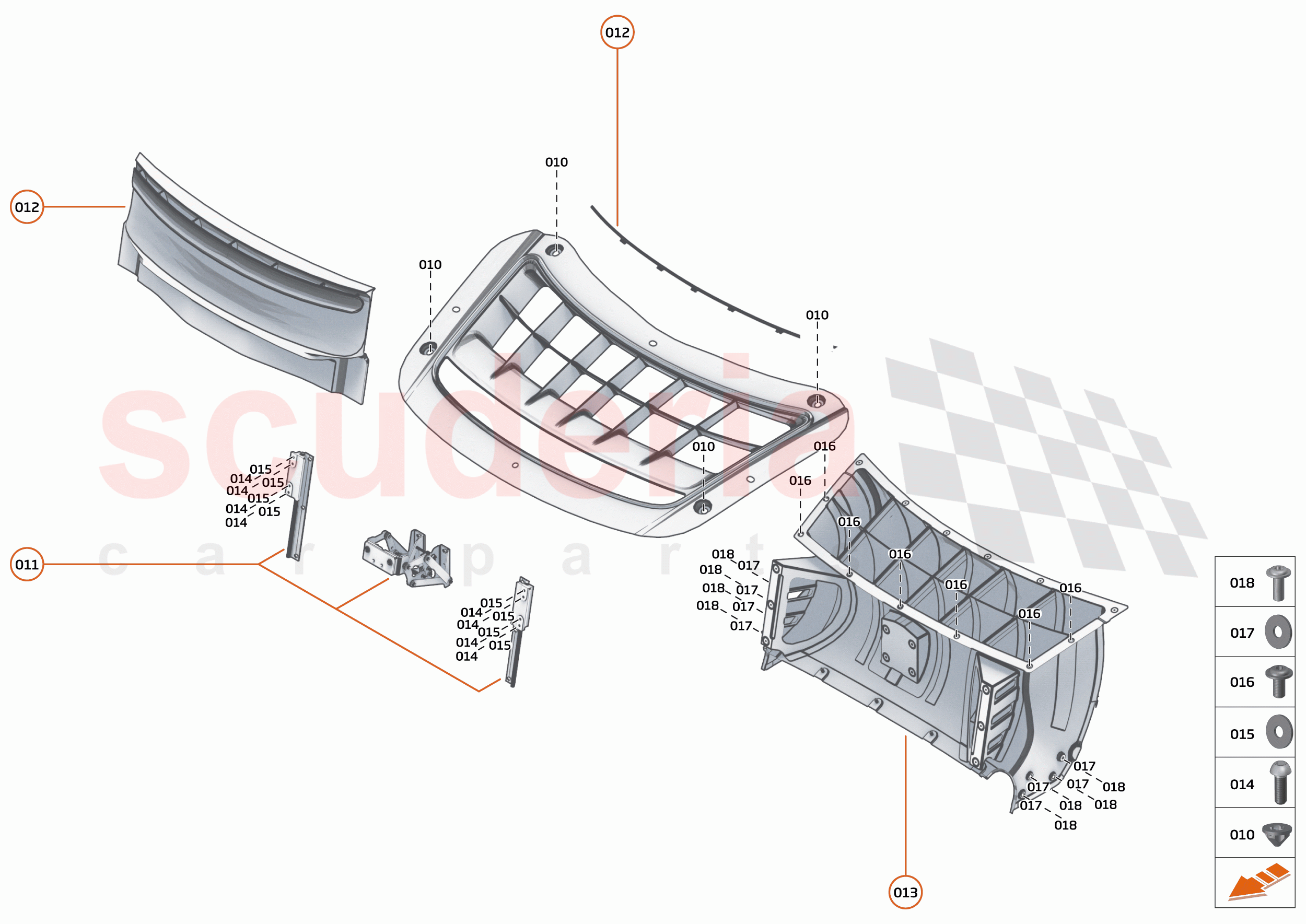

9 - GLAZING CLOSURES - 9.1 - BULKHEAD GLAZING - DYNAMIC of McLaren McLaren Elva Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 00RB187
CLIP - SNAPLOC - 14X7 		- 4
PE
 Enquire
011 26AB393SP
AAMS DYNAMIC GURNEY MECHANISM 		$9,421.73 1
TO
012 26AC101SP
AAMS DYNAMIC GURNEY PANEL 		- 1
PE
 Enquire
013 26AA371SP
ASSY - AAMS DUCT 		$57,437.33 1
TO
014 00RC017
WASHER - M5X15X1.2 		- 8
PE
 Enquire
015 00RA409
BOLT - FLANGE - M6X16 - BUTTON HEAD 		- 8
PE
 Enquire
016 00RA432
SCREW - BUTTON HEAD FL - M5X12-SS - BLACK 		- 7
PE
 Enquire
017 00RA608
SCREW - BUTTON HEAD - TORX - FLANGE - M6X1X25-SS-00 		- 8
PE
 Enquire
018 00RC139
WSHR-PLN-M6X22X2-MS-86 		- 8
PE
 Enquire
019 26AD315SP
AAMS DUCT FINISHER SEAL 		$110.76 1
TO
