12 - Lights - 12.2 - Rear Lights

McLaren Elva

Find Your Part

McLaren Elva - 12 - LIGHTS - 12.2 - REAR LIGHTS

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
16AD684CP ASSY LAMP REAR LH $873.34 To Order
Photo Part No Description Price (each) Stock
16AD685CP ASSY LAMP REAR RH $873.34 To Order
Photo Part No Description Price (each) Stock
14AB796RP ASSY LAMP CHMSL WING-LT $223.40 To Order
Photo Part No Description Price (each) Stock
13A3750CP REFLECTOR - REAR - LH $65.44 To Order
Photo Part No Description Price (each) Stock
13A3751CP REFLECTOR - REAR - RH $65.44 To Order
Photo Part No Description Price (each) Stock
22AB128GP ASSY-SIDE MARKER RR-LH $150.78 To Order
Photo Part No Description Price (each) Stock
22AB129GP ASSY-SIDE MARKER RR-RH $150.78 To Order
Photo Part No Description Price (each) Stock
13A5180CP LAMP - HIGH MOUNTED STOP $191.32 To Order
Photo Part No Description Price (each) Stock
14AB528SP ASSY HT LAMP ENGINE BAY $223.40 To Order
Photo Part No Description Price (each) Stock
00RA601 SCREW - M6X1X12 Enquire To Order
Photo Part No Description Price (each) Stock
13A5971CP LAMP - LICENCE PLATE - LUGGAGE BIN $40.26 To Order
Photo Part No Description Price (each) Stock
00RA549 SCREW - BUTTON - TORX - M4X16 Enquire To Order
Photo Part No Description Price (each) Stock
00RL022 EDGE CLIP - 202X4.6MM - INLINE Enquire To Order
Photo Part No Description Price (each) Stock
00RL042 CAB TIE-FTREE-150X4-34-NYL-BLK Enquire To Order
Photo Part No Description Price (each) Stock
00RA582 NUT - M5 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA165 BOLT - M5X8 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA492 SCREW - M4X12-8.8-84 - BUTTON HEAD TORX Enquire To Order

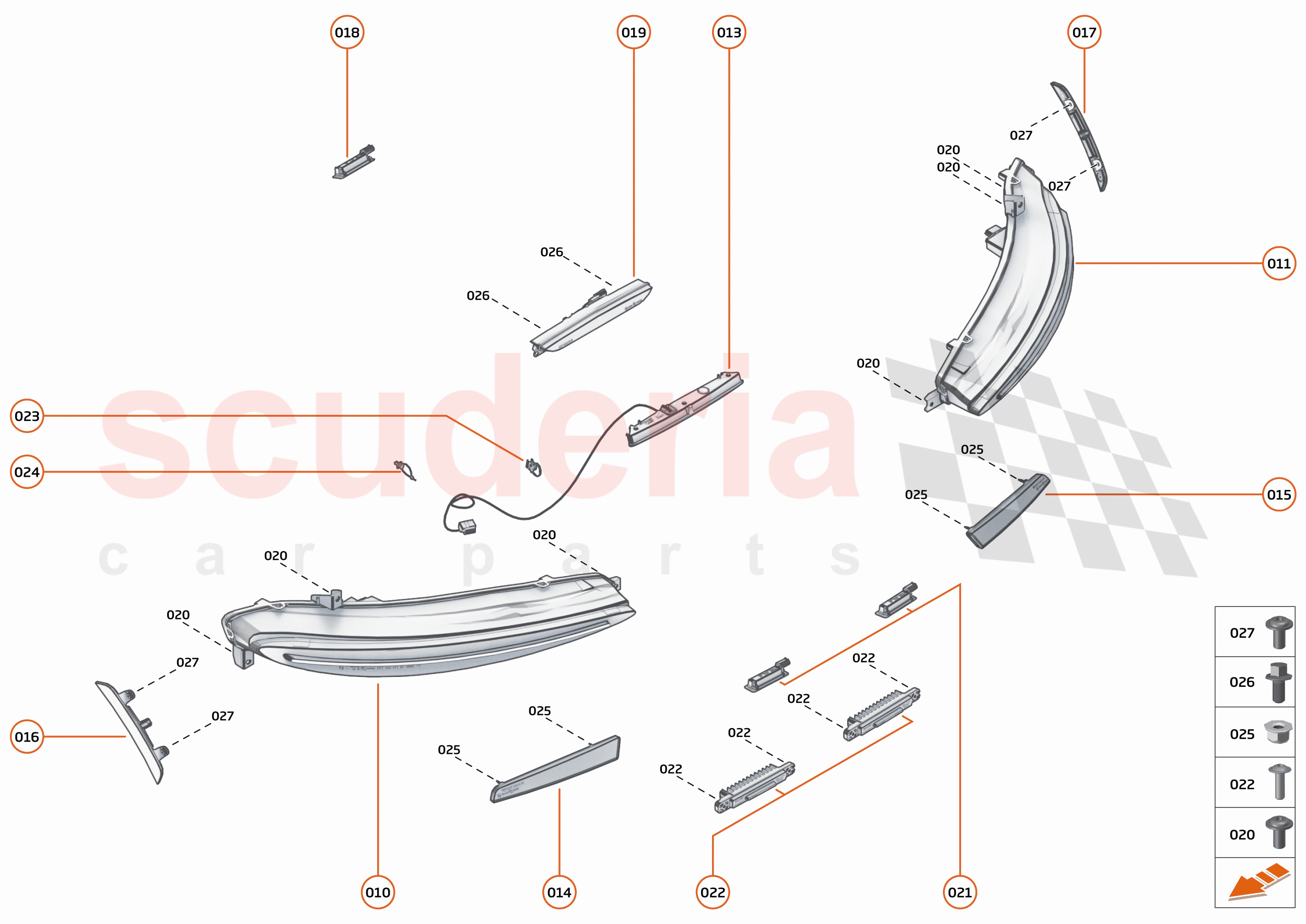

12 - LIGHTS - 12.2 - REAR LIGHTS of McLaren McLaren Elva Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 16AD684CP
ASSY LAMP REAR LH 		$873.34 1
TO
011 16AD685CP
ASSY LAMP REAR RH 		$873.34 1
TO
012 16AC688CP
ASSY LAMP FOG REVERSE NO FLY - LEAD 		$192.93 2
TO
013 14AB796RP
ASSY LAMP CHMSL WING-LT 		$223.40 1
TO
014 13A3750CP
REFLECTOR - REAR - LH 		$65.44 1
TO
015 13A3751CP
REFLECTOR - REAR - RH 		$65.44 1
TO
016 22AB128GP
ASSY-SIDE MARKER RR-LH 		$150.78 1
TO
017 22AB129GP
ASSY-SIDE MARKER RR-RH 		$150.78 1
TO
018 13A5180CP
LAMP - HIGH MOUNTED STOP 		$191.32 1
TO
019 14AB528SP
ASSY HT LAMP ENGINE BAY 		$223.40 1
TO
020 00RA601
SCREW - M6X1X12 		- 6
PE
 Enquire
021 13A5971CP
LAMP - LICENCE PLATE - LUGGAGE BIN 		$40.26 2
TO
022 00RA549
SCREW - BUTTON - TORX - M4X16 		- 4
PE
 Enquire
023 00RL022
EDGE CLIP - 202X4.6MM - INLINE 		- 1
PE
 Enquire
024 00RL042
CAB TIE-FTREE-150X4-34-NYL-BLK 		- 1
PE
 Enquire
025 00RA582
NUT - M5 - HEX 		- 4
PE
 Enquire
026 00RA165
BOLT - M5X8 - HEX 		- 2
PE
 Enquire
027 00RA492
SCREW - M4X12-8.8-84 - BUTTON HEAD TORX 		- 2
PE
 Enquire
