10 - Closures Ancillaries - 10.3 - Side Mirrors

McLaren Elva

Find Your Part

McLaren Elva - 10 - CLOSURES ANCILLARIES - 10.3 - SIDE MIRRORS

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
26AA733SP SEAL DOOR MIRROR LH $32.23 To Order
Photo Part No Description Price (each) Stock
26AA737SP SCALP-LH-CARBON MAC Enquire To Order
Photo Part No Description Price (each) Stock
11A8446CP ACTUATOR - DOOR MIRROR GLASS $140.97 To Order
Photo Part No Description Price (each) Stock
26AC054SP SEAL DOOR MIRROR RH $48.35 To Order
Photo Part No Description Price (each) Stock
26AA738SP SCALP-RH-CARBON MAC Enquire To Order
Photo Part No Description Price (each) Stock
26AD329SP ASSY DOOR MIRROR ARM LH Enquire To Order
Photo Part No Description Price (each) Stock
26AD330SP ASSY DOOR MIRROR ARM RH Enquire To Order
Photo Part No Description Price (each) Stock
26AB680SP ASSY GLASS MIRRROR-NAS-CVX-RH Enquire To Order
26AB678SP ASSY GLASS MIRRROR-SAS-CVX-RH Enquire To Order
26AA741SP ASSY GLASS MIRRROR-EU-CVX-RH Enquire To Order
Photo Part No Description Price (each) Stock
26AB683SP ASSY GLASS MIRRROR-NAS-FLAT-LH Enquire To Order
26AB676SP ASSY GLASS MIRRROR-SAS-CVX-LH Enquire To Order
26AA740SP ASSY GLASS MIRRROR-EU-CVX-LH Enquire To Order
Photo Part No Description Price (each) Stock
00RA663 BLT-HX HD-FL-M6X1X25-SS-00 Enquire To Order
Photo Part No Description Price (each) Stock
26AA732SP HARNESS WITH CONNECTR - DR MIR - LH Enquire To Order
Photo Part No Description Price (each) Stock
00RA442 SCREW - TORX - 3X38 Enquire To Order
00RA465 SCREW - M4X.7X25 - BUTTON HEAD - TORX SOCKET Enquire To Order
Photo Part No Description Price (each) Stock
11A8978CP DAMPER SPRING MIRROR GLASS Enquire To Order
Photo Part No Description Price (each) Stock
00RL008 CABLE TIE-SF100-18X Enquire To Order
Photo Part No Description Price (each) Stock
00RA492 SCREW - M4X12-8.8-84 - BUTTON HEAD TORX Enquire To Order
Photo Part No Description Price (each) Stock
00RA489 SCREW - M4X10 - FLANGED - BUTTON HEAD Enquire To Order

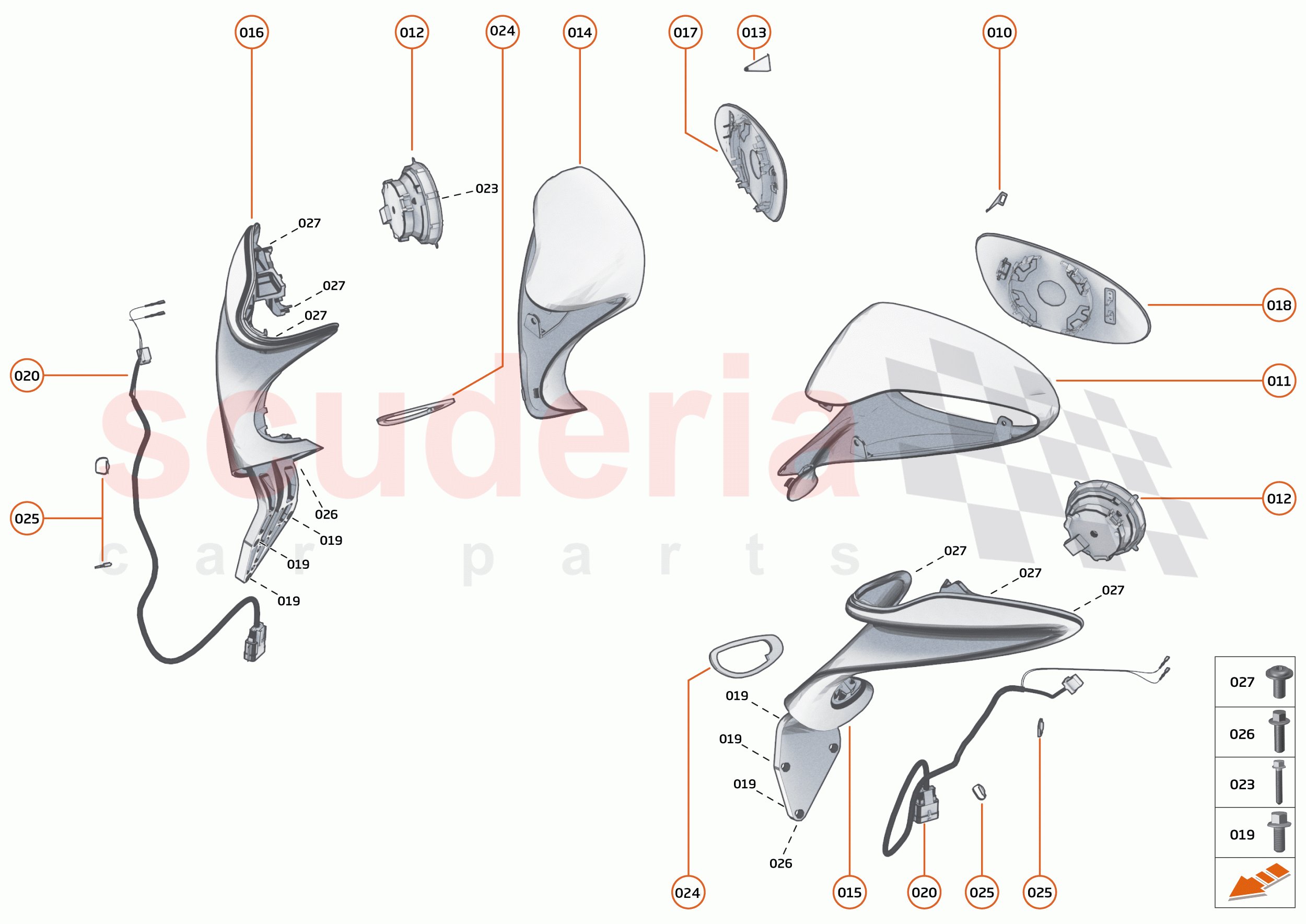

10 - CLOSURES ANCILLARIES - 10.3 - SIDE MIRRORS of McLaren McLaren Elva Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 00RB059
CLIP CONNECTOR - TRW 		- 1
PE
 Enquire
000 00RC064
WASHER - M6X18X1.6 - BLACK 		- 3
PE
 Enquire
010 26AA733SP
SEAL DOOR MIRROR LH 		$32.23 1
TO
011 26AA737SP
SCALP-LH-CARBON MAC 		- 1
PE
 Enquire
012 11A8446CP
ACTUATOR - DOOR MIRROR GLASS 		$140.97 2
TO
013 26AC054SP
SEAL DOOR MIRROR RH 		$48.35 1
TO
014 26AA738SP
SCALP-RH-CARBON MAC 		- 1
PE
 Enquire
015 26AD329SP
ASSY DOOR MIRROR ARM LH 		- 1
PE
 Enquire
016 26AD330SP
ASSY DOOR MIRROR ARM RH 		- 1
PE
 Enquire
017 26AB680SP
ASSY GLASS MIRRROR-NAS-CVX-RH 		- 1
PE
 Enquire
017 26AB678SP
ASSY GLASS MIRRROR-SAS-CVX-RH 		- 1
PE
 Enquire
017 26AA741SP
ASSY GLASS MIRRROR-EU-CVX-RH 		- 1
PE
 Enquire
018 26AB683SP
ASSY GLASS MIRRROR-NAS-FLAT-LH 		- 1
PE
 Enquire
018 26AB676SP
ASSY GLASS MIRRROR-SAS-CVX-LH 		- 1
PE
 Enquire
018 26AA740SP
ASSY GLASS MIRRROR-EU-CVX-LH 		- 1
PE
 Enquire
019 00RA663
BLT-HX HD-FL-M6X1X25-SS-00 		- 6
PE
 Enquire
020 26AA732SP
HARNESS WITH CONNECTR - DR MIR - LH 		- 2
PE
 Enquire
023 00RA442
SCREW - TORX - 3X38 		- 1
PE
 Enquire
023 00RA465
SCREW - M4X.7X25 - BUTTON HEAD - TORX SOCKET 		- 1
PE
 Enquire
024 11A8978CP
DAMPER SPRING MIRROR GLASS 		- 1
PE
 Enquire
025 00RL008
CABLE TIE-SF100-18X 		- 4
PE
 Enquire
026 00RA492
SCREW - M4X12-8.8-84 - BUTTON HEAD TORX 		- 2
PE
 Enquire
027 00RA489
SCREW - M4X10 - FLANGED - BUTTON HEAD 		- 6
PE
 Enquire
