3 - Rear Structures - 3.1 - Rear Frame

McLaren Elva

Find Your Part

McLaren Elva - 3 - REAR STRUCTURES - 3.1 - REAR FRAME

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11A3816CP COVER FRAME BULKHE24 MNTG LWR- $110.76 To Order
Photo Part No Description Price (each) Stock
11A3817CP COVER FRAME BULKHE24 MNTG LWR- $110.76 To Order
Photo Part No Description Price (each) Stock
00RA457 SCREW - M10X30-10.9 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RC065 WASHER - M10X21X2.0 Enquire To Order
Photo Part No Description Price (each) Stock
11A4284CP PLUG - DOME - 25 DIAMETER $2.00 To Order
Photo Part No Description Price (each) Stock
15AC169CP CROSS BEAM - TRANSMISSION FLOOR $2,379.22 To Order
Photo Part No Description Price (each) Stock
00RA164 BOLT-HEX HEAD-FLANGE-M16X80-10 Enquire To Order
Photo Part No Description Price (each) Stock
00RA400 SCREW - HEX HEAD - M10X60 - 10.9 Enquire To Order
Photo Part No Description Price (each) Stock
00RA559 BOLT - HEX HEAD - M10X1.5X40 Enquire To Order
Photo Part No Description Price (each) Stock
15AC601CP FRAME ASSY - REAR $65,778.60 To Order
Photo Part No Description Price (each) Stock
15AB654CP REAR CRASH CAN-LH $2,379.21 To Order
Photo Part No Description Price (each) Stock
15AB656CP REAR CRASH CAN-RH $2,379.21 To Order
Photo Part No Description Price (each) Stock
11A8232RP BRKT-BUMPER-RR-MNTG RH Enquire To Order
Photo Part No Description Price (each) Stock
11A4758CP BLACK DECAL BODYSIDE REAR LOWE $16.09 To Order

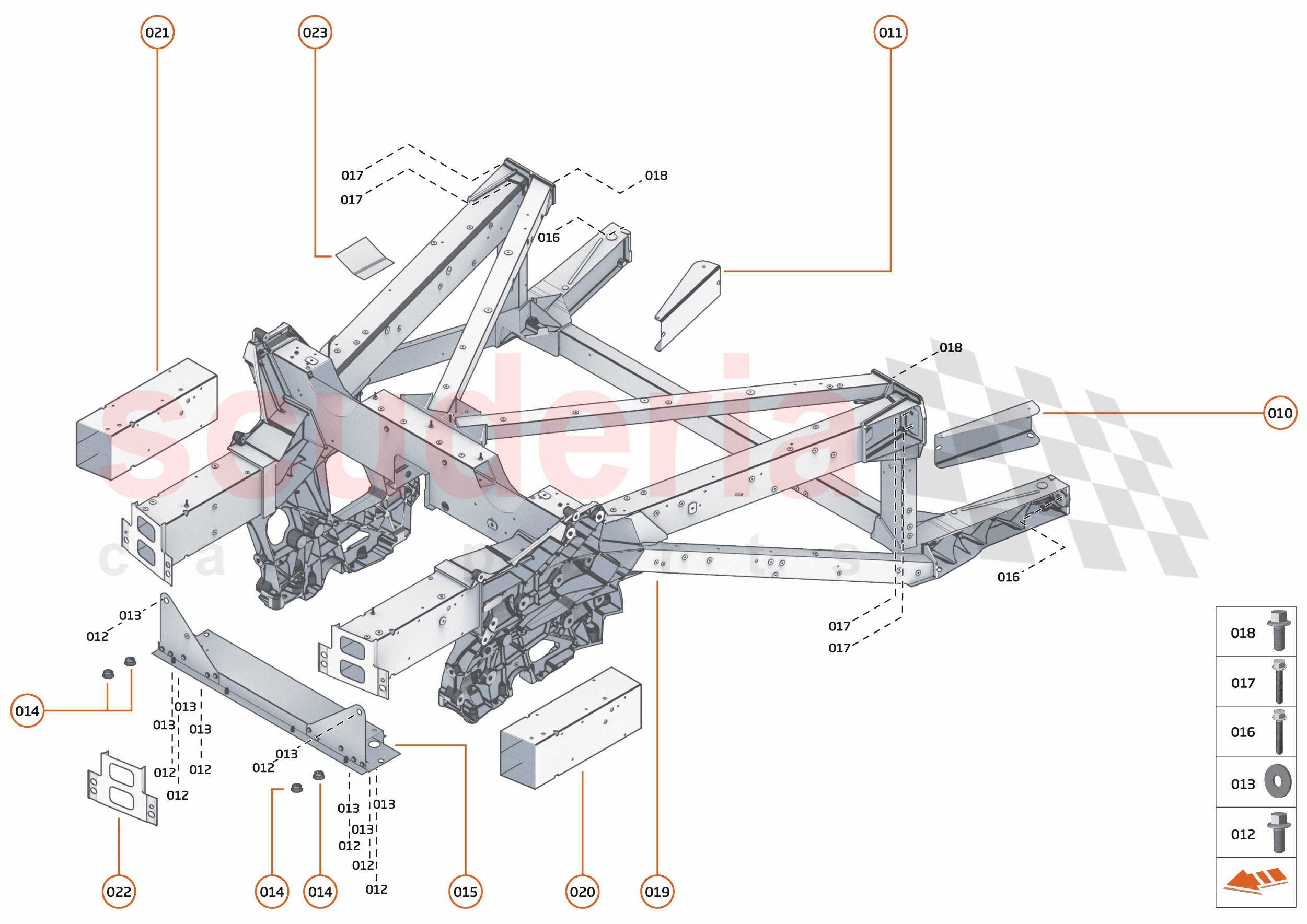

3 - REAR STRUCTURES - 3.1 - REAR FRAME of McLaren McLaren Elva Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 11A3816CP
COVER FRAME BULKHE24 MNTG LWR- 		$110.76 1
TO
011 11A3817CP
COVER FRAME BULKHE24 MNTG LWR- 		$110.76 1
TO
012 00RA457
SCREW - M10X30-10.9 - HEX 		- 8
PE
 Enquire
013 00RC065
WASHER - M10X21X2.0 		- 8
PE
 Enquire
014 11A4284CP
PLUG - DOME - 25 DIAMETER 		$2.00 4
TO
015 15AC169CP
CROSS BEAM - TRANSMISSION FLOOR 		$2,379.22 1
TO
016 00RA164
BOLT-HEX HEAD-FLANGE-M16X80-10 		- 2
PE
 Enquire
017 00RA400
SCREW - HEX HEAD - M10X60 - 10.9 		- 4
PE
 Enquire
018 00RA559
BOLT - HEX HEAD - M10X1.5X40 		- 2
PE
 Enquire
019 15AC601CP
FRAME ASSY - REAR 		$65,778.60 1
TO
020 15AB654CP
REAR CRASH CAN-LH 		$2,379.21 1
TO
021 15AB656CP
REAR CRASH CAN-RH 		$2,379.21 1
TO
022 11A8232RP
BRKT-BUMPER-RR-MNTG RH 		- 1
PE
 Enquire
023 11A4758CP
BLACK DECAL BODYSIDE REAR LOWE 		$16.09 1
TO
