Name: 2 - MID STRUCTURES - 2.1 - MONOCOQUE
Rating: 4.6 (1 reviews)

Diagram
INFO

2 - MID STRUCTURES - 2.1 - MONOCOQUE of McLaren McLaren Elva

McLaren Elva - 2 - MID STRUCTURES - 2.1 - MONOCOQUE

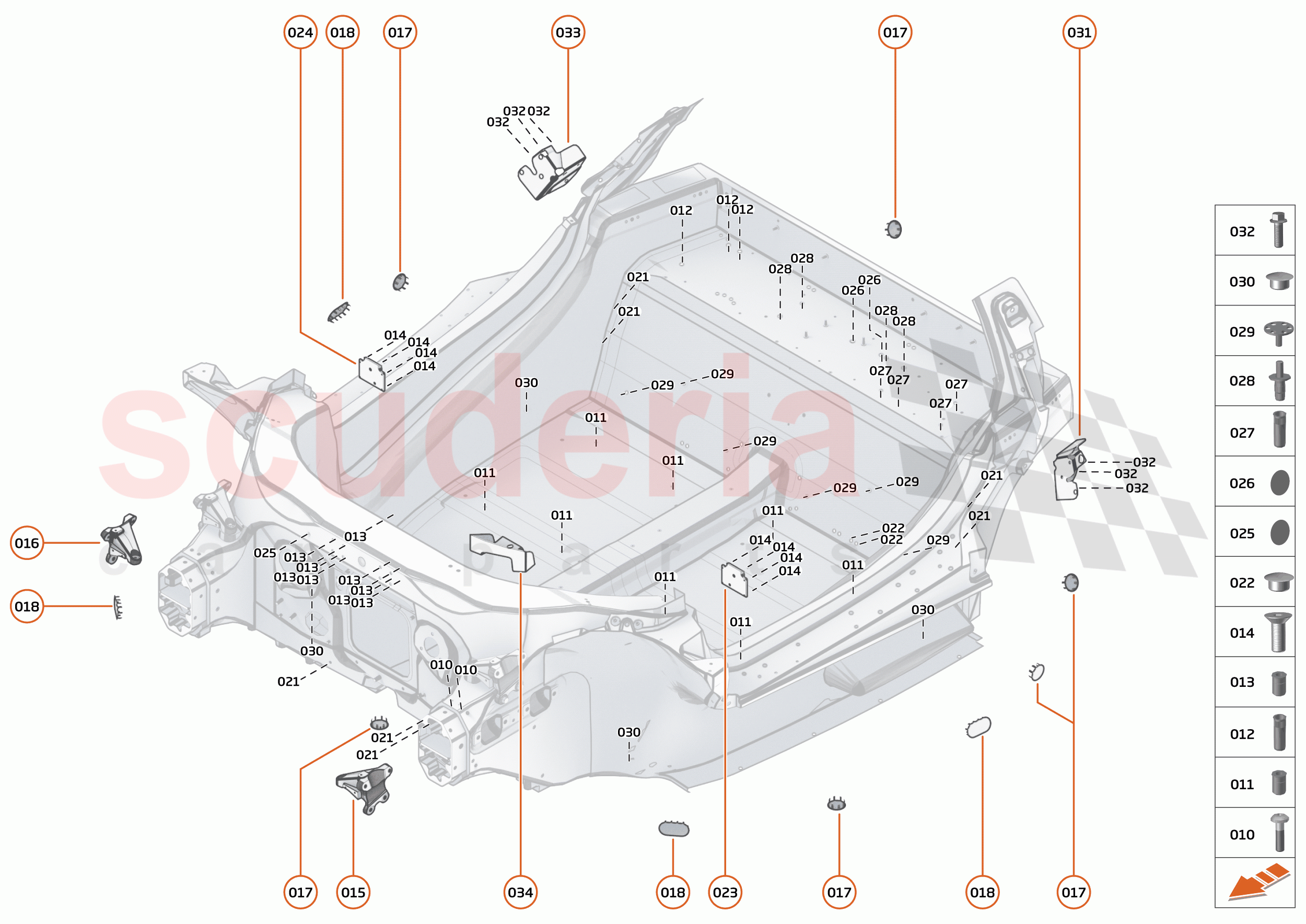

View the exploded parts diagram to find the part you are looking for

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

TO ORDER

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	00RA522	BOLT - BUTTON HEAD - TORX - M5X16	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RM029	RIVNUT-O-GRIP-M6X1.5-3-SS-00	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RM028	RIVNUT-B-GRIP-M6X1.5-3-SS-00	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA702	RIVNUT-O-PLN-M6X3.0-5.5-SS-NAT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA311	Screw - M6x16 - Hex Socket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11A7142CP	BRACKET - DAMPER MOUNTING - LH	$223.40	To Order

Photo	Part No	Description	Price (each)	Stock
	11A7143CP	BRACKET - DAMPER MOUNTING - RH	$223.40	To Order

Photo	Part No	Description	Price (each)	Stock
	11A5734CP	BLANKING PLUG - CIRCULAR - 42MM	$11.14	To Order

Photo	Part No	Description	Price (each)	Stock
	11A5735CP	BLANKING PLUG - OVAL - 74MM X 37MM	$11.14	To Order

Photo	Part No	Description	Price (each)	Stock
	00RG023	GROMMET - CHILD ANCHORAGE BRACKET HOLES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RG064	COVER PLUG - M9 BLACK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15AC180CP	LH PLATE P15 TUB CONV MACHINED	$201.40	To Order

Photo	Part No	Description	Price (each)	Stock
	15AC182CP	RH PLATE P15 TUB CONV MACHINED	$161.11	To Order

Photo	Part No	Description	Price (each)	Stock
	11A7484CP	CHILD PART - FOR COMMERCIAL REASONS ONLY - - PERMANENT SEALING TAPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15AD019CP	TUB - BLACK DECAL - 120MM X 62MM	$5.21	To Order

Photo	Part No	Description	Price (each)	Stock
	00RM031	RIVKLE-O-GRIP-THIN-CSK- - M5X1.5-3-SS-00	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RM032	RIVET-STUD-BLIND-M6X2-3.5-MS- - 72	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RK005	STUD CIRCLE BASE M6X16-SS-00	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11A5736CP	PLUG - TUB DATUM	$7.29	To Order

Photo	Part No	Description	Price (each)	Stock
	26AD050SP	DOOR LATCH MTG BRKT - LH	$86.29	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA485	BOLT - HEX HEAD - FLANGED - M8X25	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	26AD051SP	DOOR LATCH MTG BRKT - RH	$86.29	To Order

Photo	Part No	Description	Price (each)	Stock
	26AC072SP	ASSY STEERING COLUMN BRKT RHD	$3,625.47	To Order
	26AC071SP	ASSY STEERING COLUMN BRKT LHD	$3,410.23	To Order

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Key	Add to Cart
010	00RA522	BOLT - BUTTON HEAD - TORX - M5X16	00RA522 BOLT - BUTTON HEAD - TORX - M5X16	-	2	PE	Enquire
011	00RM029	RIVNUT-O-GRIP-M6X1.5-3-SS-00	00RM029 RIVNUT-O-GRIP-M6X1.5-3-SS-00	-	8	PE	Enquire
012	00RM028	RIVNUT-B-GRIP-M6X1.5-3-SS-00	00RM028 RIVNUT-B-GRIP-M6X1.5-3-SS-00	-	3	PE	Enquire
013	00RA702	RIVNUT-O-PLN-M6X3.0-5.5-SS-NAT	00RA702 RIVNUT-O-PLN-M6X3.0-5.5-SS-NAT	-	8	PE	Enquire
014	00RA311	Screw - M6x16 - Hex Socket	00RA311 Screw - M6x16 - Hex Socket	-	8	PE	Enquire
015	11A7142CP	BRACKET - DAMPER MOUNTING - LH	11A7142CP BRACKET - DAMPER MOUNTING - LH	$223.40	1	TO
016	11A7143CP	BRACKET - DAMPER MOUNTING - RH	11A7143CP BRACKET - DAMPER MOUNTING - RH	$223.40	1	TO
017	11A5734CP	BLANKING PLUG - CIRCULAR - 42MM	11A5734CP BLANKING PLUG - CIRCULAR - 42MM	$11.14	6	TO
018	11A5735CP	BLANKING PLUG - OVAL - 74MM X 37MM	11A5735CP BLANKING PLUG - OVAL - 74MM X 37MM	$11.14	4	TO
019	11A7572CP	NUT PLATE - A-POST - M8	11A7572CP NUT PLATE - A-POST - M8	$50.76	6	TO
020	11A7573CP	NUT PLATE - B-POST - M8	11A7573CP NUT PLATE - B-POST - M8	$50.76	6	TO
021	00RG023	GROMMET - CHILD ANCHORAGE BRACKET HOLES	00RG023 GROMMET - CHILD ANCHORAGE BRACKET HOLES	-	9	PE	Enquire
022	00RG064	COVER PLUG - M9 BLACK	00RG064 COVER PLUG - M9 BLACK	-	2	PE	Enquire
023	15AC180CP	LH PLATE P15 TUB CONV MACHINED	15AC180CP LH PLATE P15 TUB CONV MACHINED	$201.40	1	TO
024	15AC182CP	RH PLATE P15 TUB CONV MACHINED	15AC182CP RH PLATE P15 TUB CONV MACHINED	$161.11	1	TO
025	11A7484CP	CHILD PART - FOR COMMERCIAL REASONS ONLY - - PERMANENT SEALING TAPE	11A7484CP CHILD PART - FOR COMMERCIAL REASONS ONLY - - PERMANENT SEALING TAPE	-	4	PE	Enquire
026	15AD019CP	TUB - BLACK DECAL - 120MM X 62MM	15AD019CP TUB - BLACK DECAL - 120MM X 62MM	$5.21	2	TO
027	00RM031	RIVKLE-O-GRIP-THIN-CSK- - M5X1.5-3-SS-00	00RM031 RIVKLE-O-GRIP-THIN-CSK- - M5X1.5-3-SS-00	-	4	PE	Enquire
028	00RM032	RIVET-STUD-BLIND-M6X2-3.5-MS- - 72	00RM032 RIVET-STUD-BLIND-M6X2-3.5-MS- - 72	-	4	PE	Enquire
029	00RK005	STUD CIRCLE BASE M6X16-SS-00	00RK005 STUD CIRCLE BASE M6X16-SS-00	-	6	PE	Enquire
030	11A5736CP	PLUG - TUB DATUM	11A5736CP PLUG - TUB DATUM	$7.29	4	TO
031	26AD050SP	DOOR LATCH MTG BRKT - LH	26AD050SP DOOR LATCH MTG BRKT - LH	$86.29	1	TO
032	00RA485	BOLT - HEX HEAD - FLANGED - M8X25	00RA485 BOLT - HEX HEAD - FLANGED - M8X25	-	6	PE	Enquire
033	26AD051SP	DOOR LATCH MTG BRKT - RH	26AD051SP DOOR LATCH MTG BRKT - RH	$86.29	1	TO
034	26AC072SP	ASSY STEERING COLUMN BRKT RHD	26AC072SP ASSY STEERING COLUMN BRKT RHD	$3,625.47	1	TO
034	26AC071SP	ASSY STEERING COLUMN BRKT LHD	26AC071SP ASSY STEERING COLUMN BRKT LHD	$3,410.23	1	TO
