McLaren Artura - 26 - AIR INDUCTION SYSTEMS AIS - 26.3 - AIS CHARGE AIR COOLING SYSTEM

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
16FA640CP SENSOR - TEMPERATURE AND - PRESSURE - AIR $86.29 To Order
Photo Part No Description Price (each) Stock
16F0036CP WATER CHARGE COOLER LH $1,726.40 To Order
Photo Part No Description Price (each) Stock
16F0040CP WATER CHARGE COOLER RH $1,726.40 To Order
Photo Part No Description Price (each) Stock
00RA083 SCREW - M6X20 - FLANGE HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA606 BOLT - M8X1.25 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
16F0037CP BRKT-WCAC FRONT LH Enquire To Order
16FC138CP BRKT-WCAC FRONT LH $121.84 To Order
Photo Part No Description Price (each) Stock
16F0038CP BRKT-WCAC REAR LH Enquire To Order
16FC426CP BRKT-WCAC REAR LH $124.57 To Order
Photo Part No Description Price (each) Stock
16F0042CP BRKT-WCAC REAR RH Enquire To Order
16FC425CP BRKT-WCAC REAR RH $124.57 To Order
Photo Part No Description Price (each) Stock
16LA281CP AV-MOUNT-BUSH-EPDM $7.69 To Order
Photo Part No Description Price (each) Stock
16LA294CP AV-MOUNT-SLEEVE-M8 $4.65 To Order
Photo Part No Description Price (each) Stock
00RA120 SCREW - M6X25 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA075 NUT - M8-8 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RC008 WASHER - M6X12.5X0.9 Enquire To Order
Photo Part No Description Price (each) Stock
00RC015 WASHER - M8X24X2 Enquire To Order
Photo Part No Description Price (each) Stock
16F0041CP BRKT-WCAC FRONT RH Enquire To Order
16FC133CP BRKT-WCAC FRONT RH $121.84 To Order
Photo Part No Description Price (each) Stock
00RE014 EDGE PROTECTOR - WATER CHARGE AIR COOLER Enquire To Order

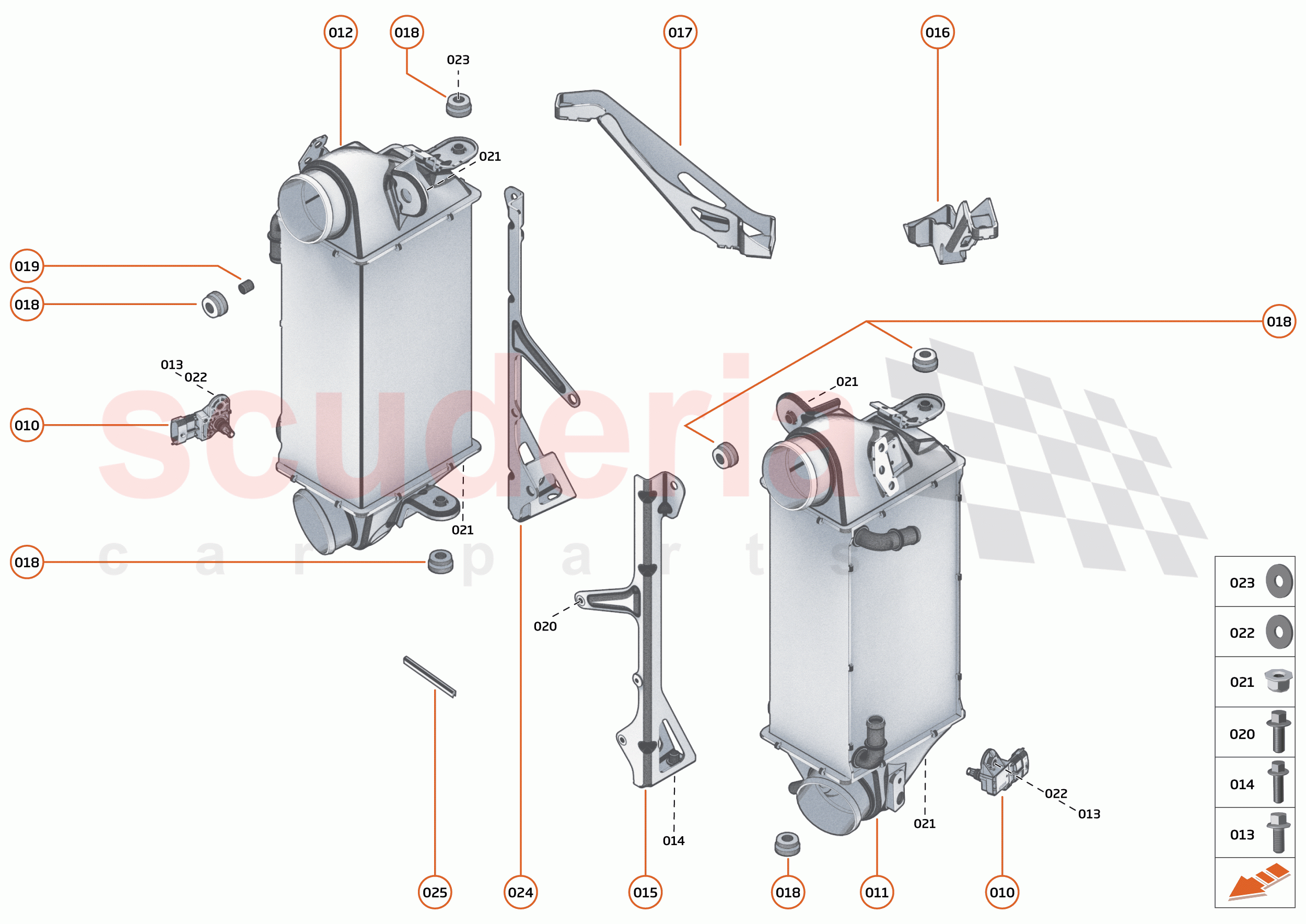

26 - AIR INDUCTION SYSTEMS AIS - 26.3 - AIS CHARGE AIR COOLING SYSTEM of McLaren McLaren Artura Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 16FA640CP
SENSOR - TEMPERATURE AND - PRESSURE - AIR 		$86.29 2
TO
011 16F0036CP
WATER CHARGE COOLER LH 		$1,726.40 1
TO
012 16F0040CP
WATER CHARGE COOLER RH 		$1,726.40 1
TO
013 00RA083
SCREW - M6X20 - FLANGE HEX 		- 4
PE
 Enquire
014 00RA606
BOLT - M8X1.25 - HEX 		- 6
PE
 Enquire
015 16F0037CP
BRKT-WCAC FRONT LH 		- 1
PE
 Enquire
015 16FC138CP
BRKT-WCAC FRONT LH 		$121.84 1
TO
016 16F0038CP
BRKT-WCAC REAR LH 		- 1
PE
 Enquire
016 16FC426CP
BRKT-WCAC REAR LH 		$124.57 1
TO
017 16F0042CP
BRKT-WCAC REAR RH 		- 1
PE
 Enquire
017 16FC425CP
BRKT-WCAC REAR RH 		$124.57 1
TO
018 16LA281CP
AV-MOUNT-BUSH-EPDM 		$7.69 6
TO
019 16LA294CP
AV-MOUNT-SLEEVE-M8 		$4.65 6
TO
020 00RA120
SCREW - M6X25 - HEX 		- 4
PE
 Enquire
021 00RA075
NUT - M8-8 - HEX 		- 4
PE
 Enquire
022 00RC008
WASHER - M6X12.5X0.9 		- 2
PE
 Enquire
023 00RC015
WASHER - M8X24X2 		- 4
PE
 Enquire
024 16F0041CP
BRKT-WCAC FRONT RH 		- 1
PE
 Enquire
024 16FC133CP
BRKT-WCAC FRONT RH 		$121.84 1
TO
025 00RE014
EDGE PROTECTOR - WATER CHARGE AIR COOLER 		- 2
PE
 Enquire
