24 - Lubrication System Off Engine - 24.1 - Engine Oil Tank

McLaren Artura

Find Your Part

McLaren Artura - 24 - LUBRICATION SYSTEM OFF ENGINE - 24.1 - ENGINE OIL TANK

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

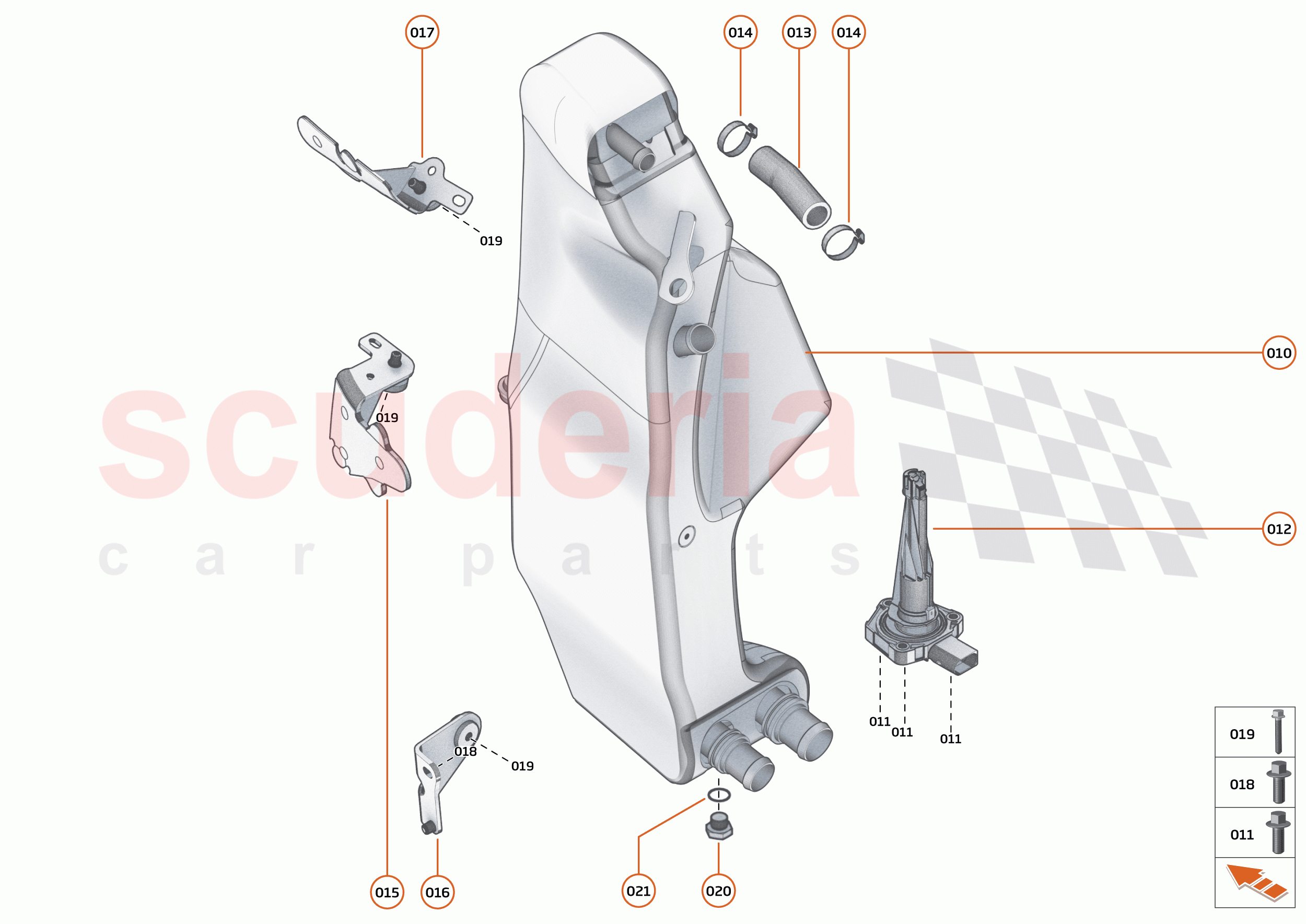

24 - LUBRICATION SYSTEM OFF ENGINE - 24.1 - ENGINE OIL TANK of McLaren McLaren Artura Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 00RA073
SCREW - M6X30 - HEX 		- 1
PE
 Enquire
010 16FC433CP
HEATSHIELD TUB - ZEROCLEAR OUTER - OIL TANK 		$151.05 1
TO
010 16FC428CP
HEATSHIELD TUB - ZEROCLEAR INNER - OIL TANK 		$151.05 1
TO

16FC488CP

ASSY OIL TANK-ENGINE

from $799.75

011 00RA083
SCREW - M6X20 - FLANGE HEX 		- 3
PE
 Enquire
012 16FA408CP
SENSOR OIL LEVEL-OIL TANK 		$111.69 1
TO
013 16FB359CP
BREATHER HOSE - OIL TANK TO - CCV 		$26.01 1
TO
013 16FC249CP
BREATHER HOSE - OIL TANK TO - CCV 		$30.44 1
TO
014 00RB143
CLAMP - 25.6-706R 		- 2
PE
 Enquire
015 16FB155CP
BRKT - OIL TANK FRONT 		$55.84 1
TO
016 16FA402CP
BRKT - OIL TANK REAR 		$88.33 1
TO
017 16FB465CP
BRKT - OIL TANK UPPER 		$38.75 1
TO
018 00RA313
SCREW - M6X16 - HEX - SILVER 		- 1
PE
 Enquire
019 00RA663
BLT-HX HD-FL-M6X1X25-SS-00 		- 3
PE
 Enquire
020 16FC463CP
OIL TANK DRAIN PLUG 		$5.07 1
TO
021 16FB366CP
WASHER M14-DIN 7603 		$4.43 1
TO
021 16FC464CP
COPPER WASHER - TO OIL TANK DRAIN PLUG 		$3.21 1
TO
