Name: 22 - ENGINE - 22.10 - IC ENGINE - CCV
Rating: 5.0 (1 reviews)

Diagram
INFO

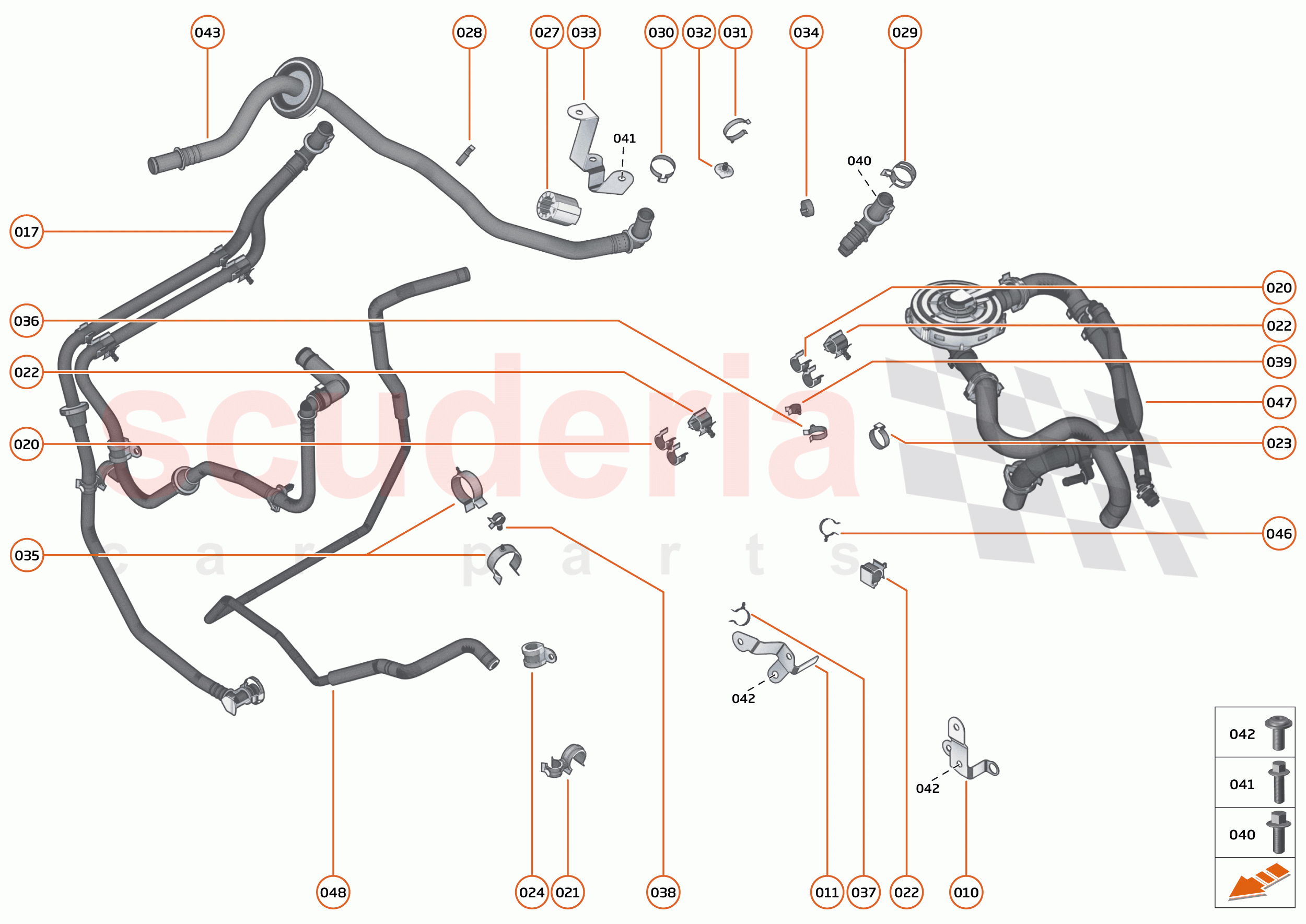

22 - ENGINE - 22.10 - IC ENGINE - CCV of McLaren McLaren Artura

McLaren Artura - 22 - ENGINE - 22.10 - IC ENGINE - CCV

View the exploded parts diagram to find the part you are looking for

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

TO ORDER

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	16FB181CP	BRKT LH FR - FUEL PURGE	$42.71	To Order

Photo	Part No	Description	Price (each)	Stock
	16FB285CP	BRKT RH FR - FUEL PURGE	$46.40	To Order

Photo	Part No	Description	Price (each)	Stock
	16FC069CP	ASSY CCV - INTAKE	$264.02	To Order

Photo	Part No	Description	Price (each)	Stock
	16FB187CP	CLIP - DOUBLE C	$3.23	To Order

Photo	Part No	Description	Price (each)	Stock
	16FB188CP	CLIP - DOUBLE PIPE 13-20 - ROTATING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16FB189CP	CLIP - BOSS CABLE CLIP	$9.20	To Order

Photo	Part No	Description	Price (each)	Stock
	16FB650CP	CLAMP-STEPLESS EAR-OETIKER - 16.2-706	$5.67	To Order
	16FB245CP	CLAMP-STEPLESS EAR-OETIKER - 23.5-706	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16FB247CP	CLIP-P CLIP-14X15-SSE-00	$3.23	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA367	PIPE PROTECTOR - 19MM ID	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB008	CLIP - 18-20MM - MALE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB130	CLIP - SPRING BAND - 22/12	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB138	HOSE CLAMP - 23.5-706R	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RG018	SWIVEL CLIP - 22-24MM -MALE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RG019	SWIVEL - 6.5X10.5 FIRTREE BASE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16FB195CP	BRACKET - PCV	$40.80	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB096	STEPLESS EAR CLAMP - 16.2-706R	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB269	CLIP-SW-M-STR-29-33-40.0-ACE-BLK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB141	SWIVEL CLIP - FEMALE CSC9	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB044	SWIVEL PIPE CLIP - 16MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB019	CLIP - 90DEG - FEMALE - 10-12MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB045	CLIP - 9.5-10MM - MALE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA313	SCREW - M6X16 - HEX - SILVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA083	SCREW - M6X20 - FLANGE HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16FB515CP	BLT-TORX HD-FL-M6X10TX30-8.8	$9.52	To Order

Photo	Part No	Description	Price (each)	Stock
	16FB157CP	ASSY CCV - OIL TANK	$71.07	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB032	CLIP - 13-14MM - FEMALE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16FC054CP	ASSY CCV - PCV	$446.82	To Order

Photo	Part No	Description	Price (each)	Stock
	16FC056CP	ASSY - MAKE UP AIR	$177.72	To Order

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Key	Add to Cart
010	16FB181CP	BRKT LH FR - FUEL PURGE	16FB181CP BRKT LH FR - FUEL PURGE	$42.71	1	TO
011	16FB285CP	BRKT RH FR - FUEL PURGE	16FB285CP BRKT RH FR - FUEL PURGE	$46.40	1	TO
017	16FC069CP	ASSY CCV - INTAKE	16FC069CP ASSY CCV - INTAKE	$264.02	1	TO
020	16FB187CP	CLIP - DOUBLE C	16FB187CP CLIP - DOUBLE C	$3.23	2	TO
021	16FB188CP	CLIP - DOUBLE PIPE 13-20 - ROTATING	16FB188CP CLIP - DOUBLE PIPE 13-20 - ROTATING	-	1	PE	Enquire
022	16FB189CP	CLIP - BOSS CABLE CLIP	16FB189CP CLIP - BOSS CABLE CLIP	$9.20	3	TO
023	16FB650CP	CLAMP-STEPLESS EAR-OETIKER - 16.2-706	16FB650CP CLAMP-STEPLESS EAR-OETIKER - 16.2-706	$5.67	2	TO
023	16FB245CP	CLAMP-STEPLESS EAR-OETIKER - 23.5-706	16FB245CP CLAMP-STEPLESS EAR-OETIKER - 23.5-706	-	4	PE	Enquire
024	16FB247CP	CLIP-P CLIP-14X15-SSE-00	16FB247CP CLIP-P CLIP-14X15-SSE-00	$3.23	1	TO
027	00RA367	PIPE PROTECTOR - 19MM ID	00RA367 PIPE PROTECTOR - 19MM ID	-	1	PE	Enquire
028	00RB008	CLIP - 18-20MM - MALE	00RB008 CLIP - 18-20MM - MALE	-	1	PE	Enquire
029	00RB130	CLIP - SPRING BAND - 22/12	00RB130 CLIP - SPRING BAND - 22/12	-	1	PE	Enquire
030	00RB138	HOSE CLAMP - 23.5-706R	00RB138 HOSE CLAMP - 23.5-706R	-	1	PE	Enquire
031	00RG018	SWIVEL CLIP - 22-24MM -MALE	00RG018 SWIVEL CLIP - 22-24MM -MALE	-	1	PE	Enquire
032	00RG019	SWIVEL - 6.5X10.5 FIRTREE BASE	00RG019 SWIVEL - 6.5X10.5 FIRTREE BASE	-	1	PE	Enquire
033	16FB195CP	BRACKET - PCV	16FB195CP BRACKET - PCV	$40.80	1	TO
034	00RB096	STEPLESS EAR CLAMP - 16.2-706R	00RB096 STEPLESS EAR CLAMP - 16.2-706R	-	2	PE	Enquire
035	00RB269	CLIP-SW-M-STR-29-33-40.0-ACE-BLK	00RB269 CLIP-SW-M-STR-29-33-40.0-ACE-BLK	-	3	PE	Enquire
036	00RB141	SWIVEL CLIP - FEMALE CSC9	00RB141 SWIVEL CLIP - FEMALE CSC9	-	2	PE	Enquire
037	00RB044	SWIVEL PIPE CLIP - 16MM	00RB044 SWIVEL PIPE CLIP - 16MM	-	2	PE	Enquire
038	00RB019	CLIP - 90DEG - FEMALE - 10-12MM	00RB019 CLIP - 90DEG - FEMALE - 10-12MM	-	3	PE	Enquire
039	00RB045	CLIP - 9.5-10MM - MALE	00RB045 CLIP - 9.5-10MM - MALE	-	1	PE	Enquire
040	00RA313	SCREW - M6X16 - HEX - SILVER	00RA313 SCREW - M6X16 - HEX - SILVER	-	1	PE	Enquire
041	00RA083	SCREW - M6X20 - FLANGE HEX	00RA083 SCREW - M6X20 - FLANGE HEX	-	1	PE	Enquire
042	16FB515CP	BLT-TORX HD-FL-M6X10TX30-8.8	16FB515CP BLT-TORX HD-FL-M6X10TX30-8.8	$9.52	1	TO
043	16FB157CP	ASSY CCV - OIL TANK	16FB157CP ASSY CCV - OIL TANK	$71.07	1	TO
046	00RB032	CLIP - 13-14MM - FEMALE	00RB032 CLIP - 13-14MM - FEMALE	-	1	PE	Enquire
047	16FC054CP	ASSY CCV - PCV	16FC054CP ASSY CCV - PCV	$446.82	1	TO
048	16FC056CP	ASSY - MAKE UP AIR	16FC056CP ASSY - MAKE UP AIR	$177.72	1	TO

22 - Engine - 22.10 - Ic Engine - Ccv

McLaren Artura

McLaren Artura - 22 - ENGINE - 22.10 - IC ENGINE - CCV
