McLaren Artura - 22 - POWERTRAIN MOUNTING SYSTEM - 22.1 - REAR AXLE MOUNTING SYSTEM

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
16FA887CP ENGINE LINK SUPPORT - BRKT $56.42 To Order
Photo Part No Description Price (each) Stock
00RA484 BOLT - HEX HEAD - FLANGED - M8X20 Enquire To Order
00RX043 BOLT - HEX HEAD - FLANGE - M8X20 Enquire To Order
Photo Part No Description Price (each) Stock
00RA676 BLT-HX HD-FL-M12X1.75X65-10.9- - 72 Enquire To Order
Photo Part No Description Price (each) Stock
00RA696 BLT-HX HD-FL-M12X1.75X120-10.9 - 72 Enquire To Order
Photo Part No Description Price (each) Stock
00RA557 BOLT - HEX HEAD - M8X1.25X25 Enquire To Order
00RA789 BLT-HXHD-FL-M8X1.25X35-10.9-71 Enquire To Order
Photo Part No Description Price (each) Stock
00RA659 BLT-HX HD-FL-M12X1.75X40-10.9 - 72 Enquire To Order
Photo Part No Description Price (each) Stock
00RC104 Washer - M8x24x2 - Black Enquire To Order
00RC015 WASHER - M8X24X2 Enquire To Order
Photo Part No Description Price (each) Stock
00RA799 BLT-HX HD-W-PPT-M16X2X75-10.9- - 72 Enquire To Order
Photo Part No Description Price (each) Stock
16FC137CP BRKT-TRANSMISSION MOUNT $243.70 To Order
Photo Part No Description Price (each) Stock
16FC010CP MOUNT - TRANSMISSION $264.02 To Order
Photo Part No Description Price (each) Stock
16FC290CP ASSY - LINK LH MOUNT ENGINE $609.32 To Order
Photo Part No Description Price (each) Stock
16FC289CP ASSY - LINK RH MOUNT ENGINE $609.32 To Order

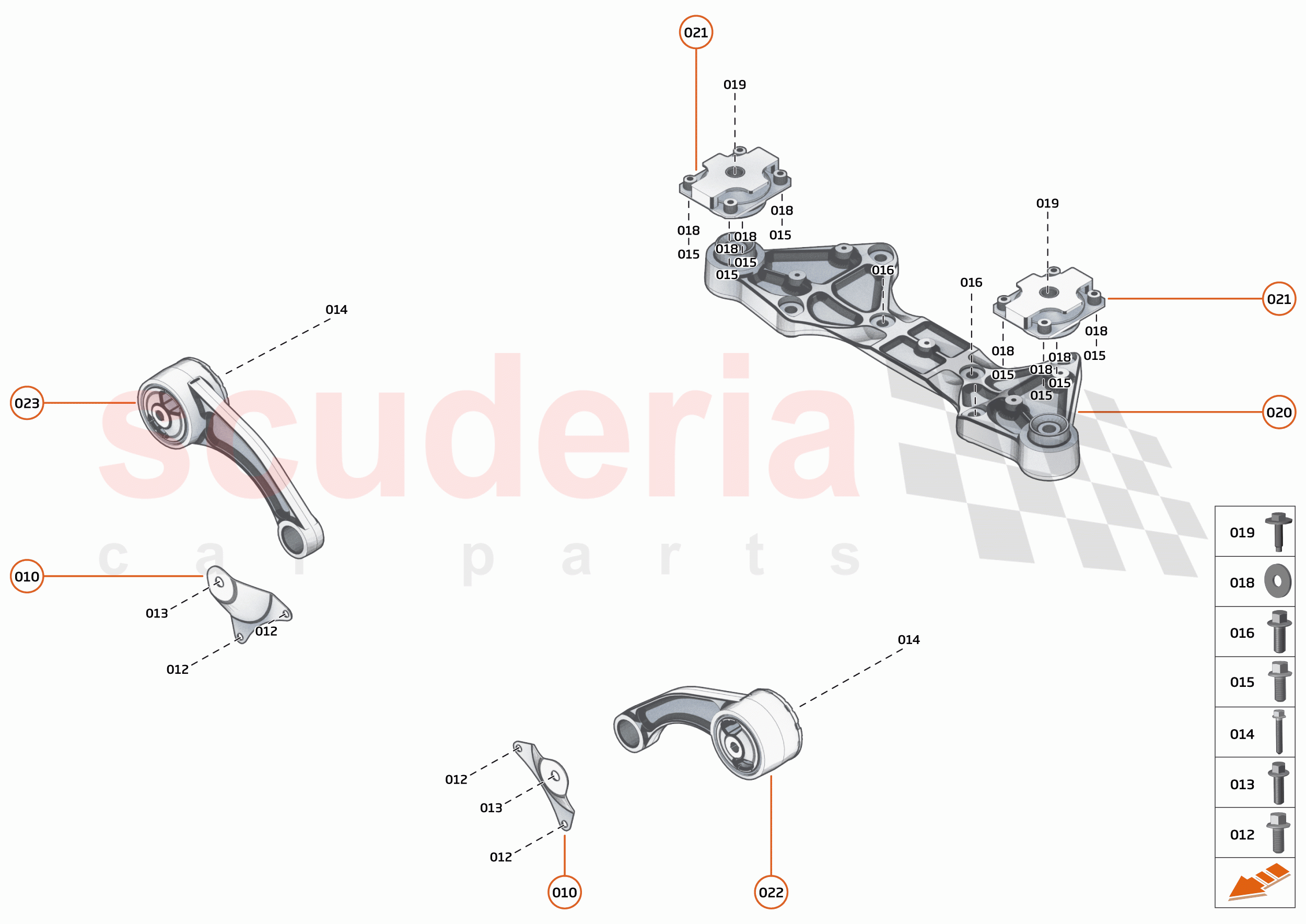

22 - POWERTRAIN MOUNTING SYSTEM - 22.1 - REAR AXLE MOUNTING SYSTEM of McLaren McLaren Artura Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 00RA803
BLT-HX HD-FL-M12X1.75X60-10.9- - 72 		- 4
PE
 Enquire
010 16FA887CP
ENGINE LINK SUPPORT - BRKT 		$56.42 2
TO
012 00RA484
BOLT - HEX HEAD - FLANGED - M8X20 		- 4
PE
 Enquire
012 00RX043
BOLT - HEX HEAD - FLANGE - M8X20 		- 4
PE
 Enquire
013 00RA676
BLT-HX HD-FL-M12X1.75X65-10.9- - 72 		- 2
PE
 Enquire
014 00RA696
BLT-HX HD-FL-M12X1.75X120-10.9 - 72 		- 2
PE
 Enquire
015 00RA557
BOLT - HEX HEAD - M8X1.25X25 		- 8
PE
 Enquire
015 00RA789
BLT-HXHD-FL-M8X1.25X35-10.9-71 		- 8
PE
 Enquire
016 00RA659
BLT-HX HD-FL-M12X1.75X40-10.9 - 72 		- 2
PE
 Enquire
018 00RC104
Washer - M8x24x2 - Black 		- 8
PE
 Enquire
018 00RC015
WASHER - M8X24X2 		- 8
PE
 Enquire
019 00RA799
BLT-HX HD-W-PPT-M16X2X75-10.9- - 72 		- 2
PE
 Enquire
020 16FC137CP
BRKT-TRANSMISSION MOUNT 		$243.70 1
TO
021 16FC010CP
MOUNT - TRANSMISSION 		$264.02 2
TO
022 16FC290CP
ASSY - LINK LH MOUNT ENGINE 		$609.32 1
TO
023 16FC289CP
ASSY - LINK RH MOUNT ENGINE 		$609.32 1
TO
024 16FC684CP
ASSY-LINK MOUNT ENGINE 		- 2
PE
 Enquire
025 16FC686CP
SPACER ENGINE LINK 		- 2
PE
 Enquire
