19 - Suspension - 19.2 - Uprights Front

McLaren Artura

Find Your Part

McLaren Artura - 19 - SUSPENSION - 19.2 - UPRIGHTS FRONT

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
14B0431CP HEATSHIELD - SUSPENSION UPRIGHT - LOWER $17.10 To Order
Photo Part No Description Price (each) Stock
13BA357RP CAP - HUB Enquire To Order
Photo Part No Description Price (each) Stock
11B0739CP WASHER - CAMBER ADJUSTMENT $45.68 To Order
Photo Part No Description Price (each) Stock
16BA576CP ASSY UPRIGHT FR LH $878.65 To Order
16BB030CP ASSY-UPRIGHT-FR-LH $1,035.84 To Order
Photo Part No Description Price (each) Stock
16BA577CP ASSY UPRIGHT FR RH $878.65 To Order
16BB031CP ASSY-UPRIGHT-FR-RH $934.29 To Order
Photo Part No Description Price (each) Stock
13BA350RP WHEEL HUB ASSY - BEARING $491.14 To Order
Photo Part No Description Price (each) Stock
11B0541CP TOPHAT - CAMBER ADJUSTMENT $65.98 To Order
Photo Part No Description Price (each) Stock
16MB093CP SENSOR HUB ACCELEROMETER - FR LH OR RR LH OR RR RH $130.89 To Order
16MB092CP SENSOR - ACCELEROMETER $201.40 To Order
Photo Part No Description Price (each) Stock
00RA229 NUT - M14X1.5 - LOCKED HEX Enquire To Order
Photo Part No Description Price (each) Stock
11B0320CP WASHER - DIA 35X3.9X14.5 $13.18 To Order
Photo Part No Description Price (each) Stock
13BA206CP SCREW - CSK HEX SOCKET HD - M3X12- $1.90 To Order
Photo Part No Description Price (each) Stock
14BA220CP HEX SOCKET HD CAP M12X30 8.8 $3.61 To Order
Photo Part No Description Price (each) Stock
14B0714CP WASHER - M12X23 $3.03 To Order
Photo Part No Description Price (each) Stock
00RA083 SCREW - M6X20 - FLANGE HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA759 BLT-HX HD-FL-M5X0.8X8-8.8-81-L - M5X8 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
16BB027CP HEATSHIELD-FRONT-UPPER-BJ $30.44 To Order

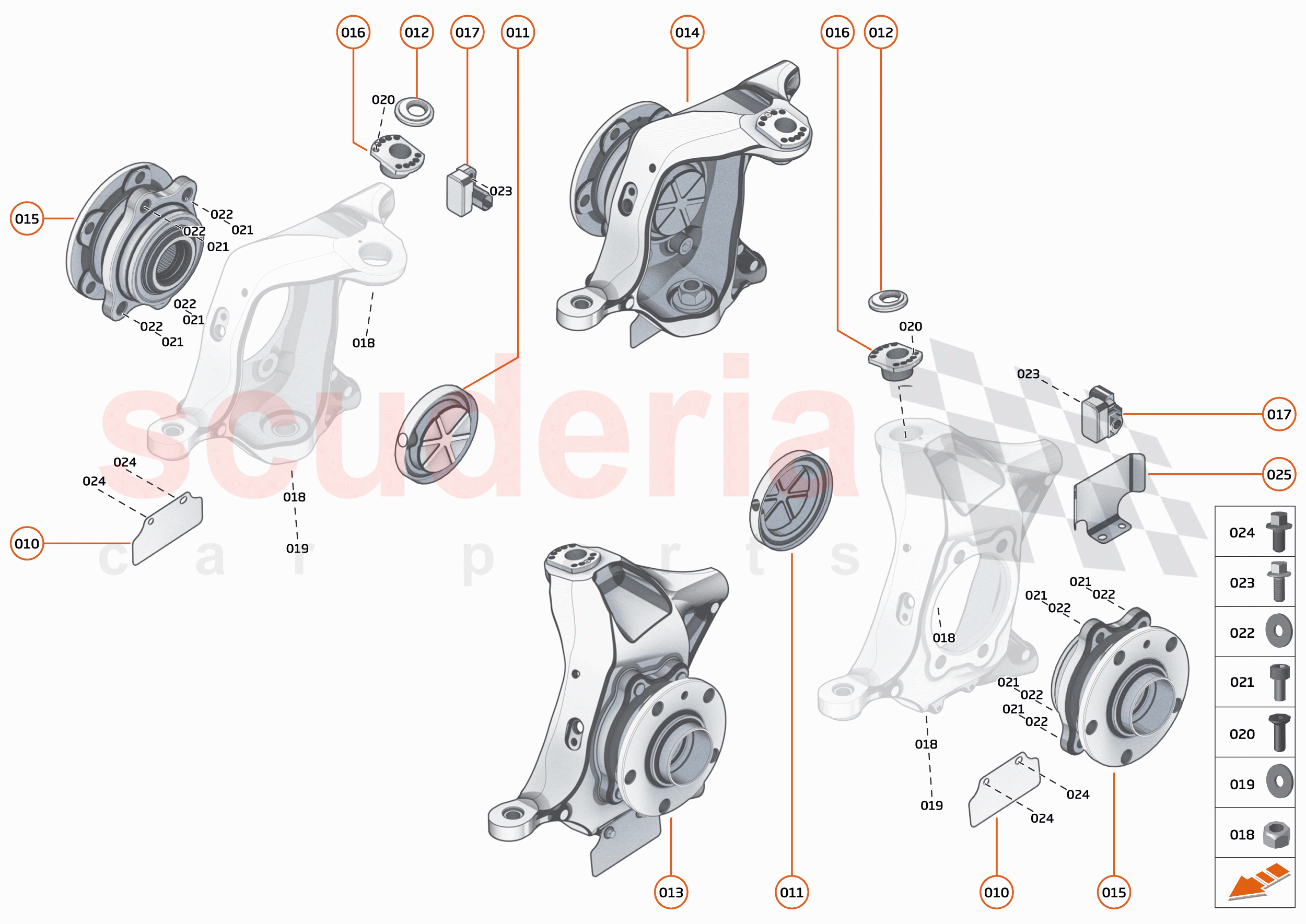

19 - SUSPENSION - 19.2 - UPRIGHTS FRONT of McLaren McLaren Artura Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 14B0431CP
HEATSHIELD - SUSPENSION UPRIGHT - LOWER 		$17.10 2
TO
011 13BA357RP
CAP - HUB 		- 1
PE
 Enquire
012 11B0739CP
WASHER - CAMBER ADJUSTMENT 		$45.68 1
TO
013 16BA576CP
ASSY UPRIGHT FR LH 		$878.65 1
TO
013 16BB030CP
ASSY-UPRIGHT-FR-LH 		$1,035.84 1
TO
014 16BA577CP
ASSY UPRIGHT FR RH 		$878.65 1
TO
014 16BB031CP
ASSY-UPRIGHT-FR-RH 		$934.29 1
TO
015 13BA350RP
WHEEL HUB ASSY - BEARING 		$491.14 2
TO
016 11B0541CP
TOPHAT - CAMBER ADJUSTMENT 		$65.98 2
TO
017 16MB093CP
SENSOR HUB ACCELEROMETER - FR LH OR RR LH OR RR RH 		$130.89 2
TO
017 16MB092CP
SENSOR - ACCELEROMETER 		$201.40 2
TO
018 00RA229
NUT - M14X1.5 - LOCKED HEX 		- 4
PE
 Enquire
019 11B0320CP
WASHER - DIA 35X3.9X14.5 		$13.18 1
TO
020 13BA206CP
SCREW - CSK HEX SOCKET HD - M3X12- 		$1.90 1
TO
021 14BA220CP
HEX SOCKET HD CAP M12X30 8.8 		$3.61 8
TO
022 14B0714CP
WASHER - M12X23 		$3.03 8
TO
023 00RA083
SCREW - M6X20 - FLANGE HEX 		- 2
PE
 Enquire
024 00RA759
BLT-HX HD-FL-M5X0.8X8-8.8-81-L - M5X8 - HEX 		- 4
PE
 Enquire
025 16BB027CP
HEATSHIELD-FRONT-UPPER-BJ 		$30.44 1
TO
