7 - Closures - 7.4 - Door Hinge

McLaren Artura

Find Your Part

McLaren Artura - 7 - CLOSURES - 7.4 - DOOR HINGE

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11A4503CP BALL STUD - DOOR STRUT $25.37 To Order
16AE949CP DOOR BALL STUD $11.14 To Order
Photo Part No Description Price (each) Stock
00RA590 BOLT - HEX HEAD - FLANGED - M10X35 Enquire To Order
Photo Part No Description Price (each) Stock
00RC034 WASHER - PLAIN - M12X28X2.7 Enquire To Order
Photo Part No Description Price (each) Stock
00RC121 WASHER - PLAIN - M10X28X2.5 Enquire To Order
00RC148 WSHR-PLN-M10X20X2.2-MS-84 Enquire To Order
Photo Part No Description Price (each) Stock
00RA763 NUT-HX-FL-M12X1.75-10-ZNPB Enquire To Order
Photo Part No Description Price (each) Stock
16AD417CP SHIM DOOR HINGE 1MM $8.10 To Order
Photo Part No Description Price (each) Stock
16AD418CP SHIM DOOR HINGE 0.5MM $7.90 To Order
Photo Part No Description Price (each) Stock
16AD419CP SHIM DOOR HINGE 0.25MM $11.14 To Order
Photo Part No Description Price (each) Stock
16AD869CP ASSY HINGE DOOR RH $1,289.82 To Order
16AE757CP ASSY HINGE DOOR RH $1,421.74 To Order
Photo Part No Description Price (each) Stock
16AD867CP ASSY HINGE DOOR LH $1,289.82 To Order
16AE756CP ASSY HINGE DOOR LH $1,421.74 To Order
Photo Part No Description Price (each) Stock
16AA134CP HINGE PIN AND BUSH Enquire To Order
Photo Part No Description Price (each) Stock
00RG078 PLUG-CAP-M12X17-LDPE-BLK Enquire To Order

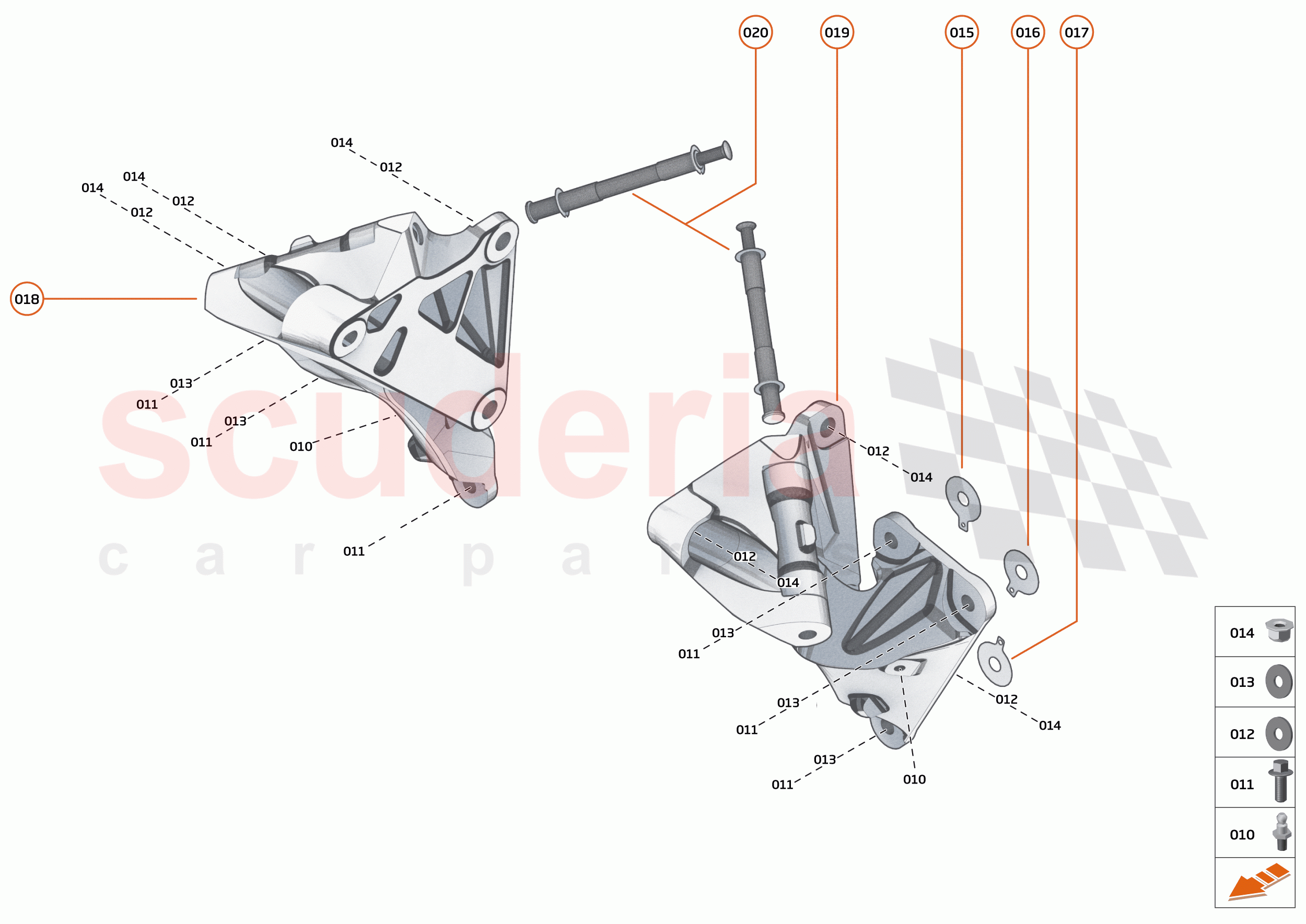

7 - CLOSURES - 7.4 - DOOR HINGE of McLaren McLaren Artura Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 11A4503CP
BALL STUD - DOOR STRUT 		$25.37 2
TO
010 16AE949CP
DOOR BALL STUD 		$11.14 2
TO
011 00RA590
BOLT - HEX HEAD - FLANGED - M10X35 		- 6
PE
 Enquire
012 00RC034
WASHER - PLAIN - M12X28X2.7 		- 6
PE
 Enquire
013 00RC121
WASHER - PLAIN - M10X28X2.5 		- 6
PE
 Enquire
013 00RC148
WSHR-PLN-M10X20X2.2-MS-84 		- 3
PE
 Enquire
014 00RA763
NUT-HX-FL-M12X1.75-10-ZNPB 		- 6
PE
 Enquire
015 16AD417CP
SHIM DOOR HINGE 1MM 		$8.10 1
TO
016 16AD418CP
SHIM DOOR HINGE 0.5MM 		$7.90 1
TO
017 16AD419CP
SHIM DOOR HINGE 0.25MM 		$11.14 1
TO
018 16AD869CP
ASSY HINGE DOOR RH 		$1,289.82 1
TO
018 16AE757CP
ASSY HINGE DOOR RH 		$1,421.74 1
TO
019 16AD867CP
ASSY HINGE DOOR LH 		$1,289.82 1
TO
019 16AE756CP
ASSY HINGE DOOR LH 		$1,421.74 1
TO
020 16AA134CP
HINGE PIN AND BUSH 		- 2
PE
 Enquire
021 00RG078
PLUG-CAP-M12X17-LDPE-BLK 		- 1
PE
 Enquire
