33 - Driveshafts - 33.1 - Driveshafts Rear Axle

McLaren Artura

Find Your Part

McLaren Artura - 33 - DRIVESHAFTS - 33.1 - DRIVESHAFTS REAR AXLE

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RA684 NUT-HX-FL-M24X2-8-72 Enquire To Order
00RA684 NUT-HX-FL-M24X2-8-72 Enquire To Order
Photo Part No Description Price (each) Stock
11G0197CP Driveshaft Snap Ring $4.44 To Order
11GA001CP SNAP RING - DRIVESHAFT - - DRIVESHAFT SNAP RING Enquire To Order
Photo Part No Description Price (each) Stock
16GA367CP ASSY-DRIVESHAFT RH $974.90 To Order
16GA415CP ASSY-DRIVESHAFT RH $934.29 To Order
Photo Part No Description Price (each) Stock
16GA336CP ASSY-DRIVESHAFT LH $821.78 To Order
16GA416CP ASSY-DRIVESHAFT LH $934.29 To Order

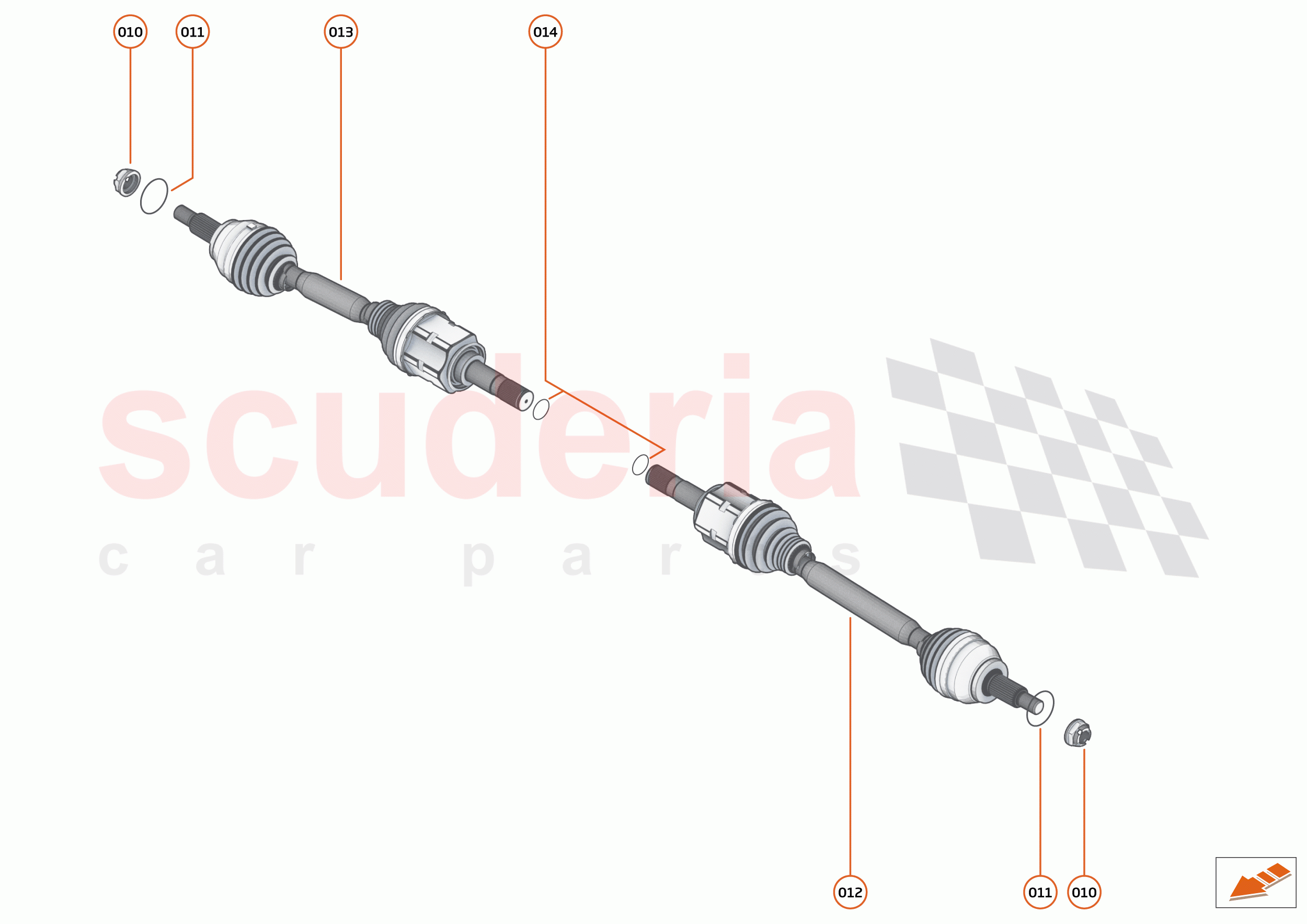

33 - DRIVESHAFTS - 33.1 - DRIVESHAFTS REAR AXLE of McLaren McLaren Artura Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart

00RA684

NUT-HX-FL-M24X2-8-72

 -
011 11G0197CP
Driveshaft Snap Ring 		$4.44 2
TO
011 11GA001CP
SNAP RING - DRIVESHAFT - - DRIVESHAFT SNAP RING 		- 1
PE
 Enquire
012 16GA367CP
ASSY-DRIVESHAFT RH 		$974.90 1
TO
012 16GA415CP
ASSY-DRIVESHAFT RH 		$934.29 1
TO
013 16GA336CP
ASSY-DRIVESHAFT LH 		$821.78 1
TO
013 16GA416CP
ASSY-DRIVESHAFT LH 		$934.29 1
TO
