McLaren Artura - 31 - HVAC SYSTEM - 31.2 - HVAC FLUIDS CIRCUIT

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
16LA201CP ASSY-PIPE-COMPRESSOR-TO - CONDENSER $282.14 To Order
16LA712CP ASSY-PIPE-COMPRESSOR-TO - CONDENSER $304.64 To Order
Photo Part No Description Price (each) Stock
16LA404CP ASSY-PIPE-CONDENSER-TO-TUNNEL $407.55 To Order
16LA711CP ASSY-PIPE-CONDENSER-TO-TUNNEL $467.13 To Order
Photo Part No Description Price (each) Stock
16LA339CP PIPE RUBBER BLOCK $5.25 To Order
Photo Part No Description Price (each) Stock
16LA356CP ASSY-TUNNEL-PIPES $709.10 To Order
16LA697CP ASSY-TUNNEL-PIPES $771.79 To Order
Photo Part No Description Price (each) Stock
16LA210CP ASSY - CONDENSER - RECEIVER - DRIER $771.79 To Order
Photo Part No Description Price (each) Stock
16LA433CP ASSY-CONDENSER FANS SHROUD $568.69 To Order
16LA462CP ASSY-PWM-CONDENSER -FANS $446.82 To Order
16LA740CP ASSY-CONDENSER FANS SHROUD $547.37 To Order
Photo Part No Description Price (each) Stock
16LA271CP BOTTOM NVH-JACKET-E-COMPRESSOR $65.98 To Order
Photo Part No Description Price (each) Stock
16LA216CP HVAC E-COMPRESSOR $1,848.29 To Order
16LA653CP HVAC E-COMPRESSOR $1,266.26 To Order
Photo Part No Description Price (each) Stock
16LA329CP TOP NVH-JACKET-E-COMPRESSOR $65.98 To Order
Photo Part No Description Price (each) Stock
16LA566CP LOWER-BRACKET-HVAC COMPRESSOR $80.93 To Order
Photo Part No Description Price (each) Stock
16LA739CP TOP-BRACKET-HVAC COMPRESSOR Enquire To Order
Photo Part No Description Price (each) Stock
16LA238CP ASSY-HVAC-TXV $142.16 To Order
Photo Part No Description Price (each) Stock
16LA365CP CYLINDER AV-MOUNT- E-COMPRESSOR $7.69 To Order
Photo Part No Description Price (each) Stock
16LA355CP PRESSURE SENSOR-HVAC $101.53 To Order
Photo Part No Description Price (each) Stock
16LA272CP AV-MOUNT-CONDENSER-SHROUD-TOP $4.65 To Order
Photo Part No Description Price (each) Stock
16LA349CP AV-MOUNT-BUSH-NR $7.29 To Order
Photo Part No Description Price (each) Stock
16LA294CP AV-MOUNT-SLEEVE-M8 $4.65 To Order
Photo Part No Description Price (each) Stock
16LA270CP AV-MOUNT-E-COMPRESSOR $17.25 To Order
Photo Part No Description Price (each) Stock
00RL001 CABLE TIE - FIRTREE BASE Enquire To Order
Photo Part No Description Price (each) Stock
00RA764 BLT-HX HD-FL-M8X1.25X30-8.8-72 Enquire To Order
Photo Part No Description Price (each) Stock
00RA075 NUT - M8-8 - HEX Enquire To Order
00RA075 NUT - M8-8 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RB257 CLIP BASE-6.5-MALE-FIR TREE - ACE-BLK Enquire To Order
Photo Part No Description Price (each) Stock
00RX001 BOLT - M5X16 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RB243 CLIP-PIPE-DBL-PA66-BLK Enquire To Order
Photo Part No Description Price (each) Stock
00RA073 SCREW - M6X30 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA011 NUT-HEX HEAD-FLANGE-M6-8 Enquire To Order
Photo Part No Description Price (each) Stock
00RA712 BLT-HX HD-W-PPT-M5X0.8X14.7 - 8.8-81 Enquire To Order
Photo Part No Description Price (each) Stock
00RA055 NUT - M6 - LOCKING - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA120 SCREW - M6X25 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA711 BLT-HX HD-FL-M8X1.25X100 - 8.8-72 Enquire To Order
Photo Part No Description Price (each) Stock
00RA577 NUT-HX-FL-M6X1-8-ZFB Enquire To Order
Photo Part No Description Price (each) Stock
00RA019 SCREW - M6X12-10.9 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA719 SCR-CAP HD-HX-M5X0.8X50-8.8-72 Enquire To Order
Photo Part No Description Price (each) Stock
00RA715 BLT-HX HD-FL-M4X0.7X30-8.8-80 Enquire To Order
Photo Part No Description Price (each) Stock
16LA685CP O-RING - PIPE-COMPRESSOR-TO-CONDENSER - 7X1.2MM $0.45 To Order
Photo Part No Description Price (each) Stock
16LA691CP O-RING - ASSY-TUNNEL-PIPES - 7.65X1.78MM $1.61 To Order
Photo Part No Description Price (each) Stock
16LA692CP O-RING - ASSY-TUNNEL-PIPES - 14X1.2MM $1.07 To Order
Photo Part No Description Price (each) Stock
16LA689CP O-RING - PIPE-CONDENSER-TO-TUNNEL - AND COMPRESSOR-TO-CONDENSER - 9.92X2.62MM $2.00 To Order
Photo Part No Description Price (each) Stock
16LA706CP O-RING - ASSY-TUNNEL-PIPES - 12.5MM ID X 3MM CS $2.42 To Order
Photo Part No Description Price (each) Stock
16LA707CP O-RING - ASSY-TUNNEL-PIPES - 8.8MM ID X 1.9MM CS $2.00 To Order
Photo Part No Description Price (each) Stock
16LA706CP O-RING - ASSY-TUNNEL-PIPES - 12.5MM ID X 3MM CS $2.42 To Order
16LA716CP O-RING - ASSY-TUNNEL-PIPES - 12.5MMX3MM - CR6010-70 $3.03 To Order
Photo Part No Description Price (each) Stock
16LA707CP O-RING - ASSY-TUNNEL-PIPES - 8.8MM ID X 1.9MM CS $2.00 To Order
16LA721CP O RING 7.94X1.78 EPDM 70SH $1.61 To Order
16LA727CP O-RING 9.9X2.62 EPDM 70SH $2.00 To Order
...and 4 more part variants. See table on right for more details.

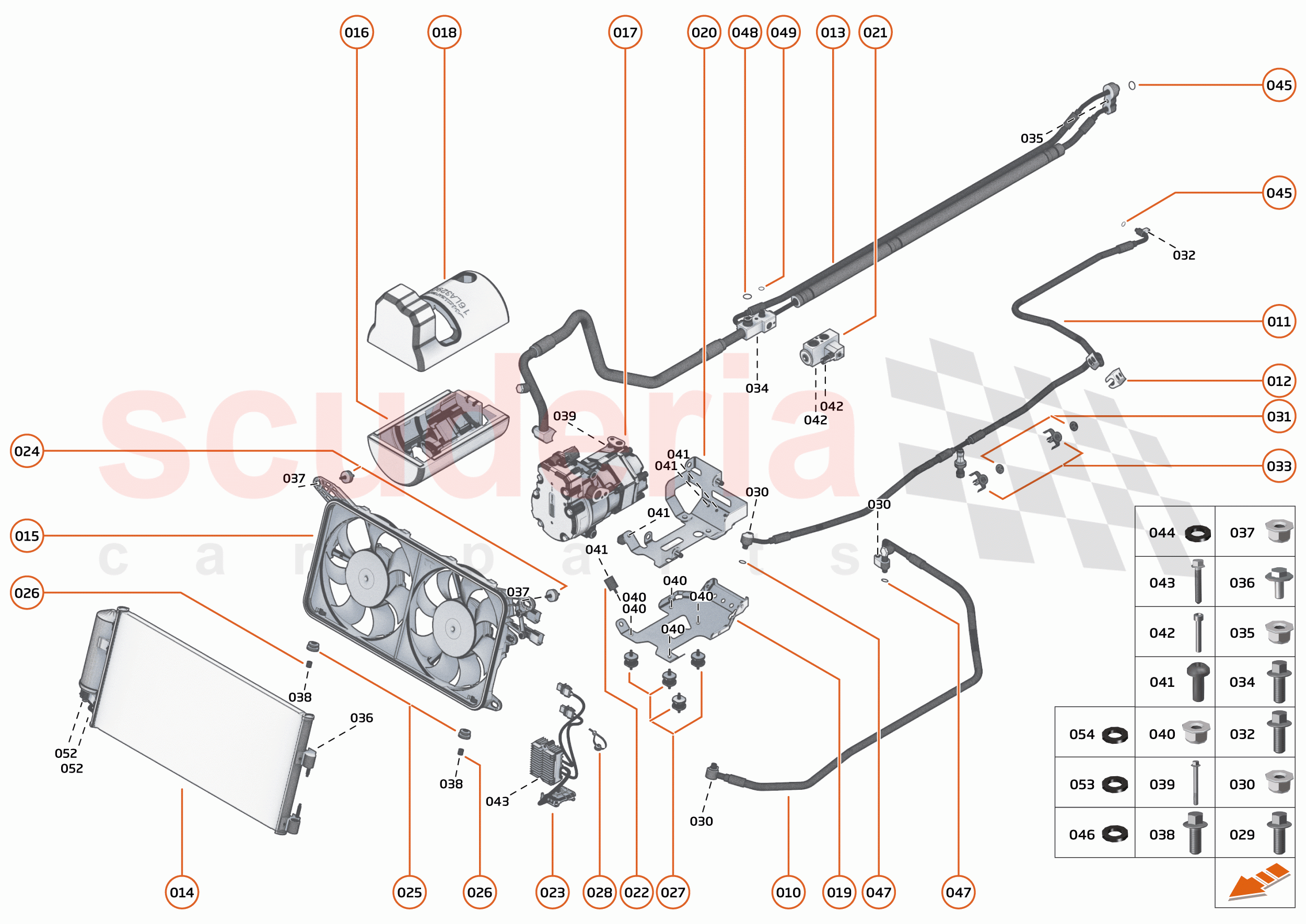

31 - HVAC SYSTEM - 31.2 - HVAC FLUIDS CIRCUIT of McLaren McLaren Artura Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 16LA708CP
AIR CON OIL-SHRIEVE ZEROL HD46 250ML 		$209.00 1
TO
000 16LA701CP
AIR CONDITIONING OIL-SHRIEVE ZEROL 		$132.00 1
TO
000 16LA726CP
SEALING WASHER 12.7MM 		$5.88 1
TO
000 16LA725CP
PLASTIC PIPE 8.5X13.9 		- 1
PE
 Enquire
000 16LA723CP
SEALING WASHER 19.05MM 		$5.88 1
TO
000 16LA722CP
SEALING WASHER 9.52MM 		$5.88 1
TO
000 16LA720CP
SCREW 8.8 FINISH M5X0.8L16 		- 1
PE
 Enquire
000 16LA719CP
CHARGE PORT CAP WITH SEALING 		$15.21 1
TO
010 16LA201CP
ASSY-PIPE-COMPRESSOR-TO - CONDENSER 		$282.14 1
TO
010 16LA712CP
ASSY-PIPE-COMPRESSOR-TO - CONDENSER 		$304.64 1
TO
011 16LA404CP
ASSY-PIPE-CONDENSER-TO-TUNNEL 		$407.55 1
TO
011 16LA711CP
ASSY-PIPE-CONDENSER-TO-TUNNEL 		$467.13 1
TO
012 16LA339CP
PIPE RUBBER BLOCK 		$5.25 1
TO
013 16LA356CP
ASSY-TUNNEL-PIPES 		$709.10 1
TO
013 16LA697CP
ASSY-TUNNEL-PIPES 		$771.79 1
TO
014 16LA210CP
ASSY - CONDENSER - RECEIVER - DRIER 		$771.79 1
TO
015 16LA433CP
ASSY-CONDENSER FANS SHROUD 		$568.69 1
TO
015 16LA462CP
ASSY-PWM-CONDENSER -FANS 		$446.82 1
TO
015 16LA740CP
ASSY-CONDENSER FANS SHROUD 		$547.37 1
TO
016 16LA271CP
BOTTOM NVH-JACKET-E-COMPRESSOR 		$65.98 1
TO
017 16LA216CP
HVAC E-COMPRESSOR 		$1,848.29 1
TO
017 16LA653CP
HVAC E-COMPRESSOR 		$1,266.26 1
TO
018 16LA329CP
TOP NVH-JACKET-E-COMPRESSOR 		$65.98 1
TO
019 16LA566CP
LOWER-BRACKET-HVAC COMPRESSOR 		$80.93 1
TO
020 16LA739CP
TOP-BRACKET-HVAC COMPRESSOR 		- 1
PE
 Enquire
021 16LA238CP
ASSY-HVAC-TXV 		$142.16 1
TO
022 16LA365CP
CYLINDER AV-MOUNT- E-COMPRESSOR 		$7.69 4
TO
023 16LA355CP
PRESSURE SENSOR-HVAC 		$101.53 1
TO
024 16LA272CP
AV-MOUNT-CONDENSER-SHROUD-TOP 		$4.65 2
TO
025 16LA349CP
AV-MOUNT-BUSH-NR 		$7.29 2
TO
026 16LA294CP
AV-MOUNT-SLEEVE-M8 		$4.65 2
TO
027 16LA270CP
AV-MOUNT-E-COMPRESSOR 		$17.25 4
TO
028 00RL001
CABLE TIE - FIRTREE BASE 		- 1
PE
 Enquire
029 00RA764
BLT-HX HD-FL-M8X1.25X30-8.8-72 		- 1
PE
 Enquire

00RA075

NUT - M8-8 - HEX

 -
031 00RB257
CLIP BASE-6.5-MALE-FIR TREE - ACE-BLK 		- 2
PE
 Enquire
032 00RX001
BOLT - M5X16 - HEX 		- 1
PE
 Enquire
033 00RB243
CLIP-PIPE-DBL-PA66-BLK 		- 2
PE
 Enquire
034 00RA073
SCREW - M6X30 - HEX 		- 1
PE
 Enquire
035 00RA011
NUT-HEX HEAD-FLANGE-M6-8 		- 1
PE
 Enquire
036 00RA712
BLT-HX HD-W-PPT-M5X0.8X14.7 - 8.8-81 		- 3
PE
 Enquire
037 00RA055
NUT - M6 - LOCKING - HEX 		- 4
PE
 Enquire
038 00RA120
SCREW - M6X25 - HEX 		- 2
PE
 Enquire
039 00RA711
BLT-HX HD-FL-M8X1.25X100 - 8.8-72 		- 2
PE
 Enquire
040 00RA577
NUT-HX-FL-M6X1-8-ZFB 		- 8
PE
 Enquire
041 00RA019
SCREW - M6X12-10.9 - HEX 		- 4
PE
 Enquire
042 00RA719
SCR-CAP HD-HX-M5X0.8X50-8.8-72 		- 2
PE
 Enquire
043 00RA715
BLT-HX HD-FL-M4X0.7X30-8.8-80 		- 2
PE
 Enquire
044 16LA685CP
O-RING - PIPE-COMPRESSOR-TO-CONDENSER - 7X1.2MM 		$0.45 1
TO
045 16LA691CP
O-RING - ASSY-TUNNEL-PIPES - 7.65X1.78MM 		$1.61 1
TO
046 16LA692CP
O-RING - ASSY-TUNNEL-PIPES - 14X1.2MM 		$1.07 1
TO
047 16LA689CP
O-RING - PIPE-CONDENSER-TO-TUNNEL - AND COMPRESSOR-TO-CONDENSER - 9.92X2.62MM 		$2.00 1
TO

16LA706CP

O-RING - ASSY-TUNNEL-PIPES - 12.5MM ID X 3MM CS

from $2.42

16LA707CP

O-RING - ASSY-TUNNEL-PIPES - 8.8MM ID X 1.9MM CS

from $2.00

053 16LA716CP
O-RING - ASSY-TUNNEL-PIPES - 12.5MMX3MM - CR6010-70 		$3.03 1
TO
054 16LA721CP
O RING 7.94X1.78 EPDM 70SH 		$1.61 1
TO
054 16LA727CP
O-RING 9.9X2.62 EPDM 70SH 		$2.00 1
TO
054 16LA694CP
O-RING - ASSY-TUNNEL-PIPES - 8.73X 1.78MM 		$1.84 1
TO
054 16LA693CP
O-RING - ASSY-TUNNEL-PIPES - 12.37X2.62MM 		$2.13 1
TO
054 16LA690CP
O-RING - ASSY-TUNNEL-PIPES - 5X1.2MM 		$0.45 1
TO
054 16LA717CP
O-RING - ASSY-TUNNEL-PIPES - 8.92MMX1.83MM - CR6010-70 		$2.38 1
TO
