McLaren Artura - 30 - COOLING SYSTEM - 30.2 - HIGH TEMP MAIN RADIATORS & FANS

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
16LA256CP HTR-AV-GROMMET $5.46 To Order
16LA256CP HTR-AV-GROMMET $5.46 To Order
Photo Part No Description Price (each) Stock
00RA313 SCREW - M6X16 - HEX - SILVER Enquire To Order
00RA313 SCREW - M6X16 - HEX - SILVER Enquire To Order
Photo Part No Description Price (each) Stock
00RC043 WASHER - M6XOD25 Enquire To Order
00RC043 WASHER - M6XOD25 Enquire To Order
Photo Part No Description Price (each) Stock
11L0247CP SENSOR - COOLANT TEMPERATURE - ENGINE $39.99 To Order
Photo Part No Description Price (each) Stock
16LA596CP ASSY-HT-RADIATOR-LH $588.99 To Order
Photo Part No Description Price (each) Stock
16L0048CP ASSY-HTR-FAN $401.58 To Order
16LA679CP ASSY-HTR-FAN $446.82 To Order
Photo Part No Description Price (each) Stock
00RB051 Edge Clip - Jet Press - CAC279 Enquire To Order
Photo Part No Description Price (each) Stock
00RX003 BOLT - M6X1X12 - HEX Enquire To Order
00RX003 BOLT - M6X1X12 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RL015 CABLE TIE - SF100 - 18X - 110MM Enquire To Order
Photo Part No Description Price (each) Stock
16LA595CP ASSY-HT-RADIATOR-RH $588.99 To Order
Photo Part No Description Price (each) Stock
16L0115CP BRKT-RADIATOR-UPR-LH Enquire To Order
16LA608CP BRKT-RADIATOR-UPR-LH $60.90 To Order
Photo Part No Description Price (each) Stock
16L0118CP BRKT-RADIATOR-LWR-LH Enquire To Order
16LA609CP BRKT-RADIATOR-LWR-LH $132.00 To Order
Photo Part No Description Price (each) Stock
16L0124CP BRKT-RADIATOR-UPR-RH Enquire To Order
16LA610CP BRKT-RADIATOR-UPR-RH $60.90 To Order
Photo Part No Description Price (each) Stock
16L0127CP BRKT-RADIATOR-LWR-RH Enquire To Order
16LA494CP BRKT-RAD-PRE-COOLER-RHS-LOWER $96.45 To Order
16LA492CP BRKT-RAD-PRE-COOLER-LHS-LOWER $96.45 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
16LA245CP Color codes: HTR-GRILL $71.07 To Order
16LA245CP Color codes: HTR-GRILL $71.07 To Order
Photo Part No Description Price (each) Stock
11L0529CP LOW TEMPERATURE RADIATOR - GRILL - PEGS $3.23 To Order
Photo Part No Description Price (each) Stock
00RA083 SCREW - M6X20 - FLANGE HEX Enquire To Order
00RA083 SCREW - M6X20 - FLANGE HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RG011 GROMMET - DIA 19 - RUBBER Enquire To Order
00RG011 GROMMET - DIA 19 - RUBBER Enquire To Order
Photo Part No Description Price (each) Stock
00RA353 SCREW - 6X14 - THREADFORMING - TORX - FLANGE Enquire To Order
00RA353 SCREW - 6X14 - THREADFORMING - TORX - FLANGE Enquire To Order
Photo Part No Description Price (each) Stock
00RX001 BOLT - M5X16 - HEX Enquire To Order
00RA695 ISO 7380-2 BTN HD FL-M5X16-SS Enquire To Order
Photo Part No Description Price (each) Stock
16LA498CP ASSY-RAD-PRE-COOLER $556.25 To Order
16LA498CP ASSY-RAD-PRE-COOLER $556.25 To Order
Photo Part No Description Price (each) Stock
16LA655CP LH HTR BOTTOM FOAM $12.17 To Order
Photo Part No Description Price (each) Stock
16LA675CP RH HTR BOTTOM FOAM $13.18 To Order

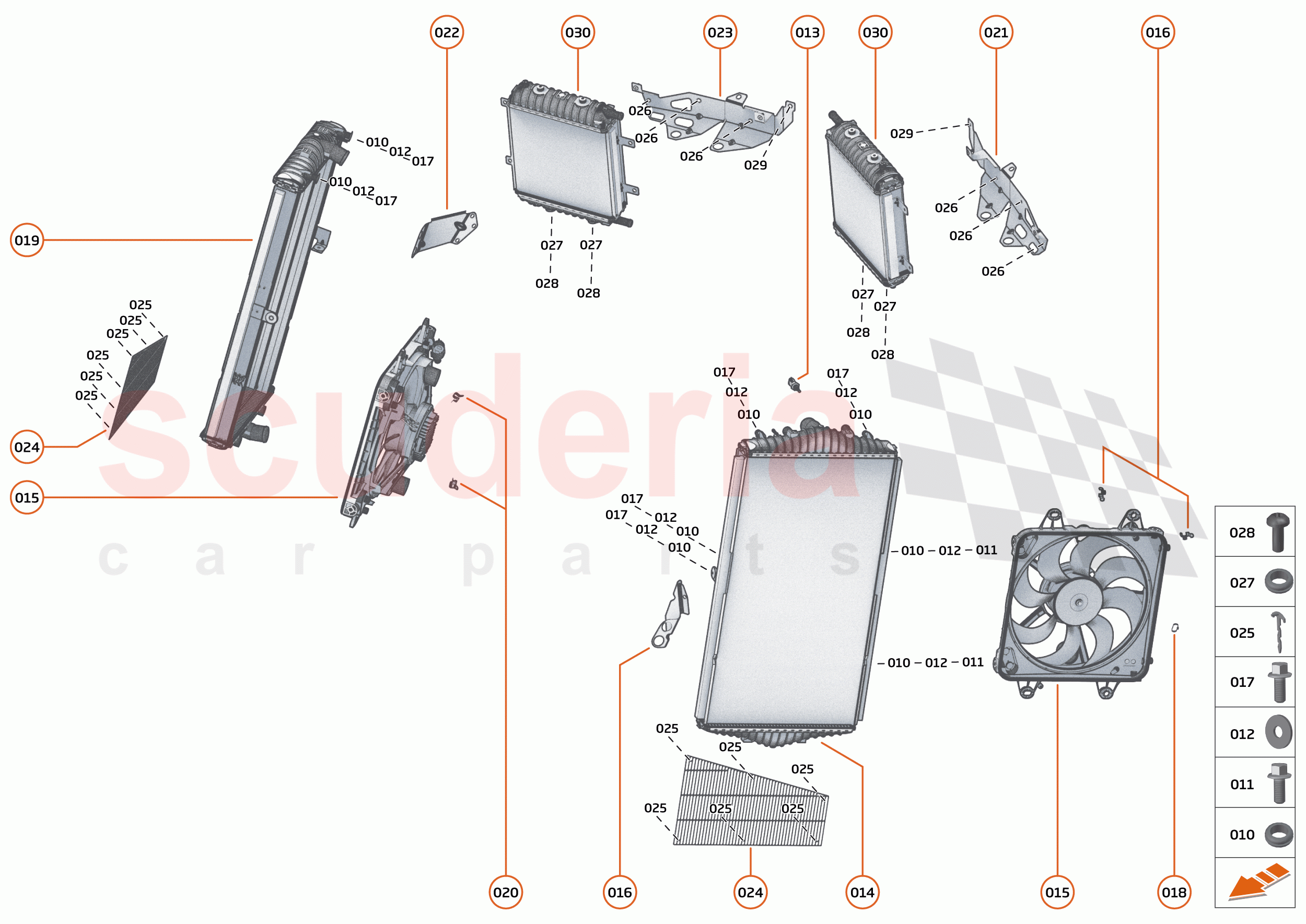

30 - COOLING SYSTEM - 30.2 - HIGH TEMP MAIN RADIATORS & FANS of McLaren McLaren Artura Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 00RC063
Washer - M5x20x1 		- 4
PE
 Enquire

16LA256CP

HTR-AV-GROMMET

from $5.46

00RA313

SCREW - M6X16 - HEX - SILVER

 -

00RC043

WASHER - M6XOD25

 -
013 11L0247CP
SENSOR - COOLANT TEMPERATURE - ENGINE 		$39.99 1
TO
014 16LA596CP
ASSY-HT-RADIATOR-LH 		$588.99 1
TO
015 16L0048CP
ASSY-HTR-FAN 		$401.58 2
TO
015 16LA679CP
ASSY-HTR-FAN 		$446.82 1
TO
016 00RB051
Edge Clip - Jet Press - CAC279 		- 2
PE
 Enquire

00RX003

BOLT - M6X1X12 - HEX

 -
018 00RL015
CABLE TIE - SF100 - 18X - 110MM 		- 1
PE
 Enquire
019 16LA595CP
ASSY-HT-RADIATOR-RH 		$588.99 1
TO
020 16L0115CP
BRKT-RADIATOR-UPR-LH 		- 1
PE
 Enquire
020 16LA608CP
BRKT-RADIATOR-UPR-LH 		$60.90 1
TO
021 16L0118CP
BRKT-RADIATOR-LWR-LH 		- 1
PE
 Enquire
021 16LA609CP
BRKT-RADIATOR-LWR-LH 		$132.00 1
TO
022 16L0124CP
BRKT-RADIATOR-UPR-RH 		- 1
PE
 Enquire
022 16LA610CP
BRKT-RADIATOR-UPR-RH 		$60.90 1
TO
023 16L0127CP
BRKT-RADIATOR-LWR-RH 		- 1
PE
 Enquire
023 16LA494CP
BRKT-RAD-PRE-COOLER-RHS-LOWER 		$96.45 1
TO
023 16LA492CP
BRKT-RAD-PRE-COOLER-LHS-LOWER 		$96.45 1
TO
023 16LA611CP
BRKT-RADIATOR-LWR-RH 		$132.00 1
TO

16LA245CP

COLOR CODES: HTR-GRILL

from $71.07

025 11L0529CP
LOW TEMPERATURE RADIATOR - GRILL - PEGS 		$3.23 6
TO

00RA083

SCREW - M6X20 - FLANGE HEX

 -

00RG011

GROMMET - DIA 19 - RUBBER

 -

00RA353

SCREW - 6X14 - THREADFORMING - TORX - FLANGE

 -
029 00RX001
BOLT - M5X16 - HEX 		- 4
PE
 Enquire
029 00RA695
ISO 7380-2 BTN HD FL-M5X16-SS 		- 4
PE
 Enquire

16LA498CP

ASSY-RAD-PRE-COOLER

from $556.25

031 16LA655CP
LH HTR BOTTOM FOAM 		$12.17 1
TO
032 16LA675CP
RH HTR BOTTOM FOAM 		$13.18 1
TO
