McLaren Artura - 26 - AIR INDUCTION SYSTEMS AIS - 26.1 - AIS LOW PRESSURE SYSTEM

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
16F0026CP DIRTY AIR INLET DUCT - LH $101.53 To Order
Photo Part No Description Price (each) Stock
16F0028CP DIRTY AIR INLET DUCT - RH $88.66 To Order
Photo Part No Description Price (each) Stock
16FB955CP FOAM-SEAL-DSD $19.79 To Order
16FC441CP FOAM - SEAL - DSD - LOWER $19.79 To Order
16FC440CP FOAM - SEAL - DSD - UPPER $19.79 To Order
Photo Part No Description Price (each) Stock
16F0017CP AIRBOX - DIRTY SIDE LH $243.70 To Order
Photo Part No Description Price (each) Stock
16F0018CP AIR FILTER $96.45 To Order
Photo Part No Description Price (each) Stock
16F0019CP AIRBOX - SERVICE PANEL $45.68 To Order
Photo Part No Description Price (each) Stock
16FC006CP AIRBOX - CLEAN SIDE LH $243.70 To Order
Photo Part No Description Price (each) Stock
14F0362CP SENSOR - MASS AIR FLOW $299.89 To Order
Photo Part No Description Price (each) Stock
16F0065CP CAD - COMPRESSOR INLET LH $162.46 To Order
Photo Part No Description Price (each) Stock
16FB084CP CAD - BELLOWS $71.07 To Order
Photo Part No Description Price (each) Stock
00RB068 Hose Clamp - 80-100 - Norma Torro Enquire To Order
Photo Part No Description Price (each) Stock
16F0021CP AIRBOX - DIRTY SIDE RH $243.70 To Order
Photo Part No Description Price (each) Stock
16FC007CP AIRBOX - CLEAN SIDE RH $243.70 To Order
Photo Part No Description Price (each) Stock
16F0066CP CAD - COMPRESSOR INLET RH $162.46 To Order
Photo Part No Description Price (each) Stock
00RA363 SCREW - TORX - 4X12 Enquire To Order
Photo Part No Description Price (each) Stock
00RA694 BLT-HX HD-FL-M6X1X40-8.8-78 Enquire To Order
Photo Part No Description Price (each) Stock
00RC043 WASHER - M6XOD25 Enquire To Order
Photo Part No Description Price (each) Stock
00RA718 SCR-PAN HD-TX-TF-M5X0.8X25-10.9-84 Enquire To Order
Photo Part No Description Price (each) Stock
00RA725 BLT-HX HD-FL-M5X0.8X25-8.8-84 Enquire To Order
Photo Part No Description Price (each) Stock
00RC017 WASHER - M5X15X1.2 Enquire To Order
Photo Part No Description Price (each) Stock
00RA581 BOLT - HEX HEAD - FLANGE - M6X30 Enquire To Order
Photo Part No Description Price (each) Stock
00RC064 WASHER - M6X18X1.6 - BLACK Enquire To Order
Photo Part No Description Price (each) Stock
16JA531CP ASSY - FILTER BOX $1,218.63 To Order
Photo Part No Description Price (each) Stock
16JA530CP BRKT - REAR - FILTER BOX $45.68 To Order

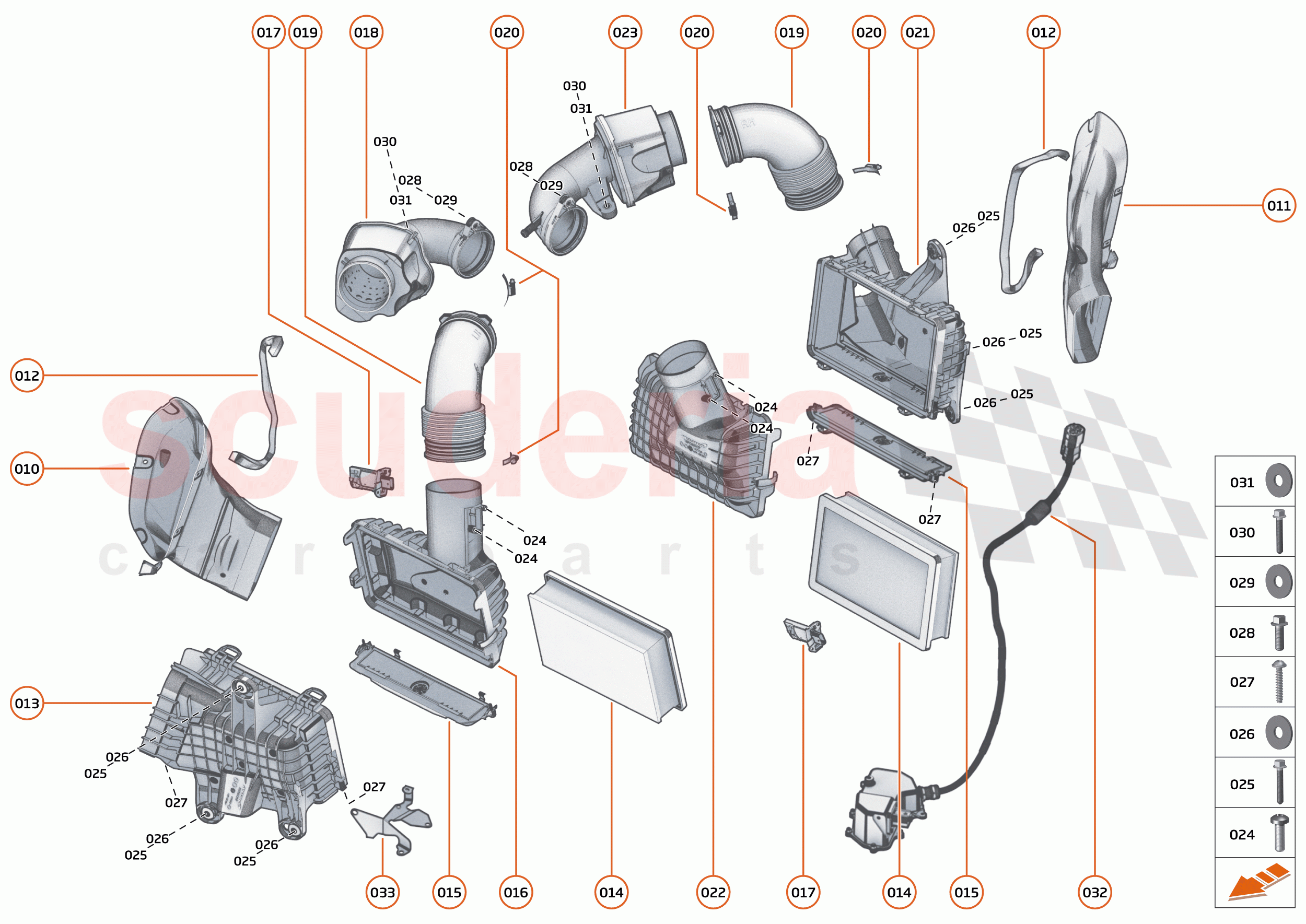

26 - AIR INDUCTION SYSTEMS AIS - 26.1 - AIS LOW PRESSURE SYSTEM of McLaren McLaren Artura Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 16F0026CP
DIRTY AIR INLET DUCT - LH 		$101.53 1
TO
011 16F0028CP
DIRTY AIR INLET DUCT - RH 		$88.66 1
TO
012 16FB955CP
FOAM-SEAL-DSD 		$19.79 2
TO
012 16FC441CP
FOAM - SEAL - DSD - LOWER 		$19.79 1
TO
012 16FC440CP
FOAM - SEAL - DSD - UPPER 		$19.79 1
TO
013 16F0017CP
AIRBOX - DIRTY SIDE LH 		$243.70 1
TO
014 16F0018CP
AIR FILTER
AIR FILTER; 		$96.45 1
TO
015 16F0019CP
AIRBOX - SERVICE PANEL 		$45.68 1
TO
016 16FC006CP
AIRBOX - CLEAN SIDE LH 		$243.70 1
TO
017 14F0362CP
SENSOR - MASS AIR FLOW 		$299.89 2
TO
018 16F0065CP
CAD - COMPRESSOR INLET LH 		$162.46 1
TO
019 16FB084CP
CAD - BELLOWS 		$71.07 2
TO
020 00RB068
Hose Clamp - 80-100 - Norma Torro 		- 4
PE
 Enquire
021 16F0021CP
AIRBOX - DIRTY SIDE RH 		$243.70 1
TO
022 16FC007CP
AIRBOX - CLEAN SIDE RH 		$243.70 1
TO
023 16F0066CP
CAD - COMPRESSOR INLET RH 		$162.46 1
TO
024 00RA363
SCREW - TORX - 4X12 		- 4
PE
 Enquire
025 00RA694
BLT-HX HD-FL-M6X1X40-8.8-78 		- 6
PE
 Enquire
026 00RC043
WASHER - M6XOD25 		- 6
PE
 Enquire
027 00RA718
SCR-PAN HD-TX-TF-M5X0.8X25-10.9-84 		- 4
PE
 Enquire
028 00RA725
BLT-HX HD-FL-M5X0.8X25-8.8-84 		- 2
PE
 Enquire
029 00RC017
WASHER - M5X15X1.2 		- 2
PE
 Enquire
030 00RA581
BOLT - HEX HEAD - FLANGE - M6X30 		- 2
PE
 Enquire
031 00RC064
WASHER - M6X18X1.6 - BLACK 		- 2
PE
 Enquire
032 16JA531CP
ASSY - FILTER BOX 		$1,218.63 1
TO
033 16JA530CP
BRKT - REAR - FILTER BOX 		$45.68 1
TO
