36 - Hv Cables & Harnesses - 36.1 - Hv Harness & Connectors

McLaren Artura

Find Your Part

McLaren Artura - 36 - HV CABLES & HARNESSES - 36.1 - HV HARNESS & CONNECTORS

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
16JA127CP BRKT-HV CABLE IPU LHD Enquire To Order
16JA203CP BRKT-HV CABLE IPU RHD $40.60 To Order
Photo Part No Description Price (each) Stock
00RG024 CABLE TIE - 90 DEG - EDGE PANEL Enquire To Order
Photo Part No Description Price (each) Stock
00RG029 Cable Tie - Male - Dia 10-52 Enquire To Order
Photo Part No Description Price (each) Stock
00RB066 SWIVEL CLIP - 25-27MM - FEMALE Enquire To Order
Photo Part No Description Price (each) Stock
00RA142 SCREW - M6X8 - BUTTON Enquire To Order
Photo Part No Description Price (each) Stock
16JA259CP ASSY-HV DC CABLE ESS-IPU RHD $304.64 To Order
16JA258CP ASSY-HV DC CABLE ESS-IPU LHD Enquire To Order
Photo Part No Description Price (each) Stock
16JA226CP ASSY-HV DC CABLE IPU-PTC LHD Enquire To Order
16JA320CP ASSY-HV DC CABLE IPU-PTC RHD $274.69 To Order
16JA560CP ASSY-HV DC CABLE IPU-PTC LHD Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
00RL001 CABLE TIE - FIRTREE BASE Enquire To Order
Photo Part No Description Price (each) Stock
00RL022 EDGE CLIP - 202X4.6MM - INLINE Enquire To Order

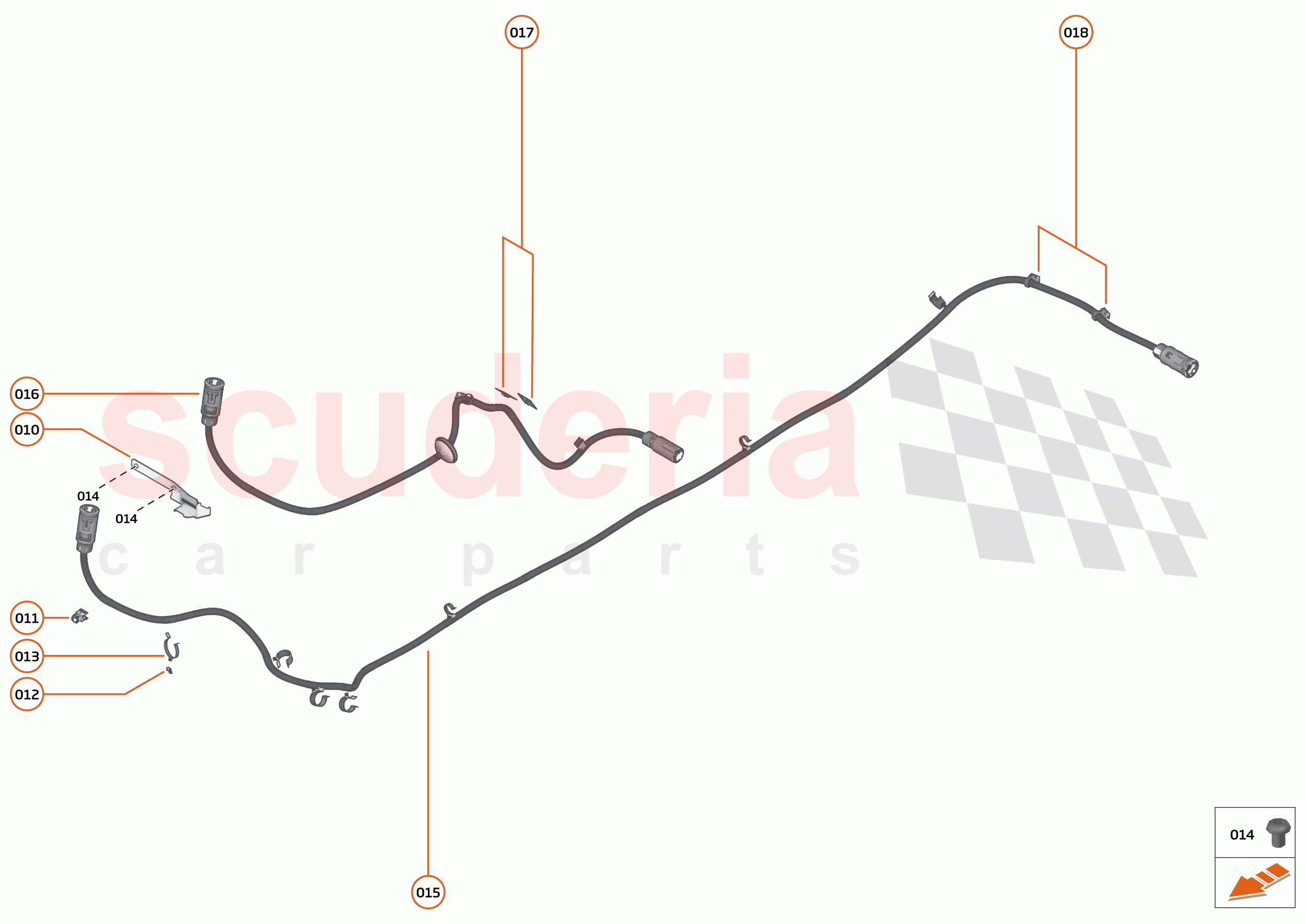

36 - HV CABLES & HARNESSES - 36.1 - HV HARNESS & CONNECTORS of McLaren McLaren Artura Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 16JA127CP
BRKT-HV CABLE IPU LHD 		- 1
PE
 Enquire
010 16JA203CP
BRKT-HV CABLE IPU RHD 		$40.60 1
TO
011 00RG024
CABLE TIE - 90 DEG - EDGE PANEL 		- 1
PE
 Enquire
012 00RG029
Cable Tie - Male - Dia 10-52 		- 1
PE
 Enquire
013 00RB066
SWIVEL CLIP - 25-27MM - FEMALE 		- 1
PE
 Enquire
014 00RA142
SCREW - M6X8 - BUTTON 		- 2
PE
 Enquire
015 16JA259CP
ASSY-HV DC CABLE ESS-IPU RHD 		$304.64 1
TO
015 16JA258CP
ASSY-HV DC CABLE ESS-IPU LHD 		- 1
PE
 Enquire
016 16JA226CP
ASSY-HV DC CABLE IPU-PTC LHD 		- 1
PE
 Enquire
016 16JA320CP
ASSY-HV DC CABLE IPU-PTC RHD 		$274.69 1
TO
016 16JA560CP
ASSY-HV DC CABLE IPU-PTC LHD 		- 1
PE
 Enquire
016 16JA562CP
ASSY-HV DC CABLE IPU-PTC RHD 		$274.69 1
TO
017 00RL001
CABLE TIE - FIRTREE BASE 		- 1
PE
 Enquire
018 00RL022
EDGE CLIP - 202X4.6MM - INLINE 		- 1
PE
 Enquire
