McLaren Artura - 34 - ENERGY STORAGE SYSTEM - 34.1 - ENERGY STORAGE UNIT

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
16JA327CP Color codes: CONNECTOR $132.00 To Order
Photo Part No Description Price (each) Stock
16JA328CP ELECTRIC EXPANSION VALVE $284.34 To Order
Photo Part No Description Price (each) Stock
16JA329CP HEX BOLT $5.07 To Order
Photo Part No Description Price (each) Stock
16JA332CP ISA SCREW $13.18 To Order
16JA331CP ISA SCREW $7.29 To Order
Photo Part No Description Price (each) Stock
16JA336CP DISTRIBUTION UNIT HIGH-VOLTAGE BATTERY $1,327.14 To Order
16JA625CP DISTRIBUTION UNIT - HIGH-VOLTAGE BATTERY $1,523.29 To Order
Photo Part No Description Price (each) Stock
16JA337CP SEAL DISTRIBUTION UNIT $55.84 To Order
Photo Part No Description Price (each) Stock
16JA338CP HEX BOLT WITH WASHER $2.19 To Order
Photo Part No Description Price (each) Stock
16JA339CP COMMUNICATIONS WIRING HARNESS $528.06 To Order
Photo Part No Description Price (each) Stock
16JA340CP CSC WIRING HARNESS $96.45 To Order
Photo Part No Description Price (each) Stock
16JA341CP PLUG-IN CONNECTION BRACKET $5.88 To Order
Photo Part No Description Price (each) Stock
16JA342CP PLUG-IN CONNECTION BRACKET $5.70 To Order
Photo Part No Description Price (each) Stock
00RA590 BOLT - HEX HEAD - FLANGED - M10X35 Enquire To Order
Photo Part No Description Price (each) Stock
16JA344CP HV BATTERY B+ CABLE $172.62 To Order
Photo Part No Description Price (each) Stock
16JA345CP HV BATTERY NEGATIVE CABLE $65.98 To Order
Photo Part No Description Price (each) Stock
16JA346CP CELL MODULE CONNECTOR $142.16 To Order
Photo Part No Description Price (each) Stock
16JA347CP CELL MODULE CONNECTOR $121.84 To Order
Photo Part No Description Price (each) Stock
16JA348CP CABLE DUCT $13.84 To Order
Photo Part No Description Price (each) Stock
16JA349CP CABLE DUCT $12.86 To Order
Photo Part No Description Price (each) Stock
16JA350CP VENT UNIT $86.29 To Order
Photo Part No Description Price (each) Stock
16JA351CP FILLISTER HEAD SCREW $10.31 To Order
Photo Part No Description Price (each) Stock
16JA352CP HV CONNECTOR HOUSING $203.09 To Order
Photo Part No Description Price (each) Stock
16JA353CP HEX BOLT $6.15 To Order
16JA330CP HEX BOLT $5.07 To Order
Photo Part No Description Price (each) Stock
16JA354CP FILLISTER HEAD SCREW $5.25 To Order
Photo Part No Description Price (each) Stock
16JA355CP ELECTRONIC MEMORY MANAGEMENT $629.62 To Order
Photo Part No Description Price (each) Stock
16JA615CP CELL MONITORING CIRCUIT-MASTER - LEFT OUTER $487.43 To Order
16JA356CP CELL MONITORING CIRCUIT $419.42 To Order
Photo Part No Description Price (each) Stock
16JA357CP CELL MONITORING CIRCUIT $304.64 To Order
16JA616CP CELL MONITORING CIRCUIT-MINOR - LEFT INNER OR CENTER OR - RIGHT INNER OR RIGHT OUTER $304.64 To Order
Photo Part No Description Price (each) Stock
16JA358CP Color codes: SCREW $3.96 To Order
Photo Part No Description Price (each) Stock
16JA359CP CELL MODULE HIGH-VOLTAGE BATTERY $3,036.35 To Order
16JA617CP CELL MODULE HIGH-VOLTAGE - BATTERY-LEFT INNER - OR RIGHT INNER $3,625.46 To Order
Photo Part No Description Price (each) Stock
16JA360CP CELL MODULE HIGH-VOLTAGE BATTERY $3,036.35 To Order
16JA618CP CELL MODULE HIGH-VOLTAGE - BATTERY-LEFT OUTER - OR CENTER OR RIGHT OUTER $3,625.46 To Order
Photo Part No Description Price (each) Stock
16JA361CP ISA SCREW $6.87 To Order
Photo Part No Description Price (each) Stock
16JA559CP SAFETY BOX $2,155.13 To Order
16JA362CP SAFETY BOX $1,966.82 To Order
Photo Part No Description Price (each) Stock
16JA363CP CABLE GUIDE $46.69 To Order
Photo Part No Description Price (each) Stock
16JA364CP Color codes: SCREW $4.04 To Order
Photo Part No Description Price (each) Stock
16JA365CP CABLE STRAP WITH BRACKET $1.16 To Order
Photo Part No Description Price (each) Stock
16JA366CP TORX SCREW $3.54 To Order
Photo Part No Description Price (each) Stock
16JA367CP HOUSING FOR HIGH-VOLTAGE BATTERY $2,376.35 To Order
Photo Part No Description Price (each) Stock
16JA368CP SEAL FOR HV BATTERY $142.16 To Order
Photo Part No Description Price (each) Stock
16JA369CP TORX SCREW SELF-LOCKING $6.27 To Order
Photo Part No Description Price (each) Stock
16JA333CP DATA PLATE FOR HIGH-VOLTAGE BATTERY $55.84 To Order
Photo Part No Description Price (each) Stock
16JA614CP WARNING STICKER FOR HV STORAGE MEDIUM $25.37 To Order
16JA334CP WARNING STICKER FOR HV STORAGE MEDIUM $20.48 To Order
Photo Part No Description Price (each) Stock
16JA335CP WARNING STICKER FOR HV STORAGE MEDIUM $7.50 To Order
Photo Part No Description Price (each) Stock
16JA326CP COOLER FOR HIGH-VOLTAGE BATTERY $1,421.74 To Order
Photo Part No Description Price (each) Stock
16JA266CP ASSY - HV BATTERY STRUCTURAL - FLOOR $4,044.68 To Order
16JA622CP ASSY - HV BATTERY EPOXY - STRUCTURAL FLOOR Enquire To Order
Photo Part No Description Price (each) Stock
00RA486 BOLT - HEX HEAD - FLANGED - M8X30 Enquire To Order
00RA486 BOLT - HEX HEAD - FLANGED - M8X30 Enquire To Order

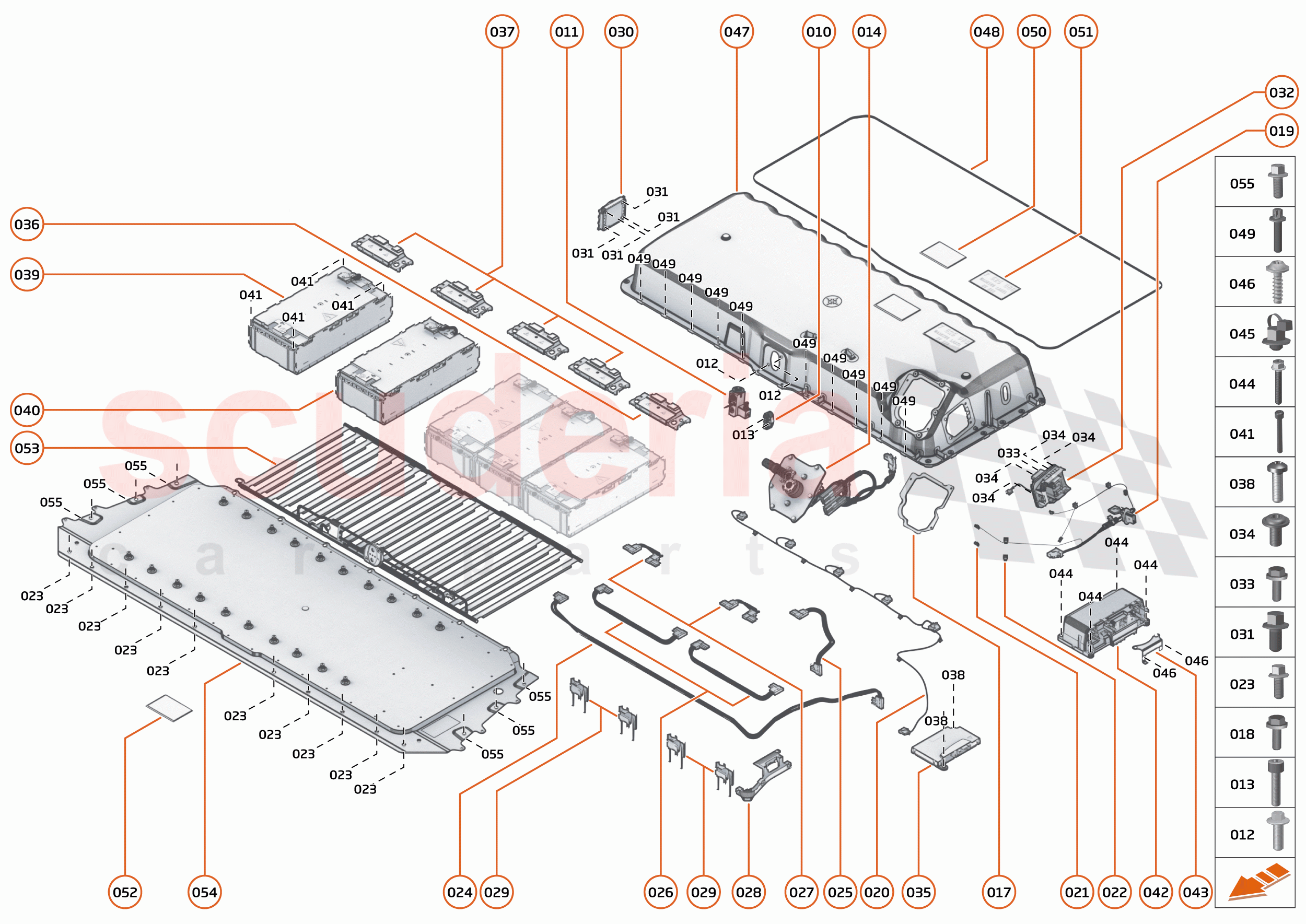

34 - ENERGY STORAGE SYSTEM - 34.1 - ENERGY STORAGE UNIT of McLaren McLaren Artura Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 16JA232CP
P16 MANUAL SERVICE DISCONNECT 		$649.93 1
TO
000 00RB258
ESS HVIL PLUG 		- 1
PE
 Enquire
010 16JA327CP
Color codes: CONNECTOR
Color codes: CONNECTOR; 		$132.00 1
TO
011 16JA328CP
ELECTRIC EXPANSION VALVE 		$284.34 1
TO
012 16JA329CP
HEX BOLT
HEX BOLT; 		$5.07 2
TO
013 16JA332CP
ISA SCREW
ISA SCREW; 		$13.18 2
TO
013 16JA331CP
ISA SCREW
ISA SCREW; 		$7.29 1
TO
014 16JA336CP
DISTRIBUTION UNIT HIGH-VOLTAGE BATTERY 		$1,327.14 1
TO
014 16JA625CP
DISTRIBUTION UNIT - HIGH-VOLTAGE BATTERY 		$1,523.29 1
TO
017 16JA337CP
SEAL DISTRIBUTION UNIT 		$55.84 1
TO
018 16JA338CP
HEX BOLT WITH WASHER 		$2.19 6
TO
019 16JA339CP
COMMUNICATIONS WIRING HARNESS 		$528.06 1
TO
020 16JA340CP
CSC WIRING HARNESS 		$96.45 1
TO
021 16JA341CP
PLUG-IN CONNECTION BRACKET 		$5.88 1
TO
022 16JA342CP
PLUG-IN CONNECTION BRACKET 		$5.70 1
TO
023 00RA590
BOLT - HEX HEAD - FLANGED - M10X35 		- 12
PE
 Enquire
024 16JA344CP
HV BATTERY B+ CABLE 		$172.62 1
TO
025 16JA345CP
HV BATTERY NEGATIVE CABLE 		$65.98 1
TO
026 16JA346CP
CELL MODULE CONNECTOR 		$142.16 2
TO
027 16JA347CP
CELL MODULE CONNECTOR 		$121.84 2
TO
028 16JA348CP
CABLE DUCT
CABLE DUCT; 		$13.84 1
TO
029 16JA349CP
CABLE DUCT
CABLE DUCT; 		$12.86 4
TO
030 16JA350CP
VENT UNIT
VENT UNIT; 		$86.29 1
TO
031 16JA351CP
FILLISTER HEAD SCREW 		$10.31 4
TO
032 16JA352CP
HV CONNECTOR HOUSING 		$203.09 1
TO
033 16JA353CP
HEX BOLT
HEX BOLT; 		$6.15 4
TO
033 16JA330CP
HEX BOLT
HEX BOLT; 		$5.07 1
TO
034 16JA354CP
FILLISTER HEAD SCREW 		$5.25 1
TO
035 16JA355CP
ELECTRONIC MEMORY MANAGEMENT 		$629.62 1
TO
036 16JA615CP
CELL MONITORING CIRCUIT-MASTER - LEFT OUTER 		$487.43 1
TO
036 16JA356CP
CELL MONITORING CIRCUIT 		$419.42 1
TO
037 16JA357CP
CELL MONITORING CIRCUIT 		$304.64 4
TO
037 16JA616CP
CELL MONITORING CIRCUIT-MINOR - LEFT INNER OR CENTER OR - RIGHT INNER OR RIGHT OUTER 		$304.64 4
TO
038 16JA358CP
Color codes: SCREW
Color codes: SCREW; 		$3.96 2
TO
039 16JA359CP
CELL MODULE HIGH-VOLTAGE BATTERY 		$3,036.35 2
TO
039 16JA617CP
CELL MODULE HIGH-VOLTAGE - BATTERY-LEFT INNER - OR RIGHT INNER 		$3,625.46 2
TO
040 16JA360CP
CELL MODULE HIGH-VOLTAGE BATTERY 		$3,036.35 3
TO
040 16JA618CP
CELL MODULE HIGH-VOLTAGE - BATTERY-LEFT OUTER - OR CENTER OR RIGHT OUTER 		$3,625.46 3
TO
041 16JA361CP
ISA SCREW
ISA SCREW; 		$6.87 20
TO
042 16JA559CP
SAFETY BOX
SAFETY BOX; 		$2,155.13 1
TO
042 16JA362CP
SAFETY BOX
SAFETY BOX; 		$1,966.82 1
TO
043 16JA363CP
CABLE GUIDE 		$46.69 1
TO
044 16JA364CP
Color codes: SCREW
Color codes: SCREW; 		$4.04 4
TO
045 16JA365CP
CABLE STRAP WITH BRACKET 		$1.16 2
TO
046 16JA366CP
TORX SCREW
TORX SCREW; 		$3.54 2
TO
047 16JA367CP
HOUSING FOR HIGH-VOLTAGE BATTERY 		$2,376.35 1
TO
048 16JA368CP
SEAL FOR HV BATTERY 		$142.16 1
TO
049 16JA369CP
TORX SCREW SELF-LOCKING 		$6.27 35
TO
050 16JA333CP
DATA PLATE FOR HIGH-VOLTAGE BATTERY 		$55.84 1
TO
051 16JA614CP
WARNING STICKER FOR HV STORAGE MEDIUM 		$25.37 1
TO
051 16JA334CP
WARNING STICKER FOR HV STORAGE MEDIUM 		$20.48 1
TO
052 16JA335CP
WARNING STICKER FOR HV STORAGE MEDIUM 		$7.50 1
TO
053 16JA326CP
COOLER FOR HIGH-VOLTAGE BATTERY 		$1,421.74 1
TO
054 16JA266CP
ASSY - HV BATTERY STRUCTURAL - FLOOR 		$4,044.68 1
TO
054 16JA622CP
ASSY - HV BATTERY EPOXY - STRUCTURAL FLOOR 		- 1
PE
 Enquire

00RA486

BOLT - HEX HEAD - FLANGED - M8X30

 -
