McLaren Artura - 24 - LUBRICATION SYSTEM OFF ENGINE - 24.2 - ENGINE OIL FEED & RETURN HOSES

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

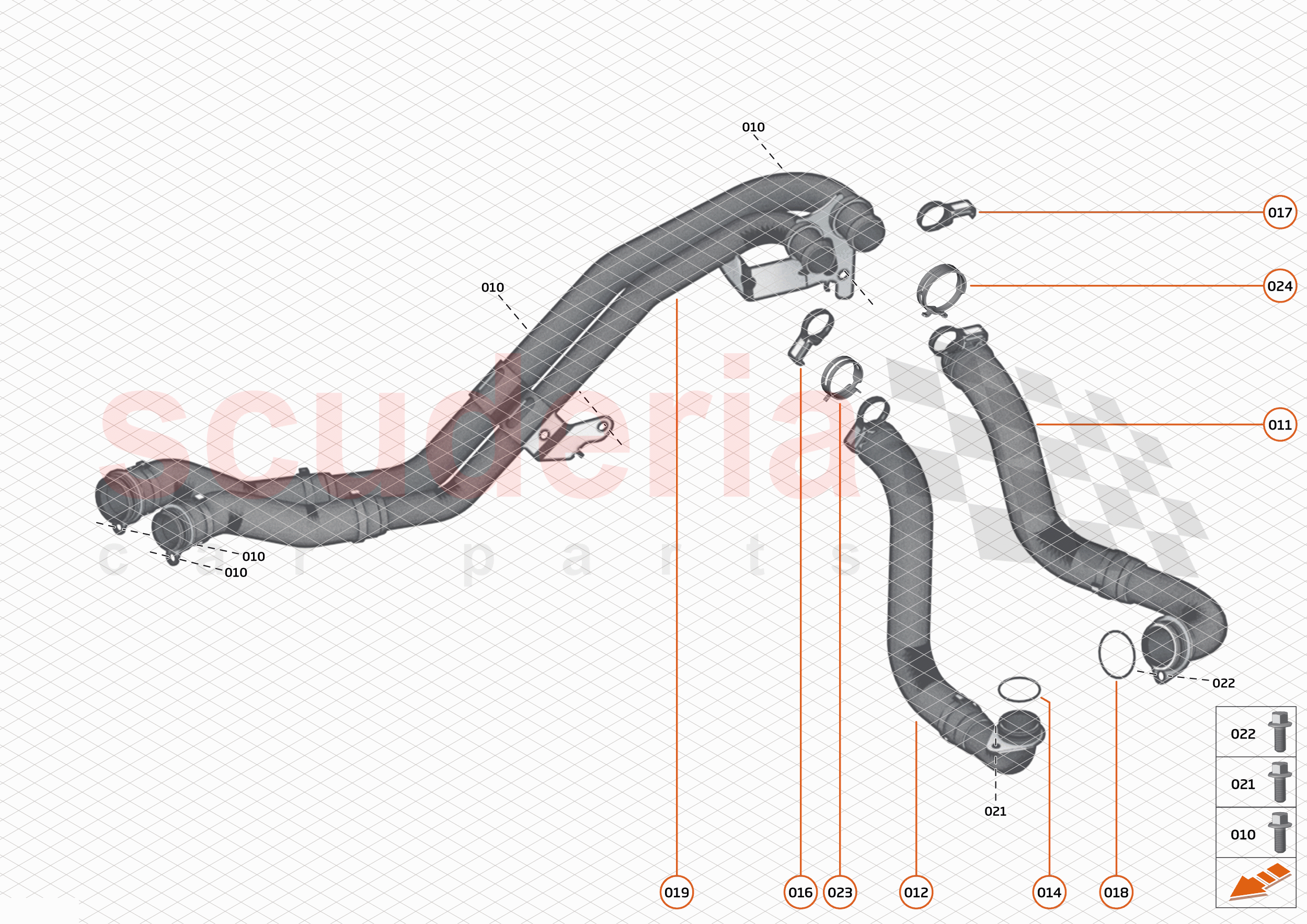

24 - LUBRICATION SYSTEM OFF ENGINE - 24.2 - ENGINE OIL FEED & RETURN HOSES of McLaren McLaren Artura Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart

00RA313

SCREW - M6X16 - HEX - SILVER

 -
011 16FC410CP
PIPE RETURN ENGINE TO OIL TANK - FED 		- 1
PE
 Enquire
011 16FB544CP
PIPE RETURN ENGINE TO OIL TANK - NON FED 		$446.82 1
TO
012 16FC411CP
PIPE FEED OIL TANK TO ENGINE -FED 		- 1
PE
 Enquire
012 16FC518CP
PIPE FEED OIL TANK TO ENGINE - FED 		- 1
PE
 Enquire
012 16FC517CP
PIPE FEED OIL TANK TO ENGINE - NON FED 		$446.82 1
TO
012 16FB546CP
PIPE FEED OIL TANK TO ENGINE 		$404.57 1
TO

16FB905CP

ENGINE PIPE-O RING-24 IDX2.62 - ISO 122 28

from $3.43

016 16FB908CP
ENGINE PIPE-SPRING BAND CLAMP - 34X12 		$6.27 1
TO
017 16FB909CP
ENGINE PIPE-SPRING BAND CLAMP - 38X12 		$6.69 1
TO

16FB907CP

ENGINE PIPE-O RING-59 IDX2.62 - ISO 126 34

from $3.43

019 16FC490CP
HARDLINES-FEED AND RETURN - NON FED 		$1,035.84 1
TO
019 16FC438CP
HARDLINES-FEED AND RETURN - FED 		- 1
PE
 Enquire
021 00RA768
BLT-HX HD-FL-M6X1X12-8.8-72-LA - PATCHLOCK 		- 1
PE
 Enquire
022 00RA812
BLT-HX HD-FL-M6X1X20-8.8-78 LP - WITH PATCHLOCK 		- 1
PE
 Enquire
023 00RB212
CLAMP - SPRING BAND - 42X12 		- 1
PE
 Enquire
023 00RB217
CLMP-SPRGBAND-LO PRO-34X12-STL-ZFB 		- 1
PE
 Enquire
024 00RB268
CLMP-SPRINGBAND-36X12-STL-BLK 		- 1
PE
 Enquire
