23 - ENGINE - 23.11 - SYSTEM - CYLINDER BLOCK of McLaren McLaren Artura

McLaren Artura - 23 - ENGINE - 23.11 - SYSTEM - CYLINDER BLOCK

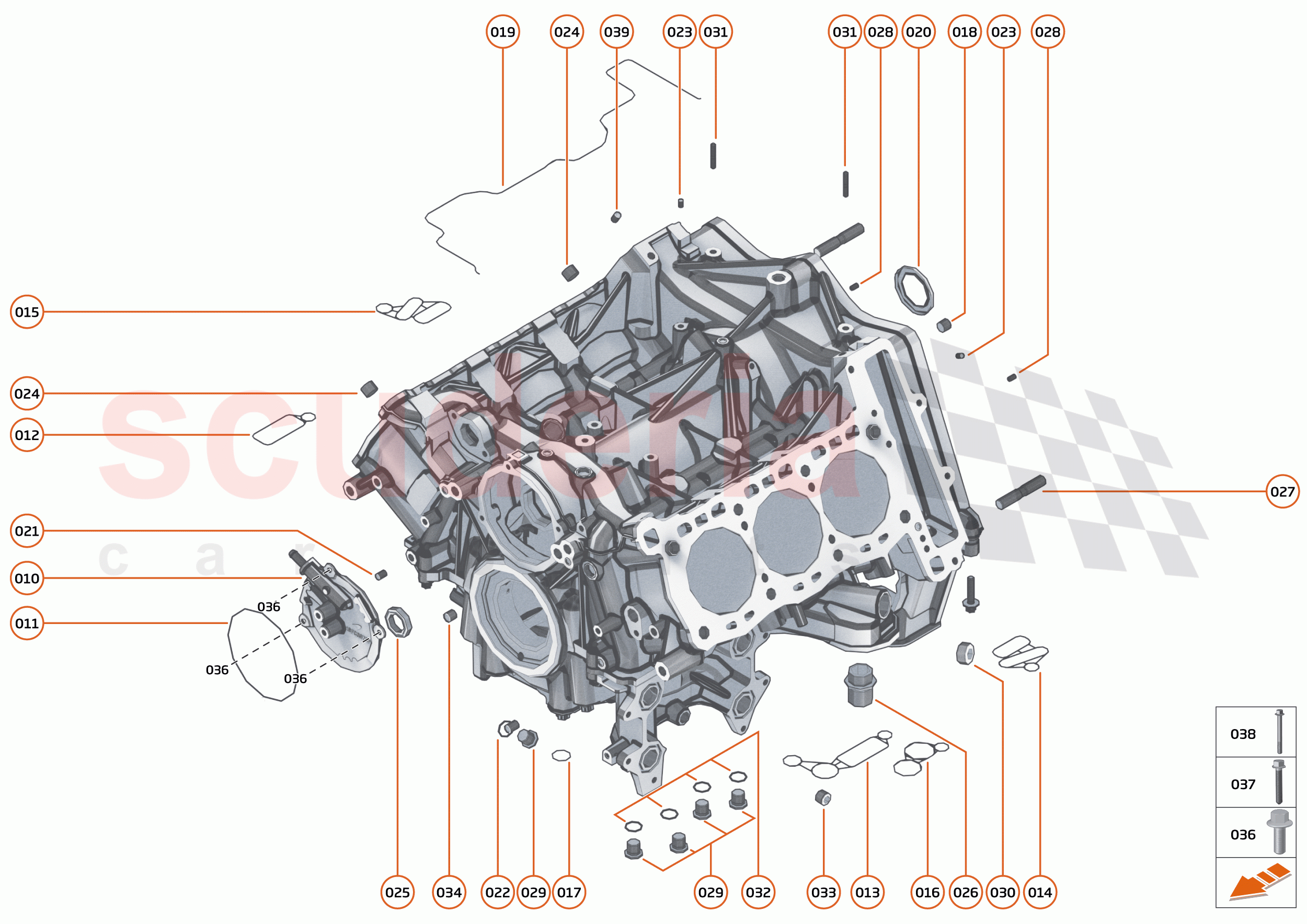

View the exploded parts diagram to find the part you are looking for

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

TO ORDER

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	16FC398CP	COVER - BALANCE SHAFT	Enquire	To Order
	16FC397CP	ASSY - COVER - BALANCE SHAFT - FRONT	$121.84	To Order

Photo	Part No	Description	Price (each)	Stock
	16FA737CP	SEAL - BALANCE SHAFT COVER	$132.00	To Order

Photo	Part No	Description	Price (each)	Stock
	16FA742CP	SEAL - COOLANT CROSSOVER RH	$13.36	To Order

Photo	Part No	Description	Price (each)	Stock
	16FA743CP	SEAL - COOLANT CROSSOVER LH	$13.03	To Order

Photo	Part No	Description	Price (each)	Stock
	16FA745CP	SEAL - AUX OIL GALLERY LH	$13.49	To Order

Photo	Part No	Description	Price (each)	Stock
	16FA746CP	SEAL - AUX OIL GALLERY RH	$14.21	To Order

Photo	Part No	Description	Price (each)	Stock
	16FA747CP	SEAL - OIL FILTER GALLERIES	$13.16	To Order

Photo	Part No	Description	Price (each)	Stock
	16FA749CP	O-RING - OIL GALLERY - PCJ	$9.27	To Order

Photo	Part No	Description	Price (each)	Stock
	16FB958CP	PLUG PRESSURE M12	$8.97	To Order

Photo	Part No	Description	Price (each)	Stock
	16FA873CP	RTV - SEAL - CYLINDER BLOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16FA884CP	SEAL - BALANCE SHAFT	$264.02	To Order

Photo	Part No	Description	Price (each)	Stock
	11F2203CP	PLUG- AVDEL- DIA 8MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11F2473CP	PLUGAVDEL 10	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11F2471CP	PLUGAVDEL 6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16FB094CP	RING DOWEL - 15X10	$23.62	To Order

Photo	Part No	Description	Price (each)	Stock
	16FB115CP	BEARING - OIL PUMP DRIVE	$48.42	To Order

Photo	Part No	Description	Price (each)	Stock
	16F0246CP	ADAPTER -OIL FILTER	$65.79	To Order

Photo	Part No	Description	Price (each)	Stock
	16FA575CP	DOWEL - 6X10 - DIN6325	$27.80	To Order

Photo	Part No	Description	Price (each)	Stock
	16FB231CP	PLUG - M14	$40.60	To Order

Photo	Part No	Description	Price (each)	Stock
	16FA750CP	PLUG - M22	$55.84	To Order

Photo	Part No	Description	Price (each)	Stock
	16FB303CP	STUD - M6X30	$101.02	To Order

Photo	Part No	Description	Price (each)	Stock
	16FB366CP	WASHER M14-DIN 7603	$4.43	To Order

Photo	Part No	Description	Price (each)	Stock
	16FB418CP	PLUG PRESSURE M14	$29.39	To Order

Photo	Part No	Description	Price (each)	Stock
	16FB417CP	PLUGAVDEL 11	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16FA739CP	SCREW - M5X0.8X12 - ALU	$30.44	To Order

Photo	Part No	Description	Price (each)	Stock
	16FB945CP	BOLT - M12X1.5X147 - 11.9	$16.84	To Order

Photo	Part No	Description	Price (each)	Stock
	16FB946CP	BOLT - M12X1.5X95 - 11.9	$17.52	To Order

Photo	Part No	Description	Price (each)	Stock
	16FA139CP	DOWEL - 8X14	$16.67	To Order

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Key	Add to Cart
010	16FC398CP	COVER - BALANCE SHAFT	16FC398CP COVER - BALANCE SHAFT	-	1	PE	Enquire
010	16FC397CP	ASSY - COVER - BALANCE SHAFT - FRONT	16FC397CP ASSY - COVER - BALANCE SHAFT - FRONT	$121.84	1	TO
011	16FA737CP	SEAL - BALANCE SHAFT COVER	16FA737CP SEAL - BALANCE SHAFT COVER	$132.00	1	TO
012	16FA742CP	SEAL - COOLANT CROSSOVER RH	16FA742CP SEAL - COOLANT CROSSOVER RH	$13.36	1	TO
013	16FA743CP	SEAL - COOLANT CROSSOVER LH	16FA743CP SEAL - COOLANT CROSSOVER LH	$13.03	1	TO
014	16FA745CP	SEAL - AUX OIL GALLERY LH	16FA745CP SEAL - AUX OIL GALLERY LH	$13.49	1	TO
015	16FA746CP	SEAL - AUX OIL GALLERY RH	16FA746CP SEAL - AUX OIL GALLERY RH	$14.21	1	TO
016	16FA747CP	SEAL - OIL FILTER GALLERIES	16FA747CP SEAL - OIL FILTER GALLERIES	$13.16	1	TO
017	16FA749CP	O-RING - OIL GALLERY - PCJ	16FA749CP O-RING - OIL GALLERY - PCJ	$9.27	1	TO
018	16FB958CP	PLUG PRESSURE M12	16FB958CP PLUG PRESSURE M12	$8.97	1	TO
019	16FA873CP	RTV - SEAL - CYLINDER BLOCK	16FA873CP RTV - SEAL - CYLINDER BLOCK	-	1	PE	Enquire
020	16FA884CP	SEAL - BALANCE SHAFT	16FA884CP SEAL - BALANCE SHAFT	$264.02	1	TO
021	11F2203CP	PLUG- AVDEL- DIA 8MM	11F2203CP PLUG- AVDEL- DIA 8MM	-	14	PE	Enquire
022	11F2473CP	PLUGAVDEL 10	11F2473CP PLUGAVDEL 10	-	2	PE	Enquire
023	11F2471CP	PLUGAVDEL 6	11F2471CP PLUGAVDEL 6	-	4	PE	Enquire
024	16FB094CP	RING DOWEL - 15X10	16FB094CP RING DOWEL - 15X10	$23.62	6	TO
025	16FB115CP	BEARING - OIL PUMP DRIVE	16FB115CP BEARING - OIL PUMP DRIVE	$48.42	1	TO
026	16F0246CP	ADAPTER -OIL FILTER	16F0246CP ADAPTER -OIL FILTER	$65.79	1	TO
027	16FA738CP	STUD- M12X1.75	16FA738CP STUD- M12X1.75	$29.39	2	TO
028	16FA575CP	DOWEL - 6X10 - DIN6325	16FA575CP DOWEL - 6X10 - DIN6325	$27.80	2	TO
029	16FB231CP	PLUG - M14	16FB231CP PLUG - M14 PLUG - M14;	$40.60	5	TO
030	16FA750CP	PLUG - M22	16FA750CP PLUG - M22 PLUG - M22;	$55.84	1	TO
031	16FB303CP	STUD - M6X30	16FB303CP STUD - M6X30	$101.02	2	TO
032	16FB366CP	WASHER M14-DIN 7603	16FB366CP WASHER M14-DIN 7603	$4.43	5	TO
033	16FB418CP	PLUG PRESSURE M14	16FB418CP PLUG PRESSURE M14	$29.39	1	TO
034	16FB417CP	PLUGAVDEL 11	16FB417CP PLUGAVDEL 11	-	1	PE	Enquire
035	16FA437CP	SCREW- M8X30 FL TX HD	16FA437CP SCREW- M8X30 FL TX HD	$7.69	12	TO
036	16FA739CP	SCREW - M5X0.8X12 - ALU	16FA739CP SCREW - M5X0.8X12 - ALU	$30.44	12	TO
037	16FB945CP	BOLT - M12X1.5X147 - 11.9	16FB945CP BOLT - M12X1.5X147 - 11.9	$16.84	10	TO
038	16FB946CP	BOLT - M12X1.5X95 - 11.9	16FB946CP BOLT - M12X1.5X95 - 11.9	$17.52	6	TO
039	16FA139CP	DOWEL - 8X14	16FA139CP DOWEL - 8X14	$16.67	3	TO
