23 - Engine - 23.10 - System - Electrical

McLaren Artura

Find Your Part

McLaren Artura - 23 - ENGINE - 23.10 - SYSTEM - ELECTRICAL

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
16F0173CP SPARK PLUG - M12X1.25 $32.88 To Order
Photo Part No Description Price (each) Stock
16FB290CP SENSOR - CAM POSITION BOSCH $55.84 To Order
Photo Part No Description Price (each) Stock
11F2191CP SENSOR - ENGINE - CRANK POSITION $60.42 To Order
Photo Part No Description Price (each) Stock
11F1793CP BOLT - M6X20 - HEX $11.14 To Order
Photo Part No Description Price (each) Stock
16FA640CP SENSOR - TEMPERATURE AND - PRESSURE - AIR $86.29 To Order
Photo Part No Description Price (each) Stock
16F0186CP SENSOR-HEAD TEMP $40.60 To Order
Photo Part No Description Price (each) Stock
16FB077CP COIL-IGNITION - FEDERAL MOGUL $108.26 To Order
Photo Part No Description Price (each) Stock
11F1783CP BOLT - M8X30 - HEX $14.21 To Order
Photo Part No Description Price (each) Stock
11F1781CP BOLT - M6X35 - ENGINE $11.14 To Order
Photo Part No Description Price (each) Stock
16FB218CP CABLE TIE-FTREE- HTYTON 150-31098 $7.90 To Order
Photo Part No Description Price (each) Stock
13F0872CP FUEL PRESSURE AND TEMP SENSOR $162.46 To Order
Photo Part No Description Price (each) Stock
16FB257CP EDGE CLIP-HTYTON 156-04602 $10.47 To Order
Photo Part No Description Price (each) Stock
11F1904CP NUT - M6 $4.44 To Order
Photo Part No Description Price (each) Stock
16FC135CP BOLT- M6X12- FL HX HD $8.43 To Order
Photo Part No Description Price (each) Stock
11F1792CP BOLT - M6X16 - ENGINE $13.18 To Order
Photo Part No Description Price (each) Stock
16FB532CP BOLT M8X125-TX-30 8.8 STARTER - MOTOR $13.18 To Order
Photo Part No Description Price (each) Stock
16FB707CP ADAPTOR-WASHER-OPS M10X1.5X14 $8.09 To Order
Photo Part No Description Price (each) Stock
16FA610CP SENSOR - KNOCK - FLY-LEAD $76.15 To Order

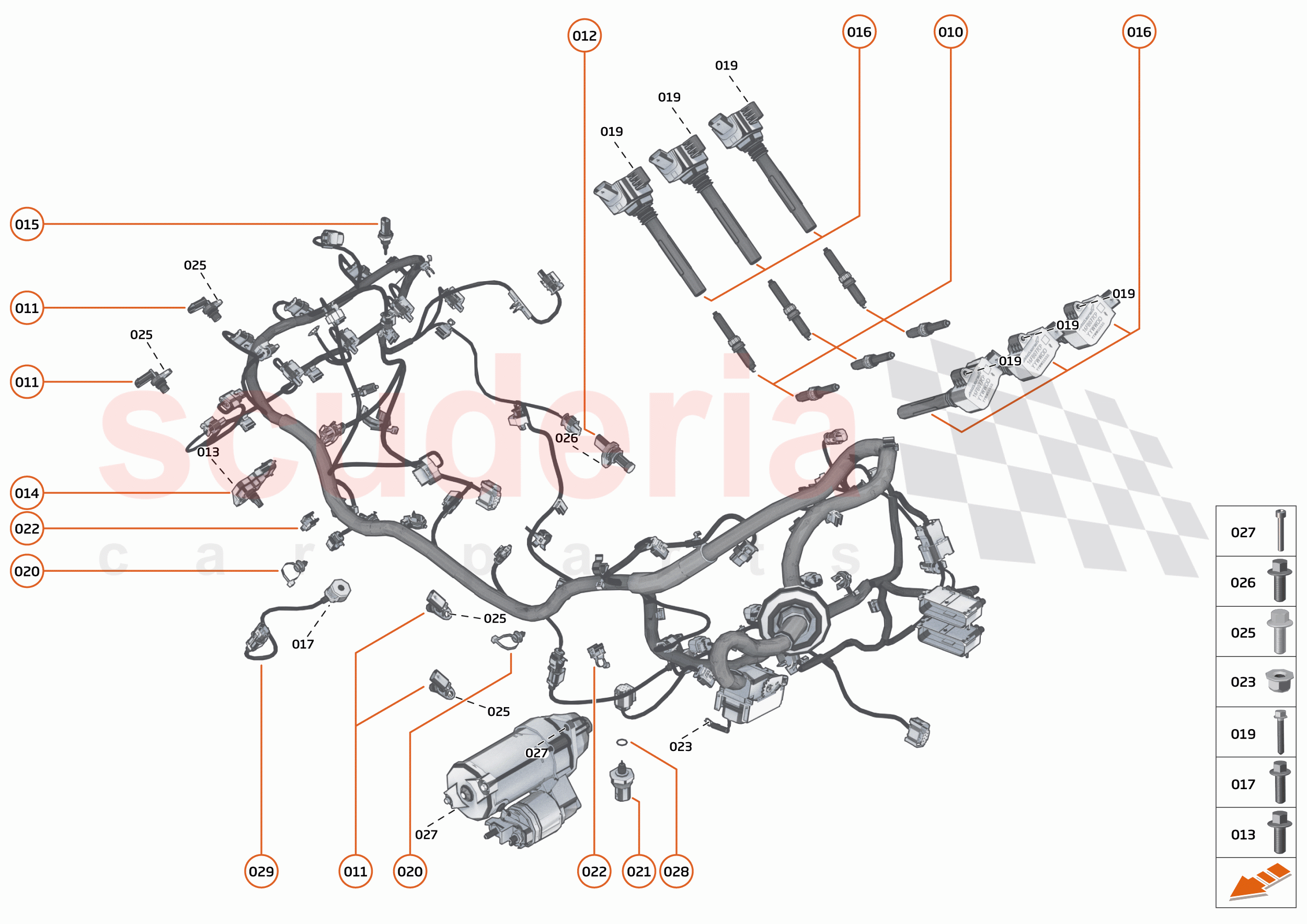

23 - ENGINE - 23.10 - SYSTEM - ELECTRICAL of McLaren McLaren Artura Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 11F1794CP
SCREW - M6X25 HEX 		$8.10 2
TO
000 00RB143
CLAMP - 25.6-706R 		- 1
PE
 Enquire
010 16F0173CP
SPARK PLUG - M12X1.25 		$32.88 6
TO
011 16FB290CP
SENSOR - CAM POSITION BOSCH 		$55.84 4
TO
012 11F2191CP
SENSOR - ENGINE - CRANK POSITION 		$60.42 1
TO
013 11F1793CP
BOLT - M6X20 - HEX 		$11.14 1
TO
014 16FA640CP
SENSOR - TEMPERATURE AND - PRESSURE - AIR 		$86.29 1
TO
015 16F0186CP
SENSOR-HEAD TEMP 		$40.60 1
TO
016 16FB077CP
COIL-IGNITION - FEDERAL MOGUL 		$108.26 6
TO
017 11F1783CP
BOLT - M8X30 - HEX 		$14.21 2
TO
018 16FB472CP
MOTOR - ENGINE STARTER VALEO 		$1,421.74 1
TO
019 11F1781CP
BOLT - M6X35 - ENGINE 		$11.14 6
TO
020 16FB218CP
CABLE TIE-FTREE- HTYTON 150-31098 		$7.90 2
TO
021 13F0872CP
FUEL PRESSURE AND TEMP SENSOR 		$162.46 1
TO
022 16FB257CP
EDGE CLIP-HTYTON 156-04602 		$10.47 2
TO
023 11F1904CP
NUT - M6
NUT - M6; 		$4.44 1
TO
024 16MB495CP
HARNESS ENGINE 		$5,317.37 1
TO
025 16FC135CP
BOLT- M6X12- FL HX HD 		$8.43 4
TO
026 11F1792CP
BOLT - M6X16 - ENGINE 		$13.18 1
TO
027 16FB532CP
BOLT M8X125-TX-30 8.8 STARTER - MOTOR 		$13.18 2
TO
028 16FB707CP
ADAPTOR-WASHER-OPS M10X1.5X14 		$8.09 1
TO
029 16FA610CP
SENSOR - KNOCK - FLY-LEAD 		$76.15 1
TO
