22 - Engine - 22.2 - Ic Engine - Intake

McLaren Artura

Find Your Part

McLaren Artura - 22 - ENGINE - 22.2 - IC ENGINE - INTAKE

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
16FB476CP ASSY INLET MANIFOLD RH $223.40 To Order
Photo Part No Description Price (each) Stock
16FB477CP ASSY INLET MANIFOLD LH $223.40 To Order
Photo Part No Description Price (each) Stock
16FA924CP THROTTLE BODY-DIA.54MM-BOSCH $487.43 To Order
Photo Part No Description Price (each) Stock
11F1797CP SCREW - CAP HEAD - M6X45 $8.91 To Order
Photo Part No Description Price (each) Stock
16FB431CP CABLE STRAP-FTREE-AREYMOND 239089-0-00 $3.47 To Order
Photo Part No Description Price (each) Stock
16FB911CP INTAKE MANIFOLD-CYLINDER HEAD - GASKET $30.70 To Order
Photo Part No Description Price (each) Stock
16FB912CP INTAKE MANIFOLD-THROTTLE BODY - GASKET $45.68 To Order

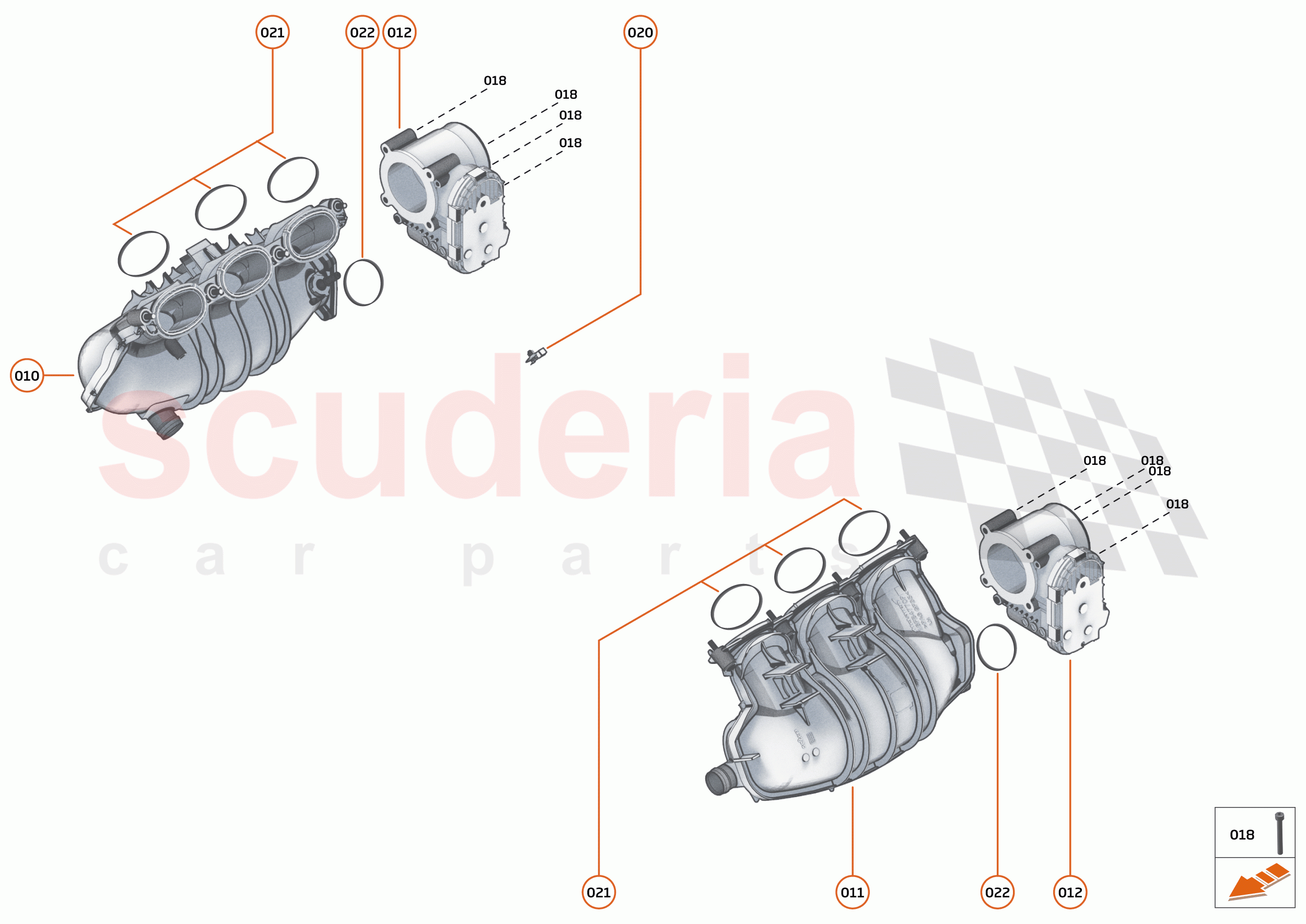

22 - ENGINE - 22.2 - IC ENGINE - INTAKE of McLaren McLaren Artura Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 16FB476CP
ASSY INLET MANIFOLD RH 		$223.40 1
TO
011 16FB477CP
ASSY INLET MANIFOLD LH 		$223.40 1
TO
012 16FA924CP
THROTTLE BODY-DIA.54MM-BOSCH 		$487.43 2
TO
016 16FA814CP
BALANCE PIPE-INLET MANIFOLDS 		- 1
PE
 Enquire
018 11F1797CP
SCREW - CAP HEAD - M6X45 		$8.91 8
TO
019 16FB394CP
ASSY INLET PURGE HOSE RH - INC. FIRTREE CABLE TIE 		$54.12 1
TO
020 16FB431CP
CABLE STRAP-FTREE-AREYMOND 239089-0-00 		$3.47 1
TO
021 16FB911CP
INTAKE MANIFOLD-CYLINDER HEAD - GASKET 		$30.70 6
TO
022 16FB912CP
INTAKE MANIFOLD-THROTTLE BODY - GASKET 		$45.68 2
TO
023 11F0820CP
Bolt Set - M6x45 - Engine - Throttle Body 		- 1
PE
 Enquire
024 11F0822CP
Bolt - M6x16 - Engine 		- 1
PE
 Enquire
