McLaren Artura - 22 - ENGINE - 22.1 - IC ENGINE - COOLING

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
16FA359CP RUN-ON PUMP FEED HOSE $84.36 To Order
Photo Part No Description Price (each) Stock
16FA362CP TURBO COOLANT RETURN LH $71.07 To Order
Photo Part No Description Price (each) Stock
16FA363CP TURBO COOLANT RETURN RH $71.07 To Order
Photo Part No Description Price (each) Stock
16FA417CP RUN ON PUMP-TURBOCHARGER $192.93 To Order
Photo Part No Description Price (each) Stock
16FA425CP SCR-PAN HD-TORX-NO6X22-STL-81 Enquire To Order
Photo Part No Description Price (each) Stock
16FC199CP COOLANT PUMP - ASSY $844.17 To Order
Photo Part No Description Price (each) Stock
16FB501CP THERMOSTAT - LIP SEAL $40.60 To Order
Photo Part No Description Price (each) Stock
16FB631CP BELLOWS - PUMP $81.23 To Order
Photo Part No Description Price (each) Stock
11F1784CP BOLT - M6X80 - HEX $20.29 To Order
11FA031CP BOLT - M6X80 - HEX - 02482939-1 $12.17 To Order
Photo Part No Description Price (each) Stock
16FA909CP TURBO COOLANT FEED $204.73 To Order
Photo Part No Description Price (each) Stock
16FB594CP BRACKET-RUN ON PUMP $46.79 To Order
Photo Part No Description Price (each) Stock
16FB632CP RUN-ON PUMP AV MOUNT ASSY $12.12 To Order
Photo Part No Description Price (each) Stock
16FC009CP PIPE RADIATOR RETURN $6.87 To Order
16FC008CP RADIATOR RETURN PIPE ASSY $243.70 To Order
Photo Part No Description Price (each) Stock
16FB623CP RADIATOR RETURN COMPRESSION - LIMITER $19.27 To Order
Photo Part No Description Price (each) Stock
16FB597CP PIPE TRANSMISSION FEED $142.16 To Order
Photo Part No Description Price (each) Stock
16FB625CP BYPASS PIPE SEAL $17.25 To Order
Photo Part No Description Price (each) Stock
16FB647CP CLAMP-STEPLESS EAR-OETIKER - 58.9-62 Enquire To Order
Photo Part No Description Price (each) Stock
11F1794CP SCREW - M6X25 HEX $8.10 To Order
Photo Part No Description Price (each) Stock
11F1793CP BOLT - M6X20 - HEX $11.14 To Order
Photo Part No Description Price (each) Stock
16FC034CP PIPE BYPASS-THERMOSTAT $345.26 To Order
Photo Part No Description Price (each) Stock
16FB901CP COOLANT PUMP-SCREW M6X18 $3.27 To Order
Photo Part No Description Price (each) Stock
16FB903CP COOLANT PUMP-THERMOSTAT COVER $172.62 To Order
Photo Part No Description Price (each) Stock
16FB900CP BYPASS PIPE-O RING-26.7X1.78-ISO 3601 $11.14 To Order
Photo Part No Description Price (each) Stock
11F1792CP BOLT - M6X16 - ENGINE $13.18 To Order
Photo Part No Description Price (each) Stock
16FB500CP COOLANT PUMP - THERMOSTAT $132.00 To Order

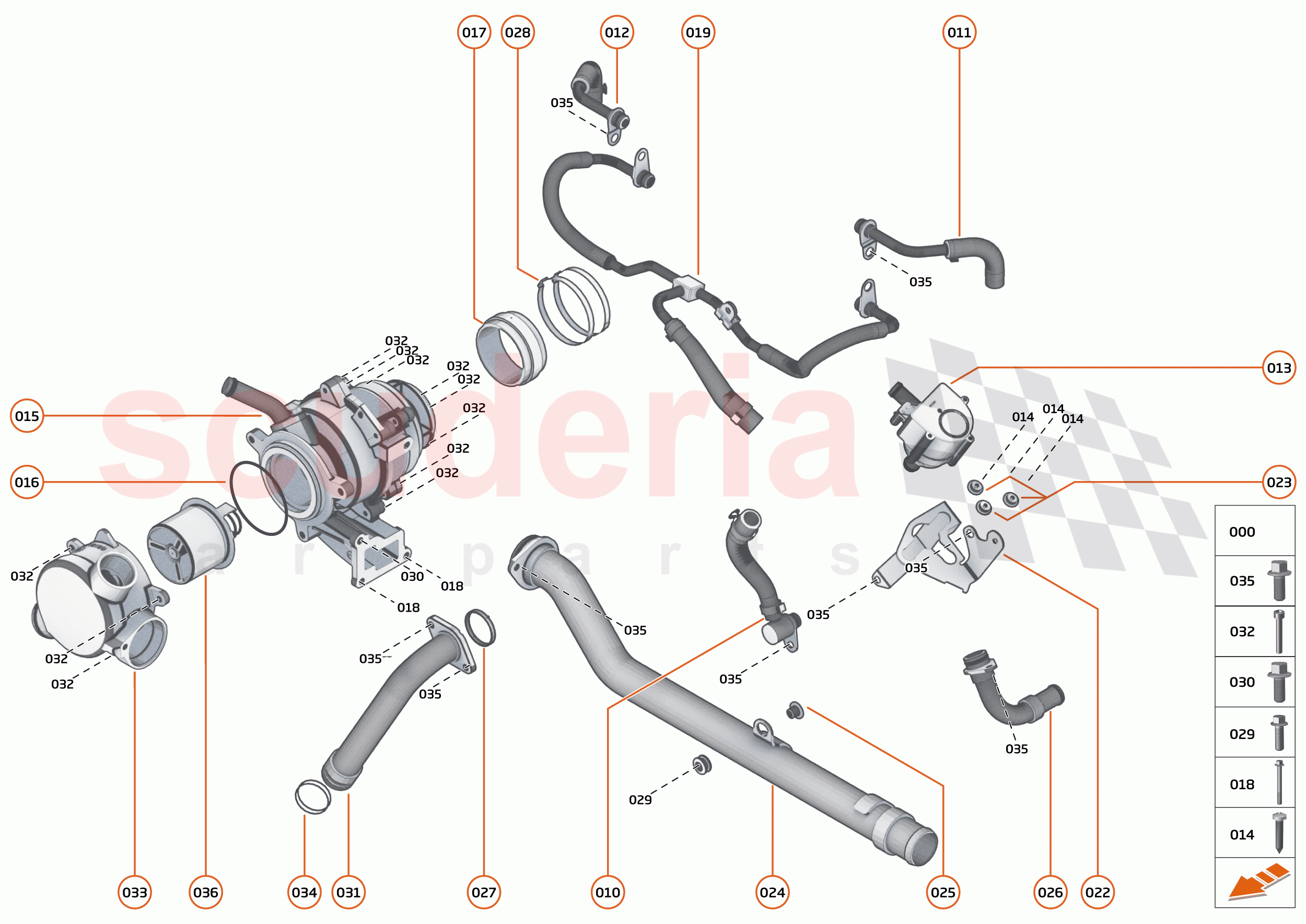

22 - ENGINE - 22.1 - IC ENGINE - COOLING of McLaren McLaren Artura Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 16FA359CP
RUN-ON PUMP FEED HOSE 		$84.36 1
TO
011 16FA362CP
TURBO COOLANT RETURN LH 		$71.07 1
TO
012 16FA363CP
TURBO COOLANT RETURN RH 		$71.07 1
TO
013 16FA417CP
RUN ON PUMP-TURBOCHARGER 		$192.93 1
TO
014 16FA425CP
SCR-PAN HD-TORX-NO6X22-STL-81 		- 3
PE
 Enquire
015 16FC199CP
COOLANT PUMP - ASSY 		$844.17 1
TO
016 16FB501CP
THERMOSTAT - LIP SEAL 		$40.60 1
TO
017 16FB631CP
BELLOWS - PUMP 		$81.23 1
TO
018 11F1784CP
BOLT - M6X80 - HEX 		$20.29 2
TO
018 11FA031CP
BOLT - M6X80 - HEX - 02482939-1 		$12.17 2
TO
019 16FA909CP
TURBO COOLANT FEED 		$204.73 1
TO
022 16FB594CP
BRACKET-RUN ON PUMP 		$46.79 1
TO
023 16FB632CP
RUN-ON PUMP AV MOUNT ASSY 		$12.12 3
TO
024 16FC009CP
PIPE RADIATOR RETURN 		$6.87 1
TO
024 16FC008CP
RADIATOR RETURN PIPE ASSY 		$243.70 1
TO
025 16FB623CP
RADIATOR RETURN COMPRESSION - LIMITER 		$19.27 1
TO
026 16FB597CP
PIPE TRANSMISSION FEED 		$142.16 1
TO
027 16FB625CP
BYPASS PIPE SEAL 		$17.25 1
TO
028 16FB647CP
CLAMP-STEPLESS EAR-OETIKER - 58.9-62 		- 2
PE
 Enquire
029 11F1794CP
SCREW - M6X25 HEX 		$8.10 1
TO
030 11F1793CP
BOLT - M6X20 - HEX 		$11.14 2
TO
031 16FC034CP
PIPE BYPASS-THERMOSTAT 		$345.26 1
TO
032 16FB901CP
COOLANT PUMP-SCREW M6X18 		$3.27 11
TO
033 16FB903CP
COOLANT PUMP-THERMOSTAT COVER 		$172.62 1
TO
034 16FB900CP
BYPASS PIPE-O RING-26.7X1.78-ISO 3601 		$11.14 2
TO
035 11F1792CP
BOLT - M6X16 - ENGINE 		$13.18 12
TO
036 16FB500CP
COOLANT PUMP - THERMOSTAT 		$132.00 1
TO
037 16FB902CP
COOLANT PUMP-THERMOSTAT ASSEMBLY 		- 1
PE
 Enquire
038 16FC191CP
O-RING TURBO COOLANT FEED-RTN-OIL FEED 		$3.80 1
TO
039 16FC190CP
O-RING FOR RADIATOR RTN PIPE 		- 1
PE
 Enquire
042 16FC620CP
ENGINE PIPE-O RING-37.77IDX2.62D-ISO3601 		$9.12 1
TO
