40 - Infotainment - 40.9 - Sound System - Low

McLaren Artura

Find Your Part

McLaren Artura - 40 - INFOTAINMENT - 40.9 - SOUND SYSTEM - LOW

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
13M1030CP SPEAKER - 100MM $55.36 To Order
Photo Part No Description Price (each) Stock
13M1028CP SPEAKER - 25MM $45.30 To Order
Photo Part No Description Price (each) Stock
00RA432 SCREW - BUTTON HEAD FL - M5X12-SS - BLACK Enquire To Order
00RA432 SCREW - BUTTON HEAD FL - M5X12-SS - BLACK Enquire To Order
Photo Part No Description Price (each) Stock
16MB706CP ENCLOSURE DOOR LH-TRANSDUCER Enquire To Order
16M0183CP ENCLOSURE DOOR LH-TRANSDUCER $243.70 To Order
Photo Part No Description Price (each) Stock
16MB704CP ENCLOSURE DOOR RH-TRANSDUCER Enquire To Order
16M0184CP ENCLOSURE DOOR RH-TRANSDUCER $212.96 To Order
Photo Part No Description Price (each) Stock
00RA574 SCREW - M5X25 - TORX Enquire To Order
Photo Part No Description Price (each) Stock
00RC017 WASHER - M5X15X1.2 Enquire To Order
Photo Part No Description Price (each) Stock
13M1029CP SPEAKER - 165MM $110.76 To Order
Photo Part No Description Price (each) Stock
16MA843CP ASSY ENCLOSURE SUBWOOFER LH - TRANSDUCER $182.79 To Order
Photo Part No Description Price (each) Stock
16MA848CP PANEL BULKHEAD-SUBWOOFER $98.84 To Order
Photo Part No Description Price (each) Stock
16MA752CP BRKT SUBWOOFER UPR $40.29 To Order
Photo Part No Description Price (each) Stock
16MA658CP BRKT SUBWOOFER LWR $125.40 To Order
Photo Part No Description Price (each) Stock
00RA165 BOLT - M5X8 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA081 SCREW - TORX - PAN - M6X16-8.8 Enquire To Order
Photo Part No Description Price (each) Stock
00RA055 NUT - M6 - LOCKING - HEX Enquire To Order

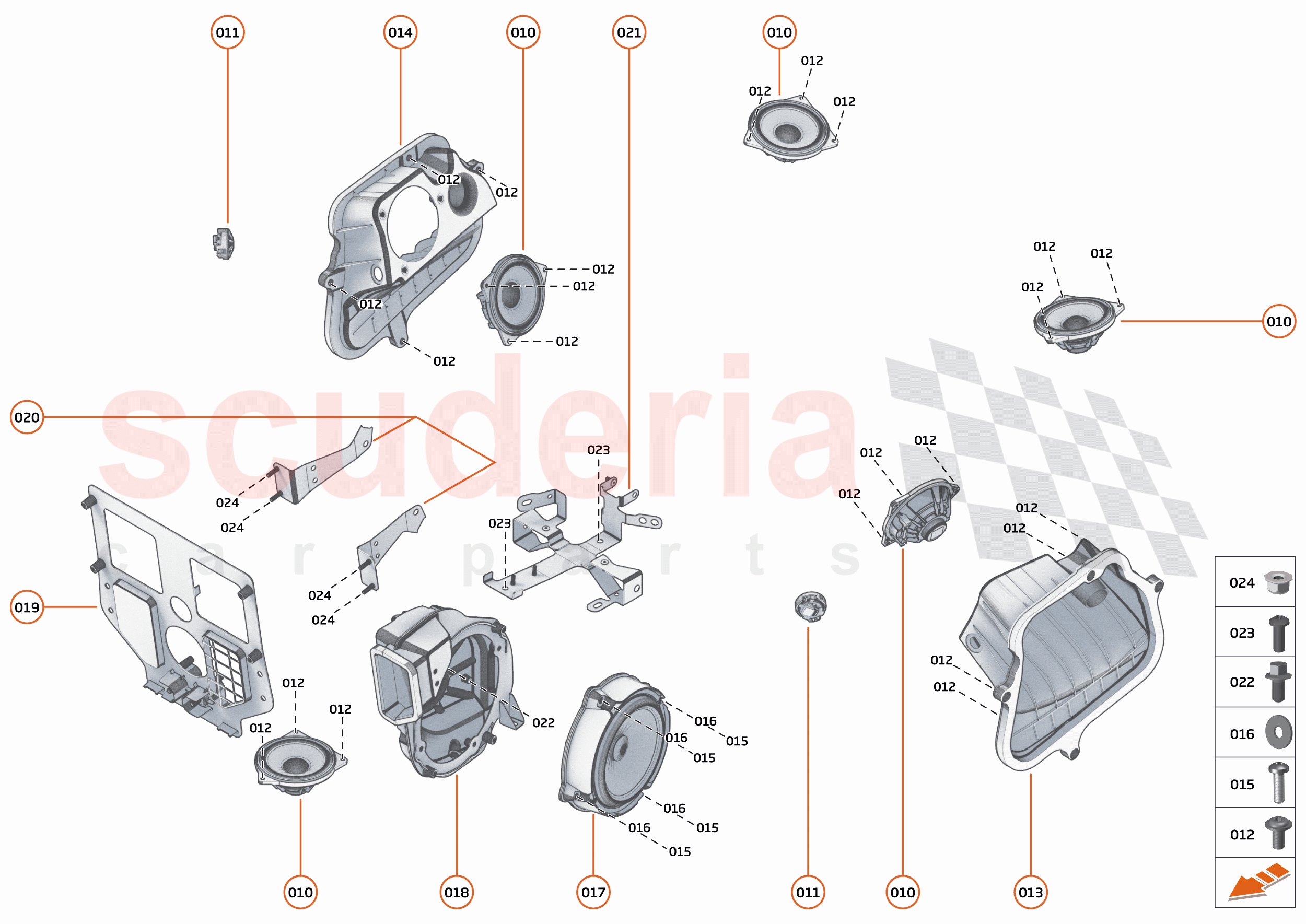

40 - INFOTAINMENT - 40.9 - SOUND SYSTEM - LOW of McLaren McLaren Artura Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 13M1030CP
SPEAKER - 100MM 		$55.36 5
TO
011 13M1028CP
SPEAKER - 25MM 		$45.30 2
TO

00RA432

SCREW - BUTTON HEAD FL - M5X12-SS - BLACK

 -
013 16MB706CP
ENCLOSURE DOOR LH-TRANSDUCER 		- 1
PE
 Enquire
013 16M0183CP
ENCLOSURE DOOR LH-TRANSDUCER 		$243.70 1
TO
014 16MB704CP
ENCLOSURE DOOR RH-TRANSDUCER 		- 1
PE
 Enquire
014 16M0184CP
ENCLOSURE DOOR RH-TRANSDUCER 		$212.96 1
TO
015 00RA574
SCREW - M5X25 - TORX 		- 4
PE
 Enquire
016 00RC017
WASHER - M5X15X1.2 		- 4
PE
 Enquire
017 13M1029CP
SPEAKER - 165MM 		$110.76 1
TO
018 16MA843CP
ASSY ENCLOSURE SUBWOOFER LH - TRANSDUCER 		$182.79 1
TO
019 16MA848CP
PANEL BULKHEAD-SUBWOOFER 		$98.84 1
TO
020 16MA752CP
BRKT SUBWOOFER UPR 		$40.29 2
TO
021 16MA658CP
BRKT SUBWOOFER LWR 		$125.40 1
TO
022 00RA165
BOLT - M5X8 - HEX 		- 3
PE
 Enquire
023 00RA081
SCREW - TORX - PAN - M6X16-8.8 		- 2
PE
 Enquire
024 00RA055
NUT - M6 - LOCKING - HEX 		- 4
PE
 Enquire
025 16MA123SP
BRKT RR QTR LH-TRANSDUCER 		$42.65 1
TO
026 00RA313
SCREW - M6X16 - HEX - SILVER 		- 2
PE
 Enquire
027 16MA124SP
BRKT RR QTR RH-TRANSDUCER 		- 1
PE
 Enquire
