McLaren Artura - 21 - STEERING - 21.1 - STEERING FLUID SYSTEM

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
16DA036CP ASSY-HOSE-FEED-MANIFOLD TO - RACK-RHD $223.40 To Order
16DA028CP ASSY HOSE FEED MANIFOLD TO - RACK LHD $324.96 To Order
Photo Part No Description Price (each) Stock
00RA002 BOLT - M8X20 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RB046 CLIP - 8-9MM - FEMALE Enquire To Order
Photo Part No Description Price (each) Stock
00RB042 SWIVEL PIPE CLIP Enquire To Order
Photo Part No Description Price (each) Stock
00RA540 SCREW - CAP HEAD - M8X1.25X20-10.9-72 Enquire To Order
00RA540 SCREW - CAP HEAD - M8X1.25X20-10.9-72 Enquire To Order
Photo Part No Description Price (each) Stock
16DA044CP ASSY HOSE-FEED-PUMP TO RACK - RHD $182.79 To Order
16DA029CP ASSY HOSE-FEED-PUMP TO RACK - LHD $203.09 To Order
Photo Part No Description Price (each) Stock
00RB019 CLIP - 90DEG - FEMALE - 10-12MM Enquire To Order
Photo Part No Description Price (each) Stock
00RB045 CLIP - 9.5-10MM - MALE Enquire To Order
Photo Part No Description Price (each) Stock
00RB110 OETIKER CLIP - 19.2 Enquire To Order
Photo Part No Description Price (each) Stock
16DA031CP HOSE-RACK TO FILTER-LHD Enquire To Order
16DA033CP HOSE-RACK TO FILTER-RHD $101.53 To Order
Photo Part No Description Price (each) Stock
16DA030CP HOSE-RESERVOIR TO FILTER PUMP $264.02 To Order
Photo Part No Description Price (each) Stock
16DA115CP FILTER-25 MICRON $162.46 To Order
Photo Part No Description Price (each) Stock
00RB143 CLAMP - 25.6-706R Enquire To Order
Photo Part No Description Price (each) Stock
16DA128CP RESERVOIR-PAS FLUID $152.32 To Order
Photo Part No Description Price (each) Stock
00RA116 SCREW - M6X10 - BUTTON - 8.8 Enquire To Order
Photo Part No Description Price (each) Stock
16DA035CP ASSY-HOSE-FEED-PUMP TO LIFT - BLOCK $223.40 To Order
Photo Part No Description Price (each) Stock
16DA160CP RACK TO VALVE BLOCK PUSH-FIT - O-RING 11.210MM OD - VITON SHORE 75 BLACK $5.46 To Order
Photo Part No Description Price (each) Stock
11C0502CP CAP-EHPAS RESERVOIR $130.89 To Order

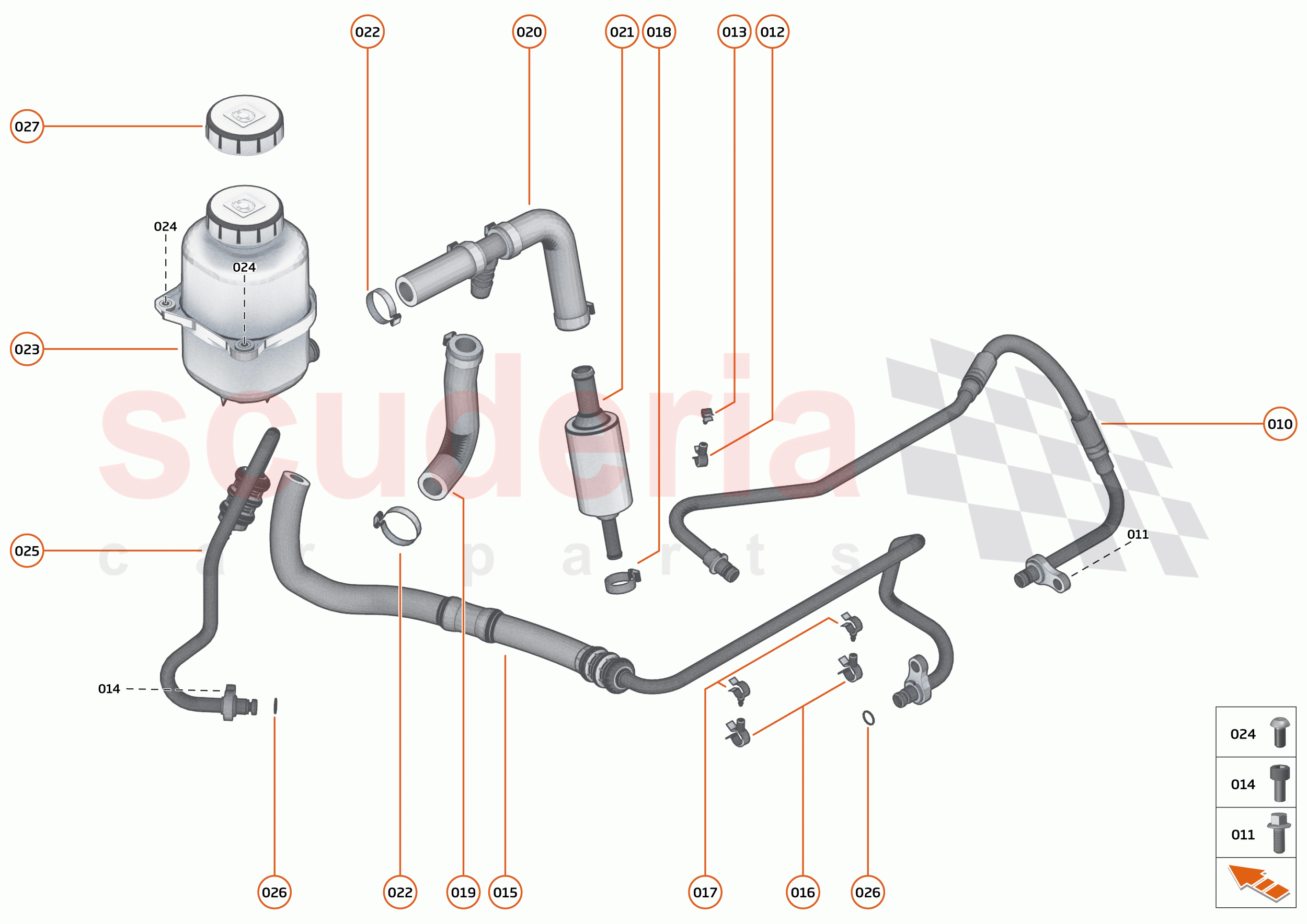

21 - STEERING - 21.1 - STEERING FLUID SYSTEM of McLaren McLaren Artura Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 16DA036CP
ASSY-HOSE-FEED-MANIFOLD TO - RACK-RHD 		$223.40 1
TO
010 16DA028CP
ASSY HOSE FEED MANIFOLD TO - RACK LHD 		$324.96 1
TO
011 00RA002
BOLT - M8X20 - HEX 		- 1
PE
 Enquire
012 00RB046
CLIP - 8-9MM - FEMALE 		- 1
PE
 Enquire
013 00RB042
SWIVEL PIPE CLIP 		- 1
PE
 Enquire

00RA540

SCREW - CAP HEAD - M8X1.25X20-10.9-72

 -
015 16DA044CP
ASSY HOSE-FEED-PUMP TO RACK - RHD 		$182.79 1
TO
015 16DA029CP
ASSY HOSE-FEED-PUMP TO RACK - LHD 		$203.09 1
TO
016 00RB019
CLIP - 90DEG - FEMALE - 10-12MM 		- 2
PE
 Enquire
017 00RB045
CLIP - 9.5-10MM - MALE 		- 2
PE
 Enquire
018 00RB110
OETIKER CLIP - 19.2 		- 1
PE
 Enquire
019 16DA031CP
HOSE-RACK TO FILTER-LHD 		- 1
PE
 Enquire
019 16DA033CP
HOSE-RACK TO FILTER-RHD 		$101.53 1
TO
020 16DA030CP
HOSE-RESERVOIR TO FILTER PUMP 		$264.02 1
TO
021 16DA115CP
FILTER-25 MICRON 		$162.46 1
TO
022 00RB143
CLAMP - 25.6-706R 		- 2
PE
 Enquire
023 16DA128CP
RESERVOIR-PAS FLUID 		$152.32 1
TO
024 00RA116
SCREW - M6X10 - BUTTON - 8.8 		- 2
PE
 Enquire
025 16DA035CP
ASSY-HOSE-FEED-PUMP TO LIFT - BLOCK 		$223.40 1
TO
026 16DA160CP
RACK TO VALVE BLOCK PUSH-FIT - O-RING 11.210MM OD - VITON SHORE 75 BLACK 		$5.46 1
TO
027 11C0502CP
CAP-EHPAS RESERVOIR 		$130.89 1
TO
