McLaren Artura - 20 - BRAKES - 20.6 - PEDAL BOX

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RA236 BOLT-HEX HEAD-FLANGE-M8X70-8.8 Enquire To Order
Photo Part No Description Price (each) Stock
00RC048 WASHER - FORM C - 21X1.6 - M8 Enquire To Order
Photo Part No Description Price (each) Stock
28CA096CP BRAKE PEDAL ASSY - LHD - 60TH ANNIVERSARY Enquire To Order
28CA098CP BRAKE PEDAL ASSY - RHD - 60TH ANNIVERSARY $1,268.92 To Order
13CA034CP BRAKE PEDAL ASSY - RHD Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
11CA005CP PIN - PISTON ROD TO BRAKE PEDAL $3.43 To Order
Photo Part No Description Price (each) Stock
11C0286CP SPRING CLIP - CLEVIS PIN $6.06 To Order
Photo Part No Description Price (each) Stock
00RA694 BLT-HX HD-FL-M6X1X40-8.8-78 Enquire To Order
Photo Part No Description Price (each) Stock
16CA267CP THROTTLE PEDAL $690.54 To Order
16CA459CP THROTTLE PEDAL-60TH $1,268.92 To Order
Photo Part No Description Price (each) Stock
16CA223CP THROTTLE PEDAL SPACER Enquire To Order
Photo Part No Description Price (each) Stock
00RA373 SCREW - HEX HEAD - LOCK - M6X25 - 8.8 Enquire To Order
Photo Part No Description Price (each) Stock
16CA276CP BRKT-RESERVOIR-BRAKE-FLUID-RHD $44.37 To Order
16CA275CP BRKT-RESERVOIR-BRAKE-FLUID-LHD Enquire To Order
Photo Part No Description Price (each) Stock
16CA213CP ASSY-RESERVOIR-BRAKE FLUID-RHD $329.92 To Order
16CA212CP ASSY-RESERVOIR-BRAKE FLUID-LHD $303.05 To Order
16CA403CP ASSY-RESERVOIR-BRAKE FLUID-RHD Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
00RB050 Saddle Clamp - 13-15 Enquire To Order
Photo Part No Description Price (each) Stock
00RX001 BOLT - M5X16 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
11CA003CP PAD-PEDAL-BRAKE Enquire To Order
Photo Part No Description Price (each) Stock
11C0504CP BOLT-BRAKE PEDAL PAD $25.37 To Order
Photo Part No Description Price (each) Stock
11C0560CP CAP-BRAKE RESERVOIR $35.54 To Order

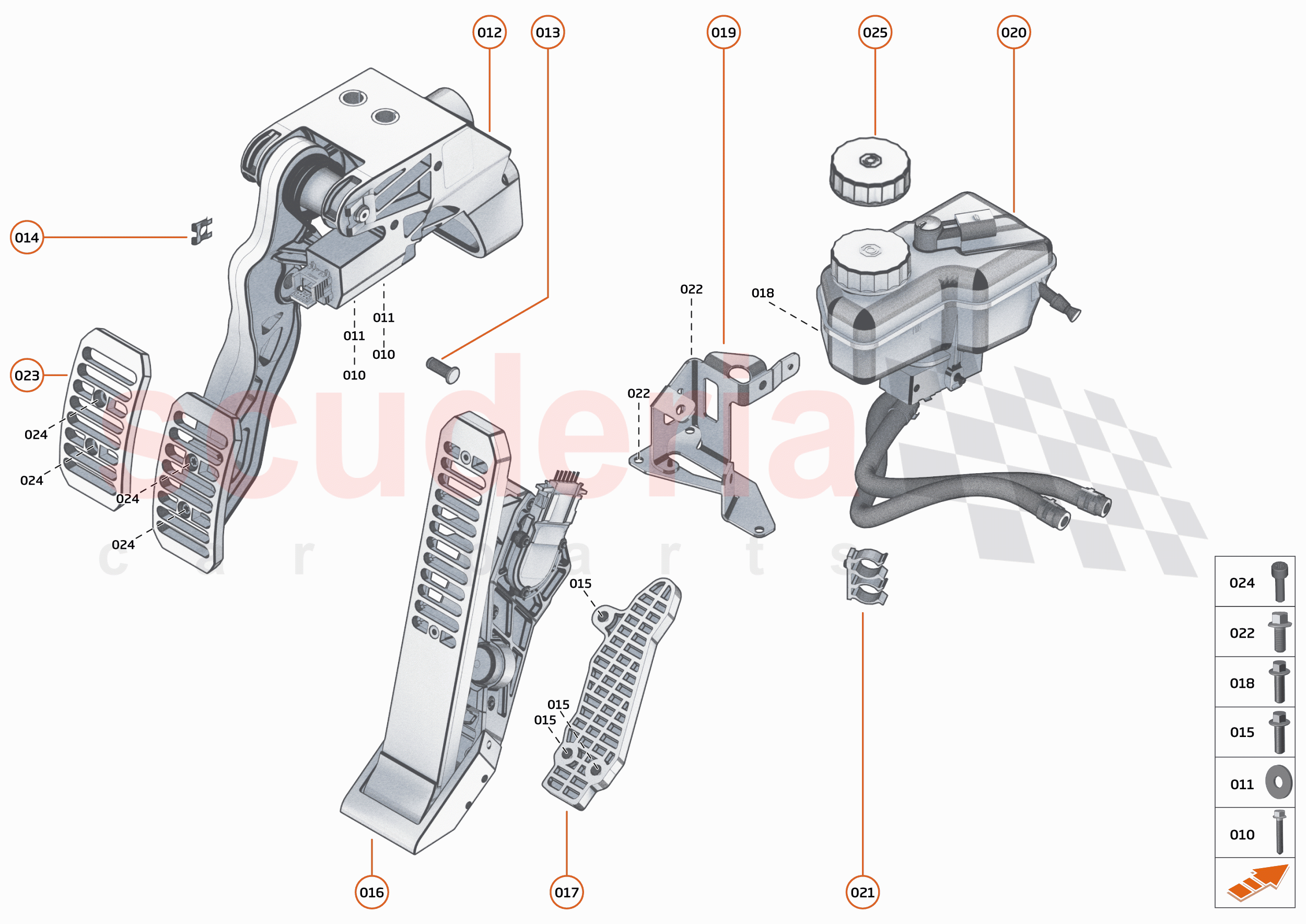

20 - BRAKES - 20.6 - PEDAL BOX of McLaren McLaren Artura Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 00RA236
BOLT-HEX HEAD-FLANGE-M8X70-8.8 		- 2
PE
 Enquire
011 00RC048
WASHER - FORM C - 21X1.6 - M8 		- 2
PE
 Enquire
012 28CA096CP
BRAKE PEDAL ASSY - LHD - 60TH ANNIVERSARY 		- 1
PE
 Enquire
012 28CA098CP
BRAKE PEDAL ASSY - RHD - 60TH ANNIVERSARY 		$1,268.92 1
TO
012 13CA034CP
BRAKE PEDAL ASSY - RHD 		- 1
PE
 Enquire
012 11CA001CP
BRAKE PEDAL ASSY - LHD 		- 1
PE
 Enquire
013 11CA005CP
PIN - PISTON ROD TO BRAKE PEDAL 		$3.43 1
TO
014 11C0286CP
SPRING CLIP - CLEVIS PIN 		$6.06 1
TO
015 00RA694
BLT-HX HD-FL-M6X1X40-8.8-78 		- 3
PE
 Enquire
016 16CA267CP
THROTTLE PEDAL 		$690.54 1
TO
016 16CA459CP
THROTTLE PEDAL-60TH 		$1,268.92 1
TO
017 16CA223CP
THROTTLE PEDAL SPACER 		- 1
PE
 Enquire
018 00RA373
SCREW - HEX HEAD - LOCK - M6X25 - 8.8 		- 1
PE
 Enquire
019 16CA276CP
BRKT-RESERVOIR-BRAKE-FLUID-RHD 		$44.37 1
TO
019 16CA275CP
BRKT-RESERVOIR-BRAKE-FLUID-LHD 		- 1
PE
 Enquire
020 16CA213CP
ASSY-RESERVOIR-BRAKE FLUID-RHD 		$329.92 1
TO
020 16CA212CP
ASSY-RESERVOIR-BRAKE FLUID-LHD 		$303.05 1
TO
020 16CA403CP
ASSY-RESERVOIR-BRAKE FLUID-RHD 		- 1
PE
 Enquire
020 16CA402CP
ASSY-RESERVOIR-BRAKE FLUID-LHD 		- 1
PE
 Enquire
021 00RB050
Saddle Clamp - 13-15 		- 1
PE
 Enquire
022 00RX001
BOLT - M5X16 - HEX 		- 2
PE
 Enquire
023 11CA003CP
PAD-PEDAL-BRAKE 		- 1
PE
 Enquire
024 11C0504CP
BOLT-BRAKE PEDAL PAD 		$25.37 1
TO
025 11C0560CP
CAP-BRAKE RESERVOIR 		$35.54 1
TO
