19 - Suspension - 19.7 - Transverse Links Rear

McLaren Artura

Find Your Part

McLaren Artura - 19 - SUSPENSION - 19.7 - TRANSVERSE LINKS REAR

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RA055 NUT - M6 - LOCKING - HEX Enquire To Order
00RA055 NUT - M6 - LOCKING - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA087 SCREW - M5X10 - HEX Enquire To Order
00RA087 SCREW - M5X10 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA083 SCREW - M6X20 - FLANGE HEX Enquire To Order
00RA083 SCREW - M6X20 - FLANGE HEX Enquire To Order
Photo Part No Description Price (each) Stock
14B0545CP BALL STUD - DISPLACEMENT SENSOR $12.17 To Order
14B0545CP BALL STUD - DISPLACEMENT SENSOR $12.17 To Order
Photo Part No Description Price (each) Stock
13B0681CP SENSOR - DISPLACEMENT $121.84 To Order
13B0681CP SENSOR - DISPLACEMENT $121.84 To Order
Photo Part No Description Price (each) Stock
16B0021CP BRKT WBONE DISPL SNSR RR LH $40.60 To Order
Photo Part No Description Price (each) Stock
14B0494CP BALL SCKT SENSOR DISPLACEMENT - GIMBAL $35.54 To Order
Photo Part No Description Price (each) Stock
16B0024CP BRKT WBONE DISPL SNSR RR RH $35.54 To Order
Photo Part No Description Price (each) Stock
00RX053 BOLT - WISHBONE - M10X1.5X35 Enquire To Order
00RX053 BOLT - WISHBONE - M10X1.5X35 Enquire To Order
Photo Part No Description Price (each) Stock
16BA557CP ASSY WISHBONE UPR RR LH $548.37 To Order
16BB042CP ASSY WISHBONE UPR RR LH $548.37 To Order
Photo Part No Description Price (each) Stock
16BA559CP ASSY WISHBONE UPR RR RH $548.37 To Order
16BB043CP ASSY WISHBONE UPR RR RH $548.37 To Order
Photo Part No Description Price (each) Stock
16BA566CP ASSY LINK LWR FORE LH $345.26 To Order
Photo Part No Description Price (each) Stock
16BA563CP ASSY LINK LWR AFT LH $345.26 To Order
Photo Part No Description Price (each) Stock
00RD007 CLIP-CIRCLIP-42-SS-00 Enquire To Order
00RD007 CLIP-CIRCLIP-42-SS-00 Enquire To Order
Photo Part No Description Price (each) Stock
16BA567CP ASSY LINK LWR FORE RH $345.26 To Order
Photo Part No Description Price (each) Stock
16BA564CP ASSY LINK LWR AFT RH $345.26 To Order
Photo Part No Description Price (each) Stock
16BA497CP CAMBER ADJUSTMENT SHIM 4MM $16.22 To Order
16BA304CP CAMBER ADJUSTMENT SHIM 1MM $15.21 To Order
16BA306CP CAMBER ADJUSTMENT SHIM 3MM $15.21 To Order
...and 1 more part variants. See table on right for more details.

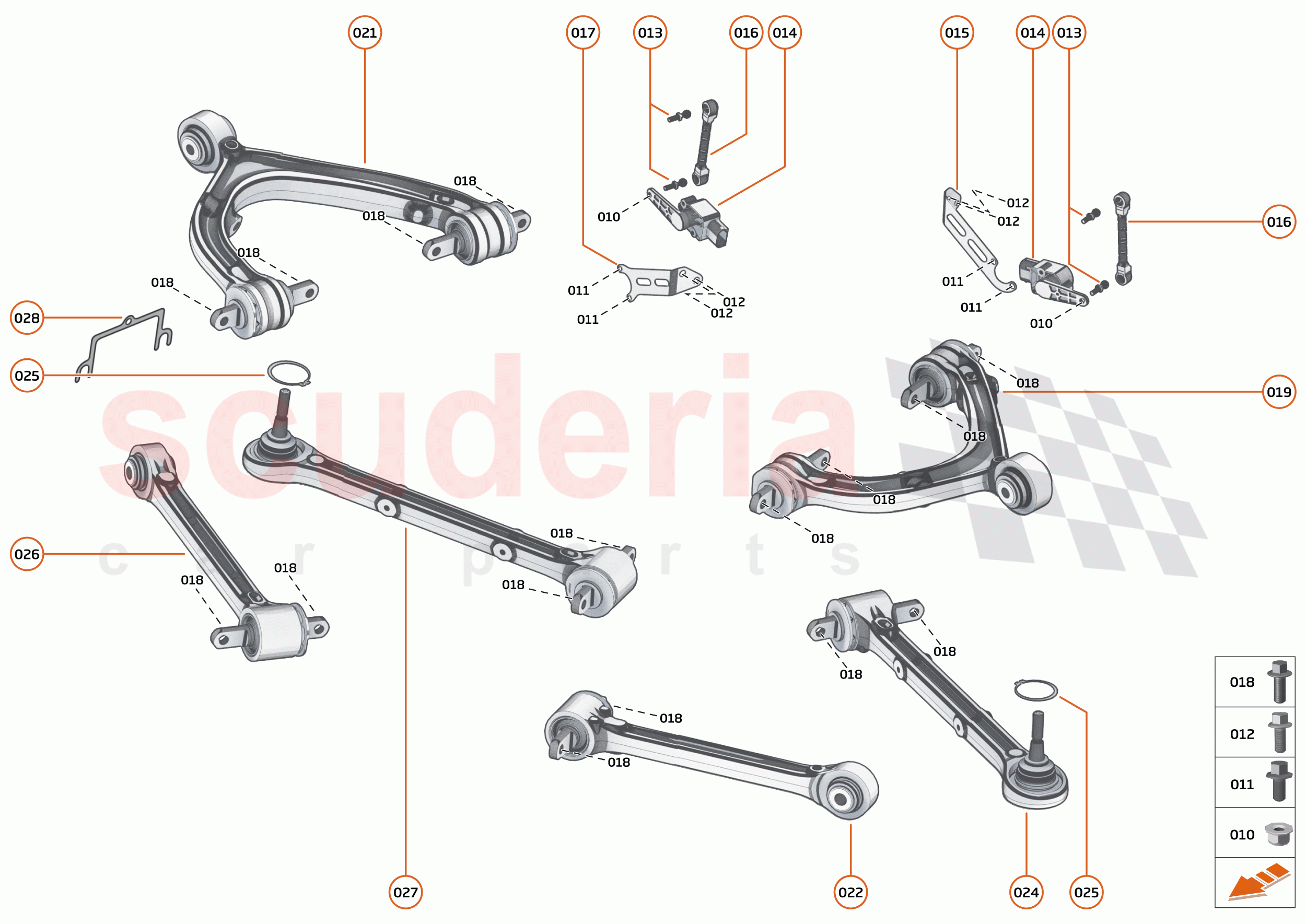

19 - SUSPENSION - 19.7 - TRANSVERSE LINKS REAR of McLaren McLaren Artura Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart

00RA055

NUT - M6 - LOCKING - HEX

 -

00RA087

SCREW - M5X10 - HEX

 -

00RA083

SCREW - M6X20 - FLANGE HEX

 -

14B0545CP

BALL STUD - DISPLACEMENT SENSOR

from $12.17

13B0681CP

SENSOR - DISPLACEMENT

from $121.84

015 16B0021CP
BRKT WBONE DISPL SNSR RR LH 		$40.60 1
TO
016 14B0494CP
BALL SCKT SENSOR DISPLACEMENT - GIMBAL 		$35.54 1
TO
017 16B0024CP
BRKT WBONE DISPL SNSR RR RH 		$35.54 1
TO

00RX053

BOLT - WISHBONE - M10X1.5X35

 -
019 16BA557CP
ASSY WISHBONE UPR RR LH 		$548.37 1
TO
019 16BB042CP
ASSY WISHBONE UPR RR LH 		$548.37 1
TO
021 16BA559CP
ASSY WISHBONE UPR RR RH 		$548.37 2
TO
021 16BB043CP
ASSY WISHBONE UPR RR RH 		$548.37 1
TO
022 16BA566CP
ASSY LINK LWR FORE LH 		$345.26 1
TO
024 16BA563CP
ASSY LINK LWR AFT LH 		$345.26 1
TO

00RD007

CLIP-CIRCLIP-42-SS-00

 -
026 16BA567CP
ASSY LINK LWR FORE RH 		$345.26 1
TO
027 16BA564CP
ASSY LINK LWR AFT RH 		$345.26 1
TO
028 16BA497CP
CAMBER ADJUSTMENT SHIM 4MM 		$16.22 1
TO
028 16BA304CP
CAMBER ADJUSTMENT SHIM 1MM 		$15.21 1
TO
028 16BA306CP
CAMBER ADJUSTMENT SHIM 3MM 		$15.21 1
TO
028 16BA305CP
CAMBER ADJUSTMENT SHIM 2MM 		$9.94 4
TO
029 11B1552CP
Ball Joint - Gaiter - Kit 		$50.34 1
TO
030 14BA039CP
BALL JOINT - GAITER - LOWER - KIT 		$4.21 1
TO
031 14BA246CP
WISHBONE BUSH 		$162.46 1
TO
032 14BA255CP
WISHBONE BUSH - 3.5MM 		$162.46 1
TO
