19 - SUSPENSION - 19.3 - TRANSVERSE LINKS FRONT of McLaren McLaren Artura

McLaren Artura - 19 - SUSPENSION - 19.3 - TRANSVERSE LINKS FRONT

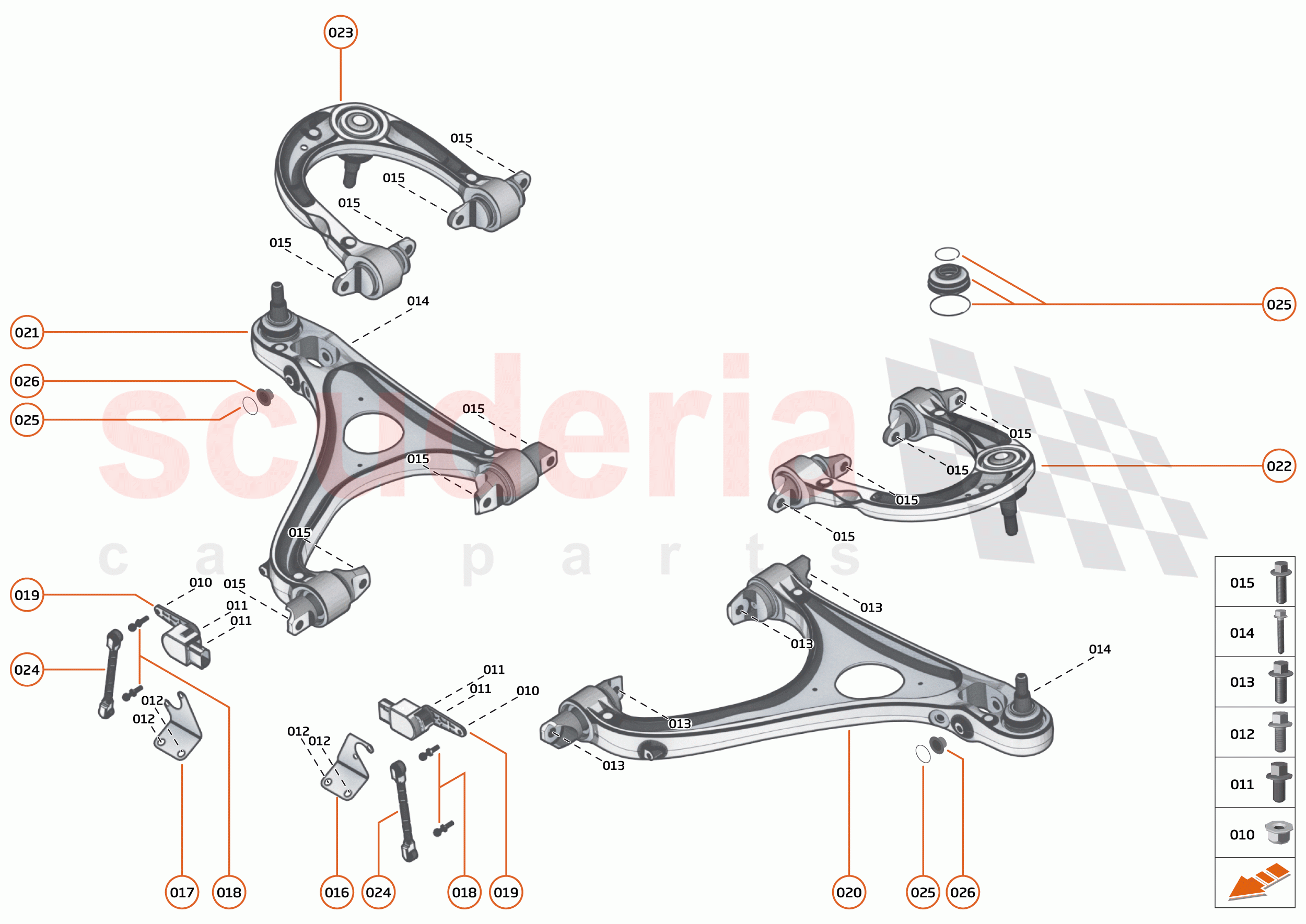

View the exploded parts diagram to find the part you are looking for

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

TO ORDER

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	00RA055	NUT - M6 - LOCKING - HEX	Enquire	To Order
	00RA055	NUT - M6 - LOCKING - HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA087	SCREW - M5X10 - HEX	Enquire	To Order
	00RA087	SCREW - M5X10 - HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA083	SCREW - M6X20 - FLANGE HEX	Enquire	To Order
	00RA083	SCREW - M6X20 - FLANGE HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA457	SCREW - M10X30-10.9 - HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11B1314CP	BOLT - M10X70 - DAMPER MOUNTING - LOWER	$8.71	To Order
	11B1314CP	BOLT - M10X70 - DAMPER MOUNTING - LOWER	$8.71	To Order

Photo	Part No	Description	Price (each)	Stock
	00RX053	BOLT - WISHBONE - M10X1.5X35	Enquire	To Order
	00RX053	BOLT - WISHBONE - M10X1.5X35	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16BA454CP	BRKT SENSOR DISPLACEMENT FR LH	$35.54	To Order

Photo	Part No	Description	Price (each)	Stock
	16BA457CP	BRKT SENSOR DISPLACEMENT FR RH	$35.54	To Order

Photo	Part No	Description	Price (each)	Stock
	14B0545CP	BALL STUD - DISPLACEMENT SENSOR	$12.17	To Order
	14B0545CP	BALL STUD - DISPLACEMENT SENSOR	$12.17	To Order

Photo	Part No	Description	Price (each)	Stock
	13B0681CP	SENSOR - DISPLACEMENT	$121.84	To Order
	13B0681CP	SENSOR - DISPLACEMENT	$121.84	To Order

Photo	Part No	Description	Price (each)	Stock
	13BA205RP	WISHBONE - LOWER - FRONT - LH	$1,409.89	To Order
	16BA885CP	ASSY-WISHBONE -LWR-FR-LH	$548.37	To Order

Photo	Part No	Description	Price (each)	Stock
	13BA208RP	WISHBONE - LOWER - FRONT - RH	$1,107.77	To Order
	16BA886CP	ASSY WISHBONE LWR FR RH	$548.37	To Order

Photo	Part No	Description	Price (each)	Stock
	16BA669CP	ASSY -WISHBONE-UPR-FR-LH	$548.37	To Order

Photo	Part No	Description	Price (each)	Stock
	16BA670CP	ASSY-WISHBONE-UPR-FR-RH	$548.37	To Order

Photo	Part No	Description	Price (each)	Stock
	22BA174GP	BALL SCKT SENSOR DISPLACEMENT	$40.60	To Order
	22BA174GP	BALL SCKT SENSOR DISPLACEMENT	$40.60	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA218	RING-PLAIN EXTERNAL-M2400-0400	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11B0800CP	Tophat - Spacer - Diameter 20 - 10.2 ID	$50.76	To Order

Diagram Tap to enlarge

	#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Key	Add to Cart
	00RA055		NUT - M6 - LOCKING - HEX	-
010 NUT - M6 - LOCKING - HEX - 2 PE Enquire 010 NUT - M6 - LOCKING - HEX - 1 PE Enquire
	00RA087		SCREW - M5X10 - HEX	-
011 SCREW - M5X10 - HEX - 4 PE Enquire 011 SCREW - M5X10 - HEX - 2 PE Enquire
	00RA083		SCREW - M6X20 - FLANGE HEX	-
012 SCREW - M6X20 - FLANGE HEX - 4 PE Enquire 012 SCREW - M6X20 - FLANGE HEX - 2 PE Enquire
	013	00RA457	SCREW - M10X30-10.9 - HEX	00RA457 SCREW - M10X30-10.9 - HEX	-	4	PE	Enquire
	11B1314CP		BOLT - M10X70 - DAMPER MOUNTING - LOWER	from $8.71
014 BOLT - M10X70 - DAMPER MOUNTING - LOWER $8.71 2 TO 014 BOLT - M10X70 - DAMPER MOUNTING - LOWER $8.71 1 TO
	00RX053		BOLT - WISHBONE - M10X1.5X35	-
015 BOLT - WISHBONE - M10X1.5X35 - 12 PE Enquire 015 BOLT - WISHBONE - M10X1.5X35 - 4 PE Enquire
	016	16BA454CP	BRKT SENSOR DISPLACEMENT FR LH	16BA454CP BRKT SENSOR DISPLACEMENT FR LH	$35.54	1	TO
	017	16BA457CP	BRKT SENSOR DISPLACEMENT FR RH	16BA457CP BRKT SENSOR DISPLACEMENT FR RH	$35.54	1	TO
	14B0545CP		BALL STUD - DISPLACEMENT SENSOR	from $12.17
018 BALL STUD - DISPLACEMENT SENSOR $12.17 4 TO 018 BALL STUD - DISPLACEMENT SENSOR $12.17 2 TO
	13B0681CP		SENSOR - DISPLACEMENT	from $121.84
019 SENSOR - DISPLACEMENT $121.84 2 TO 019 SENSOR - DISPLACEMENT $121.84 1 TO
	020	13BA205RP	WISHBONE - LOWER - FRONT - LH	13BA205RP WISHBONE - LOWER - FRONT - LH	$1,409.89	1	TO
	020	16BA885CP	ASSY-WISHBONE -LWR-FR-LH	16BA885CP ASSY-WISHBONE -LWR-FR-LH	$548.37	1	TO
	021	13BA208RP	WISHBONE - LOWER - FRONT - RH	13BA208RP WISHBONE - LOWER - FRONT - RH	$1,107.77	1	TO
	021	16BA886CP	ASSY WISHBONE LWR FR RH	16BA886CP ASSY WISHBONE LWR FR RH	$548.37	1	TO
	022	16BA669CP	ASSY -WISHBONE-UPR-FR-LH	16BA669CP ASSY -WISHBONE-UPR-FR-LH	$548.37	1	TO
	023	16BA670CP	ASSY-WISHBONE-UPR-FR-RH	16BA670CP ASSY-WISHBONE-UPR-FR-RH	$548.37	1	TO
	22BA174GP		BALL SCKT SENSOR DISPLACEMENT	from $40.60
024 BALL SCKT SENSOR DISPLACEMENT $40.60 2 TO 024 BALL SCKT SENSOR DISPLACEMENT $40.60 1 TO
	025	00RA218	RING-PLAIN EXTERNAL-M2400-0400	00RA218 RING-PLAIN EXTERNAL-M2400-0400	-	1	PE	Enquire
	026	11B0800CP	Tophat - Spacer - Diameter 20 - 10.2 ID	11B0800CP Tophat - Spacer - Diameter 20 - 10.2 ID	$50.76	1	TO
	027	11B1552CP	Ball Joint - Gaiter - Kit	11B1552CP Ball Joint - Gaiter - Kit	$50.34	1	TO
	028	14BA039CP	BALL JOINT - GAITER - LOWER - KIT	14BA039CP BALL JOINT - GAITER - LOWER - KIT	$4.21	1	TO
	029	14BA246CP	WISHBONE BUSH	14BA246CP WISHBONE BUSH	$162.46	1	TO
	030	14BA255CP	WISHBONE BUSH - 3.5MM	14BA255CP WISHBONE BUSH - 3.5MM	$162.46	1	TO
