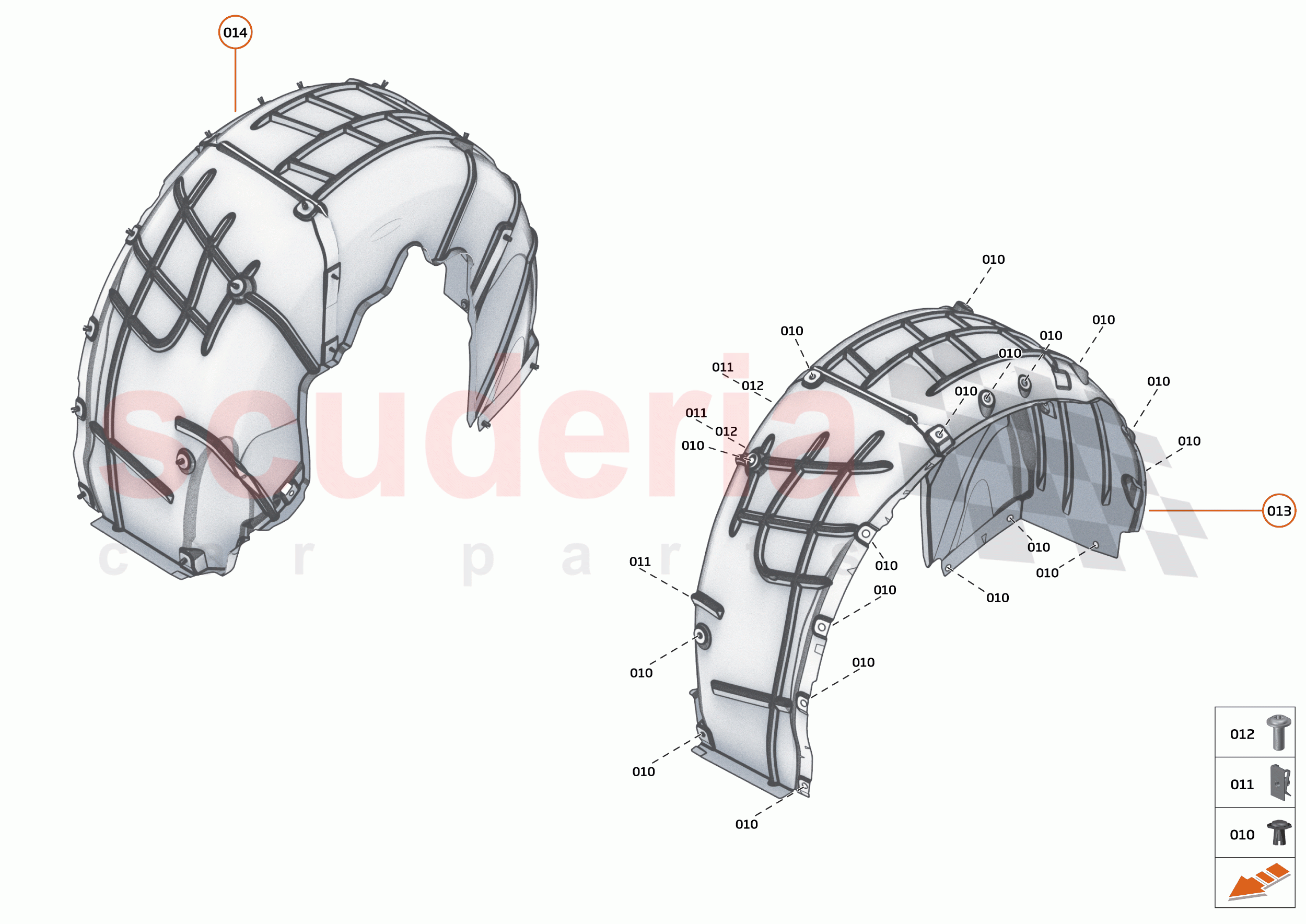

Name: 17 - LINERS AND NVH - 17.2 - REAR WHEELARCH LINERS
Rating: 5.0 (1 reviews)

Find Your Part

View the exploded parts diagram to find the part you are looking for

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

TO ORDER

PLEASE ENQUIRE

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

	#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Key	Add to Cart
	00RA146		SCRIVET - DIA 8 X 14	-
010 SCRIVET - DIA 8 X 14 - 40 PE Enquire 010 SCRIVET - DIA 8 X 14 - 17 PE Enquire
	00RB194		CLIP - U NUT - M6	-
011 CLIP - U NUT - M6 - 6 PE Enquire 011 CLIP - U NUT - M6 - 3 PE Enquire
	00RA409		BOLT - FLANGE - M6X16 - BUTTON HEAD	-
012 BOLT - FLANGE - M6X16 - BUTTON HEAD - 4 PE Enquire 012 BOLT - FLANGE - M6X16 - BUTTON HEAD - 2 PE Enquire
	013	16AE432CP	WHEEL ARCH LINER-RR-LH	16AE432CP WHEEL ARCH LINER-RR-LH	-	1	PE	Enquire
	013	16AE702CP	WHEEL ARCH LINER-RR-LH	16AE702CP WHEEL ARCH LINER-RR-LH	$446.82	1	TO
	014	16AE323CP	WHEEL ARCH LINER-RR-RH	16AE323CP WHEEL ARCH LINER-RR-RH	-	1	PE	Enquire
	014	16AE703CP	WHEEL ARCH LINER-RR-RH	16AE703CP WHEEL ARCH LINER-RR-RH	$446.82	1	TO
	015	00RG015	FIR TREE BUTTTON - 6MM - FTB017	00RG015 FIR TREE BUTTTON - 6MM - FTB017	-	1	PE	Enquire
	016	00RC077	WASHER - M6X18X1.6 - STAINLESS STEEL	00RC077 WASHER - M6X18X1.6 - STAINLESS STEEL	-	2	PE	Enquire
	017	00RA724	SCREW - M6X20 - FLANGE HEX	00RA724 SCREW - M6X20 - FLANGE HEX	-	2	PE	Enquire
	018	16AF289CP	REAR WAL RETENTION BRKT LH	16AF289CP REAR WAL RETENTION BRKT LH	$17.25	1	TO
	019	16AF312CP	REAR WAL RETENTION BRKT RH	16AF312CP REAR WAL RETENTION BRKT RH	$17.25	1	TO

Haven't found what you're looking for?

View Cart / Checkout

17 - Liners And Nvh - 17.2 - Rear Wheelarch Liners

McLaren Artura
