McLaren Artura - 16 - DUCTS VENTS AND FLOORS - 16.5 - REAR NON STRUCTURAL FLOORS

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
16AA226MP ASSY DIFFUSER - CF Enquire To Order
16AE322CP ASSY DIFFUSER - SPORT $2,173.24 To Order
Photo Part No Description Price (each) Stock
16AA833CP BRKT DIFFUSER LH $86.29 To Order
Photo Part No Description Price (each) Stock
16AC481CP BRKT DIFFUSER RH $86.29 To Order
Photo Part No Description Price (each) Stock
16AD631CP DIFFUSER EXT LH $203.09 To Order
Photo Part No Description Price (each) Stock
16AD632CP DIFFUSER EXT RH $203.09 To Order
Photo Part No Description Price (each) Stock
14A1805CP GUIDE VANE - FRONT - LH $95.65 To Order
Photo Part No Description Price (each) Stock
14A1806CP GUIDE VANE - FRONT - RH $95.65 To Order
Photo Part No Description Price (each) Stock
00RB178 CLIP NUT - FUEL FILTER BOWL - MY15 Enquire To Order
Photo Part No Description Price (each) Stock
00RA621 SCREW - M6X24 - BUTTON Enquire To Order
Photo Part No Description Price (each) Stock
00RC134 WSHR-PLN-M8X17X1-SS-90 Enquire To Order
Photo Part No Description Price (each) Stock
16AE309CP GROMMET FLOOR AERO $8.52 To Order
Photo Part No Description Price (each) Stock
00RA409 BOLT - FLANGE - M6X16 - BUTTON HEAD Enquire To Order
00RA409 BOLT - FLANGE - M6X16 - BUTTON HEAD Enquire To Order
Photo Part No Description Price (each) Stock
00RB183 CLIP - U NUT - M6 Enquire To Order
00RB183 CLIP - U NUT - M6 Enquire To Order
Photo Part No Description Price (each) Stock
00RG035 REEVITE - 15.9X3.2X8X82X5.4 Enquire To Order
00RG035 REEVITE - 15.9X3.2X8X82X5.4 Enquire To Order
Photo Part No Description Price (each) Stock
00RA468 SCREW - BUTTON HEAD - FLANGE - M6X12 - BLACK Enquire To Order
00RA468 SCREW - BUTTON HEAD - FLANGE - M6X12 - BLACK Enquire To Order
Photo Part No Description Price (each) Stock
00RC097 WASHER - 6.4X12X1.6 Enquire To Order
00RC097 WASHER - 6.4X12X1.6 Enquire To Order

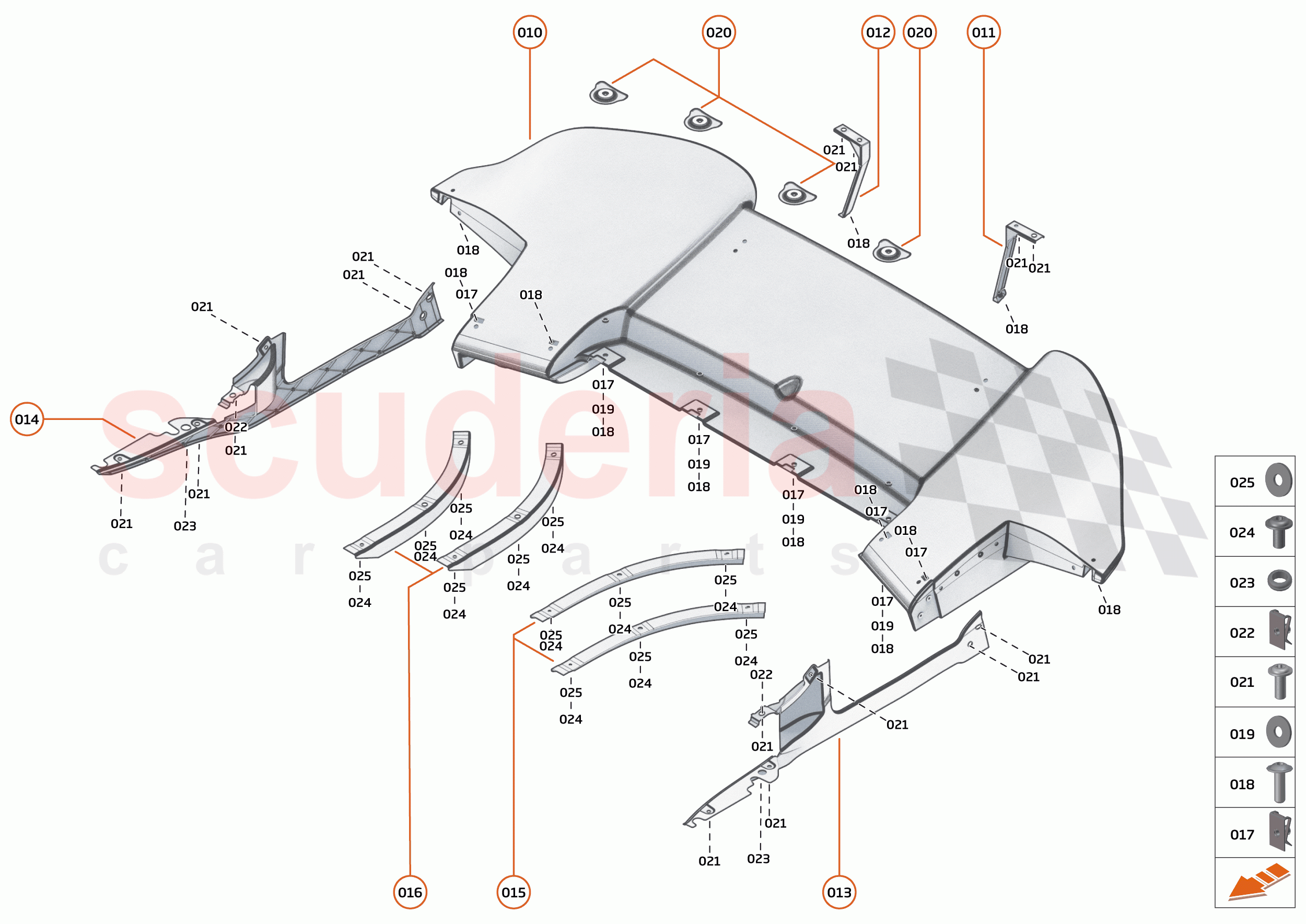

16 - DUCTS VENTS AND FLOORS - 16.5 - REAR NON STRUCTURAL FLOORS of McLaren McLaren Artura Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 00RA512
RIVNUT-O-GRIP-M6X14.5-STL-80 		- 4
PE
 Enquire
010 16AA226MP
ASSY DIFFUSER - CF 		- 1
PE
 Enquire
010 16AE322CP
ASSY DIFFUSER - SPORT 		$2,173.24 1
TO
011 16AA833CP
BRKT DIFFUSER LH 		$86.29 1
TO
012 16AC481CP
BRKT DIFFUSER RH 		$86.29 1
TO
013 16AD631CP
DIFFUSER EXT LH 		$203.09 1
TO
014 16AD632CP
DIFFUSER EXT RH 		$203.09 1
TO
015 14A1805CP
GUIDE VANE - FRONT - LH 		$95.65 2
TO
016 14A1806CP
GUIDE VANE - FRONT - RH 		$95.65 2
TO
017 00RB178
CLIP NUT - FUEL FILTER BOWL - MY15 		- 8
PE
 Enquire
018 00RA621
SCREW - M6X24 - BUTTON 		- 12
PE
 Enquire
019 00RC134
WSHR-PLN-M8X17X1-SS-90 		- 4
PE
 Enquire
020 16AE309CP
GROMMET FLOOR AERO 		$8.52 4
TO

00RA409

BOLT - FLANGE - M6X16 - BUTTON HEAD

 -

00RB183

CLIP - U NUT - M6

 -

00RG035

REEVITE - 15.9X3.2X8X82X5.4

 -

00RA468

SCREW - BUTTON HEAD - FLANGE - M6X12 - BLACK

 -

00RC097

WASHER - 6.4X12X1.6

 -
