McLaren Artura

Find Your Part

McLaren Artura - 16 - DUCTS VENTS AND FLOORS - 16.4 - FRONT NON STRUCTURAL FLOORS

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
16AA831CP ASSY FRONT FLOOR $588.99 To Order
Photo Part No Description Price (each) Stock
00RA112 TORX SCREW-WASHER 4.2X16 Enquire To Order
Photo Part No Description Price (each) Stock
00RC064 WASHER - M6X18X1.6 - BLACK Enquire To Order
Photo Part No Description Price (each) Stock
00RB006 SPIER CLIP - 4.2X7 2.5X5.0 8MM Enquire To Order
Photo Part No Description Price (each) Stock
00RA409 BOLT - FLANGE - M6X16 - BUTTON HEAD Enquire To Order

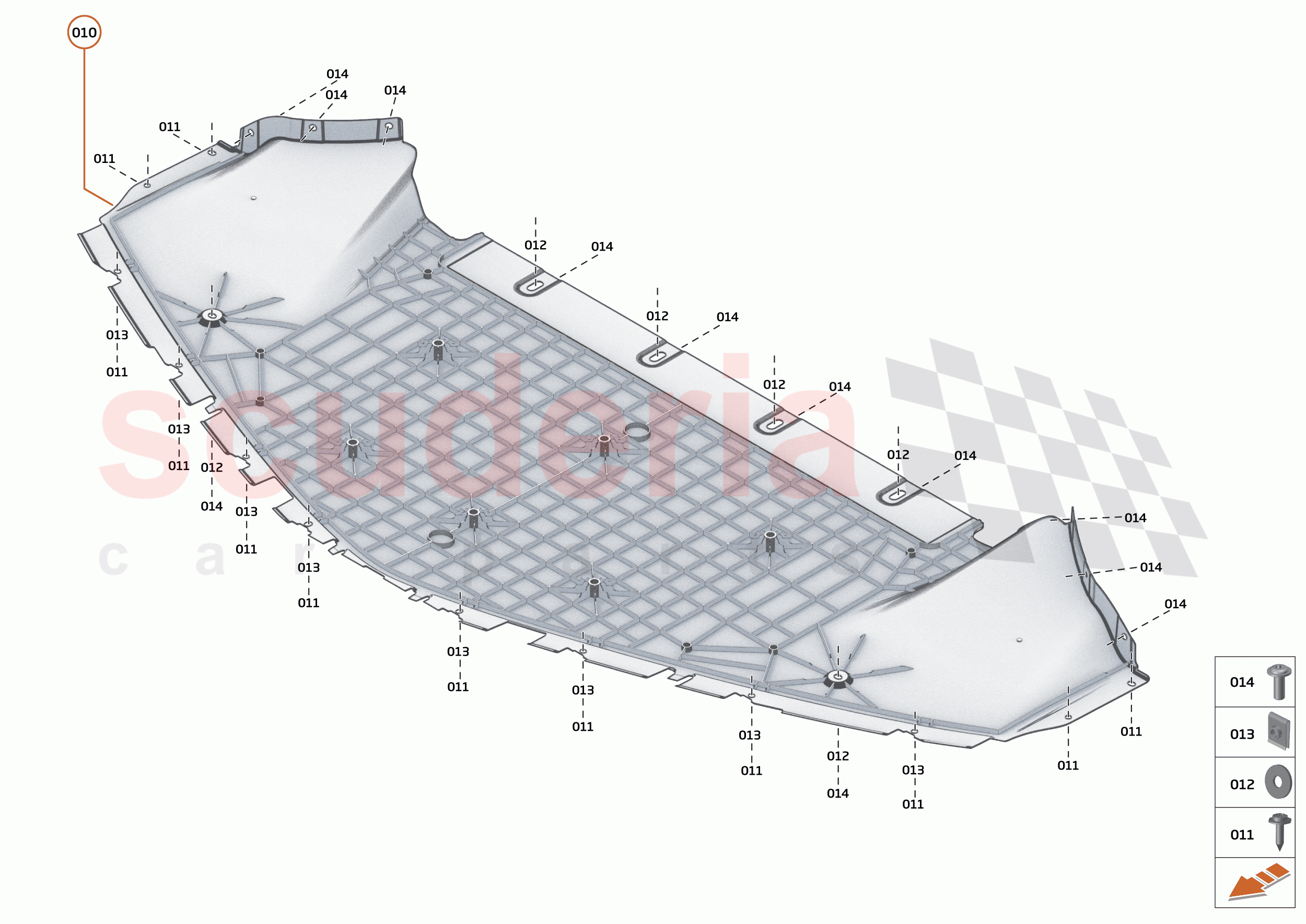

16 - DUCTS VENTS AND FLOORS - 16.4 - FRONT NON STRUCTURAL FLOORS of McLaren McLaren Artura Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 16AA831CP
ASSY FRONT FLOOR 		$588.99 1
TO
011 00RA112
TORX SCREW-WASHER 4.2X16 		- 12
PE
 Enquire
012 00RC064
WASHER - M6X18X1.6 - BLACK 		- 6
PE
 Enquire
013 00RB006
SPIER CLIP - 4.2X7 2.5X5.0 8MM 		- 8
PE
 Enquire
014 00RA409
BOLT - FLANGE - M6X16 - BUTTON HEAD 		- 12
PE
 Enquire
