16 - Ducts Vents And Floors - 16.1 - Front Ducts And Vents

McLaren Artura

Find Your Part

McLaren Artura - 16 - DUCTS VENTS AND FLOORS - 16.1 - FRONT DUCTS AND VENTS

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
16AA800CP ASSY LTR-DUCT-INNER-RH $264.02 To Order
16AF158CP LTR-DUCT-INNER-RH - GRAINED FINISH $264.02 To Order
Photo Part No Description Price (each) Stock
16AA801CP ASSY LTR-DUCT-INNER-LH $232.88 To Order
16AF157CP LTR-DUCT-INNER-LH - GRAINED FINISH $264.02 To Order
Photo Part No Description Price (each) Stock
16AC258CP LTR-DUCT-OUTER-RH - GLOSS BLACK $264.02 To Order
16AF623CP ASSY LTR-DUCT-OUTER-RH - GRAINED $467.13 To Order
Photo Part No Description Price (each) Stock
16AF622CP ASSY LTR-DUCT-OUTER-LH - GRAINED $467.13 To Order
16AC259CP LTR-DUCT-OUTER-LH - GLOSS BLACK $264.02 To Order
Photo Part No Description Price (each) Stock
16AC661CP ASSY LTR-DUCT-MID-LH $264.02 To Order
16AF159CP LTR-DUCT-MID-LH - GRAINED FINISH $152.32 To Order
Photo Part No Description Price (each) Stock
16AC663CP ASSY LTR-DUCT-MID-RH $264.02 To Order
16AF160CP LTR-DUCT-MID-RH - GRAINED FINISH $152.32 To Order
Photo Part No Description Price (each) Stock
16AD705CP ASSY CONDENSER DUCT FRT $426.52 To Order
Photo Part No Description Price (each) Stock
00RB176 CLIP - STEM Enquire To Order
00RB176 CLIP - STEM Enquire To Order
Photo Part No Description Price (each) Stock
00RB104 Spire Clip - M6 - Raymond - 203909 Enquire To Order
00RB104 Spire Clip - M6 - Raymond - 203909 Enquire To Order
Photo Part No Description Price (each) Stock
00RA409 BOLT - FLANGE - M6X16 - BUTTON HEAD Enquire To Order
00RA409 BOLT - FLANGE - M6X16 - BUTTON HEAD Enquire To Order
Photo Part No Description Price (each) Stock
11A4758CP BLACK DECAL BODYSIDE REAR LOWE $16.09 To Order

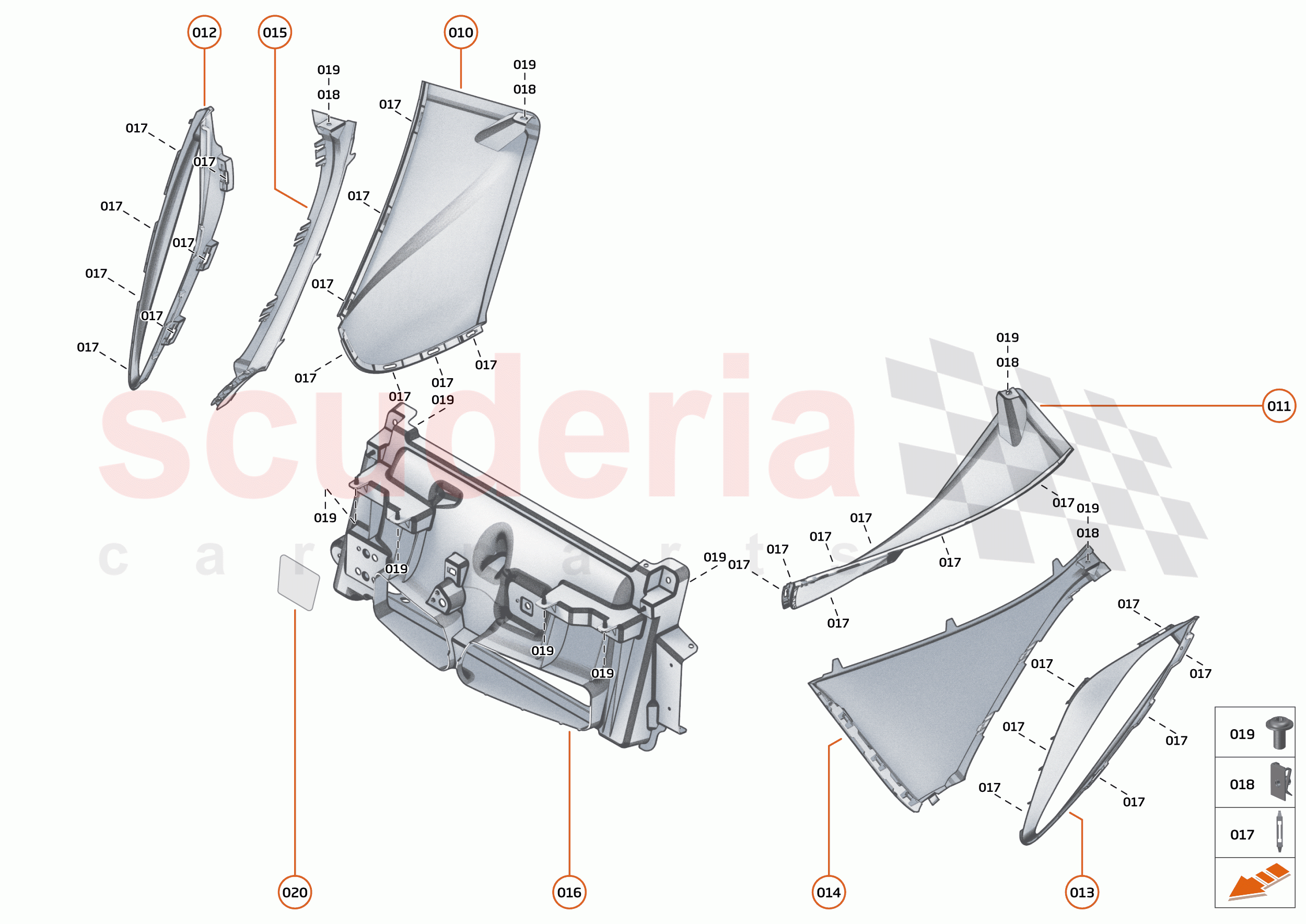

16 - DUCTS VENTS AND FLOORS - 16.1 - FRONT DUCTS AND VENTS of McLaren McLaren Artura Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 00RA621
SCREW - M6X24 - BUTTON 		- 4
PE
 Enquire
000 00RC049
WASHER - M6X3.0MM 		- 4
PE
 Enquire
010 16AA800CP
ASSY LTR-DUCT-INNER-RH 		$264.02 1
TO
010 16AF158CP
LTR-DUCT-INNER-RH - GRAINED FINISH 		$264.02 1
TO
011 16AA801CP
ASSY LTR-DUCT-INNER-LH 		$232.88 1
TO
011 16AF157CP
LTR-DUCT-INNER-LH - GRAINED FINISH 		$264.02 1
TO
012 16AC258CP
LTR-DUCT-OUTER-RH - GLOSS BLACK 		$264.02 1
TO
012 16AF623CP
ASSY LTR-DUCT-OUTER-RH - GRAINED 		$467.13 1
TO
013 16AF622CP
ASSY LTR-DUCT-OUTER-LH - GRAINED 		$467.13 1
TO
013 16AC259CP
LTR-DUCT-OUTER-LH - GLOSS BLACK 		$264.02 1
TO
014 16AC661CP
ASSY LTR-DUCT-MID-LH 		$264.02 1
TO
014 16AF159CP
LTR-DUCT-MID-LH - GRAINED FINISH 		$152.32 1
TO
015 16AC663CP
ASSY LTR-DUCT-MID-RH 		$264.02 1
TO
015 16AF160CP
LTR-DUCT-MID-RH - GRAINED FINISH 		$152.32 1
TO
016 16AD705CP
ASSY CONDENSER DUCT FRT 		$426.52 1
TO

00RB176

CLIP - STEM

 -

00RB104

SPIRE CLIP - M6 - RAYMOND - 203909

 -

00RA409

BOLT - FLANGE - M6X16 - BUTTON HEAD

 -
020 11A4758CP
BLACK DECAL BODYSIDE REAR LOWE 		$16.09 1
TO
