12 - EXTERIOR ORNAMENTATION - 12.8 - REAR BUMPER of McLaren McLaren Artura

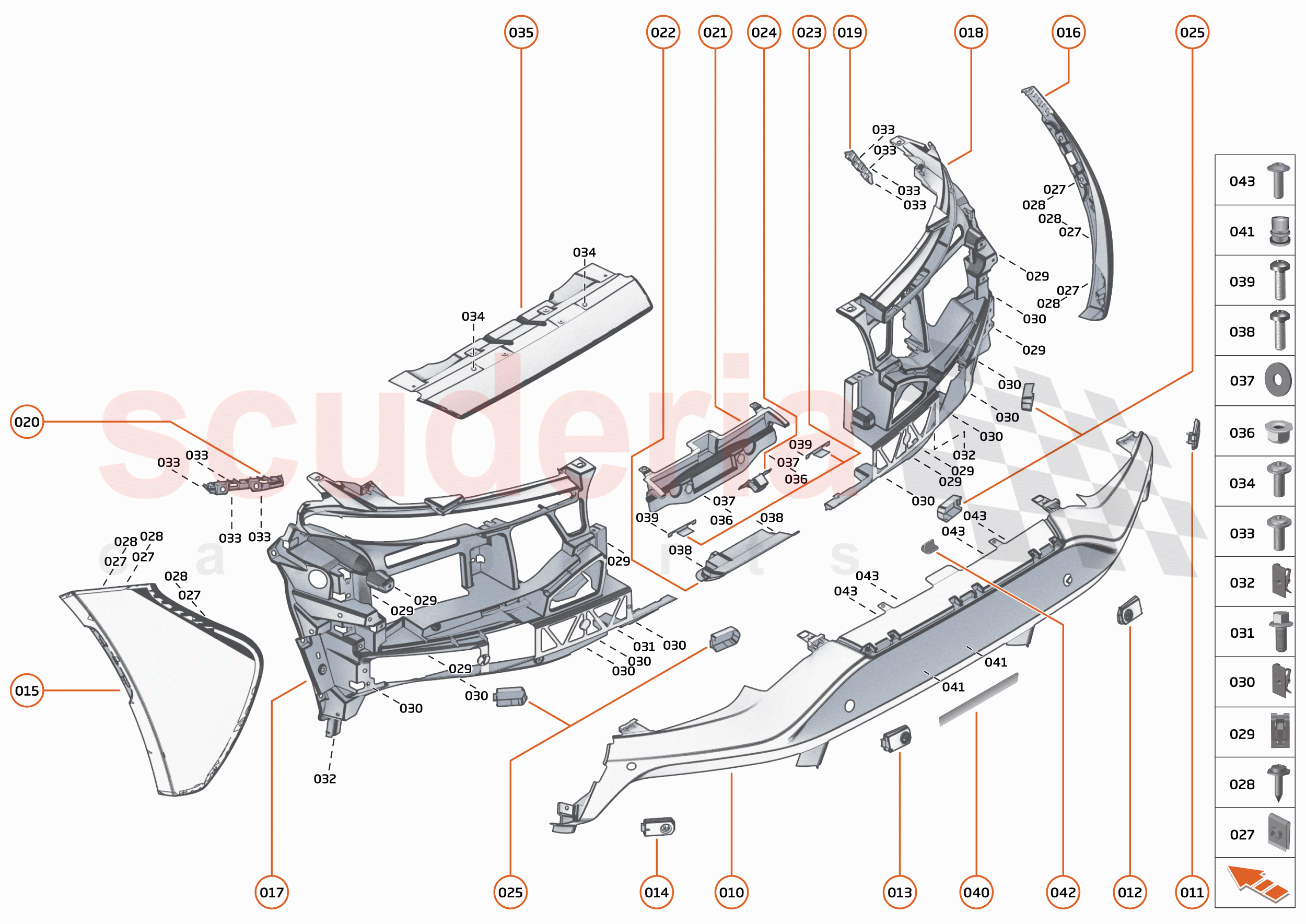

McLaren Artura - 12 - EXTERIOR ORNAMENTATION - 12.8 - REAR BUMPER

View the exploded parts diagram to find the part you are looking for

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

TO ORDER

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	16AA218MP	ASSY BUMPER REAR OTR-PDC-CAM - CHN - VCF	Enquire	To Order
	16AA219MP	ASSY BUMPER REAR OTR - CAM - CHN - VCF	Enquire	To Order
	16AA221MP	ASSY BUMPER REAR OTR -PDC -CAM - VCF	Enquire	To Order

...and 21 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	16AA791CP	BRKT REAR PTS 1	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16AA792CP	BRKT REAR PTS 2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16AA793CP	BRKT REAR PTS 3	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16AA794CP	BRKT REAR PTS 4	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16AD755CP	ASSY PNL BUMPER RR ROW LH	Enquire	To Order
	16AD757CP	ASSY PNL BUMPER RR FED LH	Enquire	To Order
	16AB455SP	ASSY PNL BUMPER RR ROW BLIS - LH SIDE - MY25	$172.62	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	16AD756CP	ASSY PNL BUMPER RR ROW RH - SIDE	Enquire	To Order
	16AD758CP	ASSY PNL BUMPER RR FED RH	Enquire	To Order
	16AB456SP	ASSY PNL BUMPER RR ROW BLIS RH SIDE - MY25	$192.93	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	16AD761CP	OUTRIGGER BUMPER LH	$152.32	To Order
	16AB764SP	OUTRIGGER BUMPER BLIS LH	$507.76	To Order

Photo	Part No	Description	Price (each)	Stock
	16AD762CP	OUTRIGGER BUMPER RH	$136.99	To Order
	16AB765SP	OUTRIGGER BUMPER BLIS RH	$507.76	To Order

Photo	Part No	Description	Price (each)	Stock
	16AF534CP	BRKT BUMPER-CLAM RH	$86.29	To Order

Photo	Part No	Description	Price (each)	Stock
	16AF443CP	BRKT BUMPER-CLAM LH	$86.29	To Order

Photo	Part No	Description	Price (each)	Stock
	16AF251CP	ASSY RR CAMERA CAPPING	$152.32	To Order

Photo	Part No	Description	Price (each)	Stock
	16AC247CP	REV FOG LAMP COVER	$35.54	To Order

Photo	Part No	Description	Price (each)	Stock
	16AC798CP	BRKT RR BUMPER HT SHEILD	$40.60	To Order
	16AC798CP	BRKT RR BUMPER HT SHEILD	$40.60	To Order

Photo	Part No	Description	Price (each)	Stock
	16AA795CP	RR CAMERA BRACKET	Enquire	To Order
	16AF150CP	RR CAMERA BRACKET	$259.90	To Order

Photo	Part No	Description	Price (each)	Stock
	14A4456CP	COVER - BEZEL - PARKING SENSOR - REAR BUMPER	$30.44	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB006	SPIER CLIP - 4.2X7 2.5X5.0 8MM	Enquire	To Order
	00RB006	SPIER CLIP - 4.2X7 2.5X5.0 8MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA112	TORX SCREW-WASHER 4.2X16	Enquire	To Order
	00RA112	TORX SCREW-WASHER 4.2X16	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA329	CLIP - M6	Enquire	To Order
	00RA329	CLIP - M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA762	CLIP-U NUT-M5X0.8-2.1-SS-90	Enquire	To Order
	00RA762	CLIP-U NUT-M5X0.8-2.1-SS-90	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA064	BOLT - M5X12 - HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB194	CLIP - U NUT - M6	Enquire	To Order
	00RB194	CLIP - U NUT - M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA432	SCREW - BUTTON HEAD FL - M5X12-SS - BLACK	Enquire	To Order
	00RA432	SCREW - BUTTON HEAD FL - M5X12-SS - BLACK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA409	BOLT - FLANGE - M6X16 - BUTTON HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16AE444CP	HEATSHIELD BUMPER RR	Enquire	To Order
	16AE781CP	HEATSHIELD BUMPER RR	$599.79	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA309	NUT - M6-SS - HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RC013	WASHER - M6X18X1.6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA464	SCREW - M4X12 - BUTTON HEAD - SOCKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA363	SCREW - TORX - 4X12	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16AB123CP	REAR REFLECTOR FOAM	$192.93	To Order

Photo	Part No	Description	Price (each)	Stock
	00RM023	RIVNUT - M6 - 0.7-3.3	Enquire	To Order
	00RM023	RIVNUT - M6 - 0.7-3.3	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11A7405CP	CLIP - HARNESS	$20.29	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA492	SCREW - M4X12-8.8-84 - BUTTON HEAD TORX	Enquire	To Order

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

	#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Key	Add to Cart
	000	00RC077	WASHER - M6X18X1.6 - STAINLESS STEEL	00RC077 WASHER - M6X18X1.6 - STAINLESS STEEL	-	2	PE	Enquire
	000	00RC017	WASHER - M5X15X1.2	00RC017 WASHER - M5X15X1.2	-	4	PE	Enquire
	000	00RA695	ISO 7380-2 BTN HD FL-M5X16-SS	00RA695 ISO 7380-2 BTN HD FL-M5X16-SS	-	2	PE	Enquire
	010	16AA218MP	ASSY BUMPER REAR OTR-PDC-CAM - CHN - VCF	16AA218MP ASSY BUMPER REAR OTR-PDC-CAM - CHN - VCF	-	1	PE	Enquire
	010	16AA219MP	ASSY BUMPER REAR OTR - CAM - CHN - VCF	16AA219MP ASSY BUMPER REAR OTR - CAM - CHN - VCF	-	1	PE	Enquire
	010	16AA221MP	ASSY BUMPER REAR OTR -PDC -CAM - VCF	16AA221MP ASSY BUMPER REAR OTR -PDC -CAM - VCF	-	1	PE	Enquire
	010	16AA220MP	ASSY BUMPER REAR OTR - CHN - CHN - VCF	16AA220MP ASSY BUMPER REAR OTR - CHN - CHN - VCF	-	1	PE	Enquire
	010	16AA222MP	ASSY BUMPER REAR OTR -CAM - VCF	16AA222MP ASSY BUMPER REAR OTR -CAM - VCF	-	1	PE	Enquire
	010	16AB166CP	ASSY BUMPER REAR OTR -PDC -CAM - CHN	16AB166CP ASSY BUMPER REAR OTR -PDC -CAM - CHN	-	1	PE	Enquire
	010	16AA223MP	ASSY BUMPER REAR OTR - VCF	16AA223MP ASSY BUMPER REAR OTR - VCF	-	1	PE	Enquire
	010	16AB163CP	ASSY BUMPER REAR OTR -CAM -CHN	16AB163CP ASSY BUMPER REAR OTR -CAM -CHN	-	1	PE	Enquire
	010	16AB155CP	ASSY BUMPER REAR OTR -CHN	16AB155CP ASSY BUMPER REAR OTR -CHN	-	1	PE	Enquire
	010	16AB152CP	ASSY BUMPER REAR OTR -CAM	16AB152CP ASSY BUMPER REAR OTR -CAM	-	1	PE	Enquire
	010	16AB145CP	ASSY BUMPER REAR OTR	16AB145CP ASSY BUMPER REAR OTR	-	1	PE	Enquire
	010	16AA789CP	ASSY BUMPER REAR OTR -PDC -CAM	16AA789CP ASSY BUMPER REAR OTR -PDC -CAM	-	1	PE	Enquire
	010	16AF681CP	ASSY BUMPER REAR OTR-PDC-CAM - CHN - VCF - NO MSO LOGO	16AF681CP ASSY BUMPER REAR OTR-PDC-CAM - CHN - VCF - NO MSO LOGO	-	1	PE	Enquire
	010	16AF680CP	ASSY BUMPER REAR OTR - CAM - CHN - VCF - NO MSO LOGO	16AF680CP ASSY BUMPER REAR OTR - CAM - CHN - VCF - NO MSO LOGO	-	1	PE	Enquire
	010	16AF679CP	ASSY BUMPER REAR OTR - CHN - VCF - NO MSO LOGO	16AF679CP ASSY BUMPER REAR OTR - CHN - VCF - NO MSO LOGO	-	1	PE	Enquire
	010	16AF678CP	ASSY BUMPER REAR OTR -PDC -CAM - VCF - NO MSO LOGO	16AF678CP ASSY BUMPER REAR OTR -PDC -CAM - VCF - NO MSO LOGO	-	1	PE	Enquire
	010	16AF677CP	ASSY BUMPER REAR OTR -CAM - VCF - NO MSO LOGO	16AF677CP ASSY BUMPER REAR OTR -CAM - VCF - NO MSO LOGO	-	1	PE	Enquire
	010	16AF676CP	ASSY BUMPER REAR OTR - VCF	16AF676CP ASSY BUMPER REAR OTR - VCF	-	1	PE	Enquire
	010	16AF025CP	ASSY BUMPER REAR OTR-PDC-CAM - CHN	16AF025CP ASSY BUMPER REAR OTR-PDC-CAM - CHN	-	1	PE	Enquire
	010	16AF023CP	ASSY BUMPER REAR OTR -CAM -CHN	16AF023CP ASSY BUMPER REAR OTR -CAM -CHN	-	1	PE	Enquire
	010	16AF024CP	ASSY BUMPER REAR OTR -CHN	16AF024CP ASSY BUMPER REAR OTR -CHN	-	1	PE	Enquire
	010	16AF021CP	ASSY BUMPER REAR OTR -CAM	16AF021CP ASSY BUMPER REAR OTR -CAM	$1,118.14	1	TO
	010	16AF020CP	ASSY BUMPER REAR OTR	16AF020CP ASSY BUMPER REAR OTR	$1,050.97	1	TO
	010	16AF022CP	ASSY BUMPER REAR OTR -PDC -CAM	16AF022CP ASSY BUMPER REAR OTR -PDC -CAM	-	1	PE	Enquire
	011	16AA791CP	BRKT REAR PTS 1	16AA791CP BRKT REAR PTS 1	-	1	PE	Enquire
	012	16AA792CP	BRKT REAR PTS 2	16AA792CP BRKT REAR PTS 2	-	1	PE	Enquire
	013	16AA793CP	BRKT REAR PTS 3	16AA793CP BRKT REAR PTS 3	-	1	PE	Enquire
	014	16AA794CP	BRKT REAR PTS 4	16AA794CP BRKT REAR PTS 4	-	1	PE	Enquire
	015	16AD755CP	ASSY PNL BUMPER RR ROW LH	16AD755CP ASSY PNL BUMPER RR ROW LH	-	1	PE	Enquire
	015	16AD757CP	ASSY PNL BUMPER RR FED LH	16AD757CP ASSY PNL BUMPER RR FED LH	-	1	PE	Enquire
	015	16AB455SP	ASSY PNL BUMPER RR ROW BLIS - LH SIDE - MY25	16AB455SP ASSY PNL BUMPER RR ROW BLIS - LH SIDE - MY25	$172.62	-	TO
	015	16AB454SP	ASSY PNL BUMPER RR ROW LH - SIDE	16AB454SP ASSY PNL BUMPER RR ROW LH - SIDE	-	1	PE	Enquire
	015	16AB453SP	ASSY PNL BUMPER RR FED LH - SIDE	16AB453SP ASSY PNL BUMPER RR FED LH - SIDE	-	1	PE	Enquire
	016	16AD756CP	ASSY PNL BUMPER RR ROW RH - SIDE	16AD756CP ASSY PNL BUMPER RR ROW RH - SIDE	-	1	PE	Enquire
	016	16AD758CP	ASSY PNL BUMPER RR FED RH	16AD758CP ASSY PNL BUMPER RR FED RH	-	1	PE	Enquire
	016	16AB456SP	ASSY PNL BUMPER RR ROW BLIS RH SIDE - MY25	16AB456SP ASSY PNL BUMPER RR ROW BLIS RH SIDE - MY25	$192.93	-	TO
	016	16AD390CP	ASSY PNL BUMPER RR FED RH - SIDE	16AD390CP ASSY PNL BUMPER RR FED RH - SIDE	-	1	PE	Enquire
	017	16AD761CP	OUTRIGGER BUMPER LH	16AD761CP OUTRIGGER BUMPER LH	$152.32	1	TO
	017	16AB764SP	OUTRIGGER BUMPER BLIS LH	16AB764SP OUTRIGGER BUMPER BLIS LH	$507.76	1	TO
	018	16AD762CP	OUTRIGGER BUMPER RH	16AD762CP OUTRIGGER BUMPER RH	$136.99	1	TO
	018	16AB765SP	OUTRIGGER BUMPER BLIS RH	16AB765SP OUTRIGGER BUMPER BLIS RH	$507.76	1	TO
	019	16AF534CP	BRKT BUMPER-CLAM RH	16AF534CP BRKT BUMPER-CLAM RH	$86.29	1	TO
	020	16AF443CP	BRKT BUMPER-CLAM LH	16AF443CP BRKT BUMPER-CLAM LH	$86.29	1	TO
	021	16AF251CP	ASSY RR CAMERA CAPPING	16AF251CP ASSY RR CAMERA CAPPING	$152.32	1	TO
	022	16AC247CP	REV FOG LAMP COVER	16AC247CP REV FOG LAMP COVER	$35.54	1	TO
	16AC798CP		BRKT RR BUMPER HT SHEILD	from $40.60
023 BRKT RR BUMPER HT SHEILD $40.60 2 TO 023 BRKT RR BUMPER HT SHEILD $40.60 1 TO
	024	16AA795CP	RR CAMERA BRACKET	16AA795CP RR CAMERA BRACKET	-	1	PE	Enquire
	024	16AF150CP	RR CAMERA BRACKET	16AF150CP RR CAMERA BRACKET	$259.90	1	TO
	025	14A4456CP	COVER - BEZEL - PARKING SENSOR - REAR BUMPER	14A4456CP COVER - BEZEL - PARKING SENSOR - REAR BUMPER	$30.44	4	TO
	00RB006		SPIER CLIP - 4.2X7 2.5X5.0 8MM	-
027 SPIER CLIP - 4.2X7 2.5X5.0 8MM - 6 PE Enquire 027 SPIER CLIP - 4.2X7 2.5X5.0 8MM - 3 PE Enquire
	00RA112		TORX SCREW-WASHER 4.2X16	-
028 TORX SCREW-WASHER 4.2X16 - 6 PE Enquire 028 TORX SCREW-WASHER 4.2X16 - 3 PE Enquire
	00RA329		CLIP - M6	-
029 CLIP - M6 - 8 PE Enquire 029 CLIP - M6 - 4 PE Enquire
	00RA762		CLIP-U NUT-M5X0.8-2.1-SS-90	-
030 CLIP-U NUT-M5X0.8-2.1-SS-90 - 10 PE Enquire 030 CLIP-U NUT-M5X0.8-2.1-SS-90 - 5 PE Enquire
	031	00RA064	BOLT - M5X12 - HEX	00RA064 BOLT - M5X12 - HEX	-	4	PE	Enquire
	00RB194		CLIP - U NUT - M6	-
032 CLIP - U NUT - M6 - 2 PE Enquire 032 CLIP - U NUT - M6 - 1 PE Enquire
	00RA432		SCREW - BUTTON HEAD FL - M5X12-SS - BLACK	-
033 SCREW - BUTTON HEAD FL - M5X12-SS - BLACK - 8 PE Enquire 033 SCREW - BUTTON HEAD FL - M5X12-SS - BLACK - 2 PE Enquire
	034	00RA409	BOLT - FLANGE - M6X16 - BUTTON HEAD	00RA409 BOLT - FLANGE - M6X16 - BUTTON HEAD	-	2	PE	Enquire
	035	16AE444CP	HEATSHIELD BUMPER RR	16AE444CP HEATSHIELD BUMPER RR	-	1	PE	Enquire
	035	16AE781CP	HEATSHIELD BUMPER RR	16AE781CP HEATSHIELD BUMPER RR	$599.79	-	TO
	036	00RA309	NUT - M6-SS - HEX	00RA309 NUT - M6-SS - HEX	-	2	PE	Enquire
	037	00RC013	WASHER - M6X18X1.6	00RC013 WASHER - M6X18X1.6	-	2	PE	Enquire
	038	00RA464	SCREW - M4X12 - BUTTON HEAD - SOCKET	00RA464 SCREW - M4X12 - BUTTON HEAD - SOCKET	-	2	PE	Enquire
	039	00RA363	SCREW - TORX - 4X12	00RA363 SCREW - TORX - 4X12	-	2	PE	Enquire
	040	16AB123CP	REAR REFLECTOR FOAM	16AB123CP REAR REFLECTOR FOAM	$192.93	1	TO
	00RM023		RIVNUT - M6 - 0.7-3.3	-
041 RIVNUT - M6 - 0.7-3.3 - 4 PE Enquire 041 RIVNUT - M6 - 0.7-3.3 - 2 PE Enquire
	042	11A7405CP	CLIP - HARNESS	11A7405CP CLIP - HARNESS	$20.29	2	TO
	043	00RA492	SCREW - M4X12-8.8-84 - BUTTON HEAD TORX	00RA492 SCREW - M4X12-8.8-84 - BUTTON HEAD TORX	-	4	PE	Enquire
	044	16AE818CP	RR BUMPER ZERO CLEARANCE FOAM	16AE818CP RR BUMPER ZERO CLEARANCE FOAM	$55.84	1	TO
	045	00RA729	BOLT - M5X0.8X16-SS-90 - HEX	00RA729 BOLT - M5X0.8X16-SS-90 - HEX	-	1	PE	Enquire
	046	00RA301	Clip - Spier - M5 - 0.5/2.1-SS	00RA301 Clip - Spier - M5 - 0.5/2.1-SS	-	5	PE	Enquire
	047	16AF254CP	LICENSE PLATE PLINTH REAR FED	16AF254CP LICENSE PLATE PLINTH REAR FED	-	1	PE	Enquire
