12 - Exterior Ornamentation - 12.5 - Luggage

McLaren Artura

Find Your Part

McLaren Artura - 12 - EXTERIOR ORNAMENTATION - 12.5 - LUGGAGE

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
16AF482CP LUGGAGE BIN FRNT $699.76 To Order
16AF481CP LUGGAGE BIN FRNT-FIRE EXT $1,848.27 To Order
16AG236CP LUGGAGE BIN FRNT-NO TRIANGLE $799.72 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
13A3439CP LUGGAGE BIN - FIXING - CAP $35.54 To Order
Photo Part No Description Price (each) Stock
13A3882CP HATCH - LUGGAGE BIN - FEDERAL Enquire To Order
13A3874CP HATCH - LUGGAGE BIN - REST OF WORLD $50.34 To Order
Photo Part No Description Price (each) Stock
13A5971CP LAMP - LICENCE PLATE - LUGGAGE BIN $40.26 To Order
Photo Part No Description Price (each) Stock
11A5697CP OUTLET - 12V $130.89 To Order
Photo Part No Description Price (each) Stock
11A3519CP SWITCH - LUGGAGE COMPARTMENT - LID RELEASE - US Enquire To Order
Photo Part No Description Price (each) Stock
00RL011 EDGE CLIP - 202X4.6MM Enquire To Order
00RL011 EDGE CLIP - 202X4.6MM Enquire To Order
Photo Part No Description Price (each) Stock
00RB215 CLIP - EDGE CLAMP - LUGGAGE BIN HATCH - BLACK Enquire To Order
Photo Part No Description Price (each) Stock
00RB173 STUD - CLIP - EXPANDING Enquire To Order
Photo Part No Description Price (each) Stock
00RB172 CLIP - EXPANDING Enquire To Order
Photo Part No Description Price (each) Stock
00RA409 BOLT - FLANGE - M6X16 - BUTTON HEAD Enquire To Order

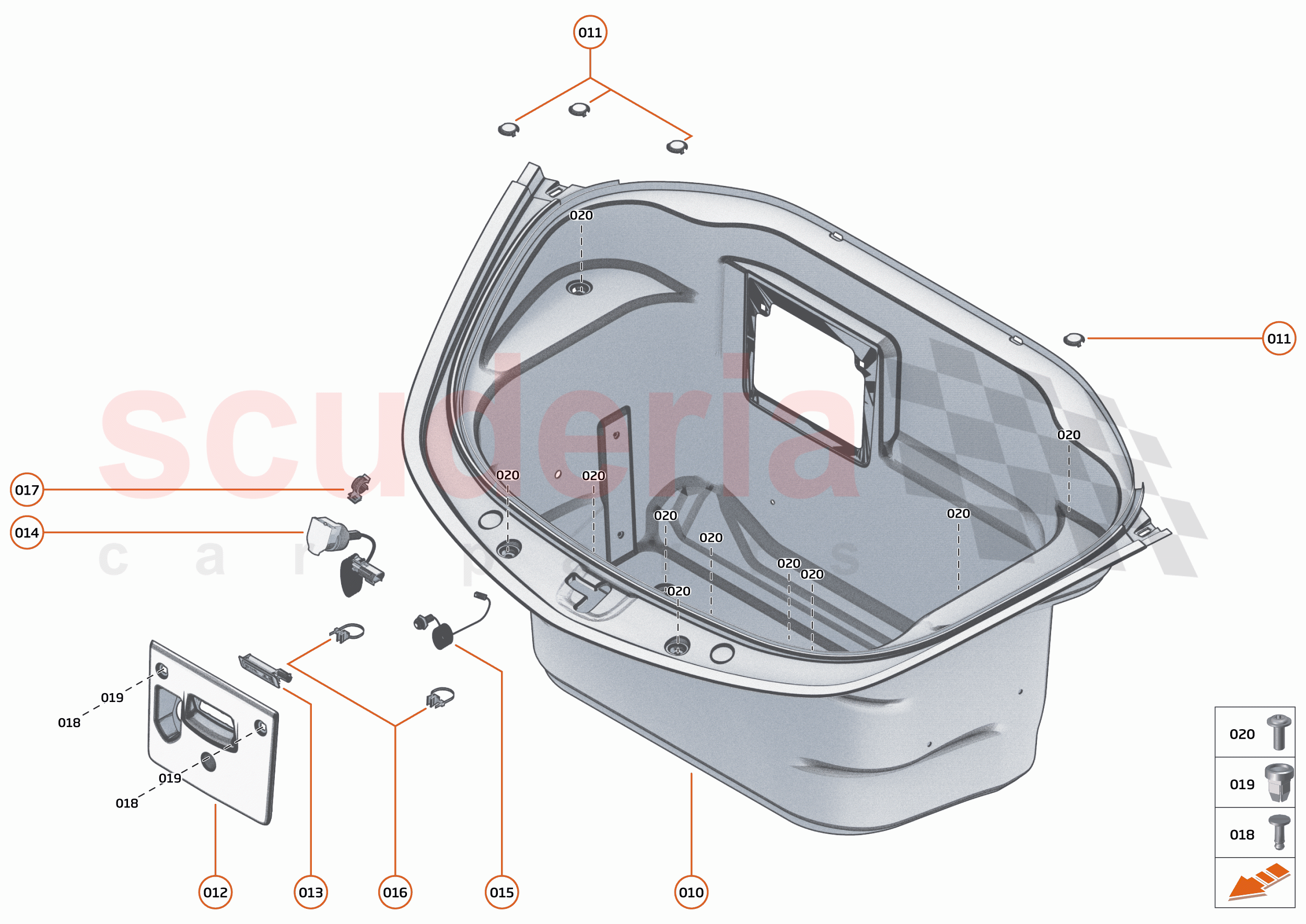

12 - EXTERIOR ORNAMENTATION - 12.5 - LUGGAGE of McLaren McLaren Artura Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 00RA826
SCR-BTN HD-TX-FL - M5X0.8X14-SS-90 		- 4
PE
 Enquire
000 00RC077
WASHER - M6X18X1.6 - STAINLESS STEEL 		- 6
PE
 Enquire
000 16AF095CP
LUGGAGE BIN SWITCH LABEL - EMERGENCY RELEASE - SURROUND STICKER 		- 1
PE
 Enquire
000 00RC129
WSHR-PLN-M6X11X1-NYL-BLK 		- 2
PE
 Enquire
010 16AF482CP
LUGGAGE BIN FRNT 		$699.76 1
TO
010 16AF481CP
LUGGAGE BIN FRNT-FIRE EXT 		$1,848.27 1
TO
010 16AG236CP
LUGGAGE BIN FRNT-NO TRIANGLE 		$799.72 1
TO
010 16AG235CP
LUGGAGE BIN FRNT-FIRE EXT - NO TRIANGLE 		- 1
PE
 Enquire
011 13A3439CP
LUGGAGE BIN - FIXING - CAP 		$35.54 4
TO
012 13A3882CP
HATCH - LUGGAGE BIN - FEDERAL 		- 1
PE
 Enquire
012 13A3874CP
HATCH - LUGGAGE BIN - REST OF WORLD 		$50.34 1
TO
013 13A5971CP
LAMP - LICENCE PLATE - LUGGAGE BIN 		$40.26 1
TO
014 11A5697CP
OUTLET - 12V 		$130.89 1
TO
015 11A3519CP
SWITCH - LUGGAGE COMPARTMENT - LID RELEASE - US 		- 1
PE
 Enquire

00RL011

EDGE CLIP - 202X4.6MM

 -
017 00RB215
CLIP - EDGE CLAMP - LUGGAGE BIN HATCH - BLACK 		- 1
PE
 Enquire
018 00RB173
STUD - CLIP - EXPANDING 		- 2
PE
 Enquire
019 00RB172
CLIP - EXPANDING 		- 2
PE
 Enquire
020 00RA409
BOLT - FLANGE - M6X16 - BUTTON HEAD 		- 10
PE
 Enquire
