Name: 12 - EXTERIOR ORNAMENTATION - 12.4 - FILLER BOWLS AND COVERS
Rating: 5.0 (1 reviews)

Diagram
INFO

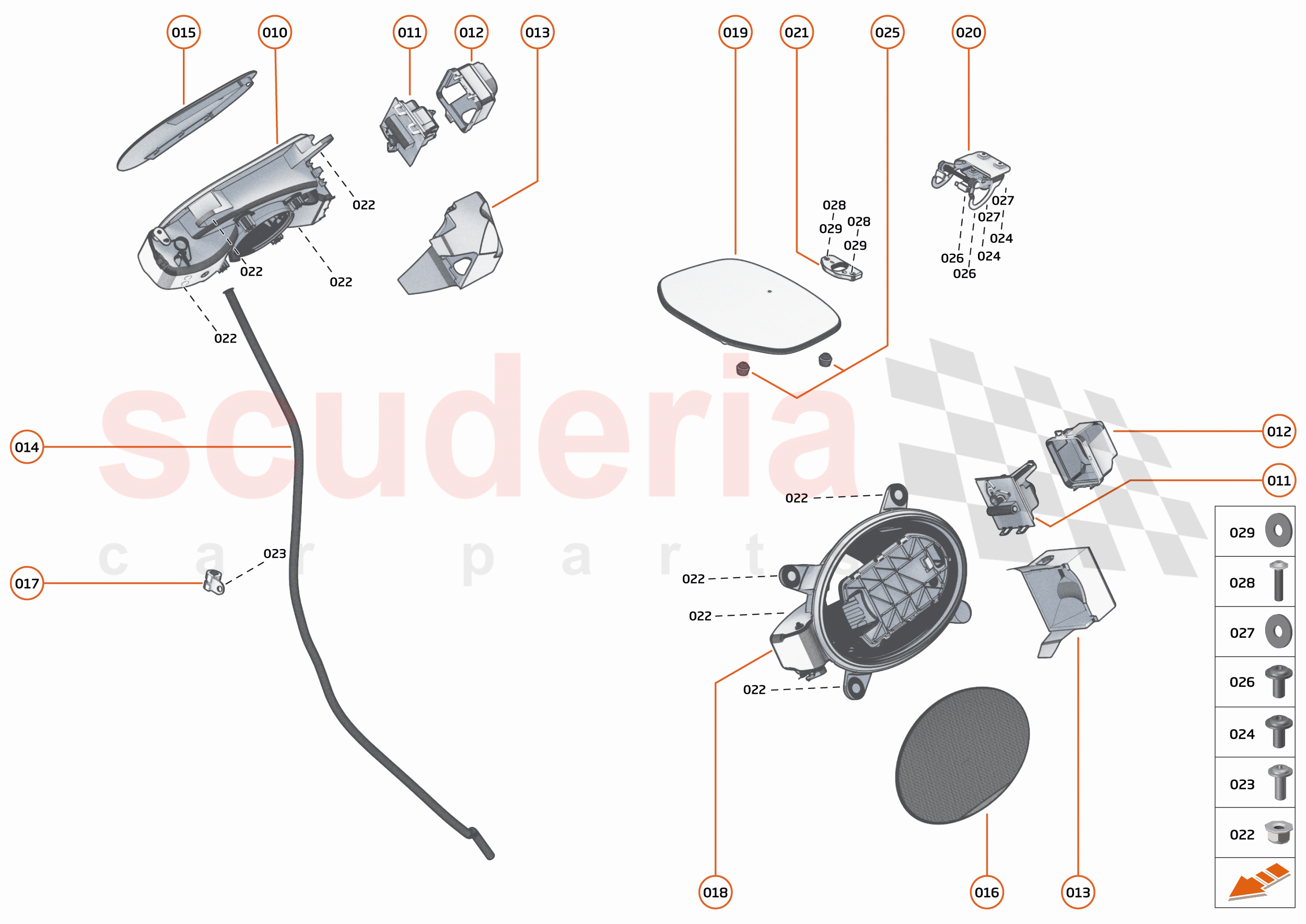

12 - EXTERIOR ORNAMENTATION - 12.4 - FILLER BOWLS AND COVERS of McLaren McLaren Artura

McLaren Artura - 12 - EXTERIOR ORNAMENTATION - 12.4 - FILLER BOWLS AND COVERS

View the exploded parts diagram to find the part you are looking for

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

TO ORDER

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	16AE046CP	ASSY-FUEL FILLER	Enquire	To Order
	16AF713CP	ASSY-FUEL FILLER	$304.64	To Order

Photo	Part No	Description	Price (each)	Stock
	13A3932CP	ACTUATOR - FUEL FILLER	$85.58	To Order
	13A3932CP	ACTUATOR - FUEL FILLER	$85.58	To Order

Photo	Part No	Description	Price (each)	Stock
	13A3933CP	HEATSHIELD - ACTUATOR HELLA	$60.90	To Order
	13A3933CP	HEATSHIELD - ACTUATOR HELLA	$60.90	To Order

Photo	Part No	Description	Price (each)	Stock
	13A5208CP	HEATSHIELD - ACTUATOR HELLA	$45.30	To Order
	13A5208CP	HEATSHIELD - ACTUATOR HELLA	$45.30	To Order

Photo	Part No	Description	Price (each)	Stock
	16AB633CP	FUEL FILLER DRAIN HOSE	$324.96	To Order

Photo	Part No	Description	Price (each)	Stock
	16AA769CP	FUEL FILLER FLAP	$121.84	To Order

Photo	Part No	Description	Price (each)	Stock
	16AA772CP	PHEV FLAP	$121.84	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB027	P-CLIP - DIAMETER 13 - M6	Enquire	To Order
	00RB040	PIPE CLIP-SINGLE D24 10	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16AE047CP	ASSY PHEV PNL	Enquire	To Order
	16AF714CP	ASSY PHEV PNL	$304.64	To Order

Photo	Part No	Description	Price (each)	Stock
	16AE517CP	ASSY PNL SERVICE COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16AE831CP	ASSY HINGE SERVICE COVER	$152.32	To Order

Photo	Part No	Description	Price (each)	Stock
	16AE709CP	LATCH RECEIVER PLATE	$284.34	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA055	NUT - M6 - LOCKING - HEX	Enquire	To Order
	00RA055	NUT - M6 - LOCKING - HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA409	BOLT - FLANGE - M6X16 - BUTTON HEAD	Enquire	To Order
	00RA409	BOLT - FLANGE - M6X16 - BUTTON HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA398	SCREW - SOCKET HEAD - FLANGED - M5X10	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA432	SCREW - BUTTON HEAD FL - M5X12-SS - BLACK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RC017	WASHER - M5X15X1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA492	SCREW - M4X12-8.8-84 - BUTTON HEAD TORX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RC129	WSHR-PLN-M6X11X1-NYL-BLK	Enquire	To Order
	00RC103	WASHER - M5X10	Enquire	To Order
	00RC048	WASHER - FORM C - 21X1.6 - M8	Enquire	To Order

Diagram Tap to enlarge

	#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Key	Add to Cart
	010	16AE046CP	ASSY-FUEL FILLER	16AE046CP ASSY-FUEL FILLER	-	1	PE	Enquire
	010	16AF713CP	ASSY-FUEL FILLER	16AF713CP ASSY-FUEL FILLER	$304.64	1	TO
	13A3932CP		ACTUATOR - FUEL FILLER	from $85.58
011 ACTUATOR - FUEL FILLER $85.58 2 TO 011 ACTUATOR - FUEL FILLER $85.58 1 TO
	13A3933CP		HEATSHIELD - ACTUATOR HELLA	from $60.90
012 HEATSHIELD - ACTUATOR HELLA $60.90 2 TO 012 HEATSHIELD - ACTUATOR HELLA $60.90 1 TO
	13A5208CP		HEATSHIELD - ACTUATOR HELLA	from $45.30
013 HEATSHIELD - ACTUATOR HELLA $45.30 2 TO 013 HEATSHIELD - ACTUATOR HELLA $45.30 1 TO
	014	16AB633CP	FUEL FILLER DRAIN HOSE	16AB633CP FUEL FILLER DRAIN HOSE	$324.96	1	TO
	015	16AA769CP	FUEL FILLER FLAP	16AA769CP FUEL FILLER FLAP	$121.84	1	TO
	016	16AA772CP	PHEV FLAP	16AA772CP PHEV FLAP PHEV FLAP;	$121.84	1	TO
	017	00RB027	P-CLIP - DIAMETER 13 - M6	00RB027 P-CLIP - DIAMETER 13 - M6	-	6	PE	Enquire
	017	00RB040	PIPE CLIP-SINGLE D24 10	00RB040 PIPE CLIP-SINGLE D24 10	-	4	PE	Enquire
	018	16AE047CP	ASSY PHEV PNL	16AE047CP ASSY PHEV PNL	-	1	PE	Enquire
	018	16AF714CP	ASSY PHEV PNL	16AF714CP ASSY PHEV PNL	$304.64	1	TO
	019	16AE517CP	ASSY PNL SERVICE COVER	16AE517CP ASSY PNL SERVICE COVER	-	1	PE	Enquire
	020	16AE831CP	ASSY HINGE SERVICE COVER	16AE831CP ASSY HINGE SERVICE COVER	$152.32	1	TO
	021	16AE709CP	LATCH RECEIVER PLATE	16AE709CP LATCH RECEIVER PLATE	$284.34	1	TO
	00RA055		NUT - M6 - LOCKING - HEX	-
022 NUT - M6 - LOCKING - HEX - 8 PE Enquire 022 NUT - M6 - LOCKING - HEX - 4 PE Enquire
	00RA409		BOLT - FLANGE - M6X16 - BUTTON HEAD	-
023 BOLT - FLANGE - M6X16 - BUTTON HEAD - 1 PE Enquire 023 BOLT - FLANGE - M6X16 - BUTTON HEAD - 4 PE Enquire
	024	00RA398	SCREW - SOCKET HEAD - FLANGED - M5X10	00RA398 SCREW - SOCKET HEAD - FLANGED - M5X10	-	2	PE	Enquire
	025	16AD963CP	BUMP STOP	16AD963CP BUMP STOP BUMP STOP;	$6.69	2	TO
	026	00RA432	SCREW - BUTTON HEAD FL - M5X12-SS - BLACK	00RA432 SCREW - BUTTON HEAD FL - M5X12-SS - BLACK	-	2	PE	Enquire
	027	00RC017	WASHER - M5X15X1.2	00RC017 WASHER - M5X15X1.2	-	2	PE	Enquire
	028	00RA492	SCREW - M4X12-8.8-84 - BUTTON HEAD TORX	00RA492 SCREW - M4X12-8.8-84 - BUTTON HEAD TORX	-	2	PE	Enquire
	029	00RC129	WSHR-PLN-M6X11X1-NYL-BLK	00RC129 WSHR-PLN-M6X11X1-NYL-BLK	-	2	PE	Enquire
	029	00RC103	WASHER - M5X10	00RC103 WASHER - M5X10	-	2	PE	Enquire
	029	00RC048	WASHER - FORM C - 21X1.6 - M8	00RC048 WASHER - FORM C - 21X1.6 - M8	-	4	PE	Enquire
	030	13A6128CP	ACTUATOR SEAL-FUEL FILLER	13A6128CP ACTUATOR SEAL-FUEL FILLER	-	1	PE	Enquire
	031	16AF389CP	PUSH-PUSH SPRING - FUEL FILLER FLAP	16AF389CP PUSH-PUSH SPRING - FUEL FILLER FLAP	-	1	PE	Enquire
