Name: 12 - EXTERIOR ORNAMENTATION - 12.3 - SIDE TRIM
Rating: 4.6 (1 reviews)

Diagram
INFO

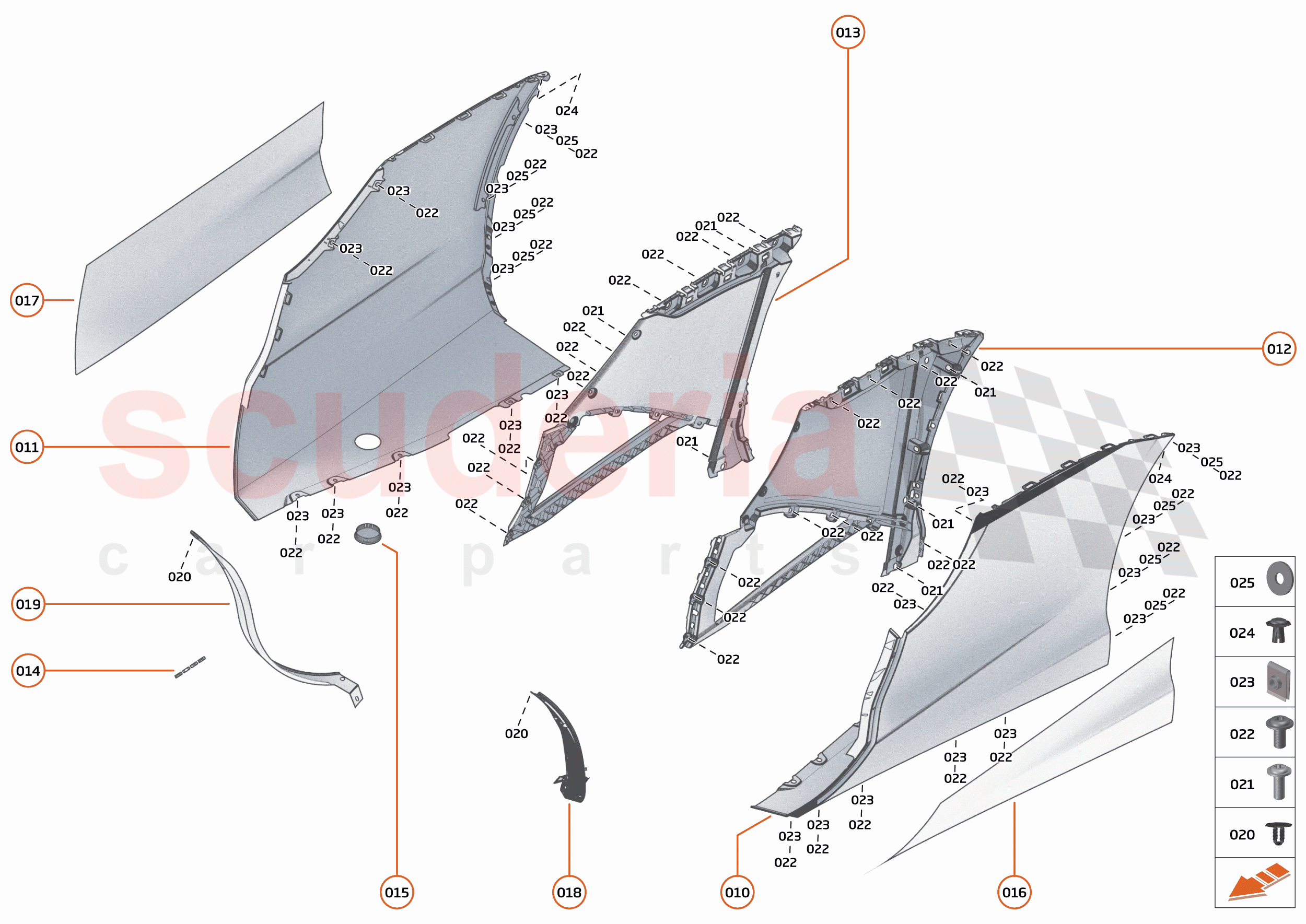

12 - EXTERIOR ORNAMENTATION - 12.3 - SIDE TRIM of McLaren McLaren Artura

McLaren Artura - 12 - EXTERIOR ORNAMENTATION - 12.3 - SIDE TRIM

View the exploded parts diagram to find the part you are looking for

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

TO ORDER

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	16AD796CP	PNL BODYSIDE RR LWR OTR LH	$295.58	To Order
	16AF626CP	PNL BODYSIDE RR LWR OTR LH	$324.96	To Order

Photo	Part No	Description	Price (each)	Stock
	16AD797CP	PNL BODYSIDE RR LWR OTR RH	$295.58	To Order
	16AF627CP	PNL BODYSIDE RR LWR OTR RH	$324.96	To Order

Photo	Part No	Description	Price (each)	Stock
	16AF305CP	PNL BODYSIDE RR LWR INR LH	$446.82	To Order

Photo	Part No	Description	Price (each)	Stock
	16AF306CP	PNL BODYSIDE RR LWR INR RH	$446.82	To Order

Photo	Part No	Description	Price (each)	Stock
	00RG067	PLUG-PROTECTIVE CAP-54MM-NYL-BLK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16AD635CP	BODYSIDE PROTECTION - LH	$152.27	To Order
	16AE941CP	BODYSIDE PROTECTION - LH	$172.62	To Order

Photo	Part No	Description	Price (each)	Stock
	16AD636CP	BODYSIDE PROTECTION - RH	$152.27	To Order
	16AE942CP	BODYSIDE PROTECTION - RH	$172.62	To Order

Photo	Part No	Description	Price (each)	Stock
	16AF338CP	DOP PROTECTOR LH	$86.29	To Order

Photo	Part No	Description	Price (each)	Stock
	16AF339CP	DOP PROTECTOR RH	$86.29	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB220	CLIP-BTN HD-FTREE-5X11-NYL-BLK	Enquire	To Order
	00RB220	CLIP-BTN HD-FTREE-5X11-NYL-BLK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA409	BOLT - FLANGE - M6X16 - BUTTON HEAD	Enquire	To Order
	00RA409	BOLT - FLANGE - M6X16 - BUTTON HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA432	SCREW - BUTTON HEAD FL - M5X12-SS - BLACK	Enquire	To Order
	00RA695	ISO 7380-2 BTN HD FL-M5X16-SS	Enquire	To Order
	00RA468	SCREW - BUTTON HEAD - FLANGE - M6X12 - BLACK	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	00RA301	Clip - Spier - M5 - 0.5/2.1-SS	Enquire	To Order
	00RB213	CLIP - U NUT - M6	Enquire	To Order
	00RA301	Clip - Spier - M5 - 0.5/2.1-SS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA223	Screw Rivet - 12x9.3mm	Enquire	To Order
	00RA223	Screw Rivet - 12x9.3mm	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RC064	WASHER - M6X18X1.6 - BLACK	Enquire	To Order
	00RC077	WASHER - M6X18X1.6 - STAINLESS STEEL	Enquire	To Order
	00RC064	WASHER - M6X18X1.6 - BLACK	Enquire	To Order

Diagram Tap to enlarge

	#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Key	Add to Cart
	000	16AG171CP	HTR TUB SEAL ADH BACK LH	16AG171CP HTR TUB SEAL ADH BACK LH	$3.84	1	TO
	010	16AD796CP	PNL BODYSIDE RR LWR OTR LH	16AD796CP PNL BODYSIDE RR LWR OTR LH	$295.58	1	TO
	010	16AF626CP	PNL BODYSIDE RR LWR OTR LH	16AF626CP PNL BODYSIDE RR LWR OTR LH	$324.96	1	TO
	011	16AD797CP	PNL BODYSIDE RR LWR OTR RH	16AD797CP PNL BODYSIDE RR LWR OTR RH	$295.58	1	TO
	011	16AF627CP	PNL BODYSIDE RR LWR OTR RH	16AF627CP PNL BODYSIDE RR LWR OTR RH	$324.96	1	TO
	012	16AF305CP	PNL BODYSIDE RR LWR INR LH	16AF305CP PNL BODYSIDE RR LWR INR LH	$446.82	1	TO
	013	16AF306CP	PNL BODYSIDE RR LWR INR RH	16AF306CP PNL BODYSIDE RR LWR INR RH	$446.82	1	TO
	015	00RG067	PLUG-PROTECTIVE CAP-54MM-NYL-BLK	00RG067 PLUG-PROTECTIVE CAP-54MM-NYL-BLK	-	1	PE	Enquire
	016	16AD635CP	BODYSIDE PROTECTION - LH	16AD635CP BODYSIDE PROTECTION - LH	$152.27	1	TO
	016	16AE941CP	BODYSIDE PROTECTION - LH	16AE941CP BODYSIDE PROTECTION - LH	$172.62	1	TO
	017	16AD636CP	BODYSIDE PROTECTION - RH	16AD636CP BODYSIDE PROTECTION - RH	$152.27	1	TO
	017	16AE942CP	BODYSIDE PROTECTION - RH	16AE942CP BODYSIDE PROTECTION - RH	$172.62	1	TO
	018	16AF338CP	DOP PROTECTOR LH	16AF338CP DOP PROTECTOR LH	$86.29	1	TO
	019	16AF339CP	DOP PROTECTOR RH	16AF339CP DOP PROTECTOR RH	$86.29	1	TO
	00RB220		CLIP-BTN HD-FTREE-5X11-NYL-BLK	-
020 CLIP-BTN HD-FTREE-5X11-NYL-BLK - 2 PE Enquire 020 CLIP-BTN HD-FTREE-5X11-NYL-BLK - 1 PE Enquire
	00RA409		BOLT - FLANGE - M6X16 - BUTTON HEAD	-
021 BOLT - FLANGE - M6X16 - BUTTON HEAD - 6 PE Enquire 021 BOLT - FLANGE - M6X16 - BUTTON HEAD - 3 PE Enquire
	00RA432		SCREW - BUTTON HEAD FL - M5X12-SS - BLACK	-
022 SCREW - BUTTON HEAD FL - M5X12-SS - BLACK - 42 PE Enquire 022 SCREW - BUTTON HEAD FL - M5X12-SS - BLACK - 9 PE Enquire
	022	00RA695	ISO 7380-2 BTN HD FL-M5X16-SS	00RA695 ISO 7380-2 BTN HD FL-M5X16-SS	-	3	PE	Enquire
	022	00RA468	SCREW - BUTTON HEAD - FLANGE - M6X12 - BLACK	00RA468 SCREW - BUTTON HEAD - FLANGE - M6X12 - BLACK	-	2	PE	Enquire
	00RA301		CLIP - SPIER - M5 - 0.5/2.1-SS	-
023 Clip - Spier - M5 - 0.5/2.1-SS - 22 PE Enquire 023 Clip - Spier - M5 - 0.5/2.1-SS - 7 PE Enquire
	023	00RB213	CLIP - U NUT - M6	00RB213 CLIP - U NUT - M6	-	2	PE	Enquire
	00RA223		SCREW RIVET - 12X9.3MM	-
024 Screw Rivet - 12x9.3mm - 2 PE Enquire 024 Screw Rivet - 12x9.3mm - 1 PE Enquire
	00RC064		WASHER - M6X18X1.6 - BLACK	-
025 WASHER - M6X18X1.6 - BLACK - 8 PE Enquire 025 WASHER - M6X18X1.6 - BLACK - 4 PE Enquire
	025	00RC077	WASHER - M6X18X1.6 - STAINLESS STEEL	00RC077 WASHER - M6X18X1.6 - STAINLESS STEEL	-	2	PE	Enquire
	026	00RG015	FIR TREE BUTTTON - 6MM - FTB017	00RG015 FIR TREE BUTTTON - 6MM - FTB017	-	-	PE	Enquire
	027	16RA003CP	COMPRESSION LIMITER M5 X 5.0MM	16RA003CP COMPRESSION LIMITER M5 X 5.0MM	$6.69	-	TO
	028	00RC134	WSHR-PLN-M8X17X1-SS-90	00RC134 WSHR-PLN-M8X17X1-SS-90	-	2	PE	Enquire
	029	00RX001	BOLT - M5X16 - HEX	00RX001 BOLT - M5X16 - HEX	-	-	PE	Enquire
	030	00RC151	WSHR-PLN-M5X17X1-SS-90	00RC151 WSHR-PLN-M5X17X1-SS-90	-	-	PE	Enquire
	031	16AB399SP	B-PILLAR TOP HAT	16AB399SP B-PILLAR TOP HAT	-	2	PE	Enquire
	032	16AB398SP	ASSY B PILLAR QTR PNL SPIDER - RH	16AB398SP ASSY B PILLAR QTR PNL SPIDER - RH	-	1	PE	Enquire
	033	16AB397SP	ASSY B PILLAR QTR PNL SPIDER - LH	16AB397SP ASSY B PILLAR QTR PNL SPIDER - LH	-	1	PE	Enquire
	034	16AG328CP	ASSY HTR LWR FOAM LH	16AG328CP ASSY HTR LWR FOAM LH	$65.98	1	TO
	035	16AG329CP	ASSY HTR LWR FOAM RH	16AG329CP ASSY HTR LWR FOAM RH	$65.98	1	TO
	036	16AE946CP	HTR LWR FOAM INNER BLOCK RH	16AE946CP HTR LWR FOAM INNER BLOCK RH	$30.44	1	TO
	037	00RA785	SCR-BTN HD-TX-FL-M6X1X25-SS-90	00RA785 SCR-BTN HD-TX-FL-M6X1X25-SS-90	-	-	PE	Enquire
	038	00RG032	Fir Tree Clip - Anixter - 066 6053	00RG032 Fir Tree Clip - Anixter - 066 6053	-	-	PE	Enquire
	039	16AE590CP	FRONT WAL DEBRIS SHIELD LH	16AE590CP FRONT WAL DEBRIS SHIELD LH	$81.23	1	TO
	040	16AE591CP	FRONT WAL DEBRIS SHIELD RH	16AE591CP FRONT WAL DEBRIS SHIELD RH	$81.23	1	TO
	041	00RC118	WASHER - M6X14.4X2.4 - BLACK	00RC118 WASHER - M6X14.4X2.4 - BLACK	-	-	PE	Enquire
	042	16AB319SP	GROMMET B-PILLAR PANEL SPIDER - 22MM	16AB319SP GROMMET B-PILLAR PANEL SPIDER - 22MM	-	4	PE	Enquire
