11 - Closures Ancillaries - 11.1 - Bonnet Latch

McLaren Artura

Find Your Part

McLaren Artura - 11 - CLOSURES ANCILLARIES - 11.1 - BONNET LATCH

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
16AA431CP LATCH BONNET $526.98 To Order
16AF943CP LATCH BONNET $479.83 To Order
Photo Part No Description Price (each) Stock
00RA002 BOLT - M8X20 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RL001 CABLE TIE - FIRTREE BASE Enquire To Order
Photo Part No Description Price (each) Stock
00RL009 TY-FAST PLATFORM-750-0-C Enquire To Order
Photo Part No Description Price (each) Stock
00RL008 CABLE TIE-SF100-18X Enquire To Order
Photo Part No Description Price (each) Stock
00RB024 CLIP - 6.0-6.5MM - FEMALE Enquire To Order
Photo Part No Description Price (each) Stock
00RB023 CLIP SPACER - 1MM - MALE Enquire To Order
Photo Part No Description Price (each) Stock
00RG019 SWIVEL - 6.5X10.5 FIRTREE BASE Enquire To Order
Photo Part No Description Price (each) Stock
00RA588 BOLT - M8X1.25X14 Enquire To Order
Photo Part No Description Price (each) Stock
13AA918CP STRIKER - BONNET - LATCH $35.54 To Order
16AF052CP BONNET STRIKER $35.54 To Order
Photo Part No Description Price (each) Stock
13A3813CP Color codes: BUMPSTOP $7.24 To Order

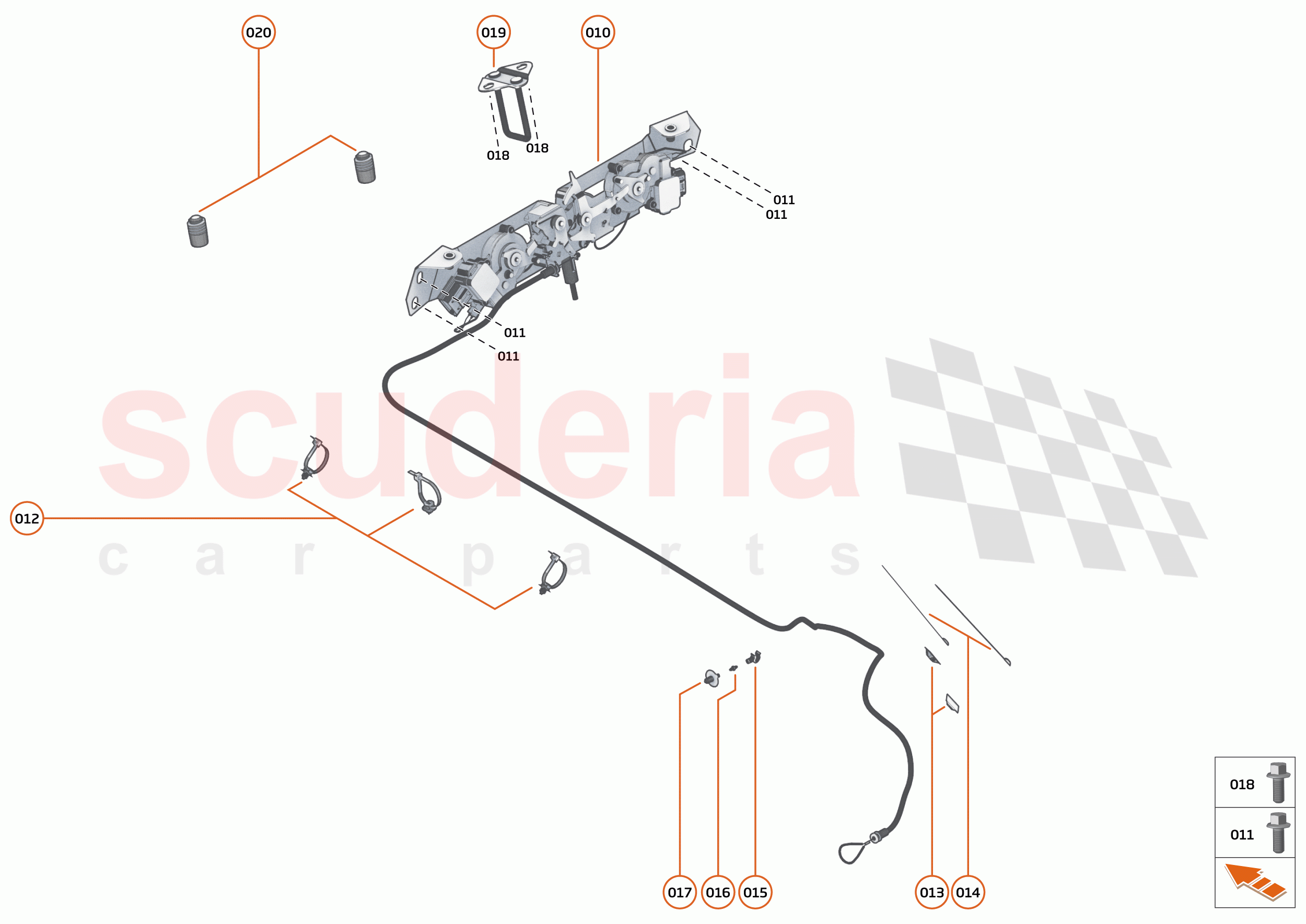

11 - CLOSURES ANCILLARIES - 11.1 - BONNET LATCH of McLaren McLaren Artura Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 16AA431CP
LATCH BONNET 		$526.98 1
TO
010 16AF943CP
LATCH BONNET 		$479.83 1
TO
011 00RA002
BOLT - M8X20 - HEX 		- 4
PE
 Enquire
012 00RL001
CABLE TIE - FIRTREE BASE 		- 3
PE
 Enquire
013 00RL009
TY-FAST PLATFORM-750-0-C 		- 2
PE
 Enquire
014 00RL008
CABLE TIE-SF100-18X 		- 2
PE
 Enquire
015 00RB024
CLIP - 6.0-6.5MM - FEMALE 		- 1
PE
 Enquire
016 00RB023
CLIP SPACER - 1MM - MALE 		- 1
PE
 Enquire
017 00RG019
SWIVEL - 6.5X10.5 FIRTREE BASE 		- 1
PE
 Enquire
018 00RA588
BOLT - M8X1.25X14 		- 2
PE
 Enquire
019 13AA918CP
STRIKER - BONNET - LATCH 		$35.54 1
TO
019 16AF052CP
BONNET STRIKER 		$35.54 1
TO
020 13A3813CP
Color codes: BUMPSTOP 		$7.24 2
TO
