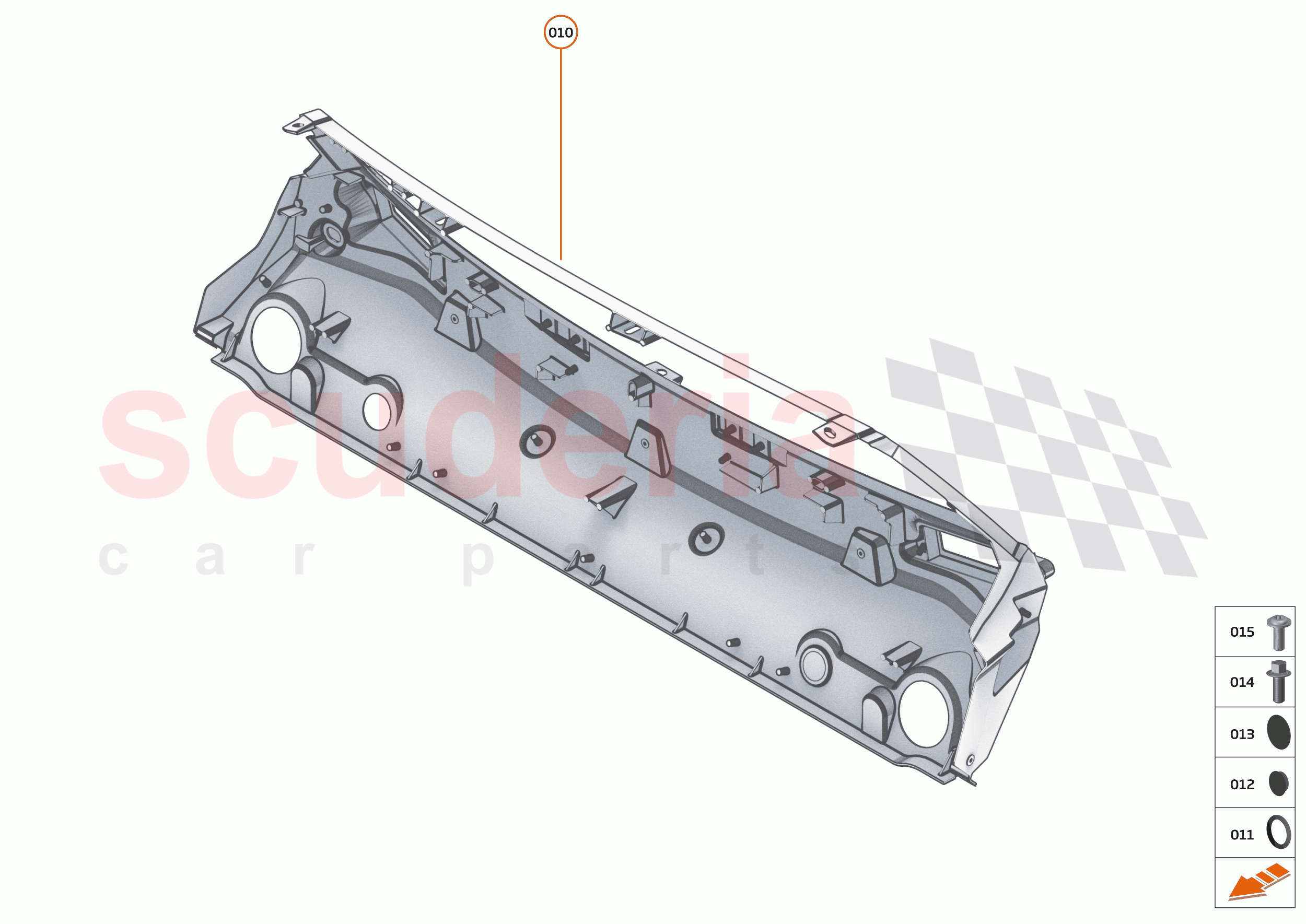

6 - PANELS - 6.2 - BULKHEAD of McLaren McLaren Artura

McLaren Artura - 6 - PANELS - 6.2 - BULKHEAD

View the exploded parts diagram to find the part you are looking for

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

TO ORDER

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	16AE388CP	ASSY BULKHEAD RR COUPE	$576.10	To Order
	16AA195SP	ACCESS HATCH SPIDER ASSY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RG047	GROMMET - OPEN - 38.1	Enquire	To Order
	16AA234SP	BRKT ENGINE COVER SPIDER LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RG050	Plug - Dome - 33 Diameter	Enquire	To Order
	16AA235SP	BRKT ENGINE COVER SPIDER RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16AC186CP	PERMANENT SEALING TAPE 32MM	$86.29	To Order
	16AB579SP	BUTYL SEAL BULKHEAD TO B-PLR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA410	BOLT - BUTTON - FLANGE - M6X40	Enquire	To Order
	16AA198SP	ACCESS HATCH FOAM SEAL SPIDER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA432	SCREW - BUTTON HEAD FL - M5X12-SS - BLACK	Enquire	To Order
	16AC186CP	PERMANENT SEALING TAPE 32MM	$86.29	To Order

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

	#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Key	Add to Cart
	010	16AE388CP	ASSY BULKHEAD RR COUPE	16AE388CP ASSY BULKHEAD RR COUPE	$576.10	1	TO
	010	16AA195SP	ACCESS HATCH SPIDER ASSY	16AA195SP ACCESS HATCH SPIDER ASSY	-	1	PE	Enquire
	00RG047		GROMMET - OPEN - 38.1	-
011 GROMMET - OPEN - 38.1 - 2 PE Enquire 021 GROMMET - OPEN - 38.1 - 2 PE Enquire
	011	16AA234SP	BRKT ENGINE COVER SPIDER LH	16AA234SP BRKT ENGINE COVER SPIDER LH	-	1	PE	Enquire
	00RG050		PLUG - DOME - 33 DIAMETER	-
012 Plug - Dome - 33 Diameter - 2 PE Enquire 022 Plug - Dome - 33 Diameter - 2 PE Enquire
	012	16AA235SP	BRKT ENGINE COVER SPIDER RH	16AA235SP BRKT ENGINE COVER SPIDER RH	-	1	PE	Enquire
	16AC186CP		PERMANENT SEALING TAPE 32MM	from $86.29
013 PERMANENT SEALING TAPE 32MM $86.29 2 TO 015 PERMANENT SEALING TAPE 32MM $86.29 2 TO
	013	16AB579SP	BUTYL SEAL BULKHEAD TO B-PLR	16AB579SP BUTYL SEAL BULKHEAD TO B-PLR	-	2	PE	Enquire
	014	00RA410	BOLT - BUTTON - FLANGE - M6X40	00RA410 BOLT - BUTTON - FLANGE - M6X40	-	2	PE	Enquire
	014	16AA198SP	ACCESS HATCH FOAM SEAL SPIDER	16AA198SP ACCESS HATCH FOAM SEAL SPIDER	-	1	PE	Enquire
	00RA432		SCREW - BUTTON HEAD FL - M5X12-SS - BLACK	-
015 SCREW - BUTTON HEAD FL - M5X12-SS - BLACK - 14 PE Enquire 026 SCREW - BUTTON HEAD FL - M5X12-SS - BLACK - 8 PE Enquire
	016	00RE028	EDGE PROTECTOR-ESG	00RE028 EDGE PROTECTOR-ESG	-	4	PE	Enquire
	017	00RA313	SCREW - M6X16 - HEX - SILVER	00RA313 SCREW - M6X16 - HEX - SILVER	-	-	PE	Enquire
	018	00RC077	WASHER - M6X18X1.6 - STAINLESS STEEL	00RC077 WASHER - M6X18X1.6 - STAINLESS STEEL	-	12	PE	Enquire
	019	00RC152	WSHR-PLN-9.2X16.8X2.6-SS-90	00RC152 WSHR-PLN-9.2X16.8X2.6-SS-90	-	4	PE	Enquire
	020	16AC902CP	WSS ADHESIVE BACKED GASKET	16AC902CP WSS ADHESIVE BACKED GASKET	-	4	PE	Enquire
	023	00RA821	BLT-HX HD-FL-M6X1X50-8.8-82	00RA821 BLT-HX HD-FL-M6X1X50-8.8-82	-	2	PE	Enquire
	024	00RA689	BTN HD FL-M6X12-SS BLACK TORX - BTN HD FL-M6X12-SS BLACK TORX	00RA689 BTN HD FL-M6X12-SS BLACK TORX - BTN HD FL-M6X12-SS BLACK TORX	-	4	PE	Enquire
	025	00RA055	NUT - M6 - LOCKING - HEX	00RA055 NUT - M6 - LOCKING - HEX	-	10	PE	Enquire
	027	00RC151	WSHR-PLN-M5X17X1-SS-90	00RC151 WSHR-PLN-M5X17X1-SS-90	-	8	PE	Enquire
	028	16AB558SP	ASSY ENGINE COVER SPIDER	16AB558SP ASSY ENGINE COVER SPIDER	-	-	PE	Enquire
	029	16A0804SP	ASSY BULKHEAD RR SPIDER	16A0804SP ASSY BULKHEAD RR SPIDER	-	-	PE	Enquire
